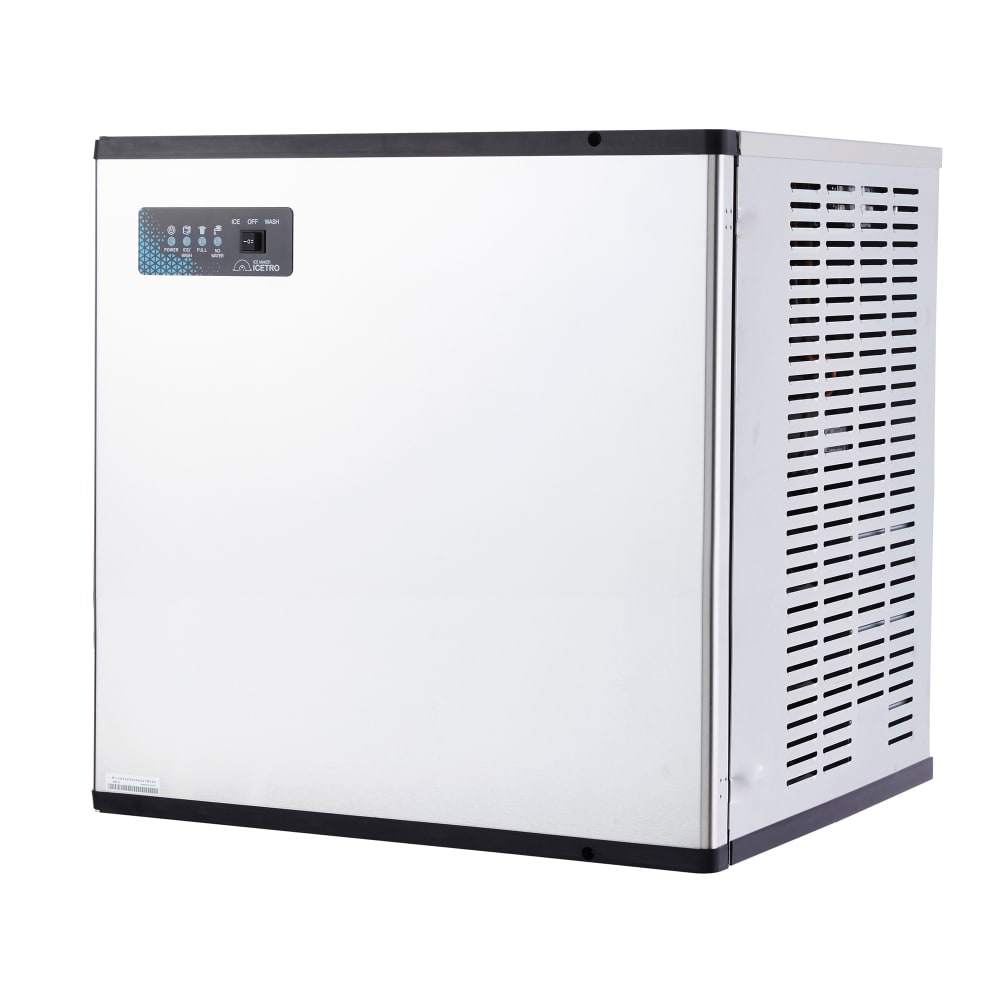

ICETRO IM-1100-AH 30" Maestro Half Cube Ice Machine Head - 1106 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 4 - 8 Business Days
Retail Price: $13,376.00
$6,688.00 /Each
Selected Ice Type: Half Cube
ICETRO IM-1100-AH Description
Designed for high-output applications, the ICETRO IM-1100-AH Maestro half cube ice machine head features an air-cooled, self-contained condenser that optimizes performance while minimizing heat buildup. This unit produces up to 1,106 pounds of half cube ice per day under ideal conditions. Its 304 stainless steel exterior resists rust and corrosion, while the ABS antimicrobial interior helps reduce bacterial growth. A simple diagnostic panel assists with system monitoring, and an auto cleaning cycle paired with an adjustable flush time helps control scale accumulation.
The ICETRO IM-1100-AH half cube ice machine head is engineered for simplified maintenance with a magnetic condenser air filter that captures debris and improves cooling efficiency. A heavy-duty water curtain, pins, and hangers enhance ice formation, while the water distributor tube and sump can be removed without tools for quick servicing. The unit’s hinged front doors provide easy access to internal components, and the side and top ventilation system optimizes airflow. Additionally, its improved evaporator section reduces airborne contaminants.
- 1,106-lb. daily ice production
- Half cube ice
- 304 stainless steel exterior
- ABS antimicrobial interior
- Heavy-duty water curtain, pins, and hangers
- Hinged front doors
- No screws on side or back panels
- Side and top ventilation
- Magnetic condenser air filter
- Air-cooled, self-contained condenser
- R-404A refrigerant
- Simple diagnostic panel
- Auto cleaning cycle
- Adjustable flush time
- Water distributor tube and sump removable without tools
- Evaporator section
- Bin not included
- 30 in. W x 24 4⁄5 in. D x 30 3⁄10 in. H
- 4.99 kW
- 208-230 V/60 Hz/1 ph (hardwire installation required)
*Image may not depict product color, inclusions or accessories.
*Free shipping on ICETRO IM-1100-AH within the 48 contiguous states.
From The Manufacturer
Maestro Modular Ice Maker, cube-style, 30"W, air-cooled, self-contained condenser, production capacity up to 1106 lbs/24 hr at 70°/50° (873 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, half-size cubes, 208-230v/60/1-ph, CE, cETLus, ETL-Sanitation
Watch a video about this product
ICETRO IM-1100-AH Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | ICETRO |
| 24 Hr. Production (lb) | 1106 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.8 |
| Height (in) | 30.3 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Maestro |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 262.00 |
