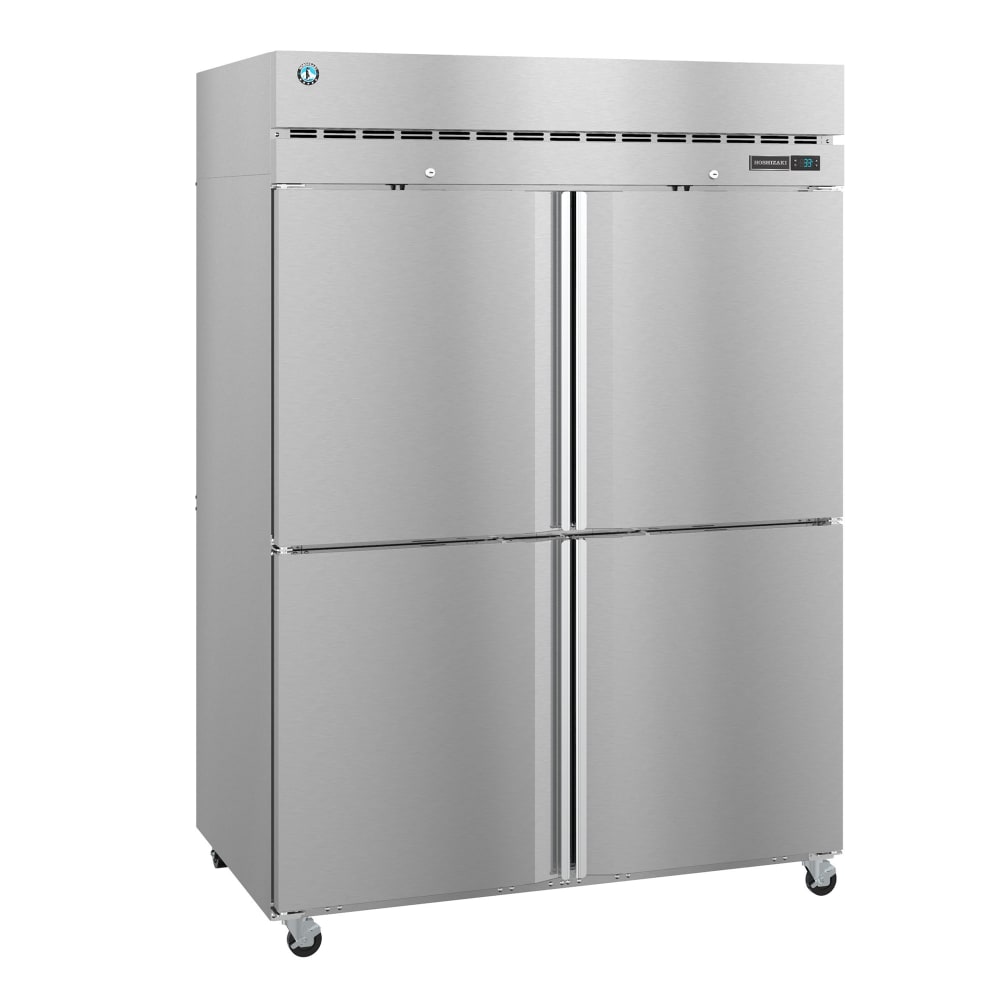

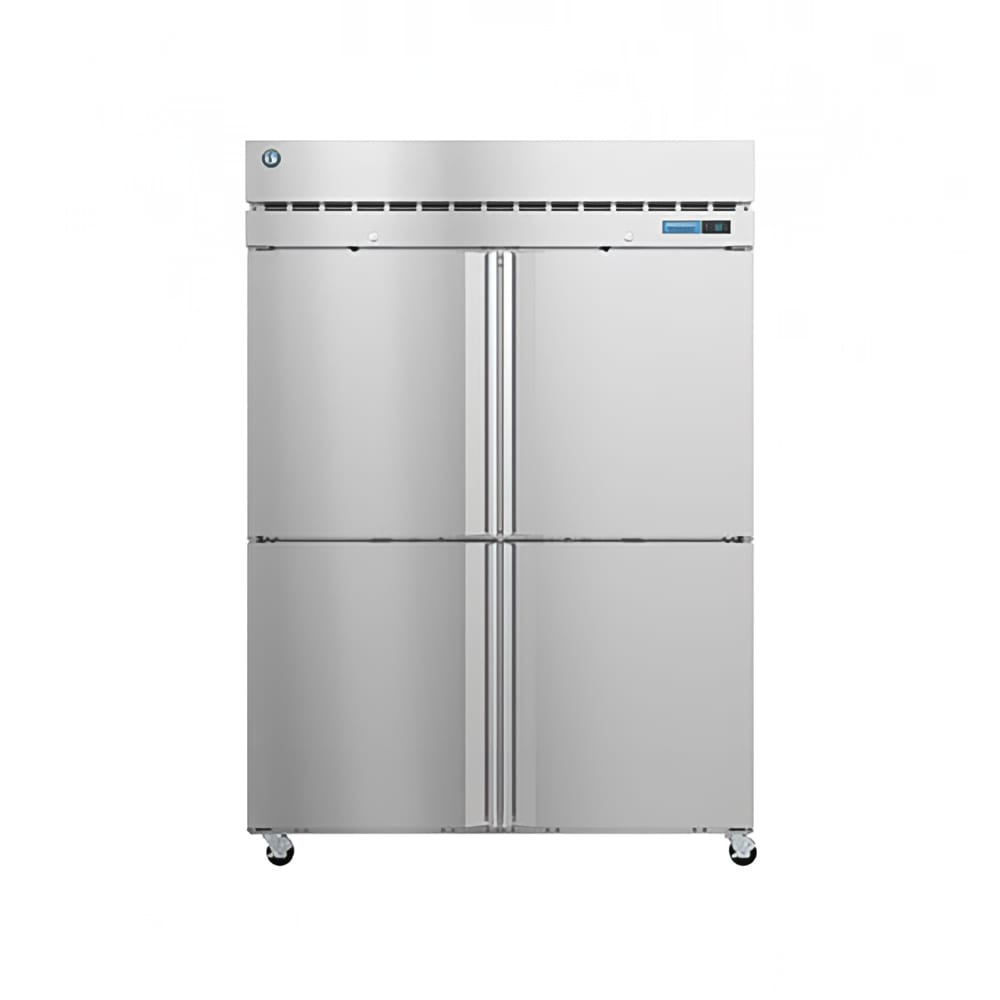

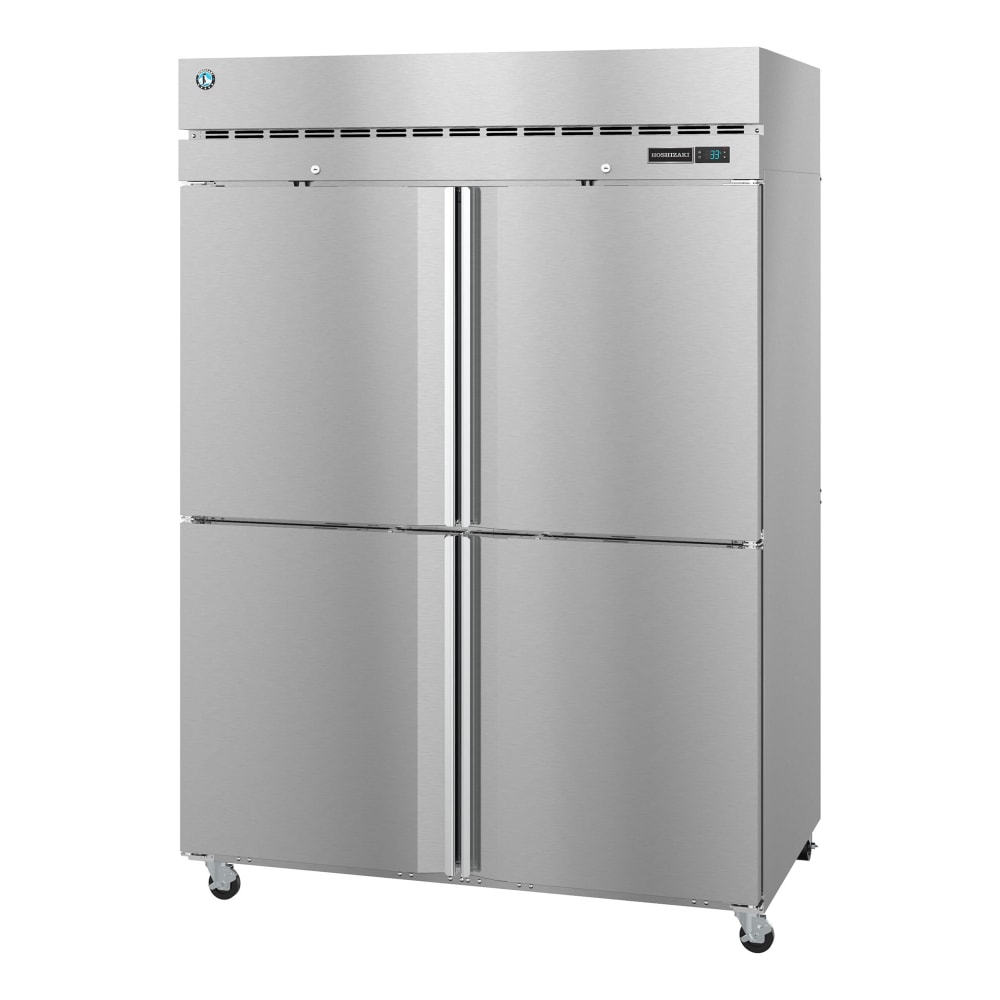

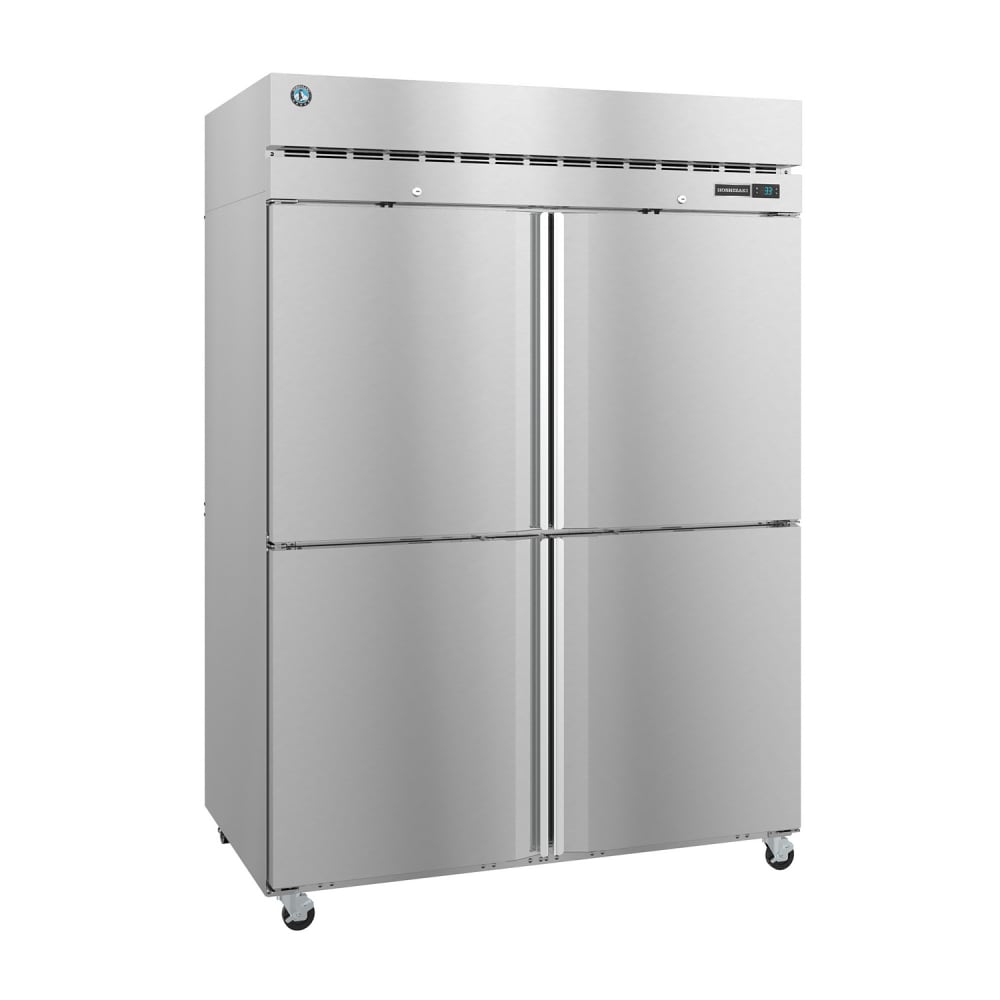

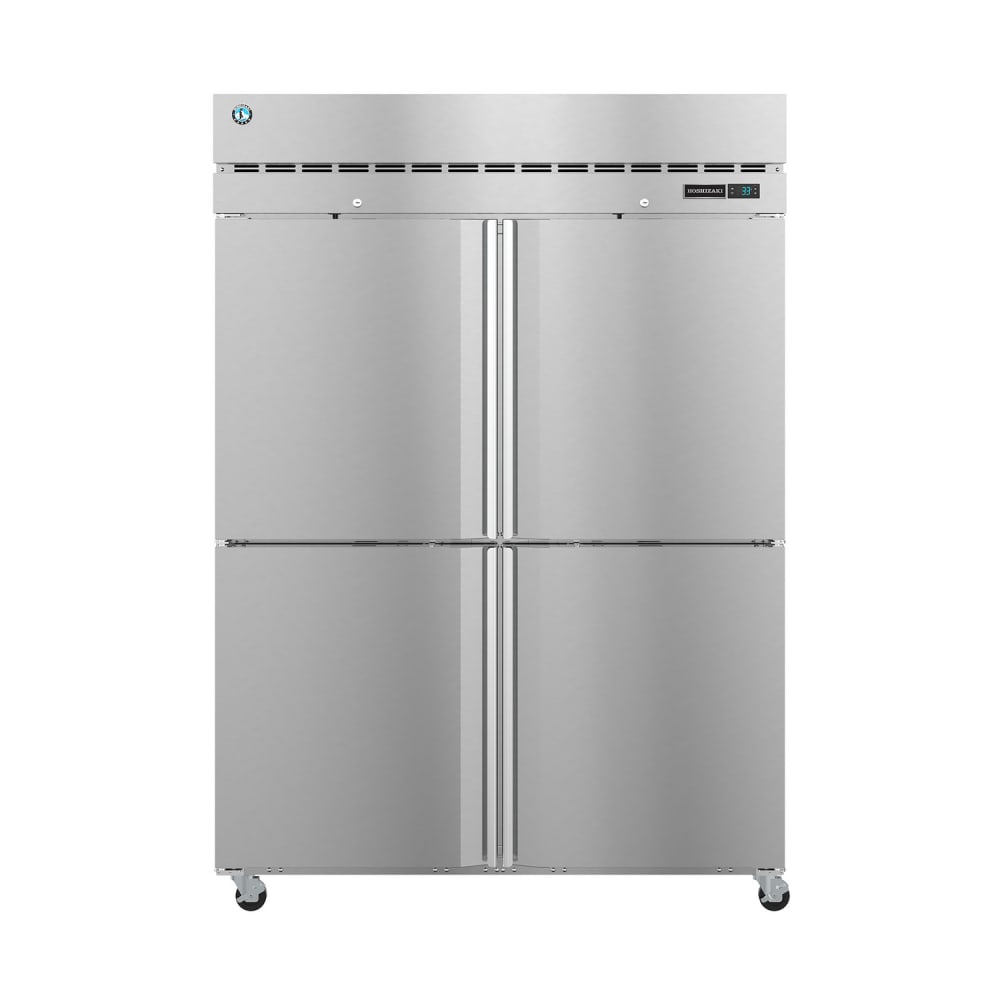

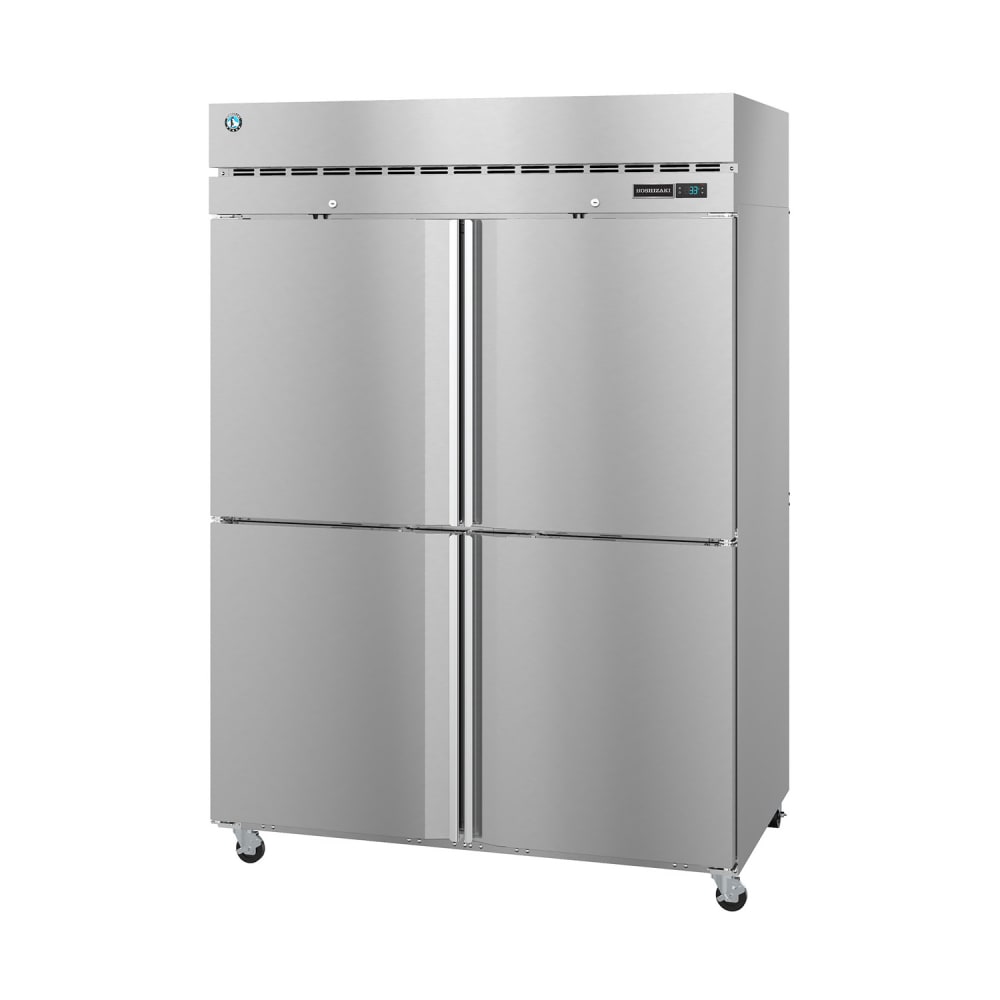

Hoshizaki R2A-HS Steelheart 55" Two Section Reach In Refrigerator, (4) Left/Right Hinge Solid Doors, 115v

The six shelves in the Hoshizaki R2A-HS Steelheart two-section refrigerator provide storage space in crowded kitchens. It has two sections, each with two half-height doors; with this layout, the cabinet is separated into sections to reduce heat transfer into the interior. These doors are solid, so they minimize cold air loss and don't provide an interior view. Retaining cold air, the doors have a self-closing design and, past a certain angle, they stay open for product stocking.

The Hoshizaki R2A-HS two-section reach-in refrigerator's refrigeration system is top mounted to position components away from floor dirt and debris. This system has digital temperature controls and a digital display so users can monitor the level. It uses R290 hydrocarbon refrigerant that's metered by a thermostatic expansion valve.

Product Details

• 50.37-cu.-ft. interior space
• 2 sections
• 6 epoxy-coated wire shelves
• Efficient LED interior lighting
• 4 hinged, solid half doors
• Self-closing doors stay open for loading and unloading
• Door locks secure stored items
• Recessed door gasket reduces cold air leaks
• 1-piece, chrome handle on the door
• Stainless steel interior and exterior top, front, and sides
• 2.38-in. polyurethane insulation is foamed in place to retain cold air
• (4) 4-in. durable casters; 2 have brakes
• 513-BTU heat transfer capacity
• 1,545-BTU nominal compressor capacity
• Part of the Steelheart series

Self-contained Refrigeration System

• Top mounted away from debris and dirt on the floor
• Unique, ducted air system evenly distributes air to eliminate hot spots
• Digital temperature controls and display (Fahrenheit or Celsius)
• Temperature alarms notify operators when the level exceeds the safe range
• Thermostatic expansion valve
• R290 hydrocarbon refrigerant
• Epoxy coating on the evaporator coils resists corrosion
• Automatic hot gas condensate evaporator

Dimensions & Utilities

• Shelves: 21.25 in. W x 26 in. D
• Overall: 55 in. W x 33.5 in. D x 79.5 in. H
• 7.1 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

*Free shipping on Hoshizaki R2A-HS within the 48 contiguous states.

From The Manufacturer

Steelheart Series Refrigerator, reach-in, two-section, 50.37 cu. ft., top mounted self-contained refrigeration, (6) epoxy coated wire shelves, (4) half-height solid hinged doors, digital temperature display/controls, LED interior lighting, stainless steel exterior front & sides, stainless steel interior, (4) 4" heavy duty casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/2 HP, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-Year Compressor

Hoshizaki R2A-HS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
