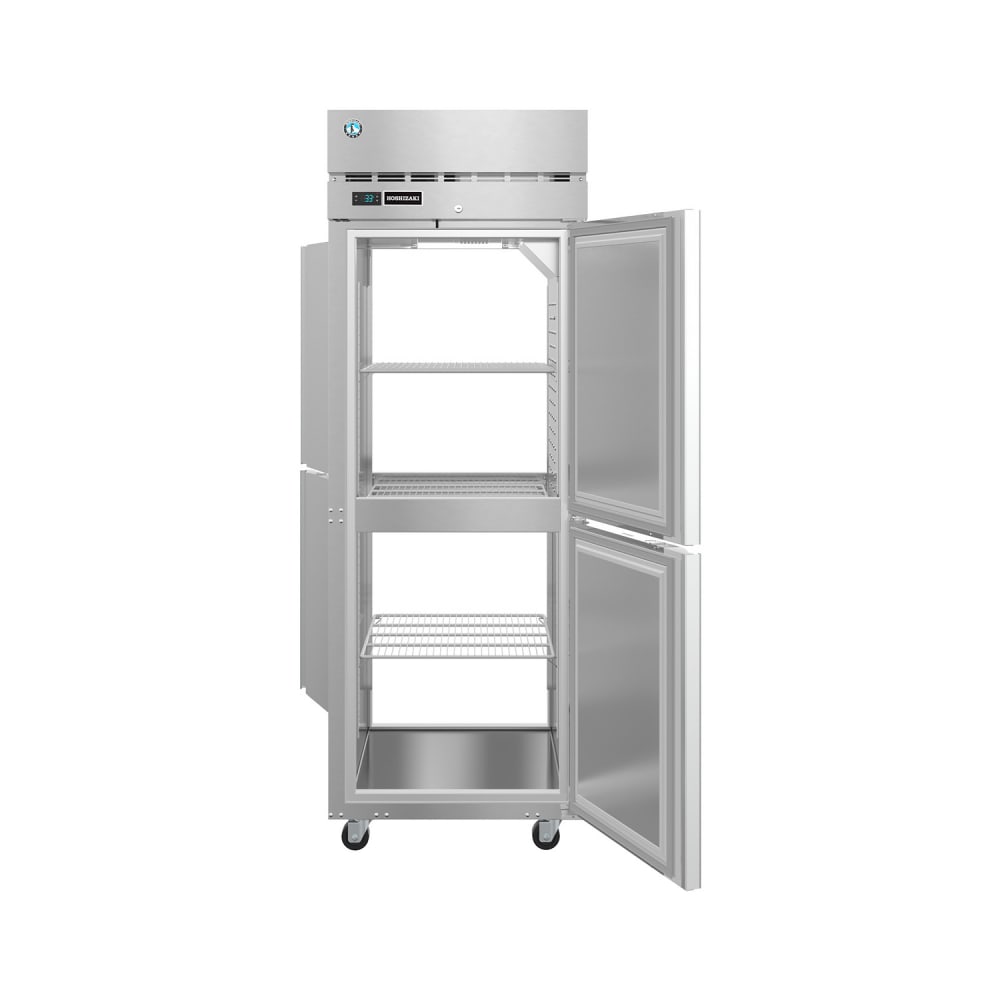

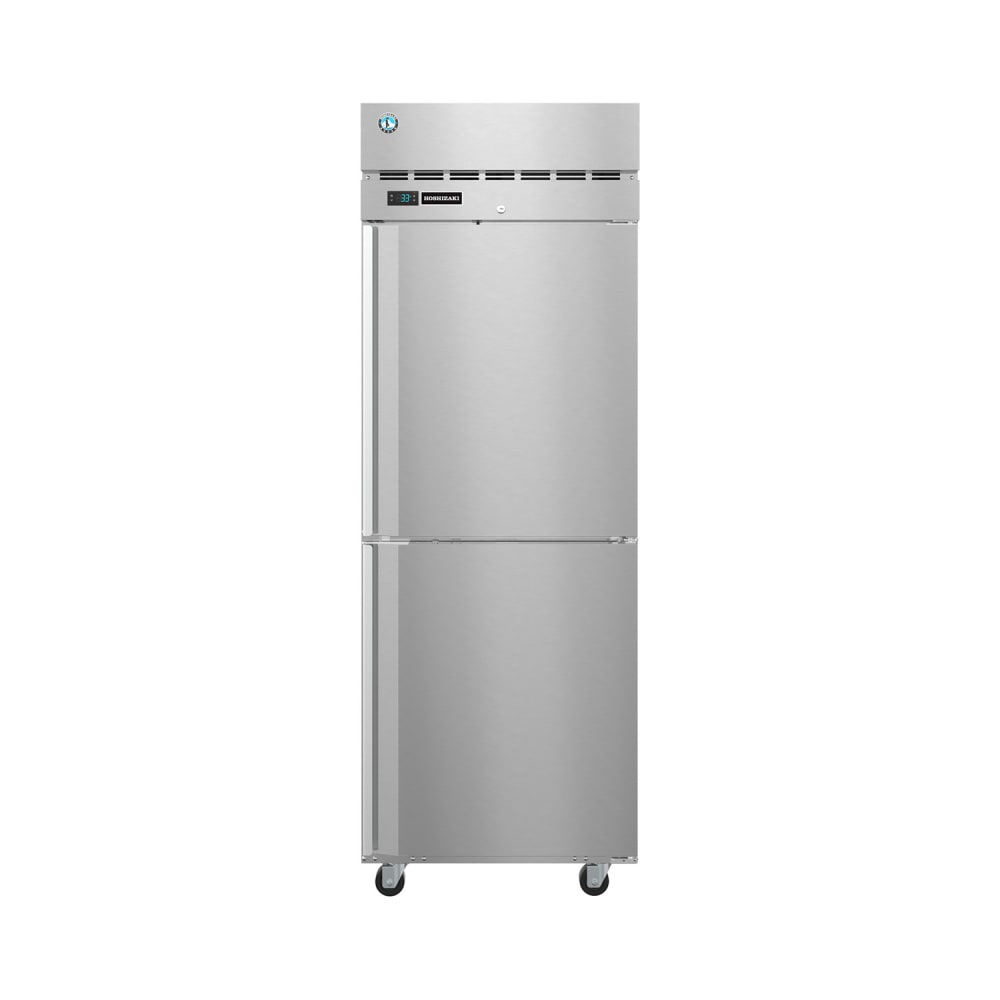

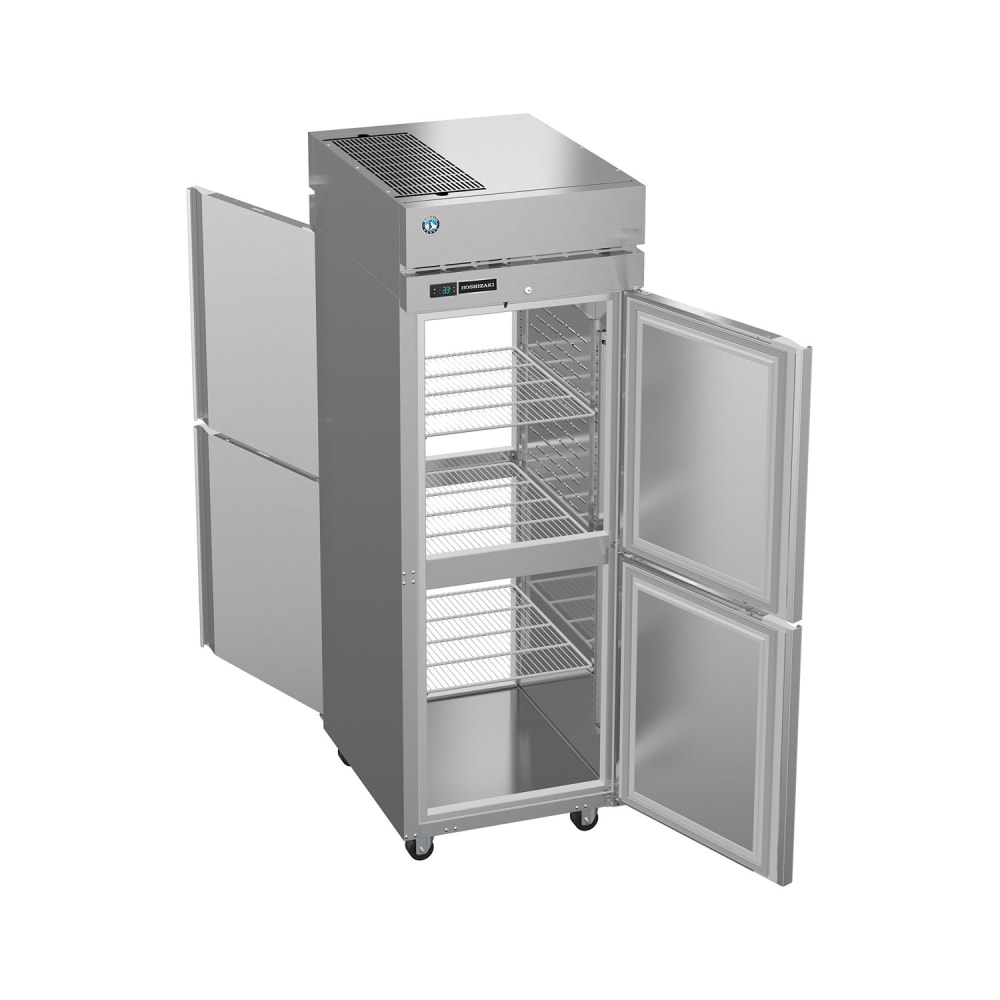

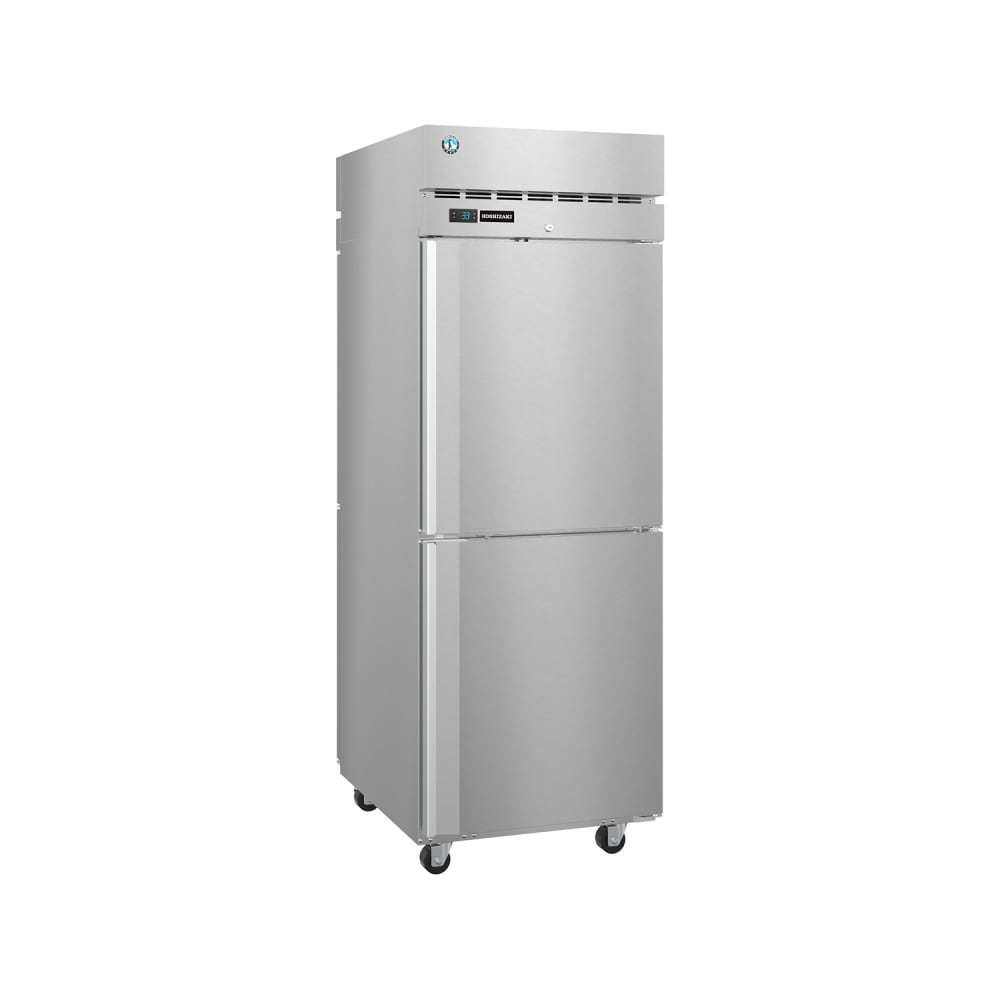

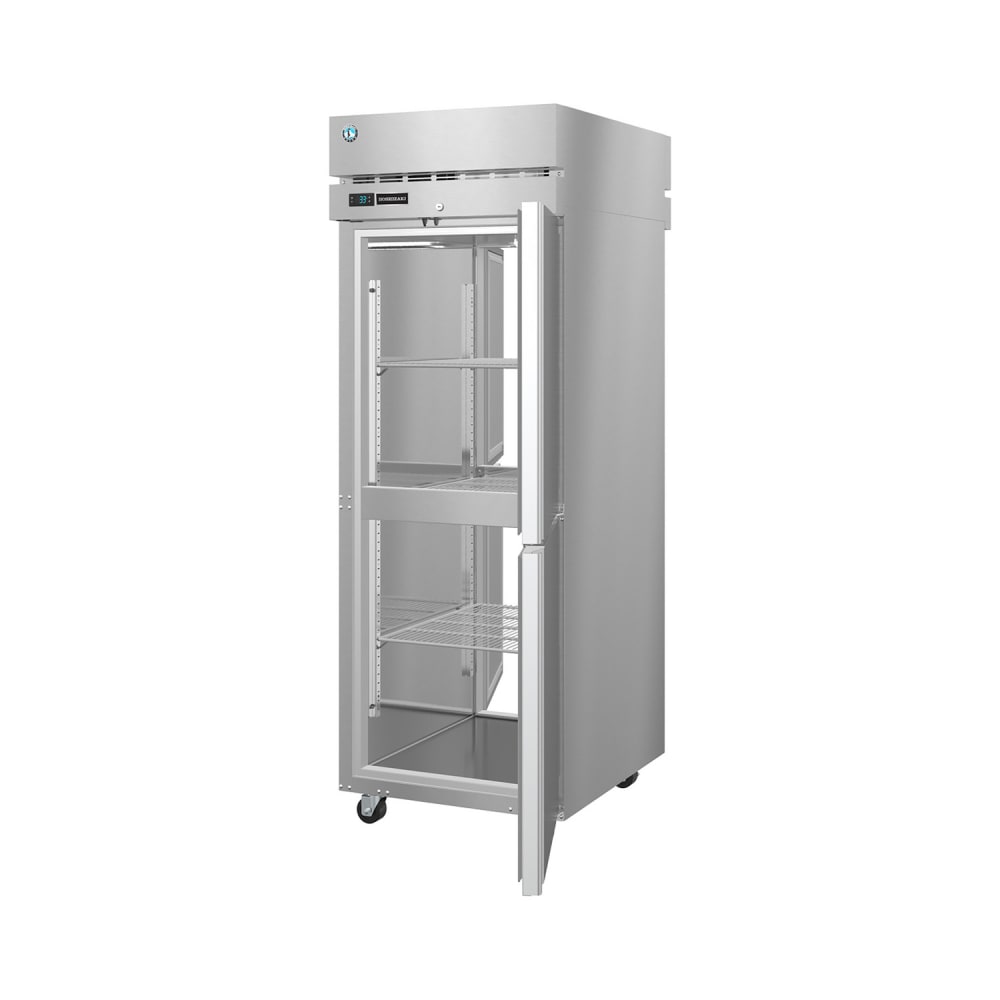

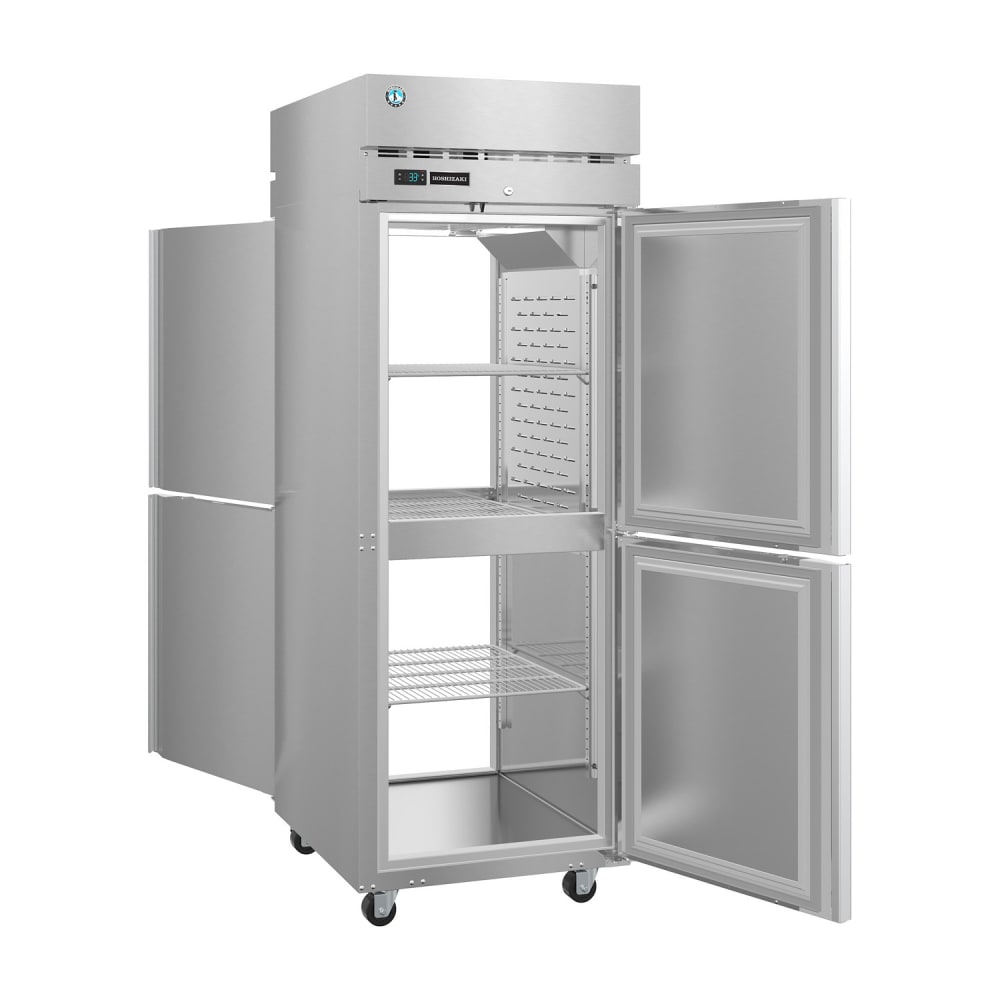

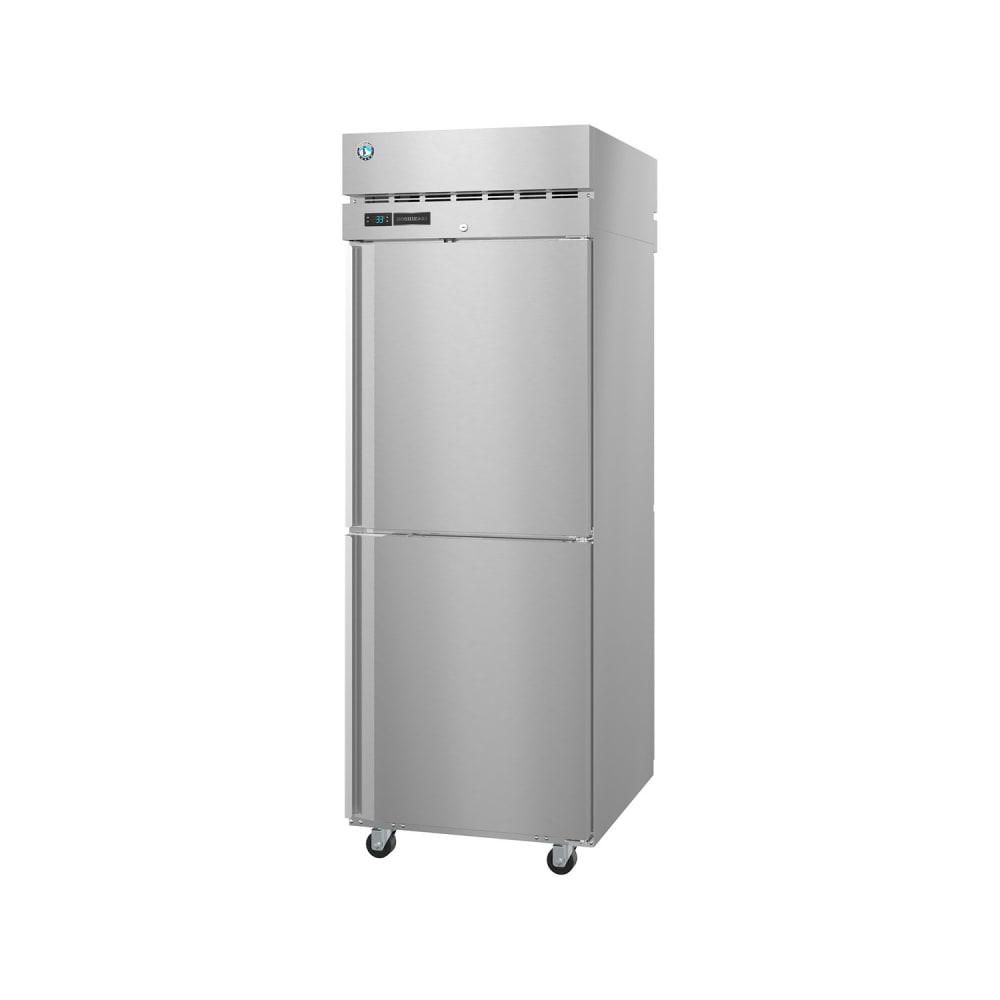

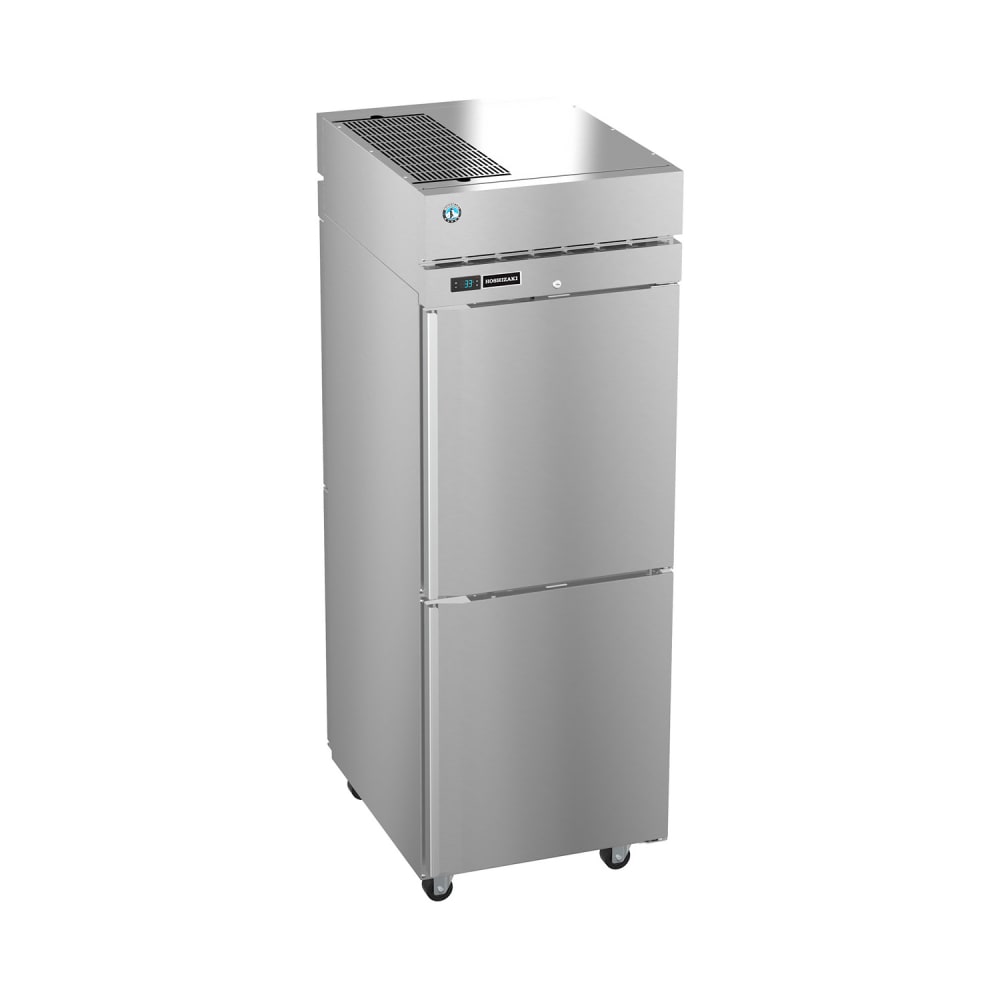

Hoshizaki PT1A-HS-HS Steelheart 27 1/2" One Section Pass Thru Refrigerator - (4) Right Hinge Solid Doors, 115v

The Hoshizaki PT1A-HS-HS pass-thru refrigerator has a total holding capacity of 24.2 cubic feet, giving users lots of space to store ingredients or finished products. Users can arrange products on three wire shelves held up by stainless steel supports. This pass-thru refrigerator enables users to conserve energy—it has half doors to limit cold air loss when it's opened.

The Hoshizaki PT1A-HS-HS single-section refrigerator produces cold air with a self-contained refrigeration system. This condenser uses R290 refrigerant, which is an eco-friendly hydrocarbon. To ensure a long lifespan through extensive use, the system's evaporator coils are coated with epoxy.

Product Details

• Part of the Steelheart series
• 24.2-cu.-ft. capacity
• Holding temperature range: 31-52 degrees F
• 1 pass-thru section
• Solid, self-closing Dutch doors are made of stainless steel
• Flush-mount door handle is made of extruded aluminum
• Door opening direction can be reversed in the field
• Top-mounted refrigeration system is self-contained
• Evaporator coils are epoxy coated for corrosion resistance
• Thermal expansion valve system
• Solid-state digital controller
• Temperature alarms
• Front, top, interior, and sides are made of stainless steel
• Interior LED light helps users see products
• LED display
• Stainless steel shelf supports with 3 adjustable, epoxy-coated wire shelves
• Mounted on 4-in. casters for mobility; 2 casters brake
• 348-BTU heat transfer capacity
• Ideal ambient temperature range: 45-100 degrees F

Product Features

Dimensions & Utilities

• 27.5 in. W x 35.75 in. D x 79.5 in. H
• 5 A, 1.31 kW, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

*Free shipping on Hoshizaki PT1A-HS-HS within the 48 contiguous states.

From The Manufacturer

Steelheart Refrigerator, 24.2 cu ft, pass-thru, one section, half stainless steel doors, top mount refrigeration, stainless steel interior, front, sides, and top, interior LED light, R290 hydrocarbon refrigerant, solid state digital controller, temperature alarms, LED display, self-closing doors, extruded aluminum flush-mount door handle, field reversible doors, epoxy-coated evaporator coils, expansion valve, stainless steel shelf supports, (3) epoxy coated wire shelves, 4" casters, 10 ft cord and plug, 27.5"W x 35.75"D x 79.5"H, 5 amps, 115v/60/1ph, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

6-year Parts; 5-year Labor; 7-year Compressor Parts

Hoshizaki PT1A-HS-HS Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Optional Accessories

Certifications
