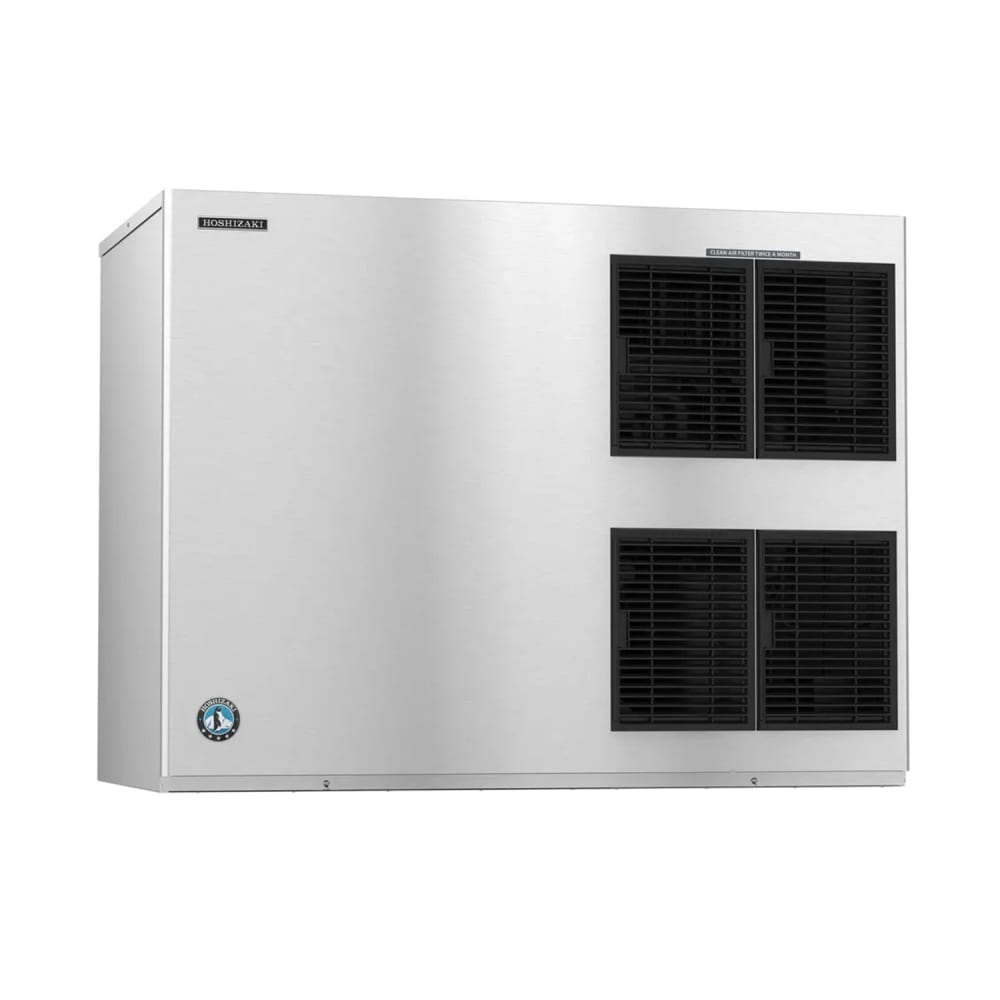

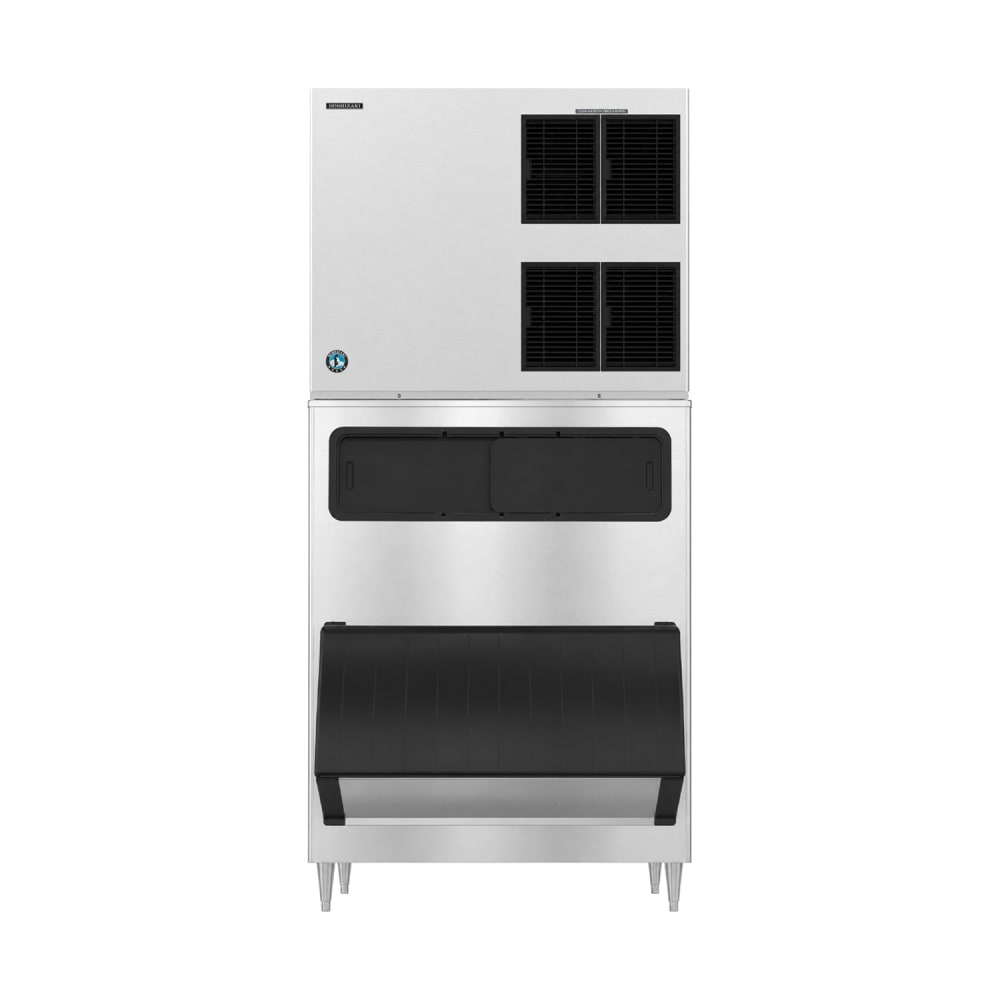

Hoshizaki KM-1900SAJ/B-1300SS 1875 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Air Cooled, 208-230v

In ideal conditions, the Hoshizaki KM-1900SAJ/B-1300SS ice maker with bin produces as much as 1,875 pounds of crescent cube ice, although hot temperatures will slow ice production. Its self-contained condenser is air cooled and uses R404A refrigerant. To maintain this unit, the interior mechanisms are protected from harmful bacteria with an antimicrobial agent.

The Hoshizaki KM-1900SAJ/B-1300SS ice maker's bin is lined with seamless polyethylene, and its walls are fully insulated to keep ice at proper serving temperatures. For retrieval and inspection, the hinged bottom door and view window provide users with access to ice. Armed with an antimicrobial agent, an ice scoop is included for sanitary scooping.

Ice Maker Details

• 1,875-lb. maximum daily ice production
• 1,675-lb. AHRI-certified daily ice production
• Produces individual crescent cubes
• Crescent cube ice size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Integrated H-Guard Plus microbial agent protects against bacterial growth
• Air-cooled, self-contained condenser
• Stainless steel evaporator
• Uses an EverCheck™ alert system
• Stackable to save space
• Uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG

Product Features

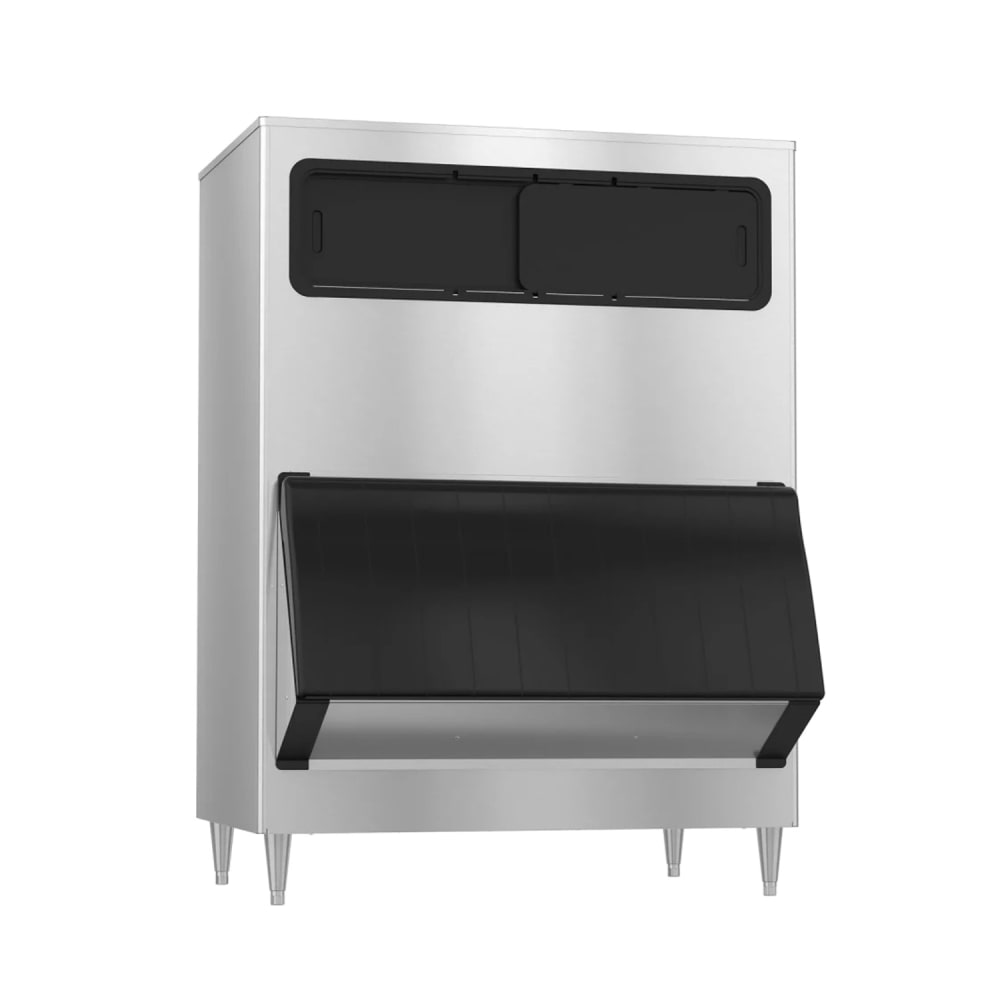

Ice Bin Details

• 1,304-lb. application capacity
• Bin walls and bottom are insulated to preserve ice
• Baffle design makes ice accessible
• Pouch-style door, walls, and bottom are insulated
• Hinged bottom door and top view window
• Unit's height can be adjusted with 6-in. stainless steel legs
• Includes an 82-oz. ice scoop protected by H-Guard Plus antimicrobial agent

Dimensions & Utilities

• Ice Maker
• 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 36⁷⁄₁₆ in. H
• 14.5 A
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 48 in. W x 41 in. D x 66³⁄₁₆ in. H

*Free shipping on Hoshizaki KM-1900SAJ/B-1300SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1875 lb/24 hours at 70°/50° (1675 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 14.5 amps, NSF, UL, ENERGY STAR®

Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1900SAJ/B-1300SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
