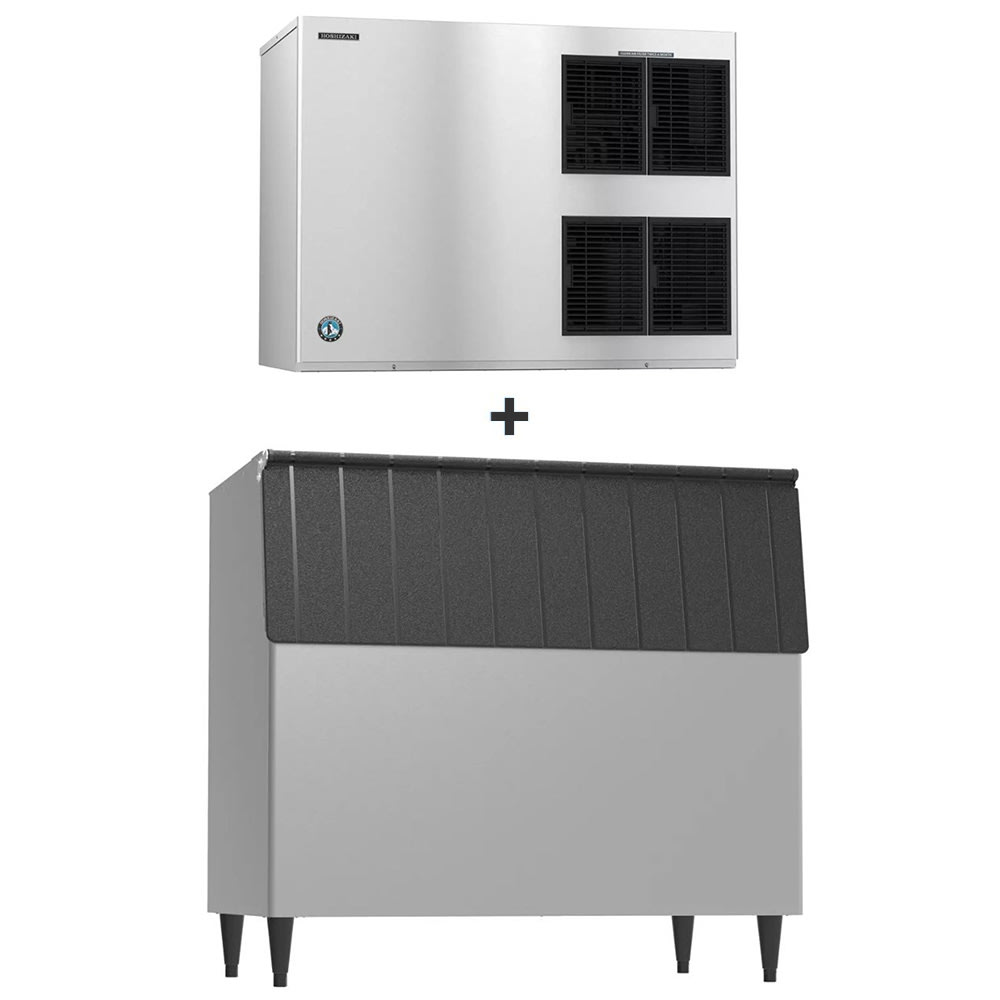

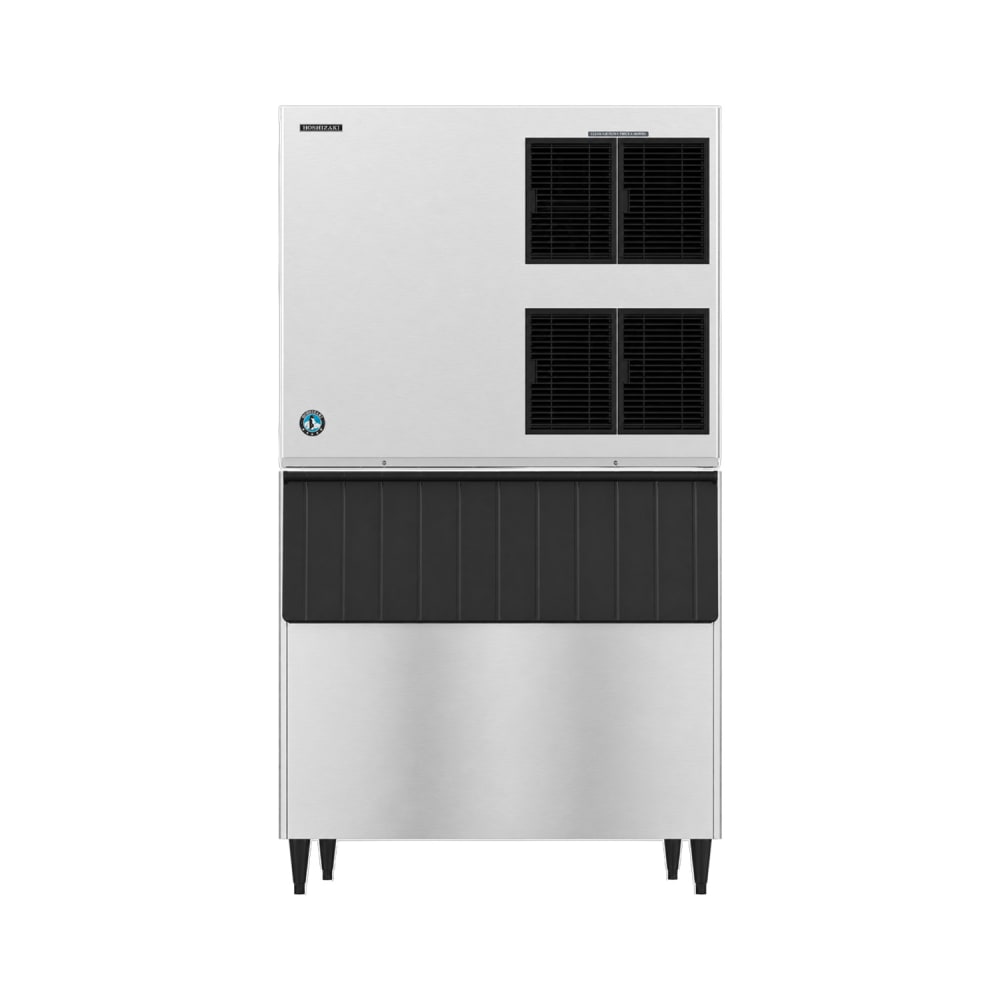

Hoshizaki KM-1900SAJ3/B-800SF 1865 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Air Cooled, 208-230v

To ensure the system operates correctly, the Hoshizaki KM-1900SAJ3/B-800SF ice maker with bin has an EverCheck™ feature that alerts users of possible maintenance needs. Its self-contained condenser facilitates installation and it cools with R-404A refrigerant, creating as much as 1,865 pounds of ice daily in ideal conditions. The ice machine head has a CycleSaver™ feature to craft as much ice as similar units in fewer cycles. It's made of stainless steel for durability and rust resistance.

The Hoshizaki KM-1900SAJ3/B-800SF crescent cube ice maker and bin are protected with H-GUARD Plus® antimicrobial to inhibit germ growth and the polyethylene-lined bin keeps ice clean and fresh. Foamed-in-place polyurethane insulation lines the walls and bottom of the bin to prevent ice from melting during storage. This bin has an ice capacity of 800 pounds.

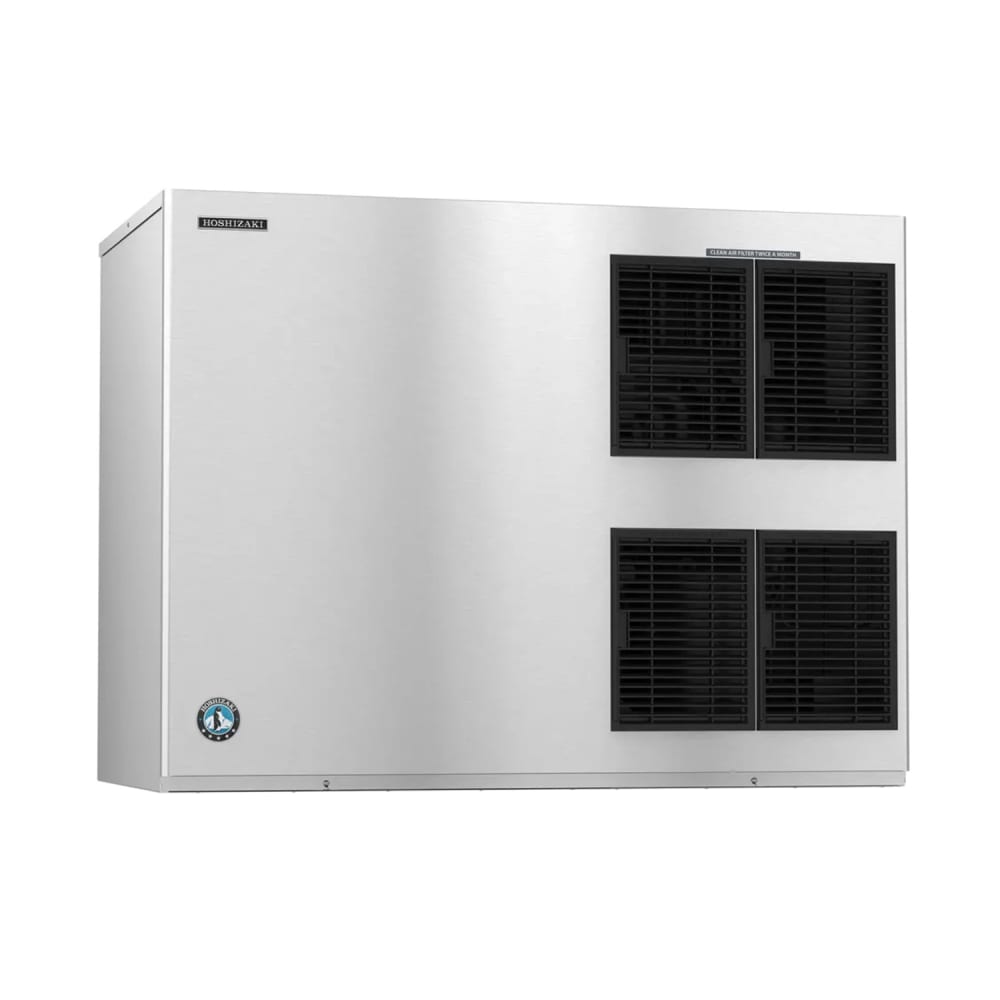

Ice Machine Details

• 1,865-lb. maximum daily ice production
• 1,675-lb. AHRI-certified daily ice production
• Generates crescent cube ice
• Crescent cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• H-GUARD Plus antimicrobial inhibits bacterial growth
• EverCheck system informs operators of issues
• CycleSaver design creates ice quickly
• Air-cooled, self-contained condenser
• Cools with R-404A refrigerant
• Stainless steel evaporator provides corrosion resistance
• Resilient, stainless steel exterior
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 20,900-BTU heat transfer capacity

Product Features

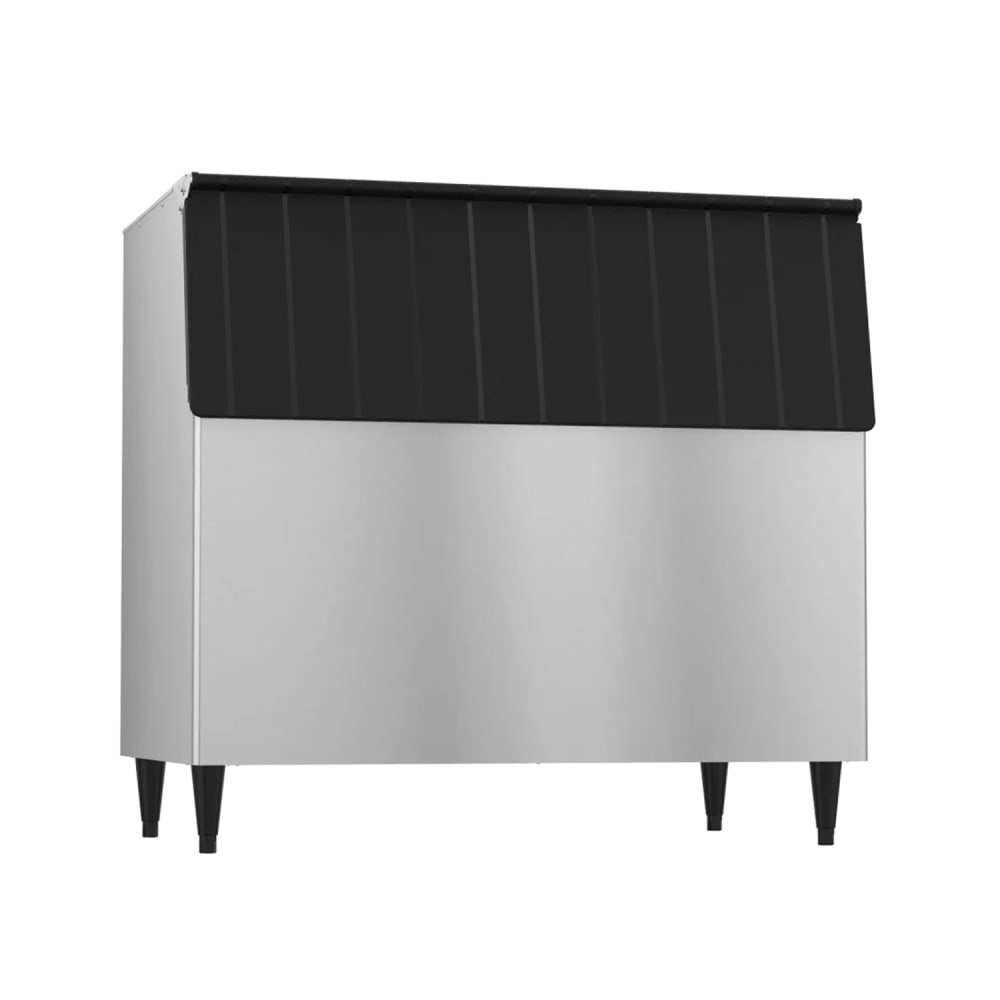

Ice Bin Details

• 800-lb. ice storage capacity
• Ice scoop is included
• Bacterial growth is slowed by H-GUARD Plus antimicrobial
• Bin is lined with polyethylene for sanitary storage
• Foamed-in-place, polyurethane insulation keeps temperatures low
• Vinyl-clad, galvanized steel with painted legs

Dimensions & Utilities

• Ice head: 48 in. W x 27.38 in. D x 36.44 in. H
• Ice bin interior: 45 in. W x 27.7 in. D x 37.6 in. H
• Ice bin overall: 48 in. W x 32.5 in. D x 46 in. H
• 8.9 A, 3.9 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1900SAJ3/B-800SF within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1865 lb/24 hours at 70°/50° (1675 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.9 amps, NSF, UL, ENERGY STAR®

Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1900SAJ3/B-800SF Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
