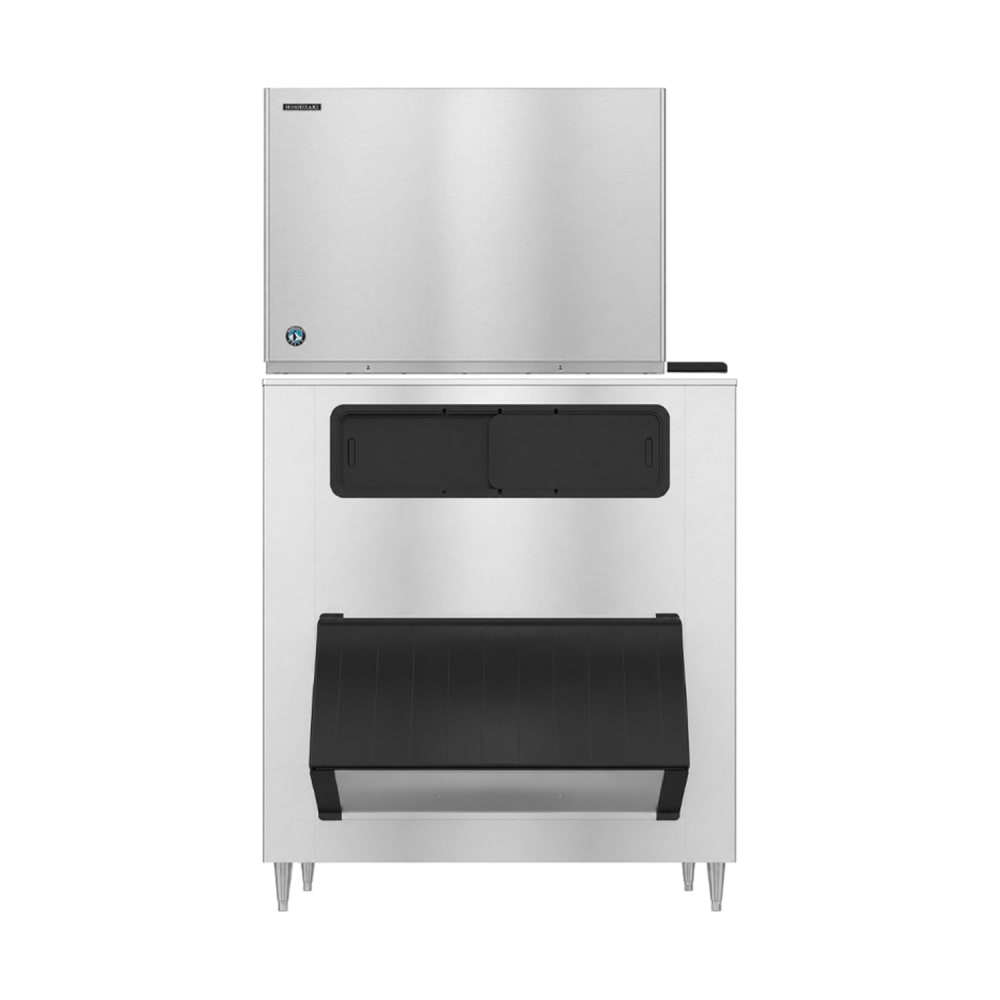

Hoshizaki KM-1601SWJ/B-1650SS 1660 lb KM Series Crescent Cube Ice Machine w/ Bin - 1605 lb Storage, Water Cooled, 208-230v
Typically ships in 9 - 13 Business Days
$16,760.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1601SWJ/B-1650SS Description
The exterior of the Hoshizaki KM-1601SWJ/B-1650SS ice maker/bin combo is constructed of dent-resistant stainless steel that can withstand intensive daily use. Conserving energy and improving durability, its CycleSaver™ system enables the unit to run fewer cycles. To inhibit unsanitary bacterial growth, both the bin and the ice maker head are protected with antimicrobial H-Guard Plus®.
The KM-1601SWJ/B-1650SS ice machine includes a bin insulated with foamed-in-place polyurethane, and it also features a seamless polyethylene liner without crevices that could harbor bacteria. To keep it steady on uneven floors, it is mounted on adjustable legs.
- 1,660-lb. daily ice production
- 1,650-lb. daily AHRI-certified ice production
- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- Scratch- and stain-resistant stainless steel exterior
- CycleSaver conserves energy by limiting cycles
- Self-contained, water-cooled refrigeration system
- EverCheck™ alert system indicates operational issues
- H-Guard Plus antimicrobial agent inhibits bacterial growth
- Stainless steel evaporator
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- Uses R-404A refrigerant
- 21,300-BTU heat transfer capacity
- 48-cu.-ft. capacity
- 1,605-lb. ice storage capacity
- 82-oz. ice scoop included
- Polyethylene interior liner eliminates crevices that could harbor bacteria
- Stainless steel exterior resists staining and rusting
- 6-in. adjustable stainless steel legs
- Foamed-in-place polyurethane insulation maintains ideal temperatures
- Sealed door gasket protects ice from contamination
- Scoop and bin protected by H-Guard Plus antimicrobial agent
- Top view windows for visibility
- Hinged bottom door

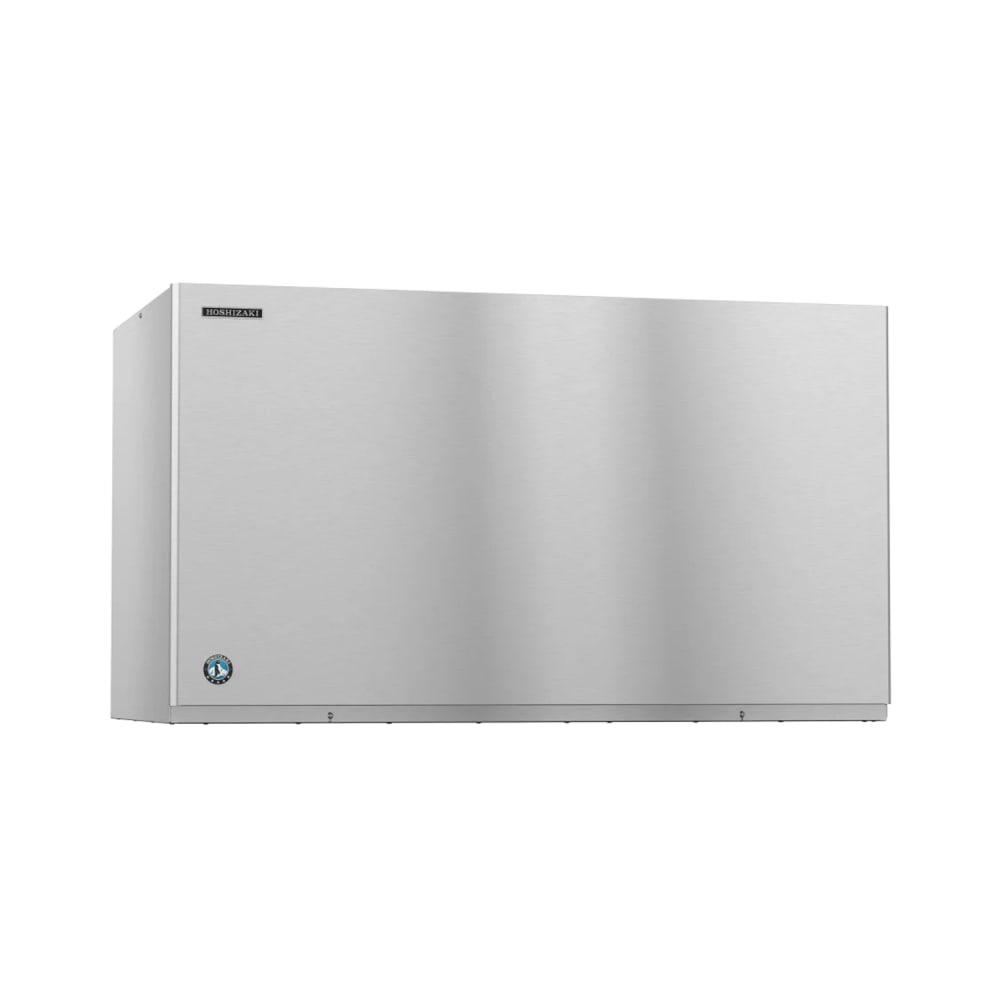

- Ice machine head: 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H

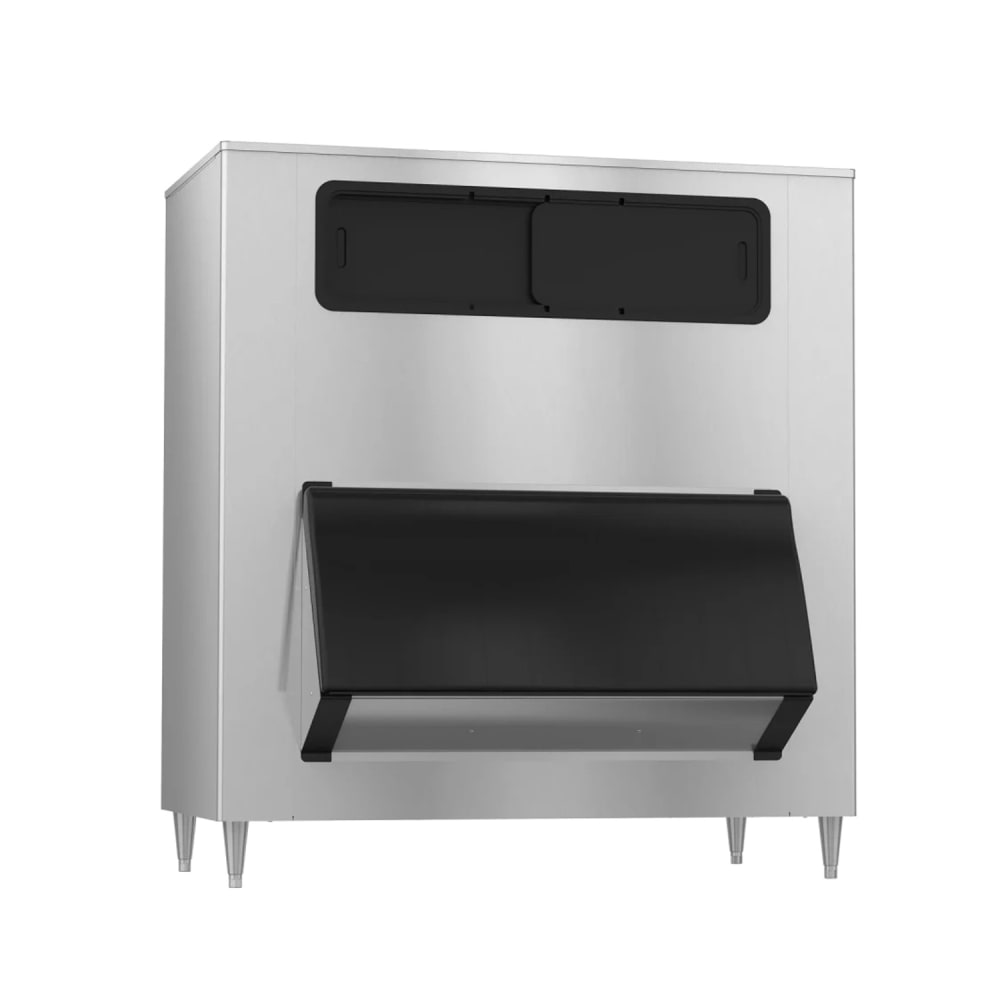

- Ice bin: 60 in. W x 41 in. D x 66 3⁄16 in. H
- 13.6 A, 3.3 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ/B-1650SS within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1660 lb/24 hours at 70°/50° (1650 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 13.6 amps, NSF, UL
Ice Bin, 60"W, hinged bottom door & top view windows, 1605-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SWJ/B-1650SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1660 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1605 |
| Compressor Type | Water Cooled |
| Depth (in) | 41 |
| Height (in) | 93.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 60 |
| Weight | 775.00 |
