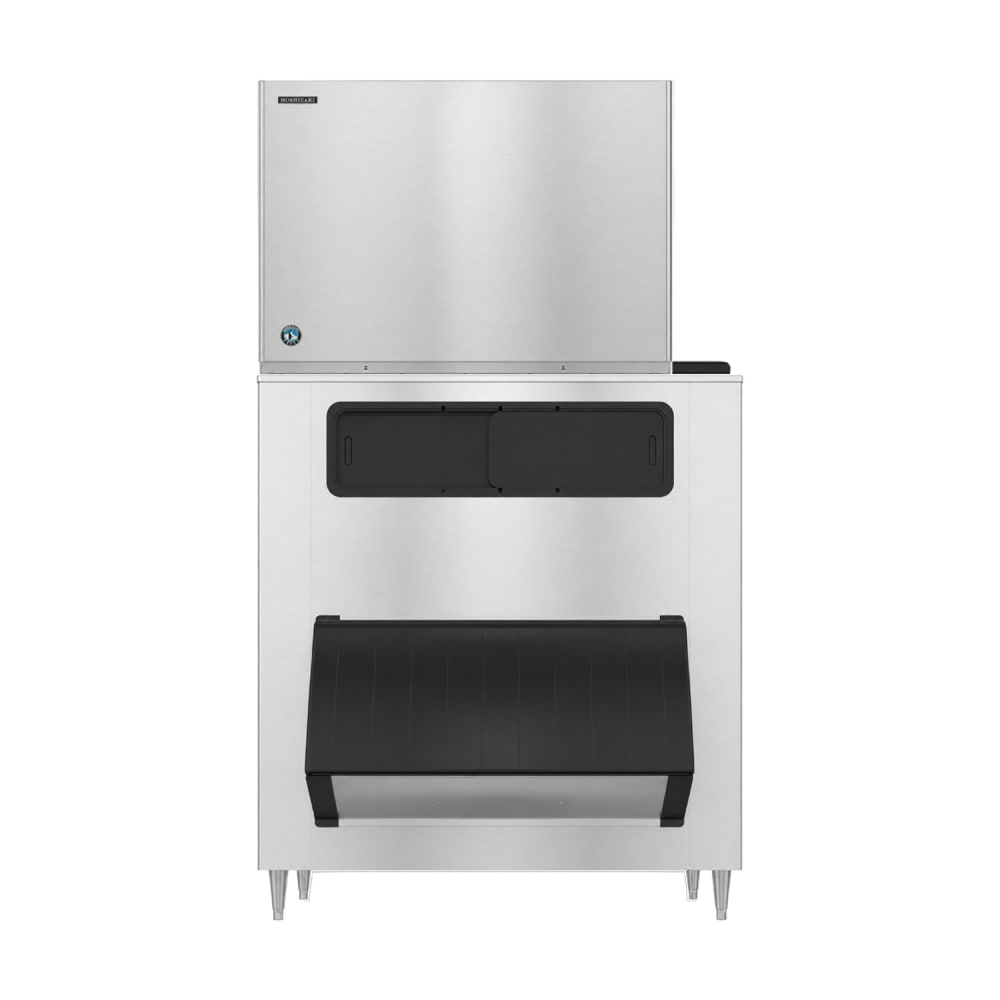

Hoshizaki KM-1601SWJ3/B-1650SS 1671 lb KM Series Crescent Cube Ice Machine w/ Bin - 1605 lb Storage, Water Cooled, 208-230v
$16,830.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Hoshizaki KM-1601SWJ3/B-1650SS Description
Maintaining proper temperatures and preventing ice from melting, the Hoshizaki KM-1601SWJ3/B-1650SS ice machine comes with a bin insulated with foamed-in-place polyurethane. Its interior is lined with sanitary polyethylene and features top windows to offer clear visibility. The bin, as well as the ice maker head, is protected with H-Guard Plus® to inhibit microbial growth.
The CycleSaver™ feature of the Hoshizaki KM-1601SWJ3/B-1650SS ice machine and bin combo reduces energy consumption by running fewer cycles throughout the day. Its refrigeration system is self-contained and water cooled, and to ensure a long lifespan with intensive use, its exterior is made of dent-resistant stainless steel.
- 1,671-lb. daily ice production
- 1,660-lb. daily AHRI-certified ice production
- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- Antimicrobial H-Guard Plus protection
- Self-contained, water-cooled refrigeration system
- Durable, scratch-resistant stainless steel exterior
- Stainless steel evaporator
- CycleSaver reduces energy consumption
- EverCheck™ system alerts users of operating issues
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- Uses R-404A refrigerant
- 19,900-BTU heat transfer capacity
- 1,605-lb. ice storage capacity
- Sanitary polyethylene interior liner
- Foamed-in-place polyurethane insulation
- Top view windows offer bin visibility
- Dent-resistant stainless steel exterior
- 6-in. adjustable stainless steel legs
- Hinged bottom door
- Sealed door gasket reduces contamination risks from airborne bacteria
- 82-oz. ice scoop included
- Scoop and bin protected with H-Guard Plus antimicrobial agent
- Ice machine: 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
- Ice bin: 60 in. W x 41 in. D x 66 3⁄16 in. H
- 8.8 A, 3.32 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ3/B-1650SS within the 48 contiguous states.
From The Manufacturer

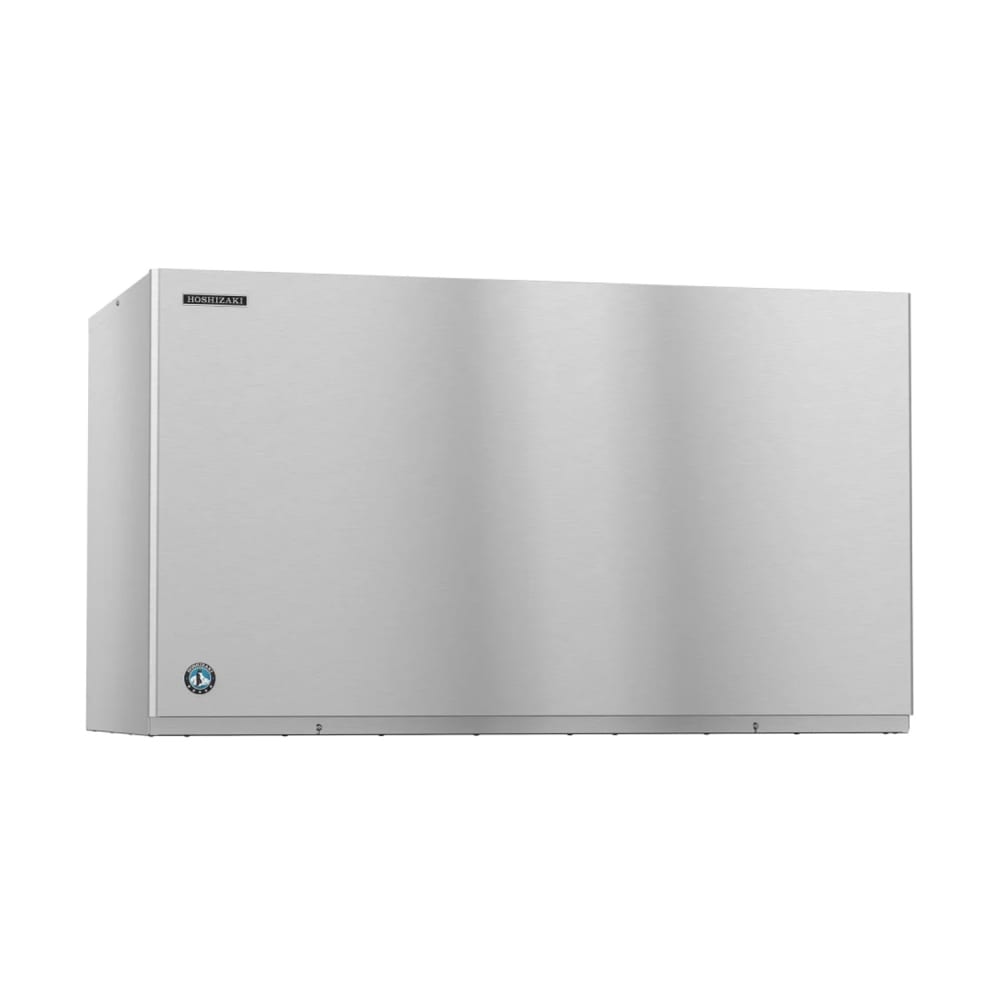

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1671 lb/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL

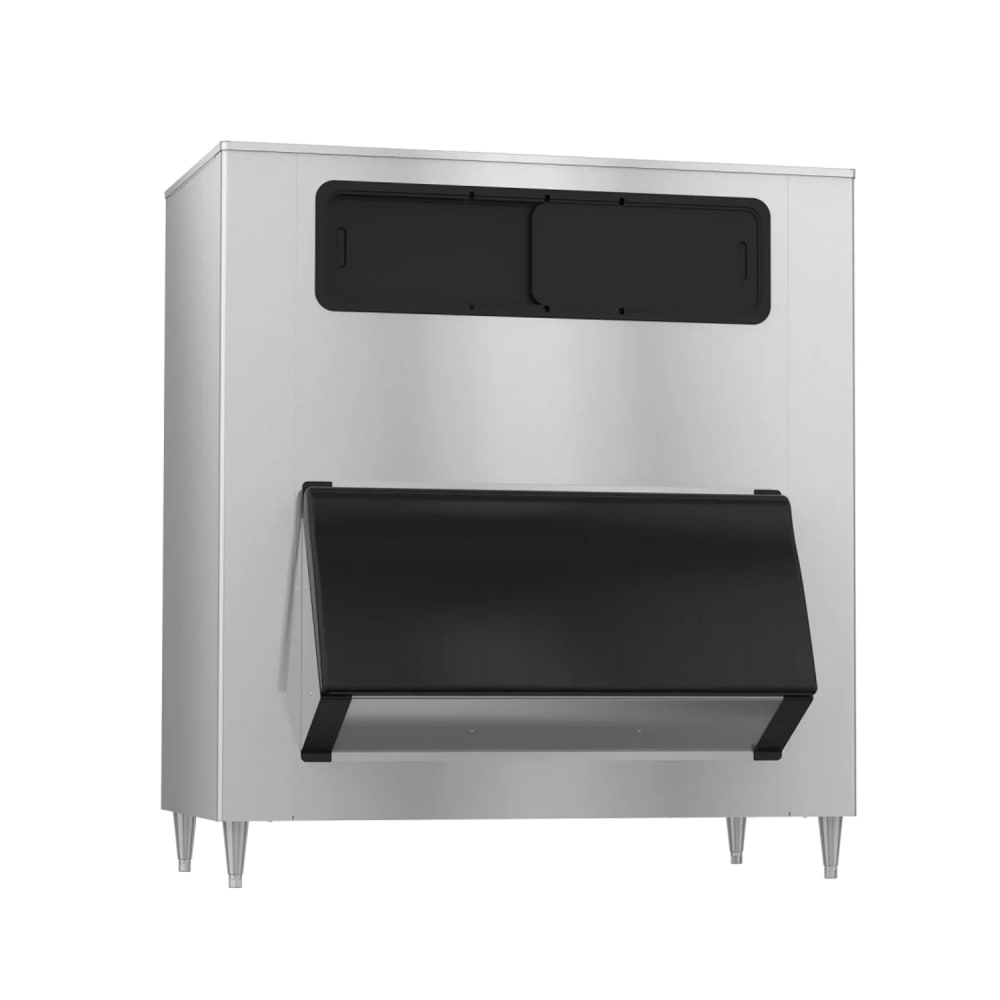

Ice Bin, 60"W, hinged bottom door & top view windows, 1605-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SWJ3/B-1650SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1671 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1605 |
| Compressor Type | Water Cooled |
| Depth (in) | 41 |
| Height (in) | 93.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 60 |
| Weight | 775.00 |
