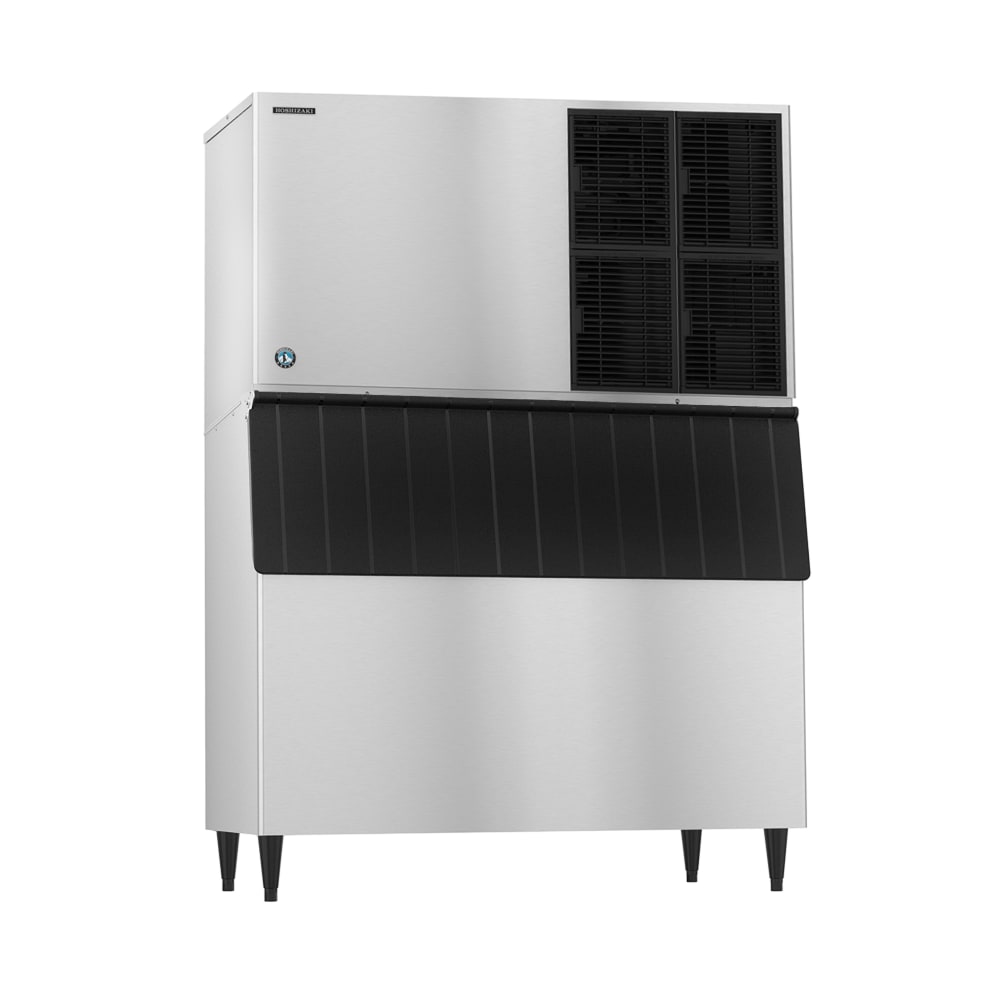

Hoshizaki KM-1601SAJ/B-900SF 1538 lb Crescent Cube Ice Machine w/ Bin - 900 lb Storage, Air Cooled, 208-230v
$13,485.00 /Each
Contact us for details!
Hoshizaki KM-1601SAJ/B-900SF Description
The Hoshizaki KM-1601SAJ/B-900SF ice machine with bin produces crescent cube ice using an air-cooled, self-contained condenser, generating up to 1,538 pounds of ice per 24 hours at standard conditions. Its CycleSaver™ design adjusts operation based on demand, while the EverCheck™ alert system supports monitoring of system performance. A stainless steel double-sided evaporator supports consistent ice formation, and the stainless steel exterior provides durability for commercial environments requiring steady ice production.
For storage and access, the Hoshizaki KM-1601SAJ/B-900SF ice machine with bin includes a 900-pound-capacity unit equipped with a top-hinged front-opening door. The stackable configuration supports increased production when paired with an additional unit, while snap-fit components support cleaning access. The bin interior is treated with H-GUARD Plus antimicrobial agent, and painted legs elevate the unit for floor placement. A top kit is included to align the head and bin during installation, while removable air filters support airflow in air-cooled operation.
- 1,538-lb. ice production capacity per 24 hours
- Crescent cube ice style
- CycleSaver design
- EverCheck alert system
- Stainless steel exterior
- Stainless steel double-sided evaporator
- 1,340-lb. production at 90 degrees F air/70 degrees F water
- Self-diagnostic programming adjusts to operating conditions
- Snap-fit components for cleaning access
- Removable air filters
- 900-lb. ice storage capacity
- Top-hinged front-opening door
- Stainless steel exterior
- H-GUARD Plus antimicrobial-treated interior
- Designed for top-mounted ice makers
- Painted legs included
- Top kit included for installation
- Self-contained condenser
- Air-cooled operation
- Uses R404A refrigerant
- Ice Maker: 48 in. W x 32 3⁄10 in. D x 27 in. H
- Bin: 52 in. W x 32 3⁄10 in. D x 46 3⁄8 in. H
- 15.9 A, 4,240 W per 100 lbs. of ice
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SAJ/B-900SF within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1538 lb/24 hours at 70°/50° (1340 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL
Ice Bin, 52"W, top-hinged front-opening door, 900-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Top Kit, 4", ABS
Hoshizaki KM-1601SAJ/B-900SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1538 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 900 |
| Compressor Type | Air Cooled |
| Depth (in) | 32.3 |
| Height (in) | 73.38 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 52 |
| Weight | 567.00 |
