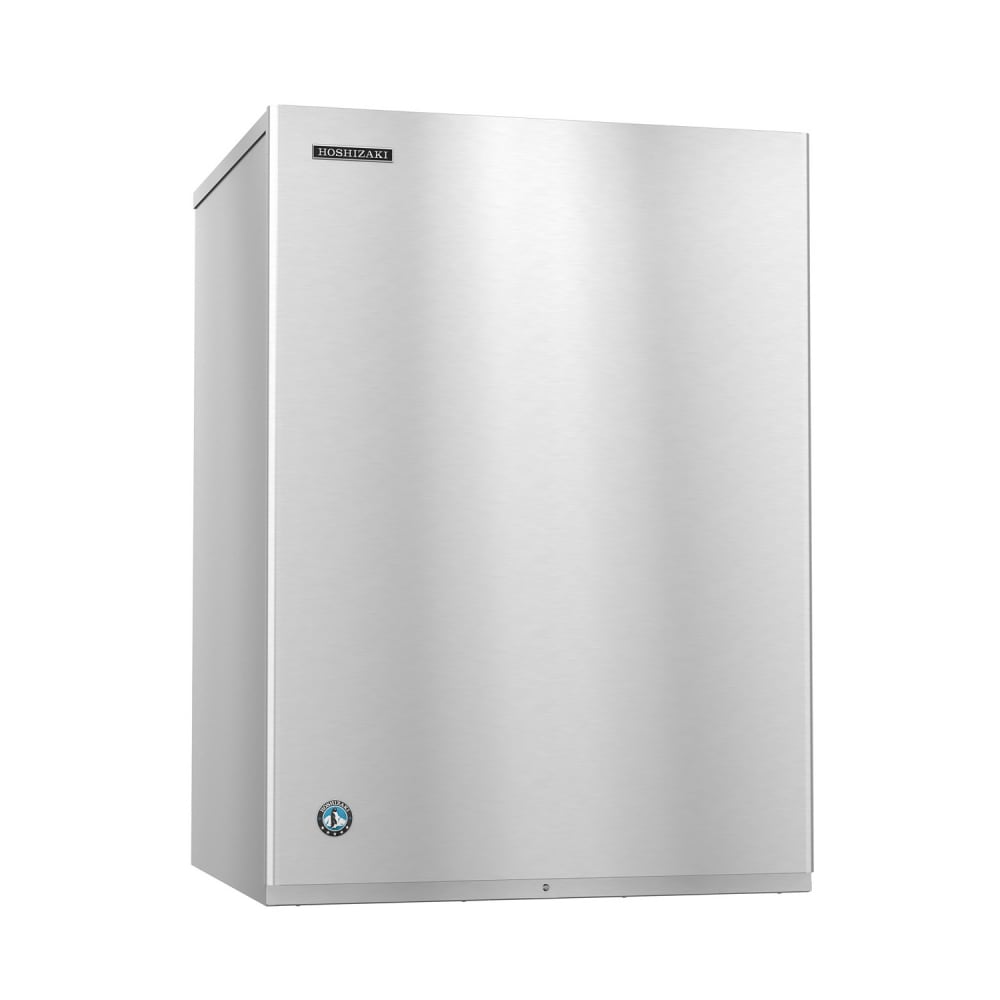

Hoshizaki KM-1340MWJ 30" Crescent Cube Ice Machine Head - 1323 lb/24 hr, Water Cooled, 208-230v/1ph

The Hoshizaki KM-1340MWJ ice maker has a self-contained condenser, which is simpler to install than a remote version. This condenser is water cooled, so it's more energy efficient than an air-cooled alternative. The unit can produce 1,323 pounds of crescent cube ice in ideal conditions for restaurants and smoothie bars.

This Hoshizaki KM-1340MWJ ice machine head is enclosed in a stainless steel housing. Resisting rust and dents, this durable metal has a professional appearance that looks at home in customer-adjacent applications. For sanitation purposes and fresh-tasting ice, the unit has H-Guard Plus® antimicrobial protection.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Maximum production capacity: 1,323 lbs./24 hrs. at 70 degrees F
• AHRI-certified production capacity: 1,280 lbs./24 hrs. at 90 degrees F
• Simple-to-install, self-contained condenser
• Condenser is water cooled
• Uses R-404A refrigerant
• Produces individual crescent cube ice for use in soft drinks or blended beverages
• Ice cube size: ¹⁄₂ in. W x 1¹⁄₈ in. D x 1¹⁄₂ in. H
• Stainless steel exterior resists dings and corrosion
• H-Guard Plus antimicrobial treatment inhibits bacterial growth
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• Requires 6-in. rear, side, and top clearances
• 18,500-BTU transfer capacity

Product Features

Dimensions & Utilities

• 30 in. W x 27³⁄₈ in. D x 41¹⁄₂ in. H
• 11 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KM-1340MWJ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 1323 lb/24 hours at 70°/50° (1280 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 11.0 amps, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1340MWJ Specifications
