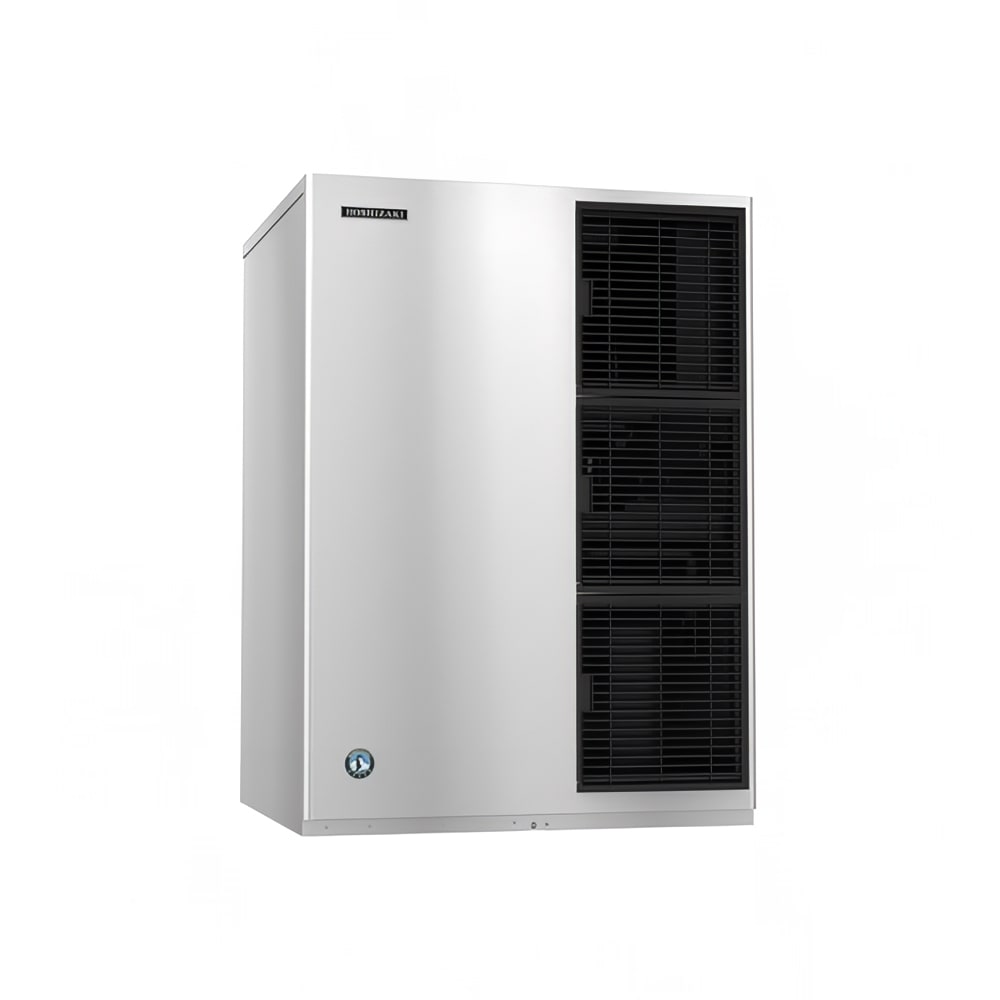

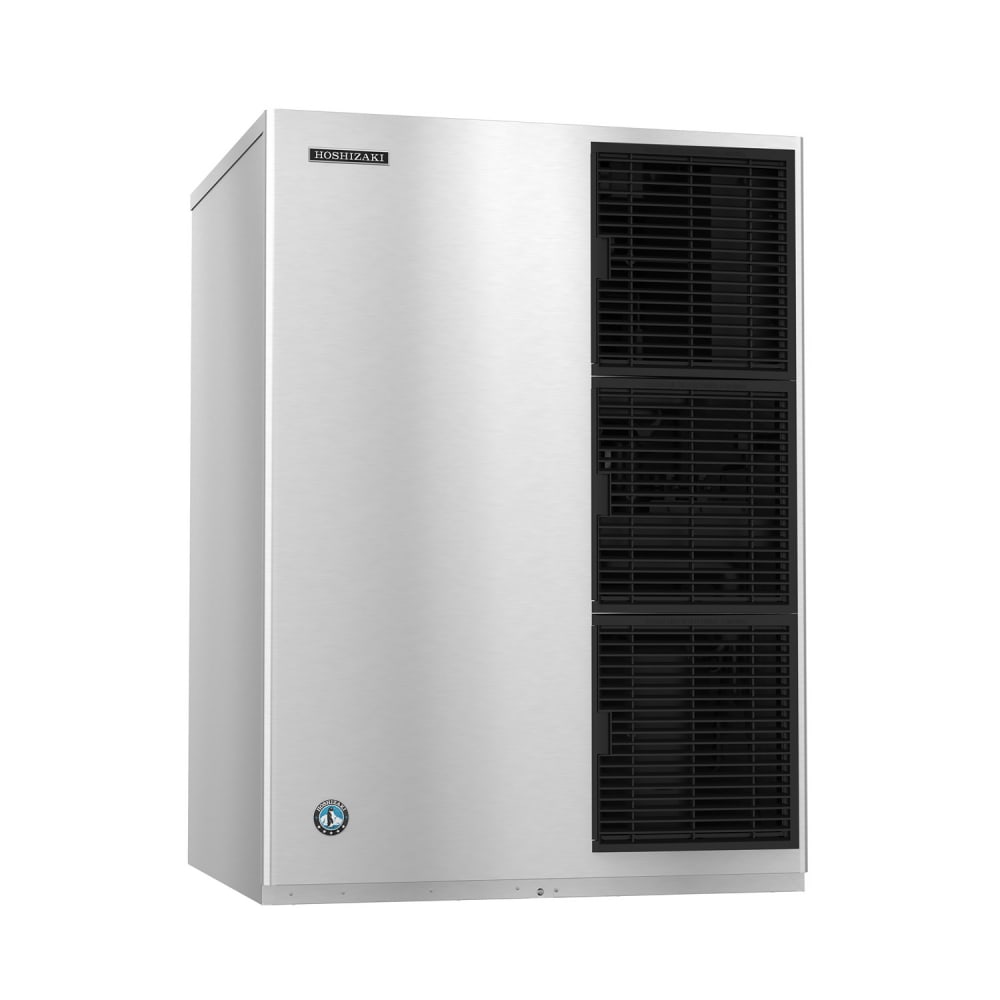

Hoshizaki KM-1340MAJ 30" Crescent Cube Ice Machine Head - 1275 lb/24 hr, Air Cooled, 208-230v/1ph

The Hoshizaki KM-1340MAJ ice maker can produce 1,275 pounds of ice in 24 hours, but this amount depends on ambient air and incoming water temperatures. Designed with CycleSaver™ technology, the unit produces the same amount of ice as most other units in less cycles. It makes crescent cube ice—a type of half-cube ice that works well in drinks in restaurants and bars. The cubes are produced when the water that flows over the evaporator plate freezes as the refrigerant is cooled with fans.

Depending on the issue, the EverCheck™ system in this Hoshizaki KM-1340MAJ ice machine head provides a different series of beeps, and if the operator needs to access the components, the panels are removable. An antimicrobial agent is built into the unit, limiting bacteria growth. Because the ice maker's exterior is made of stainless steel, it resists rusting and withstands commercial use.

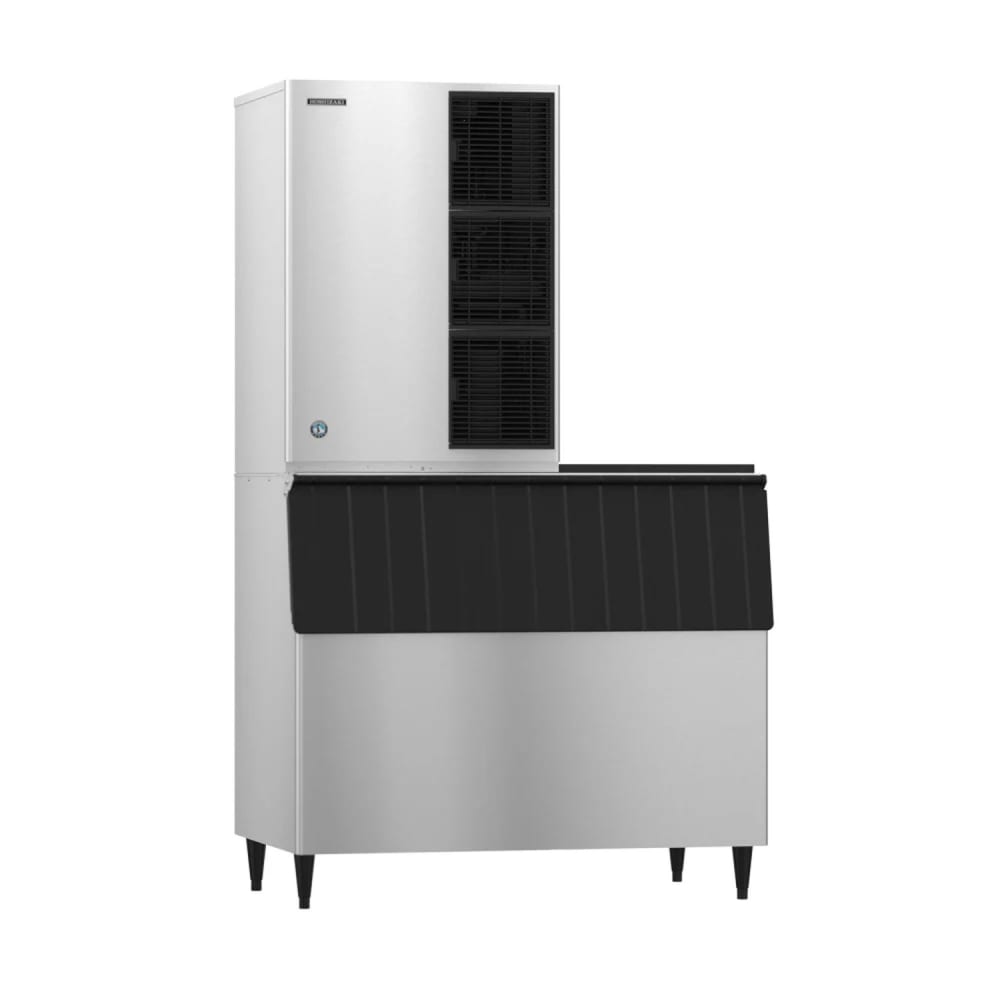

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 1,275-lb. daily ice production capacity
• 1,089-lb. AHRI-certified daily ice production capacity
• CycleSaver design improves production volume in each cycle compared to similar models
• Makes crescent cube ice
• Crescent cube size: 1¹⁄₂ in. x 1¹⁄₈ in. x ¹⁄₂ in.
• Air-cooled condenser
• EverCheck alert technology signals system issues with a series of beeps
• H-Guard Plus antimicrobial agent slows bacteria growth
• Panels are detachable for component cleaning and servicing
• Removable air filter can be cleaned thoroughly
• Stainless steel exterior is durable and rust resistant
• Uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water temperature: 10-113 PSI
• Ideal clearances: 6 in. at sides, rear, and top
• Ice storage bin or dispenser is sold separately

Product Features

Dimensions & Utilities

• 30³⁄₁₆ in. W x 27⁹⁄₁₆ in. D x 41¹⁄₂ in. H
• 13.2 A, 4.81 kW
• 208-230 V/60 Hz/1 ph
• Requires hard wiring

*Free shipping on Hoshizaki KM-1340MAJ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 1275 lb/24 hours at 70°/50° (1089 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 13.2 amps, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1340MAJ Specifications
