Hoshizaki KM-1301SWJ3/B-1500SS 1360 lb KM Series Crescent Cube Ice Machine w/ Bin - 1500 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$15,360.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1301SWJ3/B-1500SS Description

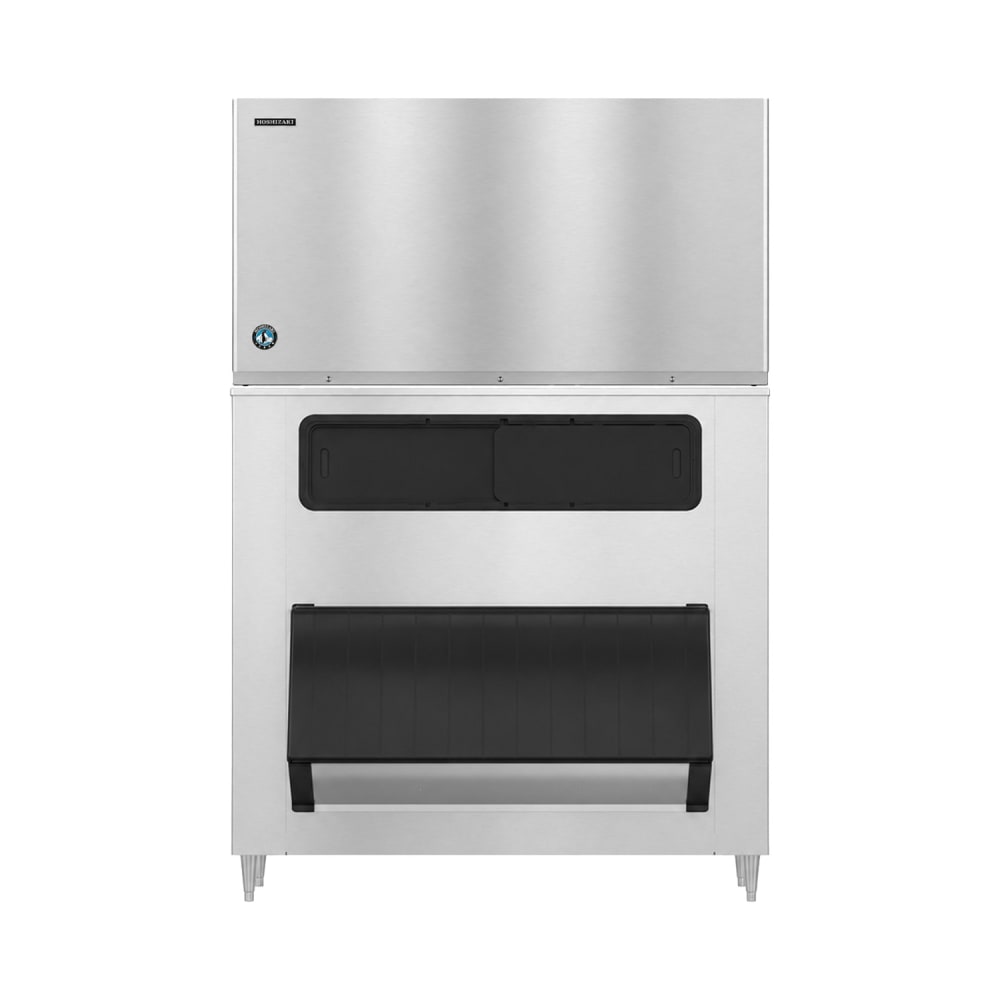

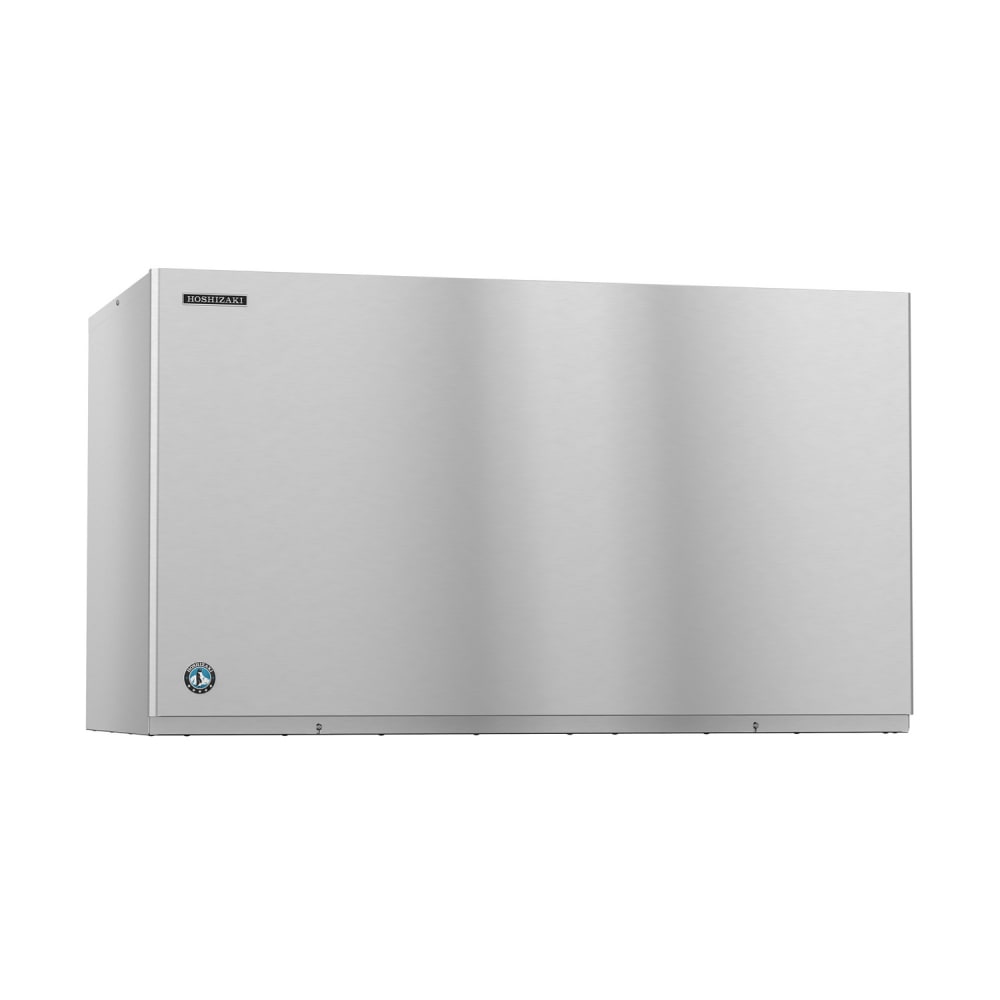

The Hoshizaki KM-1301SWJ3/B-1500SS ice maker and bin's ice machine head has a maximum production capacity of 1,360 pounds of ice per day. To ensure that ice tastes fresh without contamination from mildew or bacteria, the ice maker is treated with H-Guard Plus® antimicrobial agent. Its water-cooled condenser is self-contained for quick installation.

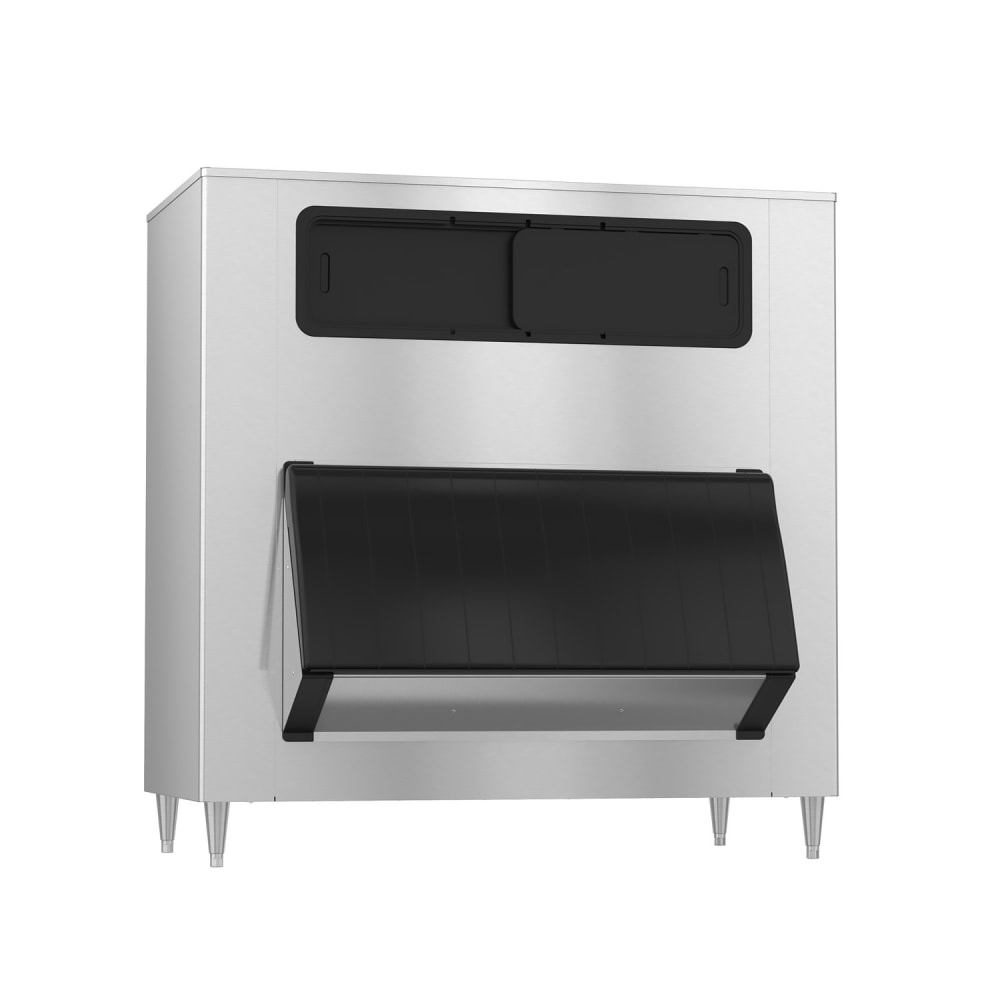

The storage compartment of the Hoshizaki KM-1301SWJ3/B-1500SS ice maker and bin can hold 1,500 pounds of ice. Users can retrieve ice from the bin by opening its hinged bottom door and scooping ice with the included utensil. Polyurethane insulation throughout the unit's walls and floor prevent ice from melting as it's stored, reducing messes and ensuring high-quality ice is available when needed.
- Maximum production capacity: 1,360 lbs./24 hrs. at 70 degrees F
- AHRI-certified production capacity: 1,355 lbs./24 hrs. at 90 degrees F
- Produces versatile crescent cube ice
- Ice cube size: 0.5 in. W x 1.13 in. D x 1.5 in. H
- Self-contained condenser
- R-404A refrigerant
- Water cooled
- H-Guard Plus antimicrobial agent creates clear ice without mildew
- Stainless steel exterior endures frequent use without showing signs of wear
- 20,100-BTU transfer capacity
- 1,500-lb. ice storage capacity
- Includes a universal top kit to hold the top-mounted ice maker
- Hinged bottom door and top window for monitoring and access
- Bin liner is made of seamless polyethylene to prevent bacterial growth
- Foamed-in-place polyurethane insulation in walls and bottom minimizes ice loss
- Resilient, stainless steel construction lasts through frequent use
- Mounted on adjustable, stainless steel legs
- 82-oz. scoop has H-Guard Plus antimicrobial treatment
- Ambient air temperature: 45-100 degrees F
- Incoming water temperature: 45-90 degrees F
- Incoming water pressure: 10-113 PSIG
- 6-in. side, top, and rear clearances
- Ice maker: 48 in. W x 27.38 in. D x 27.38 in. H
- Ice Bin: 60 in. W x 41 in. D x 62 3⁄16 in. H
- 6.1 A, 3.25 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1301SWJ3/B-1500SS within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, water-cooled, self-contained condenser, production capacity up to 1360 lb/24 hours at 70°/50° (1355 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 6.1 amps, NSF, UL
Ice Bin, 60"W, hinged bottom door & top view windows, 1500-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1301SWJ3/B-1500SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1360 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1500 |
| Compressor Type | Water Cooled |
| Depth (in) | 41 |
| Height (in) | 89.57 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 60 |
| Weight | 730.00 |
