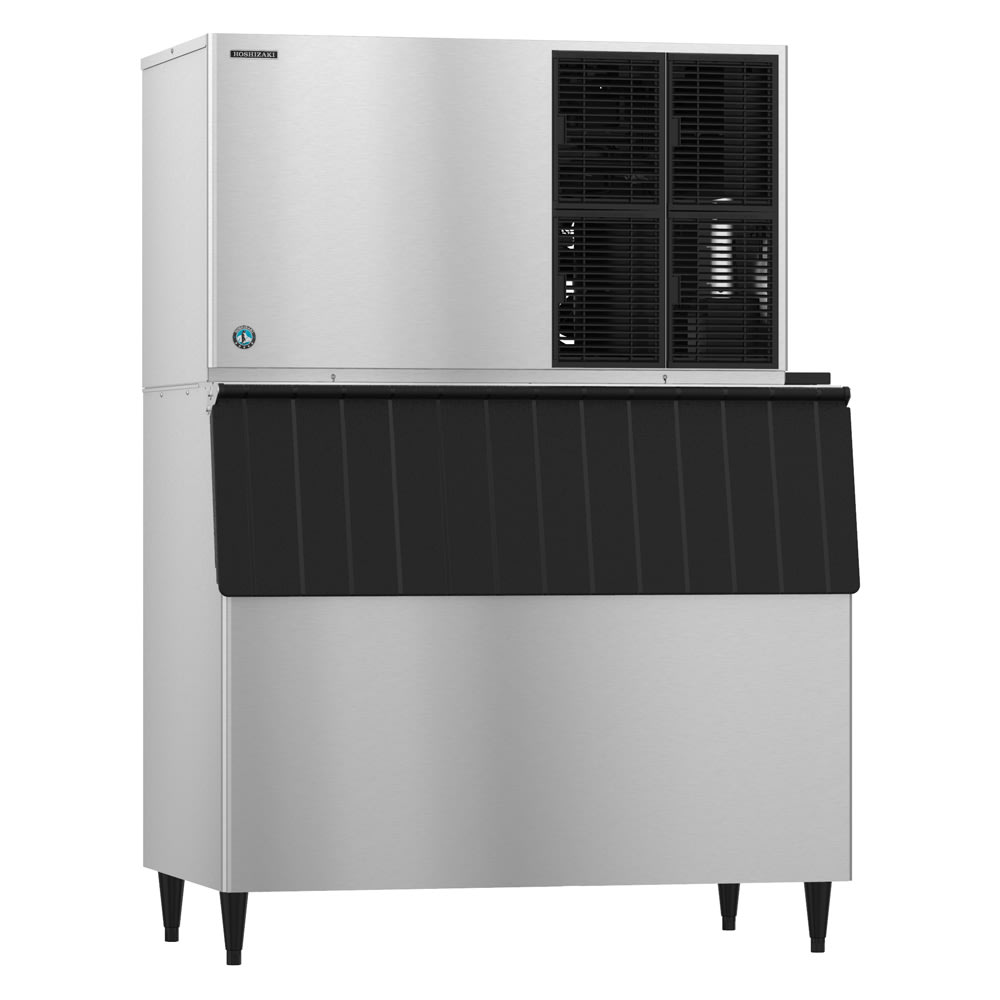

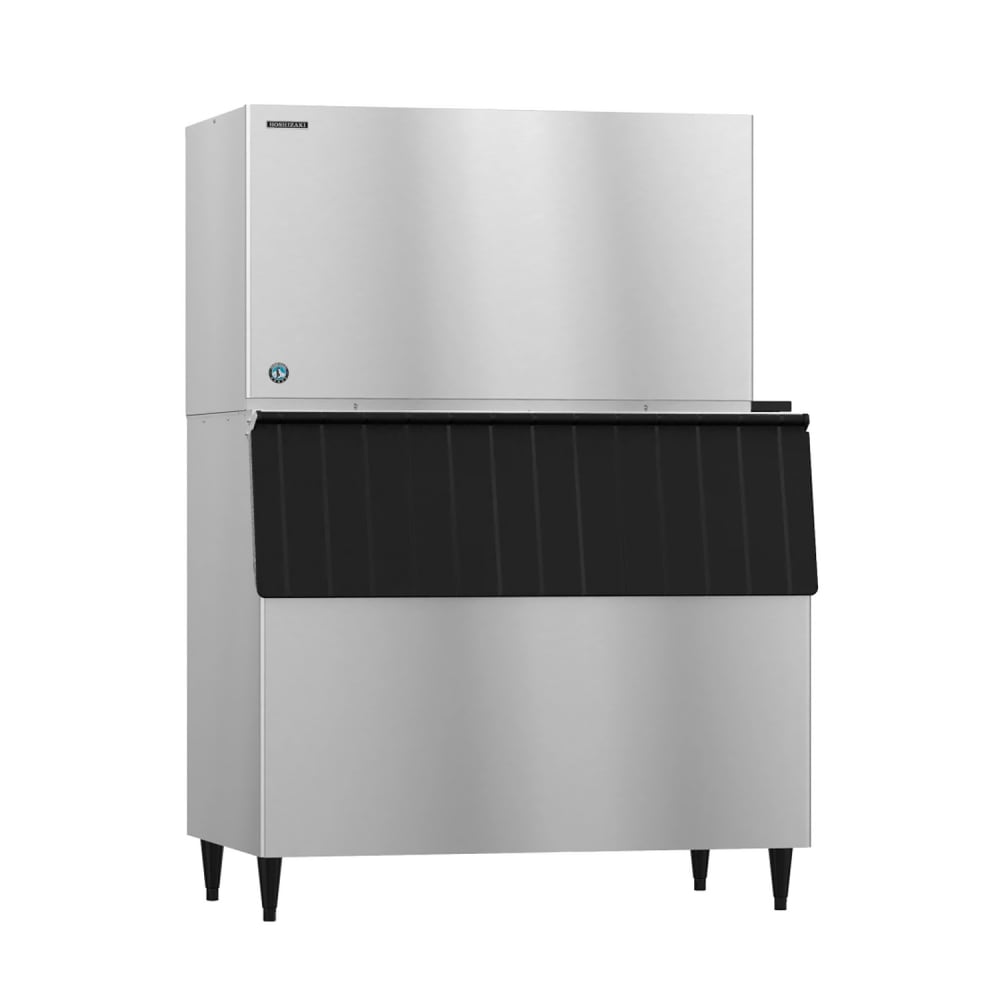

Hoshizaki KM-1301SWJ/B-800SF 1247 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Water Cooled, 208-230v

The Hoshizaki KM-1301SWJ/B-800SF ice maker with bin includes an ice machine head that produces crescent cube ice. This machine generates as much as 1,247 pounds of ice in a day. Its condenser is self-contained so it's swifter to install than remote alternatives, and it's water cooled.

The bin of the Hoshizaki KM-1301SWJ/B-800SF ice maker with bin holds 800 pounds of ice, so plenty of ice is available when servers must fill a customer's cup. Its interior is lined with polyethylene and its exterior is made of PVC-coated galvanized steel. To prevent ice loss from melting, its walls and bottom are insulated with foamed-in-place polyurethane.

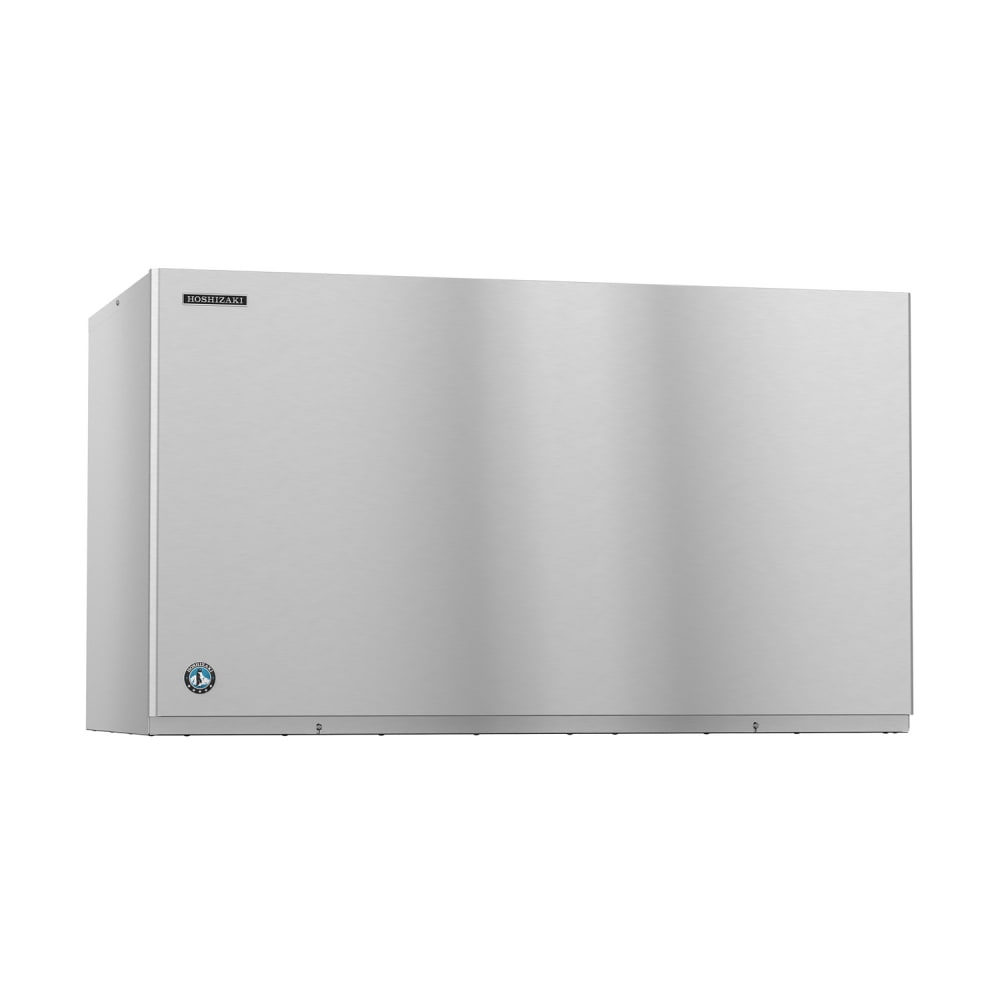

Ice Maker

• Maximum production capacity: 1,247 lbs./24 hrs. at 70 degrees F
• AHRI-certified production capacity: 1,230 lbs./24 hrs. at 90 degrees F
• Creates crescent cube ice for serving in drinks or blending
• Ice cube size: 0.5 in. W x 1.13 in. D x 1.5 in. H
• Water-cooled, self-contained condenser
• R-404A refrigerant
• Corrosion-resistant, stainless steel exterior
• Uses H-Guard Plus antimicrobial protection to inhibit bacterial growth
• 20,900-BTU transfer capacity

Product Features

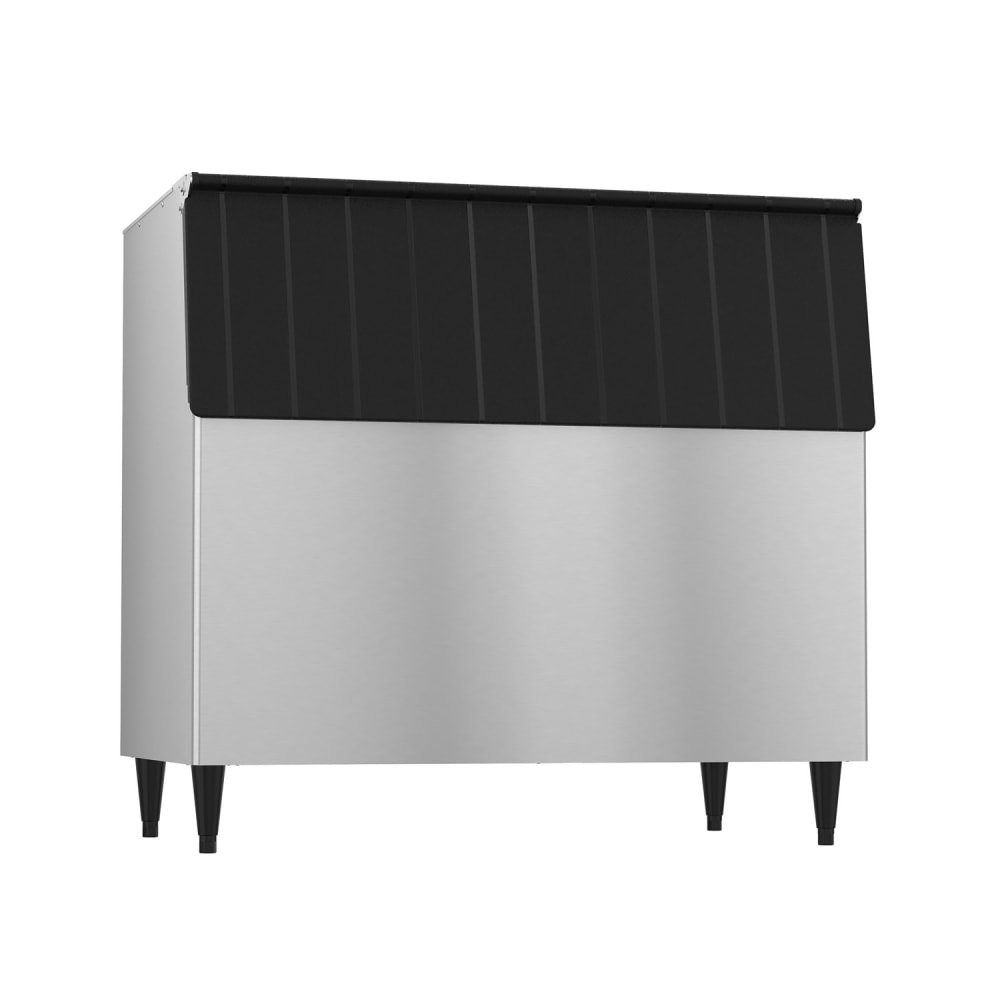

Ice Bin

• 800-lb. storage capacity
• H-Guard Plus antimicrobial protection
• Lined with polyethylene
• Foamed-in-place, polyurethane insulation deters melting ice
• PVC-coated, galvanized steel exterior
• Top-hinged door opens from the front
• Includes painted legs

Ideal Operating Conditions

• Ambient air temperature: 45-100 degrees F
• Incoming water temperature: 45-90 degrees F
• Incoming water pressure: 10-113 PSIG
• 6-in. side, top, and rear clearances

Dimensions & Utilities

• Ice maker: 48 in. W x 27.38 in. D x 27.38 in. H
• Ice bin interior: 45 in. W x 27.7 in. D x 37.6 in. H
• Ice bin overall: 48 in. W x 32.3 in. D x 46 in. H
• 8.2 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KM-1301SWJ/B-800SF within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, water-cooled, self-contained condenser, production capacity up to 1247 lb/24 hours at 70°/50° (1230 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 8.2 amps, NSF, UL

Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1301SWJ/B-800SF Specifications
