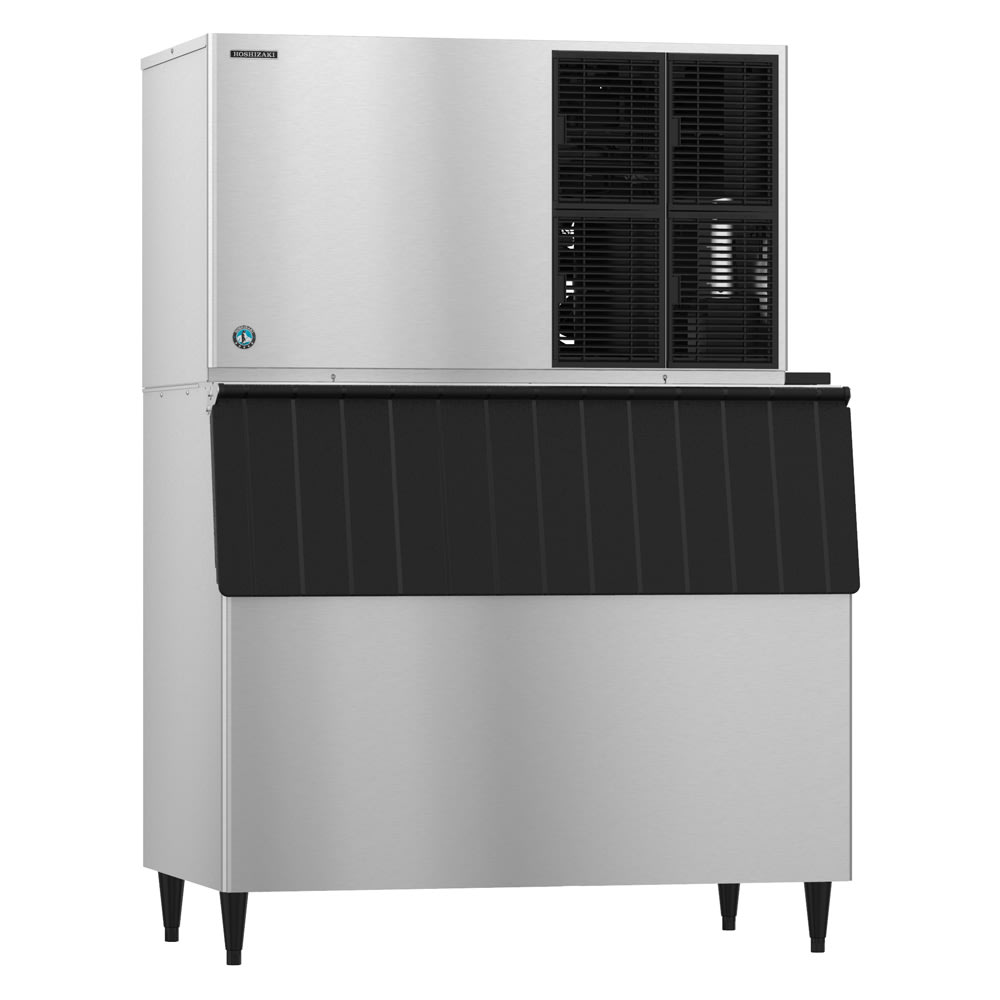

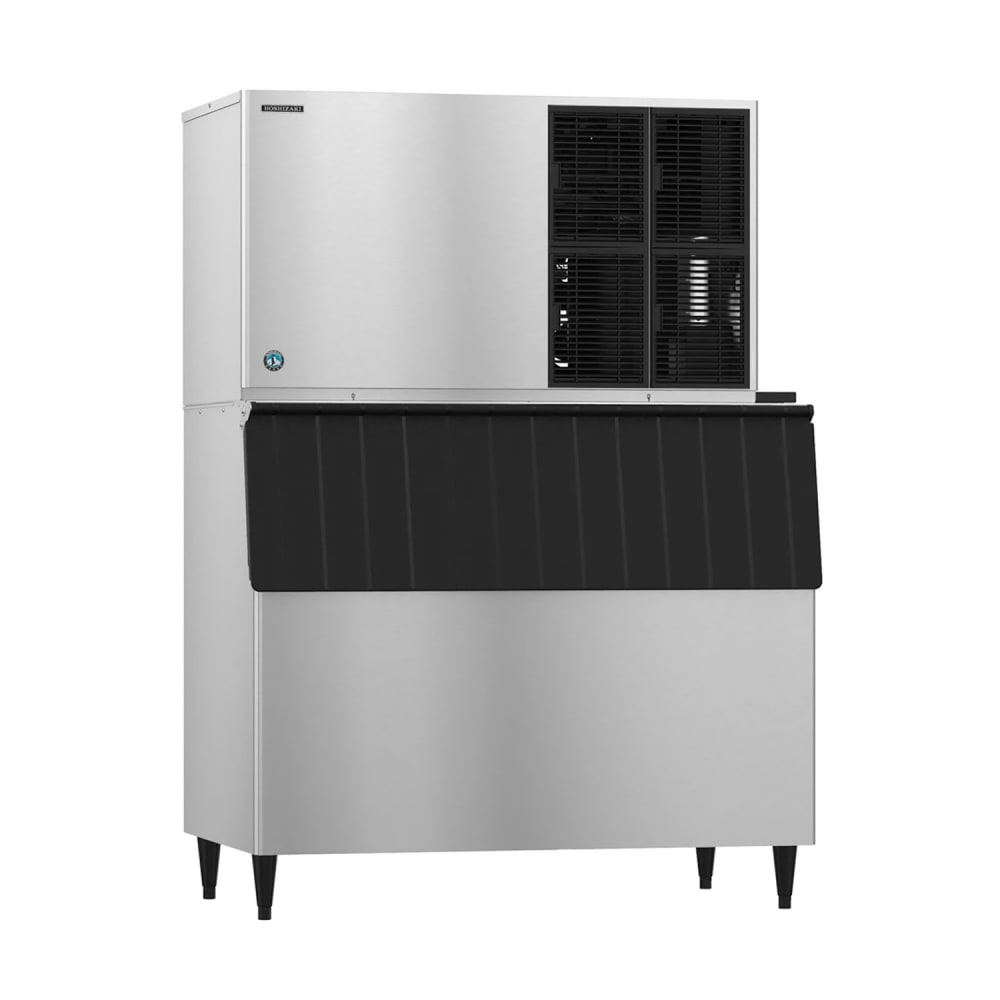

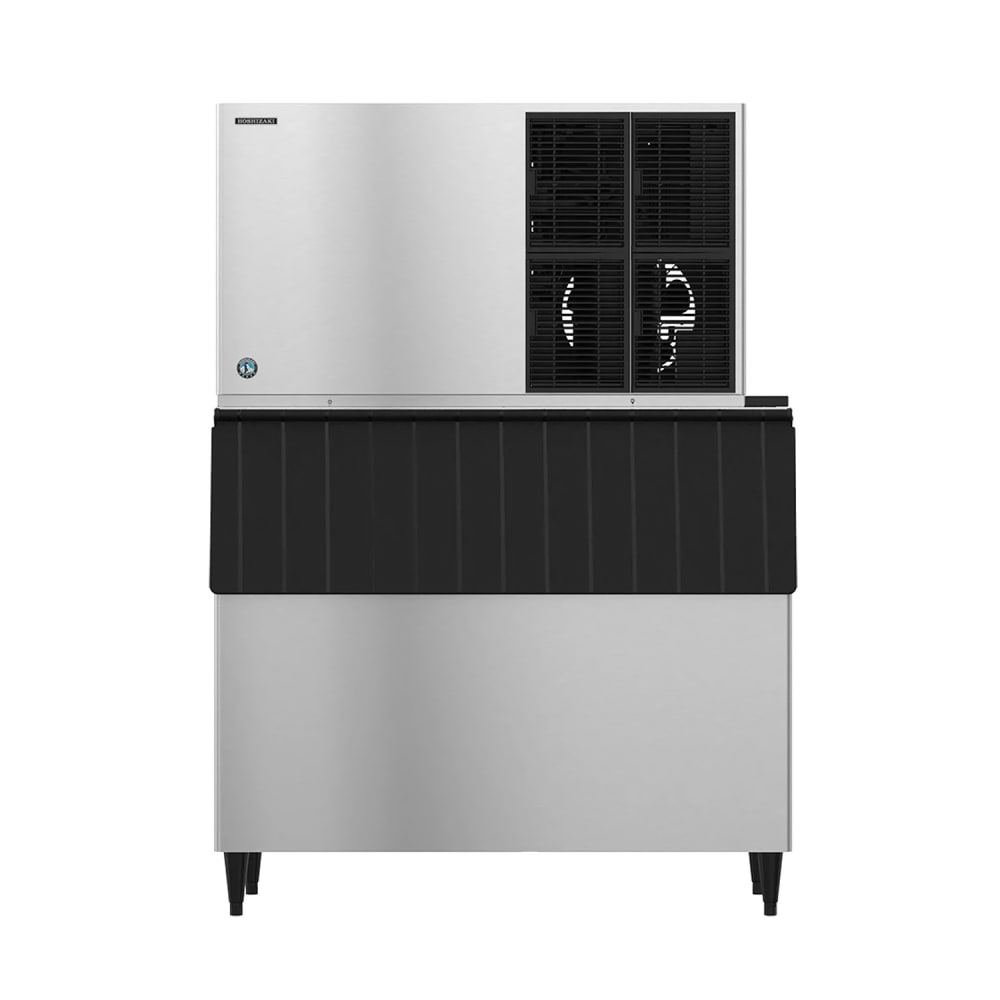

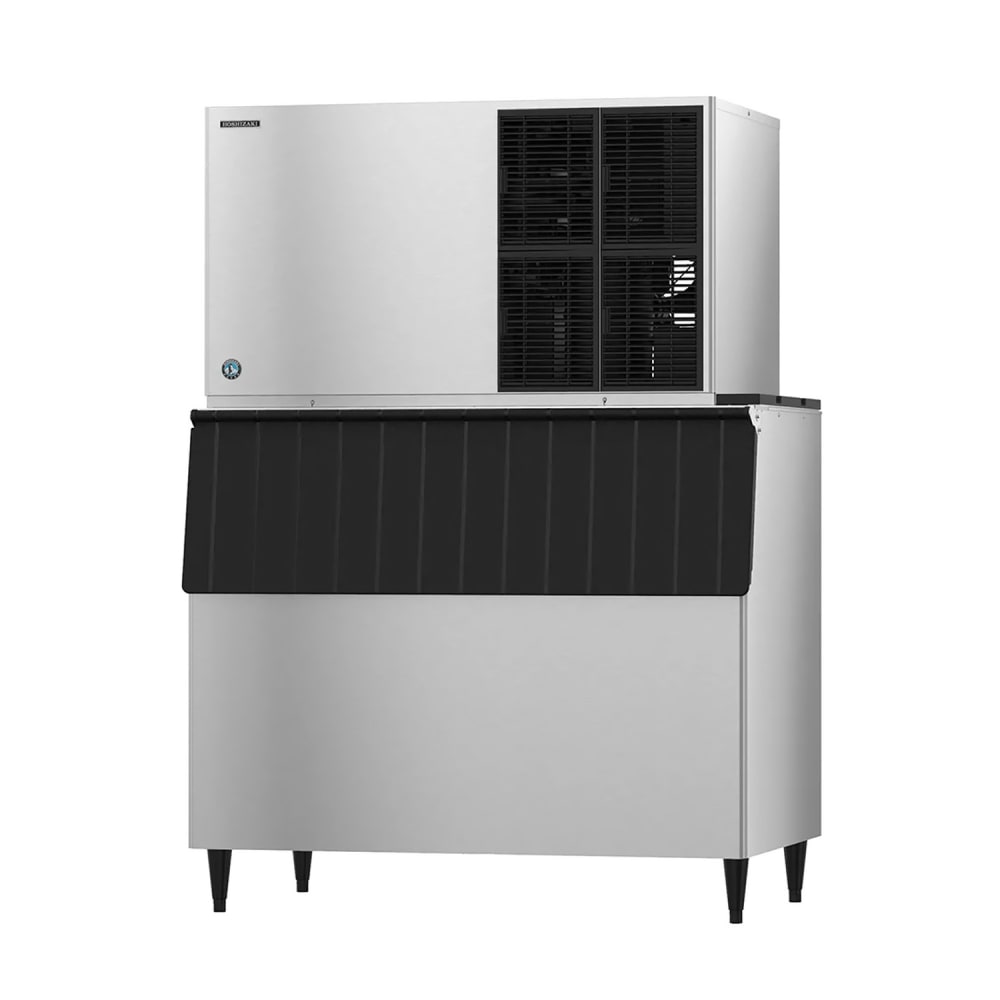

Hoshizaki KM-1301SAJ/B-800SF 1365 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Air Cooled, 208-230v

The Hoshizaki KM-1031SAJ/B-800SF ice maker with bin produces crescent cube ice—an ice type with a high ice-to-water ratio that can be served in sodas, blended into smoothies, or bagged and sold. In 24 hours with ideal conditions, this unit makes as much as 1,365 pounds of ice using R404A refrigerant. Its condenser is air cooled, and the ice machine is equipped with an antimicrobial agent that prevents the growth of mold, slime, and bacteria.

After ice has been made, it is stored in the Hoshizaki KM-1031SAJ/B-800SF ice machine and bin, where 800 pounds of ice can be held, accessed, and quickly replenished to help restaurants keep up during the dinner rush. Its exterior is made of PVC-coated galvanized steel, and the included ice scoop also helps maintain sanitary conditions with an integrated antimicrobial agent.

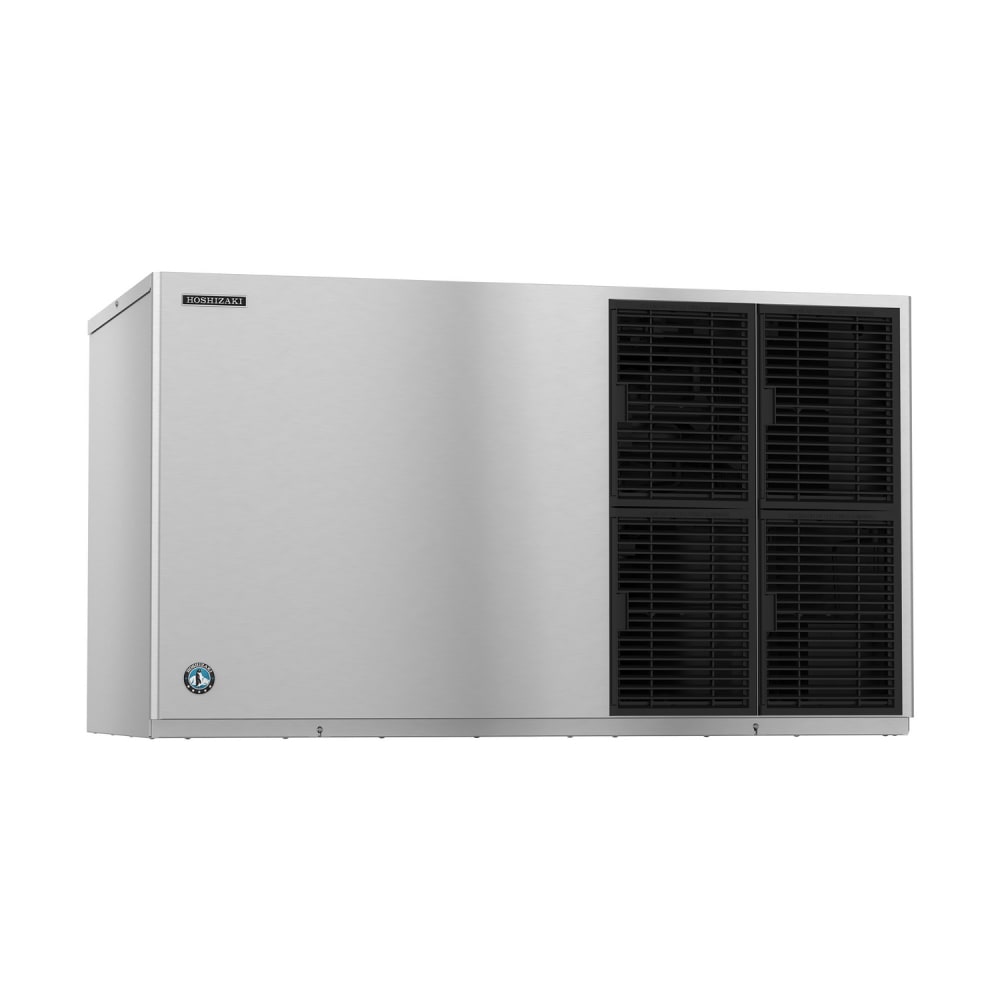

Ice Maker Details

• 1,365-lb. maximum daily ice production
• 1,301-lb. AHRI-certified daily ice production
• Self-contained, air-cooled condenser
• Produces crescent cube ice that is great for use in frozen drinks and sodas
• Crescent cube ice size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Stainless steel exterior protects against rust and damage
• Antimicrobial additive prevents bacterial growth
• Panels can be removed to service interior components
• EverCheck™ alert system has an auditory alarm and diagnostic tools
• Operates with R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F

Product Features

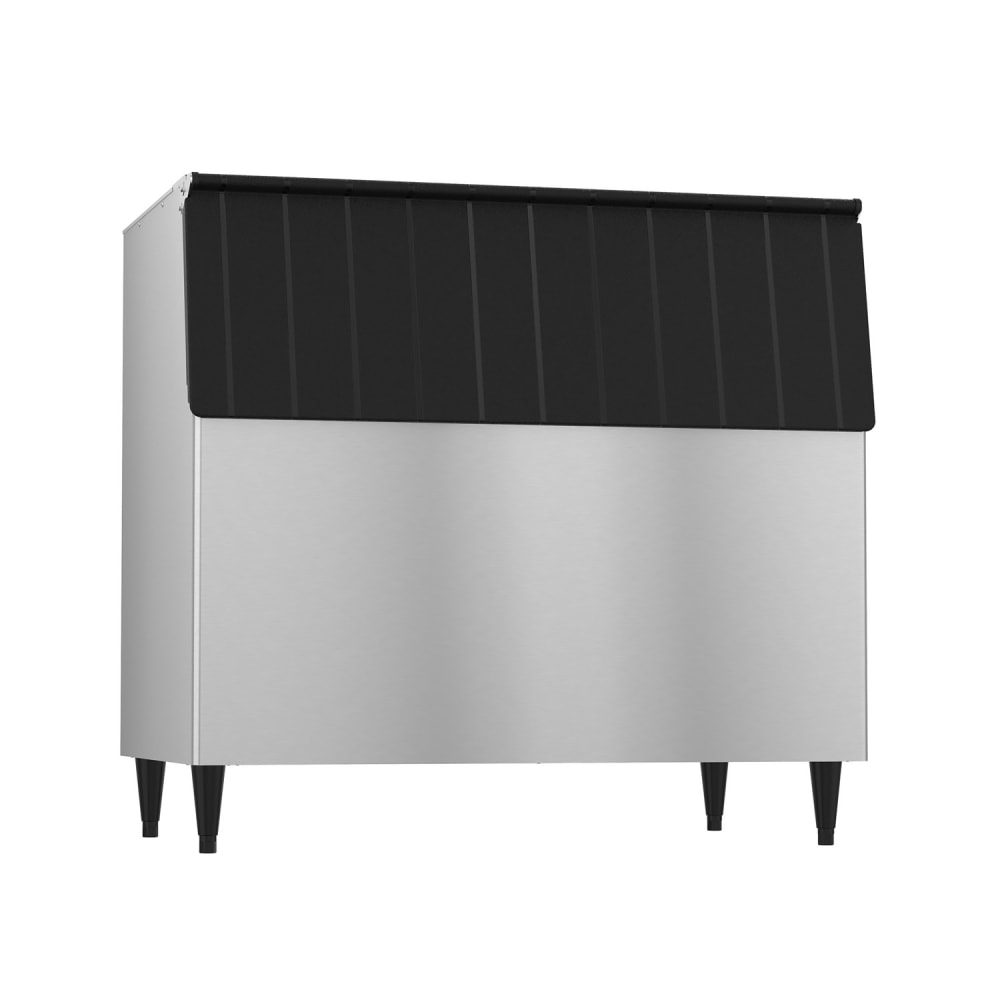

Ice Bin Details

• 800-lb. storage capacity
• PVC-coated galvanized steel finish
• All bin walls and bottom have foamed-in-place polyurethane insulation
• Ice scoop is protected by H-Guard Plus antimicrobial agent
• Sturdy construction can be stacked with or placed next to other machines

Dimensions & Utilities

• Ice Maker
• 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 27³⁄₈ in. H
• 12.4 A
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 48 in. W x 32¹⁄₂ in. D x 46 in. H

*Free shipping on Hoshizaki KM-1301SAJ/B-800SF within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1365 lb/24 hours at 70°/50° (1301 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 12.4 amps, NSF, UL

Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1301SAJ/B-800SF Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
