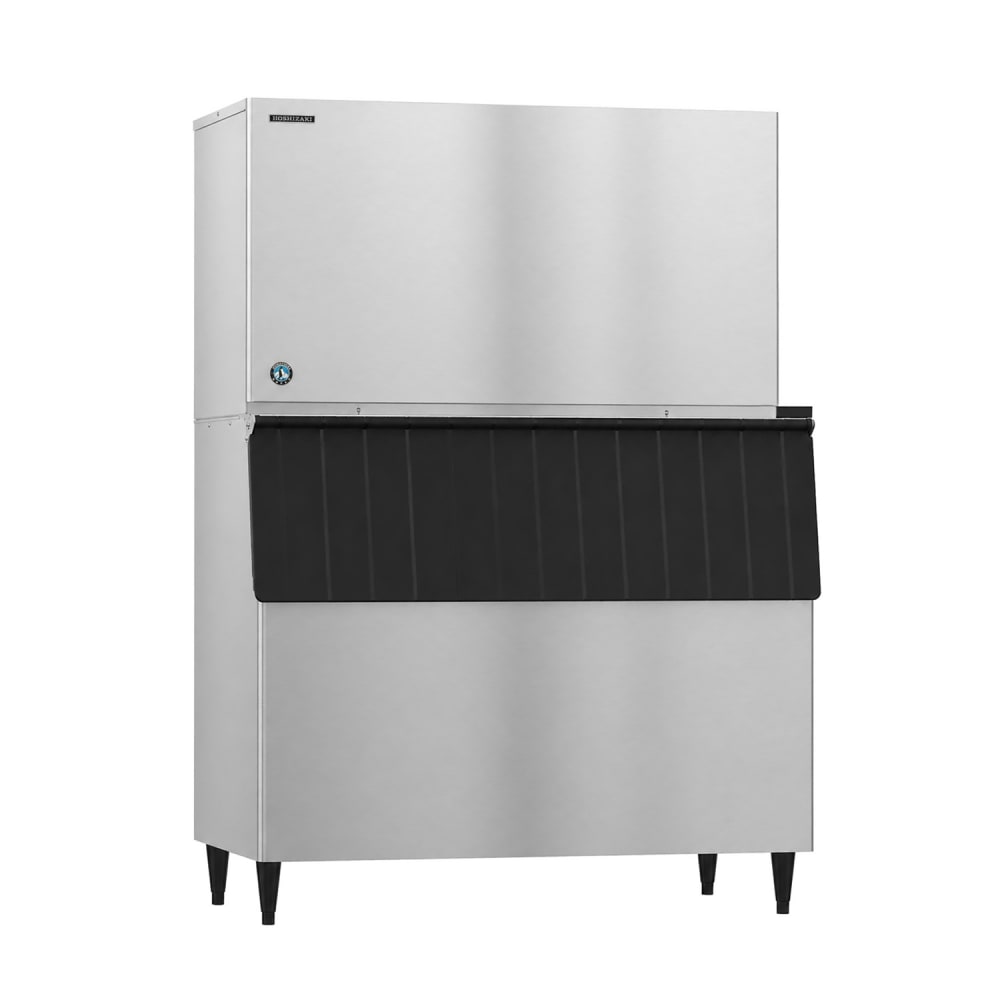

Hoshizaki KM-1301SWJ3/B-800SF 1360 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$12,015.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1301SWJ3/B-800SF Description
The Hoshizaki KM-1301SWJ3/B-800SF ice maker with bin can create 1,360 pounds of ice daily in ideal conditions, and its bin stores 800 pounds. This arrangement is ideal for restaurants and bars that frequently retrieve ice from the bin to fill customers' cups or to blend into a coffee drink. The ice maker produces crescent cube ice, which has a high ice-to-water ratio.

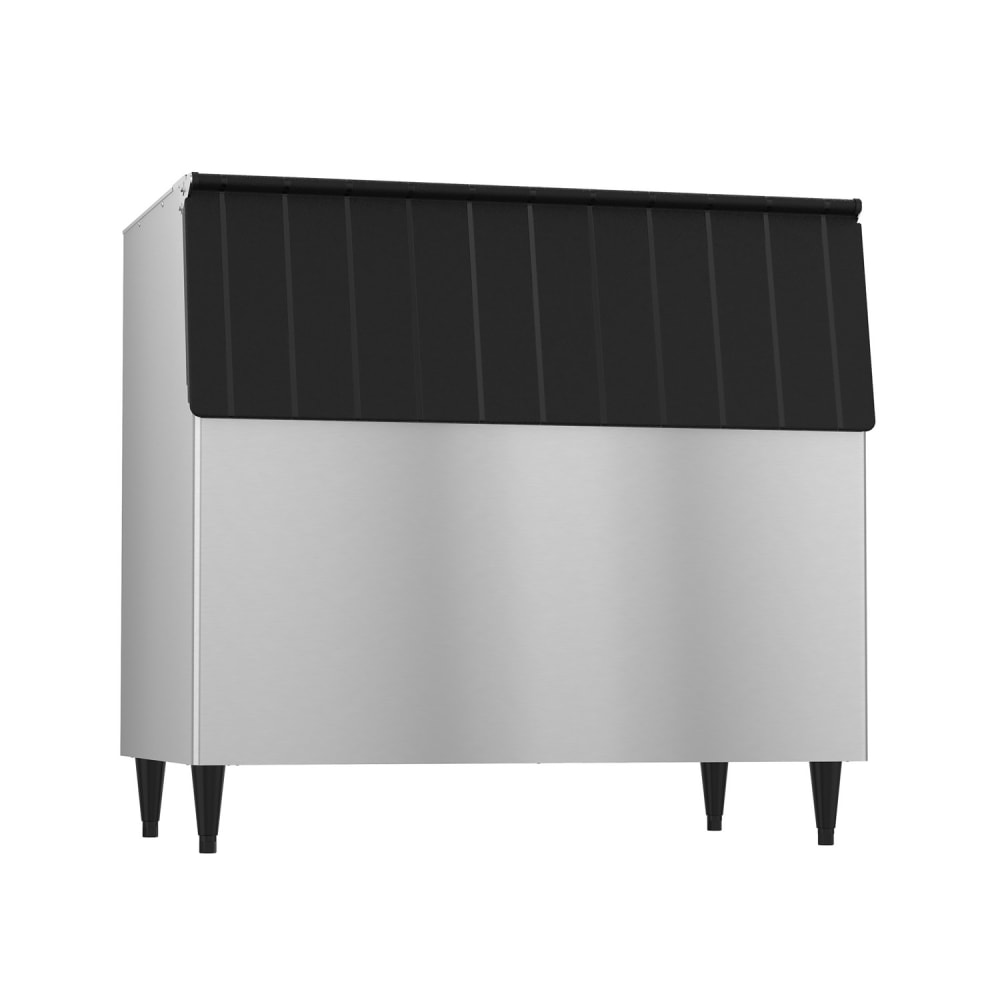

This Hoshizaki KM-1301SWJ3/B-800SF ice machine/bin combo has a PVC-coated, galvanized steel storage bin. Its interior has a seamless polyethylene liner that doesn't have crevices that may harbor bacteria. To inhibit bacterial growth further, the bin features H-Guard Plus® antimicrobial agent. Its walls and bottom are insulated to prevent heat transfer.
- Maximum production capacity: 1,360 lbs./24 hrs. at 70 degrees F
- AHRI-certified production capacity: 1,355 lbs./24 hrs. at 90 degrees F
- Creates crescent cube-style ice
- Ice cube size: 0.5 in. W x 1.13 in. D x 1.5 in. H
- Condenser is water cooled and self-contained
- R-404A refrigerant
- Exterior is made of stainless steel for durability
- 20,100-BTU transfer capacity
- 800-lb. storage capacity
- Exterior is PVC-coated galvanized steel
- Door is top hinged and opens from the front
- Lined with seamless polyethylene
- Insulated with foamed-in-place polyurethane
- Accommodates a top-mount ice maker
- Equipped with H-Guard Plus antimicrobial agent
- Mounted on vinyl-clad, painted legs
- Ambient air temperature: 45-100 degrees F
- Incoming water temperature: 45-90 degrees F
- Incoming water pressure: 10-113 PSIG
- 6-in. side, top, and rear clearances
- Ice maker: 48 in. W x 27.38 in. D x 27.38 in. H
- Ice bin interior: 45 in. W x 27.7 in. D x 37.6 in. H
- Ice bin overall: 48 in. W x 32.3 in. D x 46 in. H
- 6.1 A, 3.25 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1301SWJ3/B-800SF within the 48 contiguous states.
From The Manufacturer

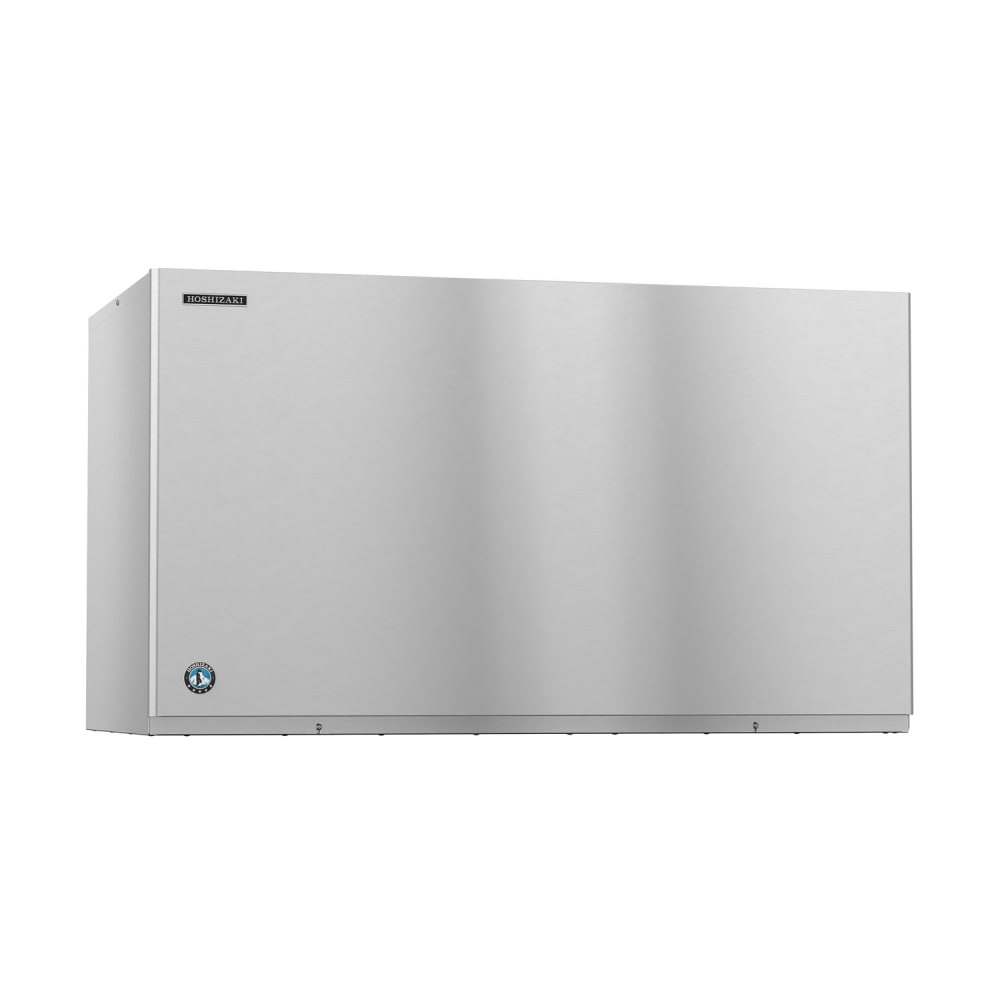

Ice Maker, Cube-Style, 48"W, water-cooled, self-contained condenser, production capacity up to 1360 lb/24 hours at 70°/50° (1355 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 6.1 amps, NSF, UL
Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1301SWJ3/B-800SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1360 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 800 |
| Compressor Type | Water Cooled |
| Depth (in) | 32.3 |
| Height (in) | 73.38 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 545.00 |
