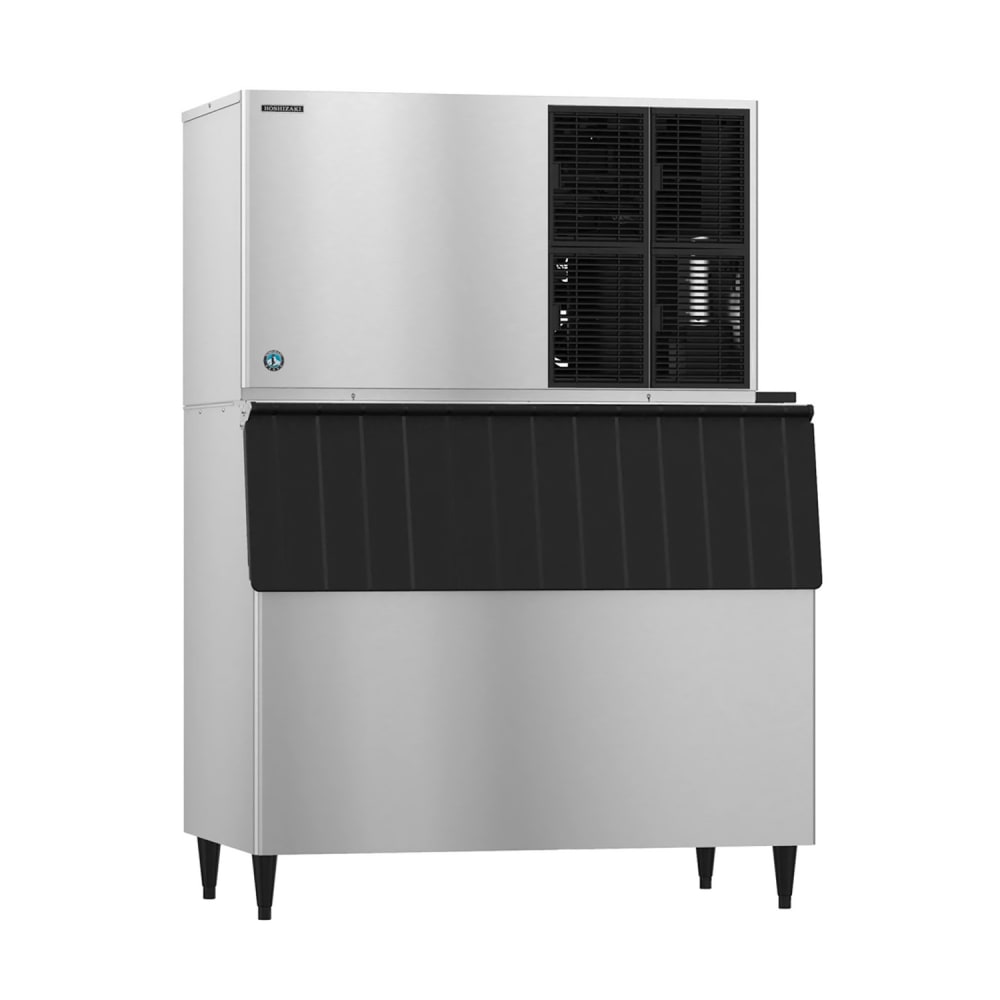

Hoshizaki KM-1301SAJ3/B-800SF 1427 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$11,760.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Hoshizaki KM-1301SAJ3/B-800SF Description
To provide durability, the Hoshizaki KM-1301SAJ3/B-800SF ice maker has a stainless steel finish. For corrosion resistance in wet applications, the evaporator is made of stainless steel as well. Streamlining installation and preventing cross contamination, the air-cooled condenser is self-contained and cools with R404A refrigerant to make crescent-cube ice. When the ice maker is kept in a room with an ambient temperature of 70 degrees Fahrenheit, it will make 1,427 pounds of ice daily, though if the levels rise 90 degrees Fahrenheit, it will create 1,350 pounds per day.
The Hoshizaki KM-1301SAJ3/B-800SF ice maker and bin has a storage capacity of 800 pounds. A scoop is included to remove ice from the bin without touching it, and the bin and head contain an H-GUARD Plus antibacterial agent to slow bacteria growth. Because the bin is lined with polyethylene, ice is kept clean and fresh while it's waiting to be served. Preventing ice from melting and reducing energy loss, the bin is insulated with foamed-in-place polyurethane.
- 1,427-lb. maximum daily ice production
- 1,350-lb. AHRI-certified daily ice production
- Makes crescent-cube ice
- Crescent-cube ice size: 1 1⁄2 in. x 1⁄2 in. x 1 1⁄8 in.
- Self-contained, air-cooled condensing unit
- Cools with R404A refrigerant
- Resilient stainless steel finish with a rust-resistant stainless steel evaporator
- H-GUARD Plus antimicrobial agent slows growth of germs
- Maintenance needs are announced with the EverCheck alert system
- CycleSaver design produces ice quickly and efficiently
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 18,400-BTU heat transfer capacity
- 800-lb. ice storage capacity
- Front-opening door
- Includes a scoop to remove ice
- H-GUARD Plus antimicrobial agent slows bacterial growth on scoop and bin
- Polyethylene bin liner keeps ice clean
- Insulated with foamed-in-place polyurethane
- Vinyl clad construction with painted legs
- Ice maker: 48 in. W x 27.38 in. D x 27.38 in. H
- Ice bin interior: 45 in. W x 27.7 in. D x 37.6 in. H
- Ice bin overall: 48 in. W x 32.5 in. D x 46 in. H
- 9.5 A, 3.95 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1301SAJ3/B-800SF within the 48 contiguous states.
From The Manufacturer

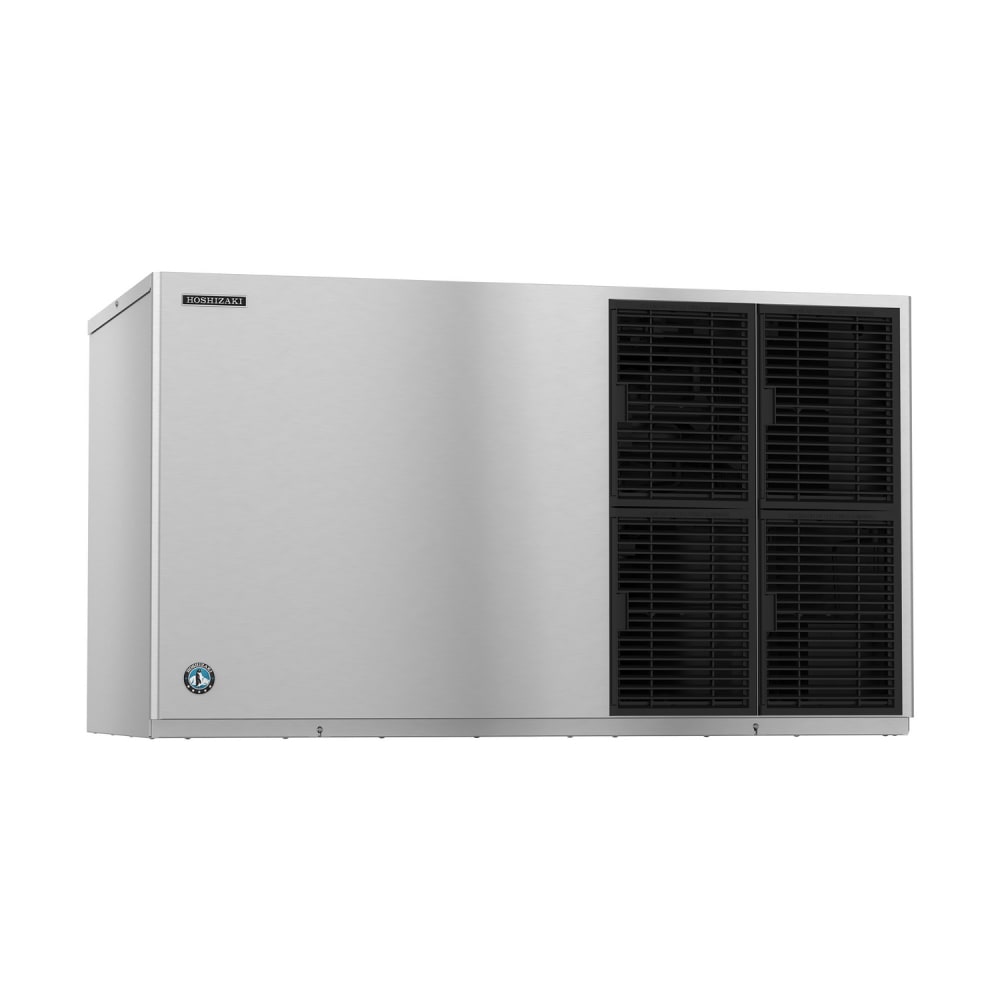

Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1427 lb/24 hours at 70°/50° (1350 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 9.5 amps, NSF, UL, ENERGY STAR®

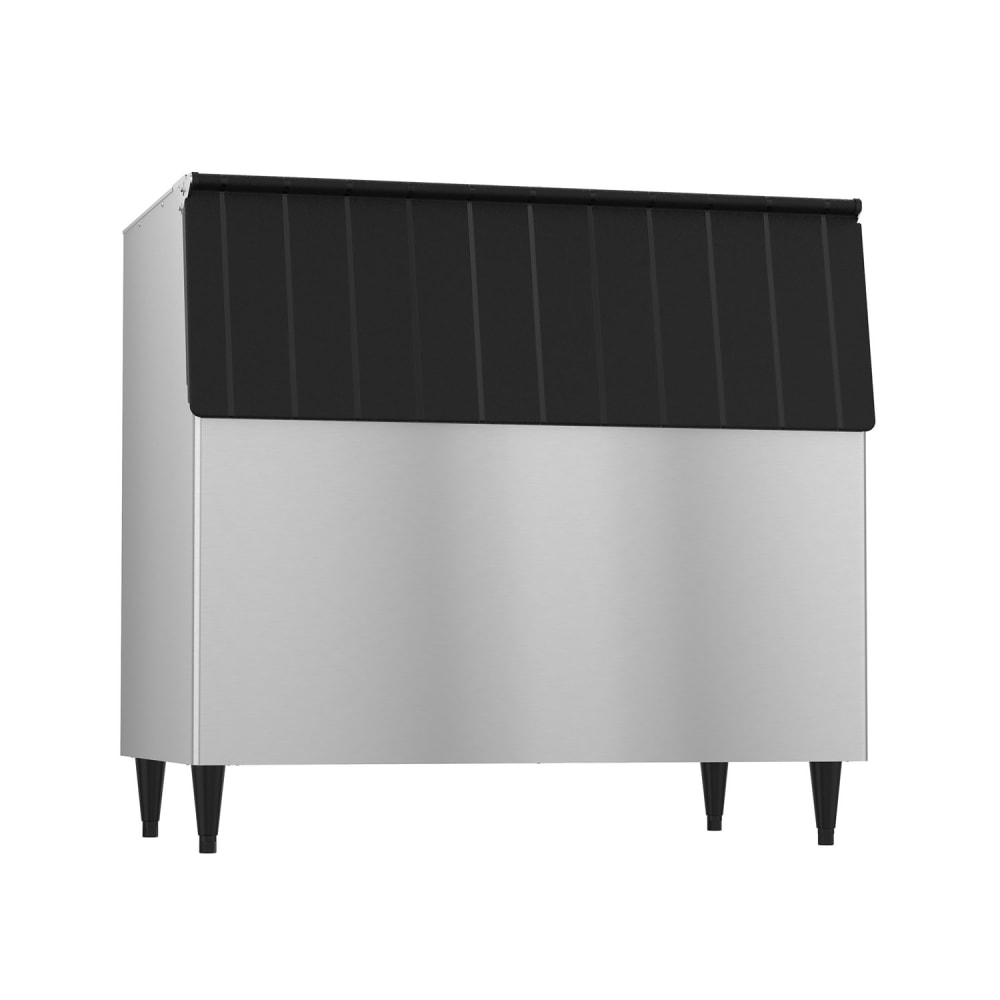

Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1301SAJ3/B-800SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1427 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 800 |
| Compressor Type | Air Cooled |
| Depth (in) | 32.3 |
| Height (in) | 73.38 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 548.00 |
