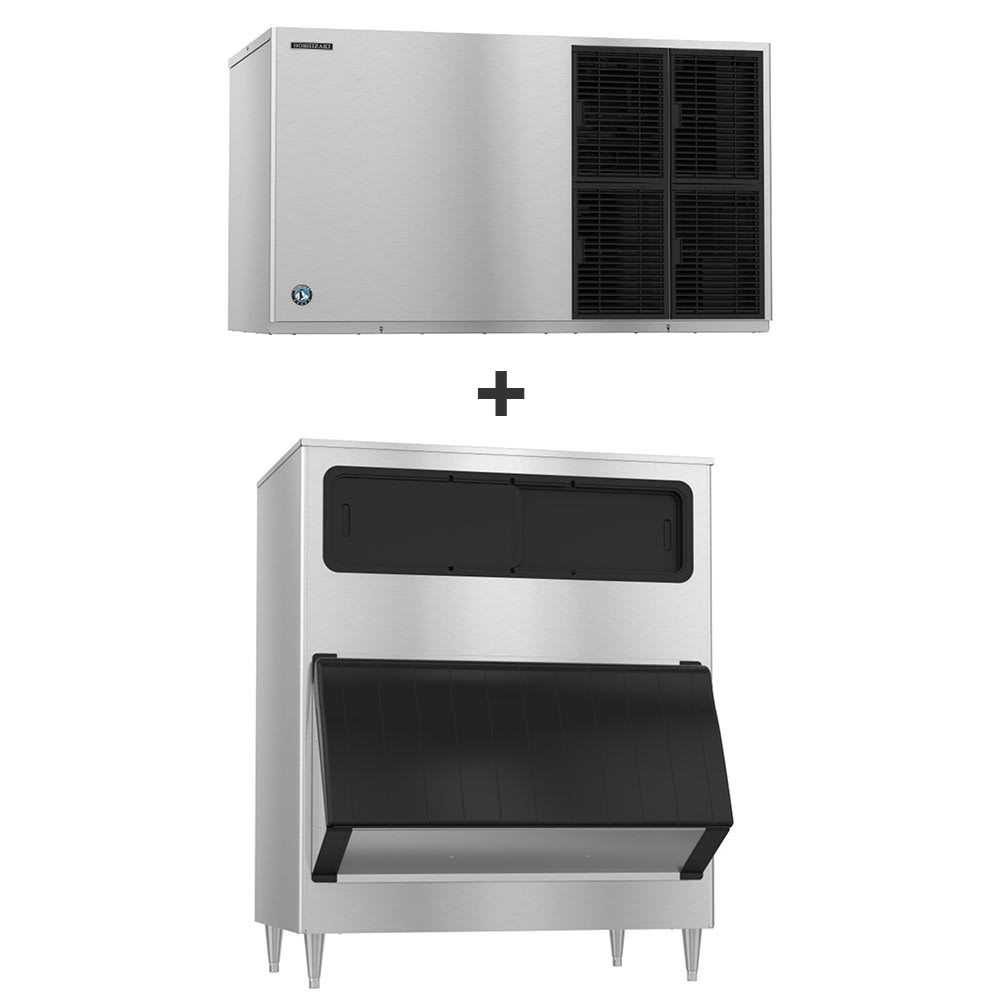

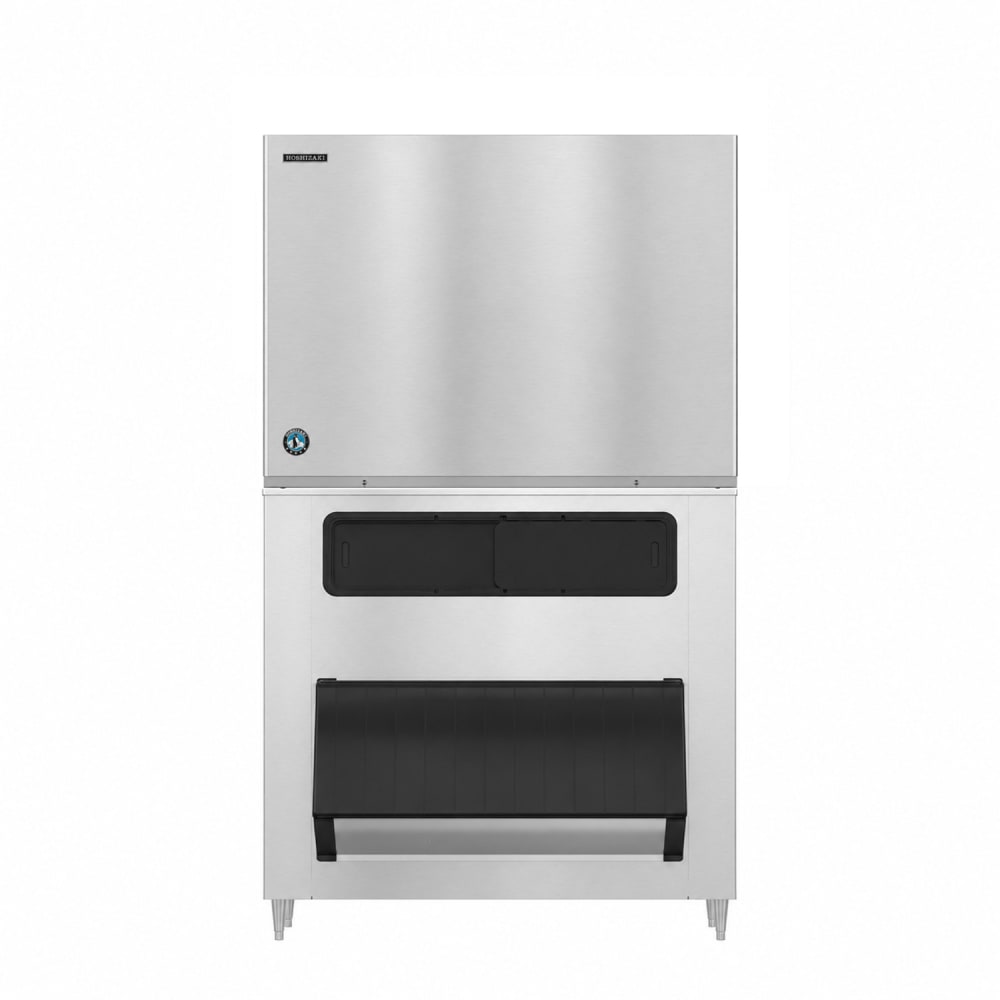

Hoshizaki KM-1301SWJ3/B-1150SS 1360 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 208-230v

The Hoshizaki KM-1301SWJ3/B-1150SS ice maker with bin makes 1,360 pounds of ice per day and stores 1,148 pounds of ice for quick access. Retrieval of ice is facilitated with the included scoop, which prevents employees from putting their hands in the bin. To retain the bin's chill, the door is sealed with a gasket and is insulated with polyurethane, while viewing windows at the top let users see inside without having to open the door frequently. For sanitary storage, the bin is lined with seamless polyethylene.

Using its CycleSaver™ design, the Hoshizaki KM-1301SWJ3/B-1150SS crescent-cube ice maker creates ice in half the time of comparable units. Its EverCheck™ alert system tells users when maintenance is needed, ensuring it always operates at peak efficiency. To slow the growth of bacteria, the scoop, bin, and head are protected with H-GUARD Plus antimicrobial.

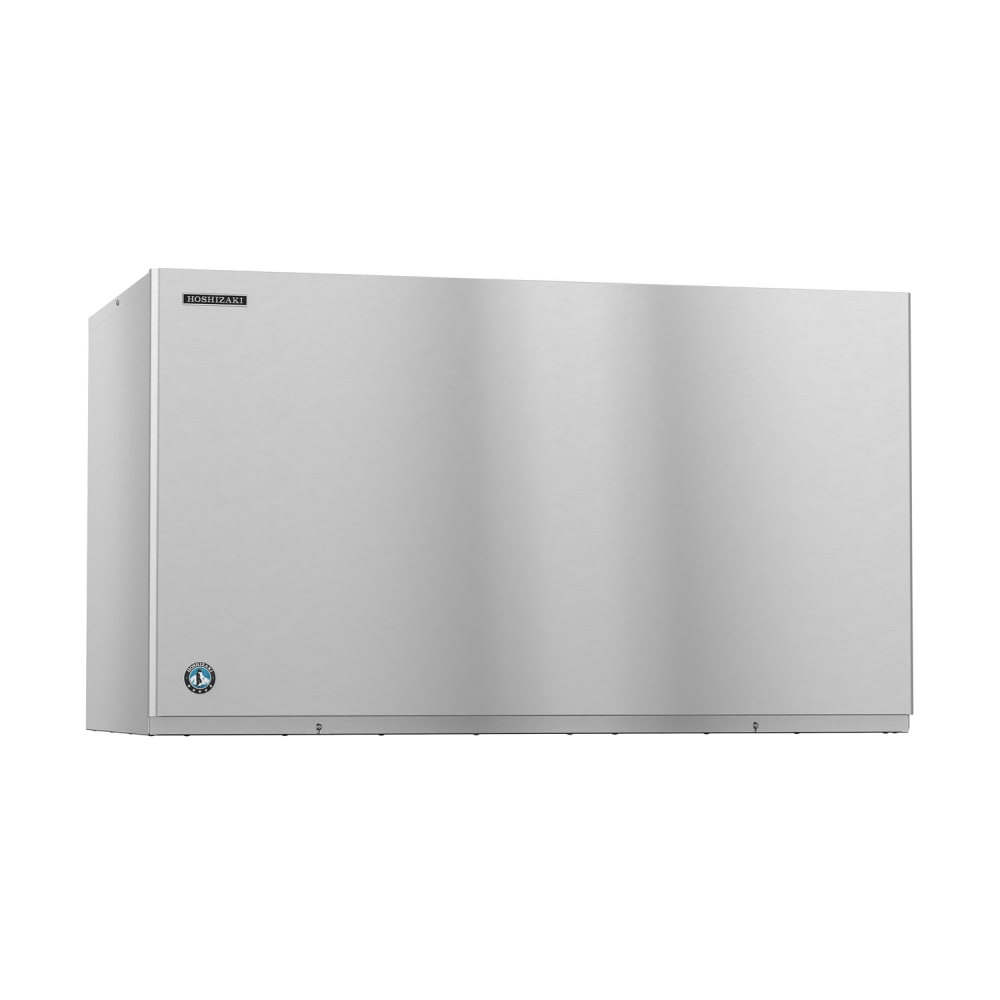

Ice Machine Head Details

• 1,360-lb. maximum daily ice production
• 1,355-lb. AHRI-certified daily ice production
• Makes crescent-cube ice
• Crescent-cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• Protected with H-GUARD Plus antimicrobial agent to slow bacteria growth
• EverCheck alert system ensures optimal operation
• CycleSaver design helps the unit quickly produce ice
• Water-cooled, self-contained condenser uses R404A refrigerant
• Evaporator and exterior are corrosion-resistant stainless steel
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 20,100-BTU heat transfer capacity

Product Features

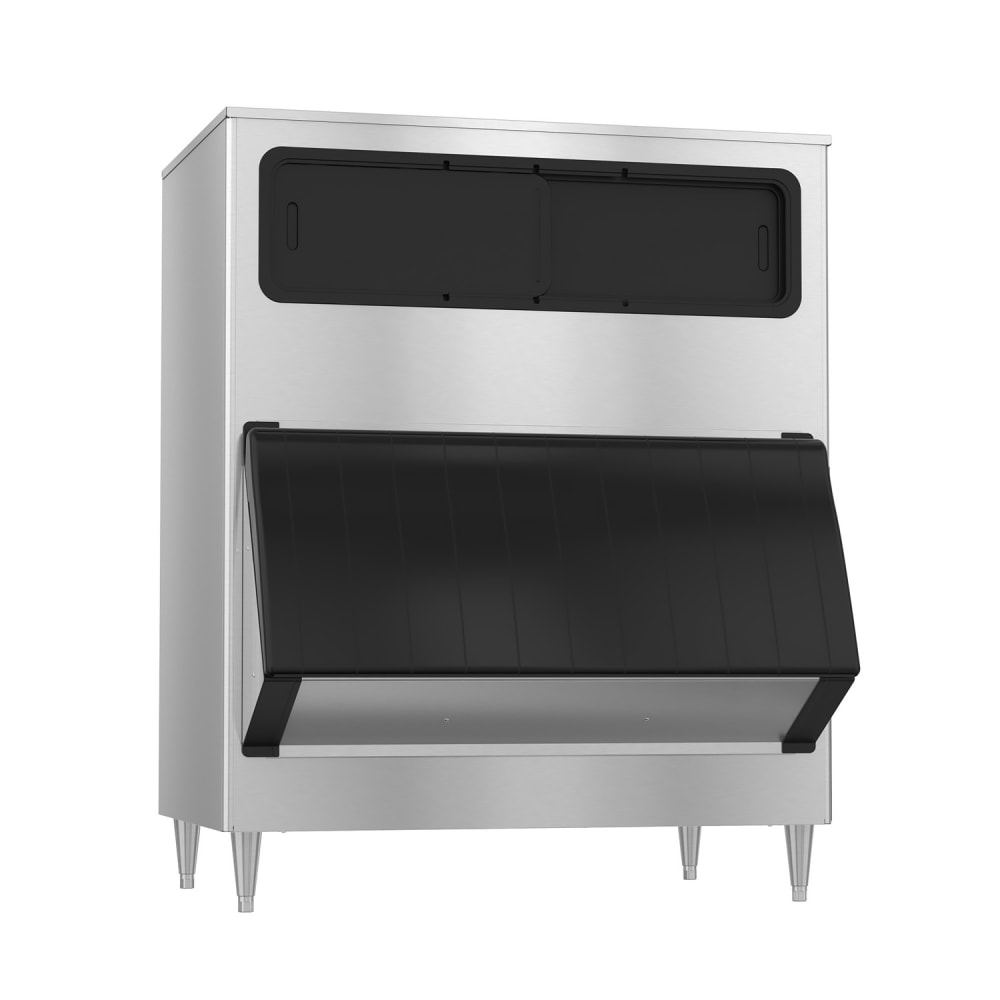

Ice Bin Details

• 1,148-lb. ice storage capacity
• Interior view provided by top windows
• Seamless polyethylene bin liner prevents harboring bacteria
• Insulated with foamed-in-place polyurethane to preserve ice
• Includes 82-oz. scoop
• Bacterial growth on the scoop and bin slowed with H-GUARD Plus antimicrobial
• Door pouch prevents condensation and spillage when opened
• Door is gasket sealed to prevent cold air from escaping
• Made of resilient stainless steel
• 6-in. stainless steel adjustable legs

Dimensions & Utilities

• Ice machine head: 48 in. W x 27.38 in. D x 27.38 in. H
• Ice bin: 48 in. W x 41 in. D x 60.13 in. H
• 6.1 A, 3.25 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1301SWJ3/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, water-cooled, self-contained condenser, production capacity up to 1360 lb/24 hours at 70°/50° (1355 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 6.1 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
