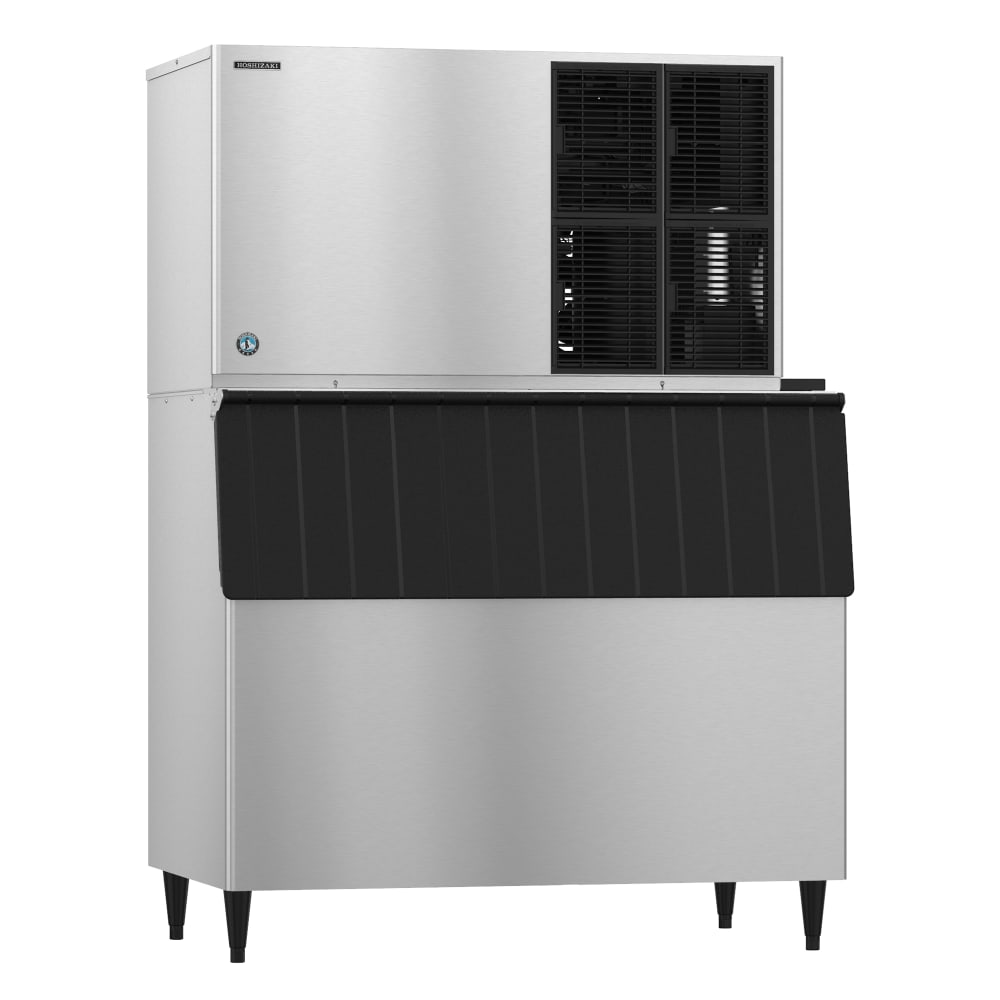

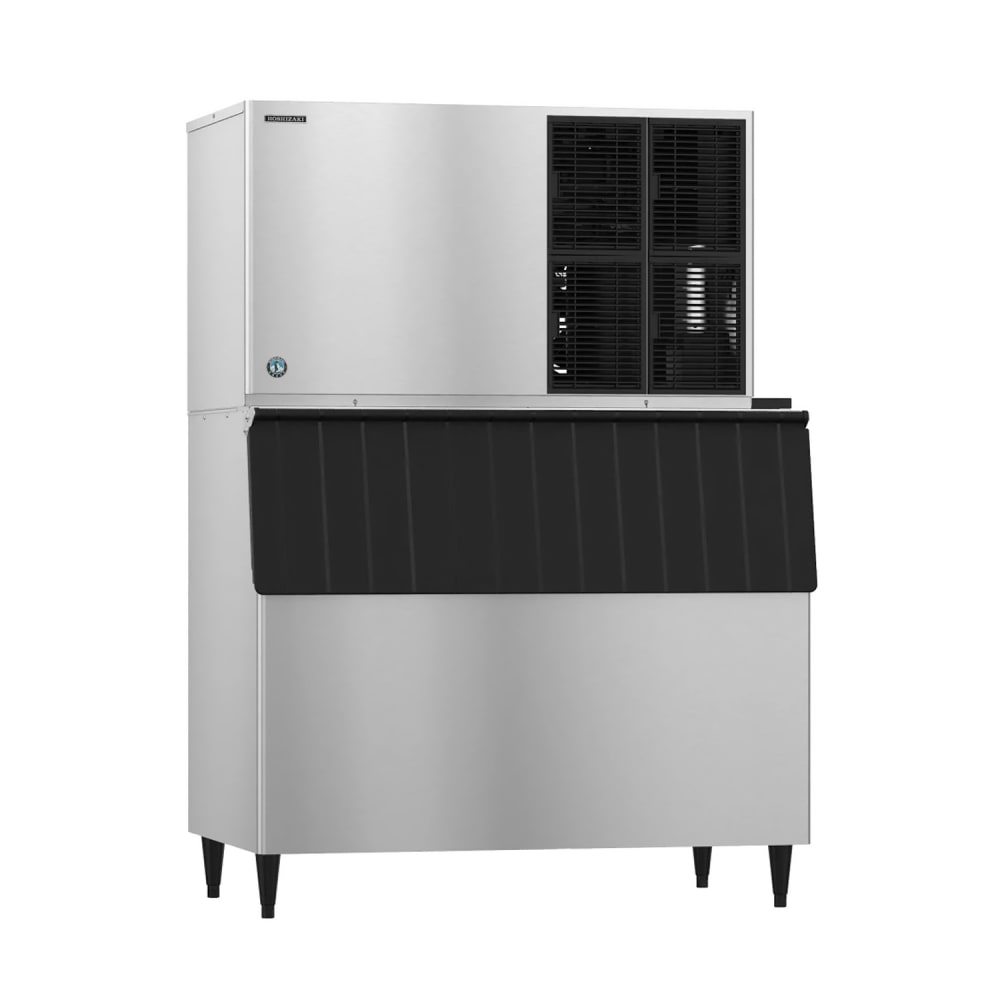

Hoshizaki KM-1301SAJ3/B-1150SS 1427 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Air Cooled, 208-230v

The Hoshizaki KM-1301SAJ3/B-1150SS ice maker with bin makes 1,427 pounds of ice per day and can store 1,148 pounds of that for later use. While the bin and head are protected against bacteria with H-GUARD Plus antimicrobial, the bin is also lined with seamless polyethylene to provide sanitary storage. Ensuring employees won't stick their hands in the bin and pull out ice, it comes with a scoop for retrieval. To retain cold air, the bin is insulated with foamed-in-place polyurethane, and its door has a pouch style that reduces condensation buildup.

Because the bin on the Hoshizaki KM-1301SAJ3/B-1150SS crescent-cube ice maker and bin has view windows, employees can see how much ice is inside without opening the door. The finish of the head, bin, and 6-inch legs are made of stainless steel to resist corrosion, especially when the floor gets wet and water situates around the legs. If problems occur, the EverCheck™ alert system lets users know maintenance may be needed in the ice maker. This unit is operated with a self-contained condenser and R404A refrigerant.

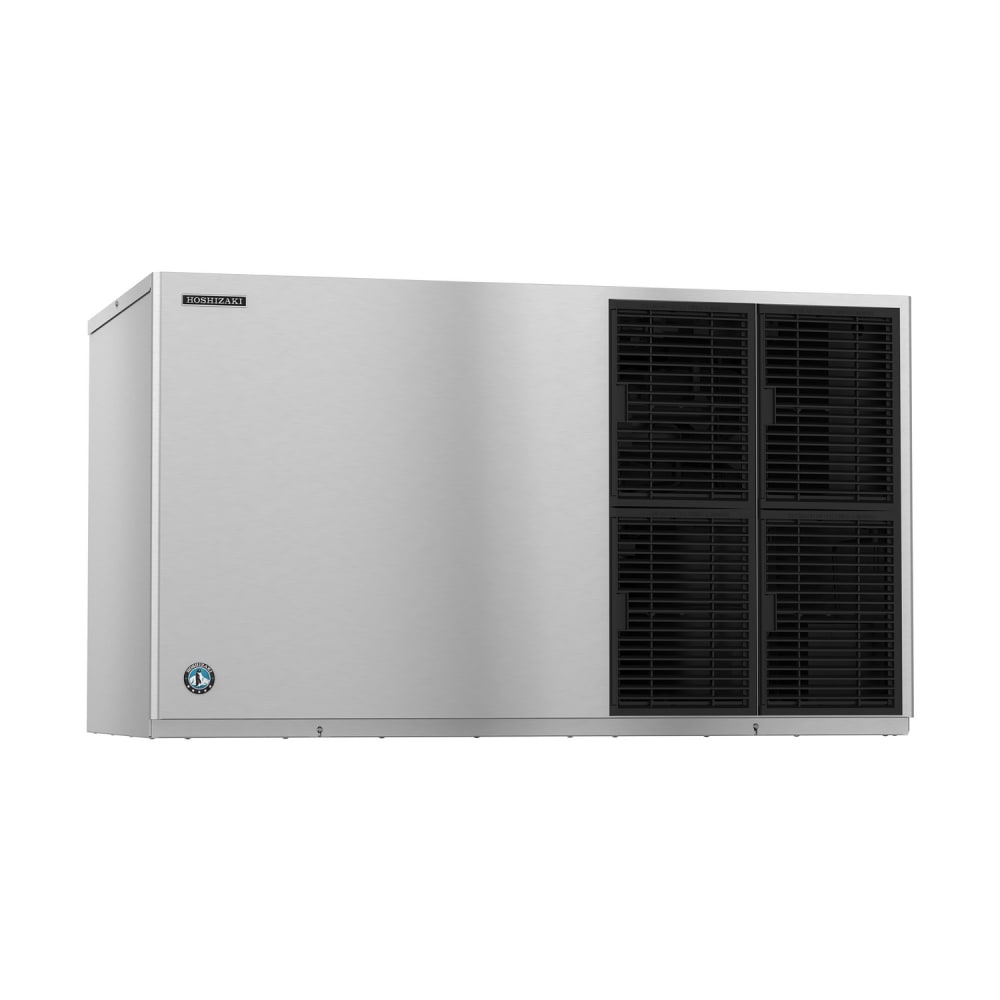

Ice Machine Head Details

• 1,427-lb. maximum daily ice production
• 1,350-lb. AHRI-certified daily ice production
• Makes crescent-cube ice
• Crescent-cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• EverCheck alert system monitors the unit for issues
• CycleSaver™ design creates ice in half the time of comparable units
• Air-cooled condenser uses R404A refrigerant
• Self-contained condensing unit facilitates installation
• Bacteria growth slowed with H-GUARD Plus antimicrobial agent
• Corrosion-resistant stainless steel finish
• Stainless steel evaporator resists rust
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 18,400-BTU heat transfer capacity

Product Features

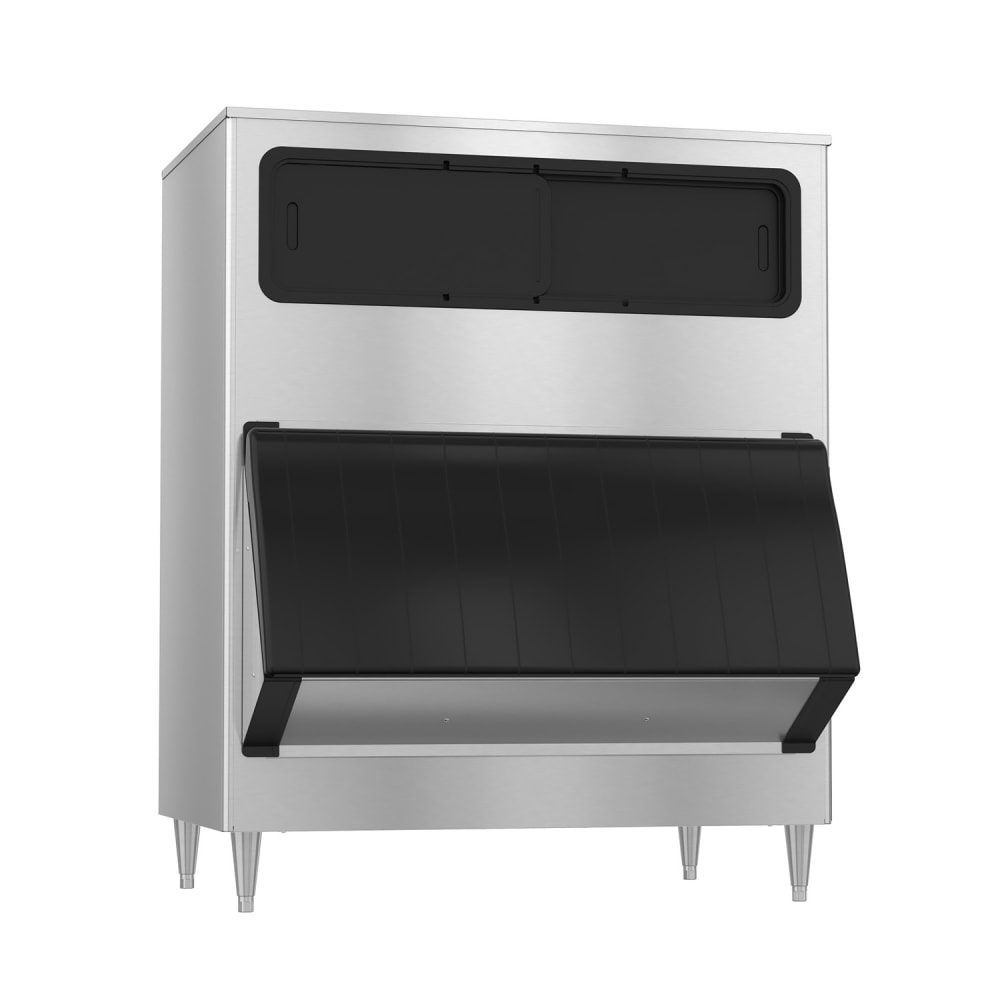

Ice Bin Details

• 1,148-lb. ice storage capacity
• 82-oz. ice scoop ensures sanitary retrieval
• Scoop and bin protected with H-GUARD Plus antimicrobial
• View windows provide a look into the bin
• Polyethylene lines the bin for cleanliness
• Foamed-in-place polyurethane insulation prevents ice melting
• Door has a pouch style to prevent condensation
• Gasket seals the door shut
• Made of durable stainless steel
• Positioned on 6-in. adjustable legs

Dimensions & Utilities

• Ice machine head: 48 in. W x 27.38 in. D x 27.38 in. H
• Ice bin: 48 in. W x 41 in. D x 60.13 in. H
• 9.5 A, 3.95 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1301SAJ3/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1427 lb/24 hours at 70°/50° (1350 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 9.5 amps, NSF, UL, ENERGY STAR®

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1301SAJ3/B-1150SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
