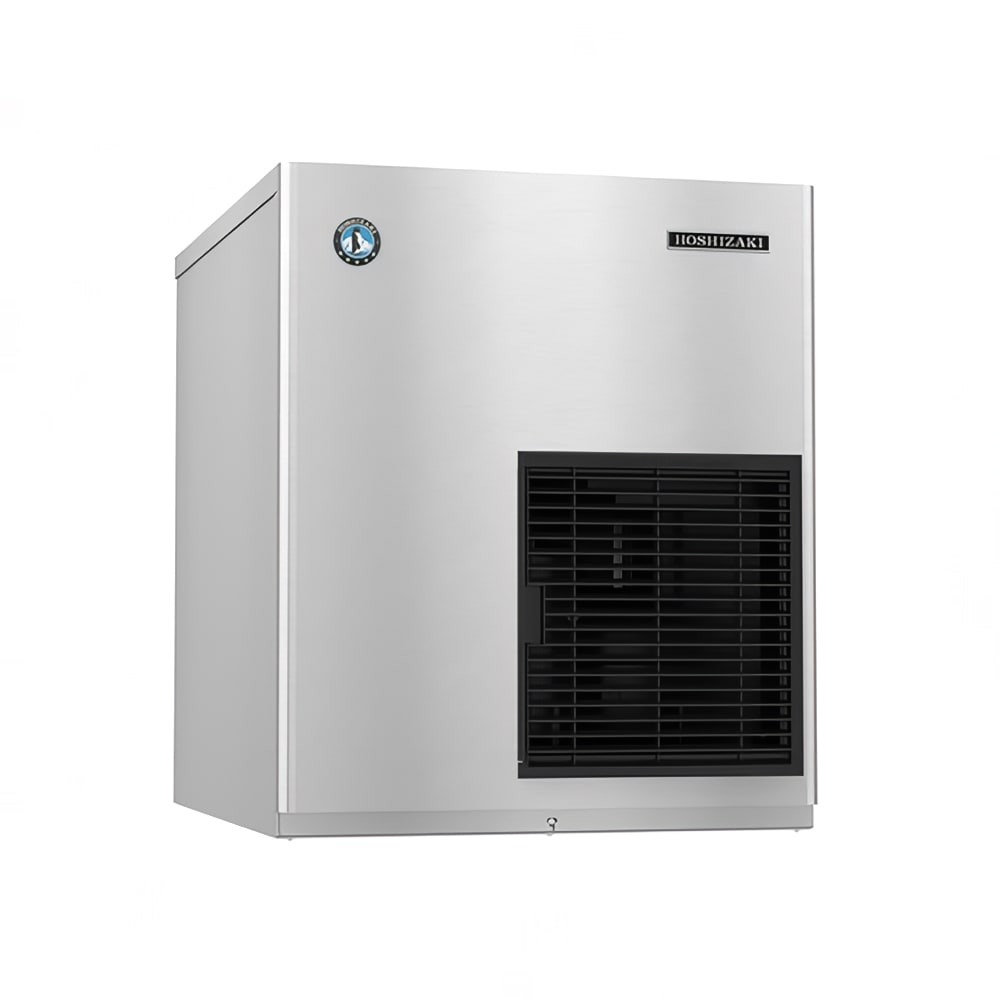

Hoshizaki F-801MWJ 22" Flake Ice Machine Head - 680 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,535.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled

Hoshizaki F-801MWJ Description
The Hoshizaki F-801MWJ ice machine head can produce 680 pounds of ice daily, giving users sufficient amounts of product. This machine crafts flake ice, commonly used in hospitals for ice packs or grocery stores in cold-food display cases. It's water cooled, which means it can use a building's existing water supply to cool itself, requiring less electricity than air- or remote-cooled models.
The stainless steel exterior of the Hoshizaki F-801MWJ ice maker is durable to withstand dents and scratches, ensuring a lengthy service life. Its auger is also stainless steel—this gives it rust resistance, a key factor for metals that frequently contact water. The ice head has a 2-second flush cycle that activates hourly to remove any built-up sediment that might contaminate ice-making water.

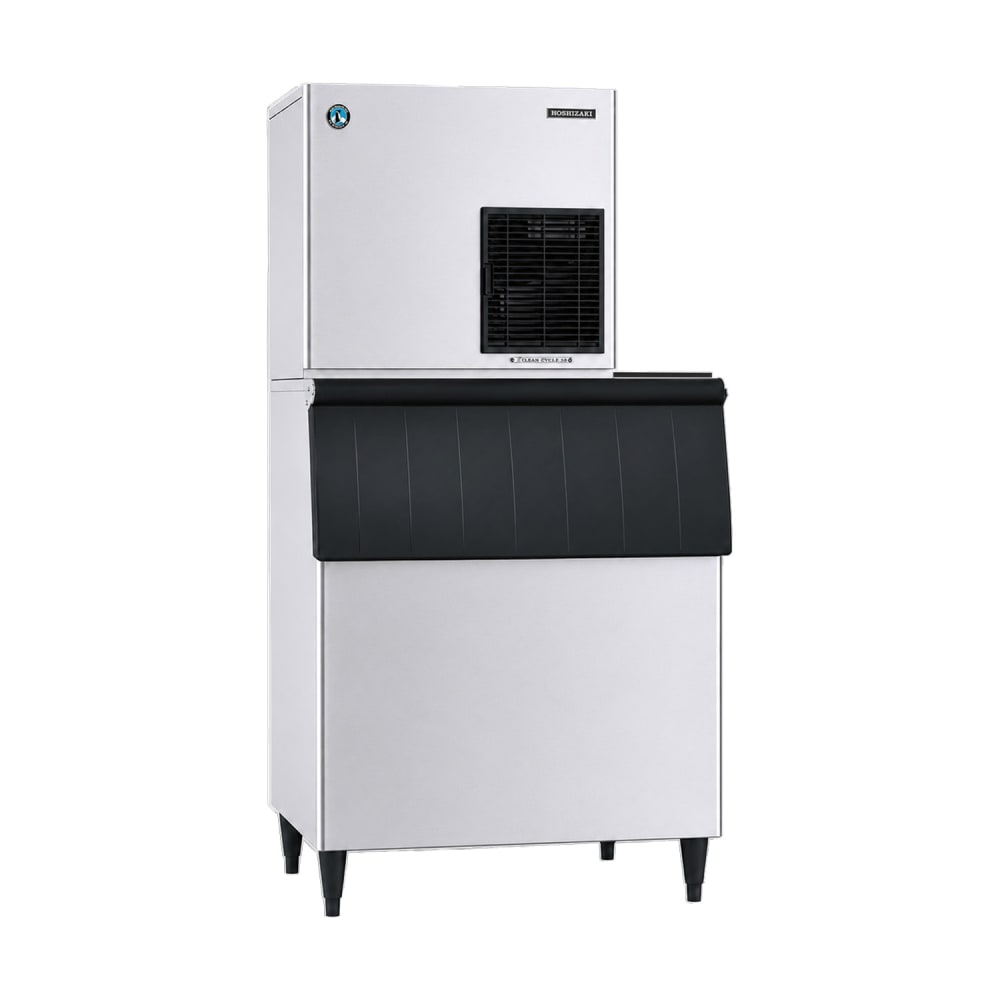

Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- Part of the Slim Line series
- 680-lb. maximum daily ice production
- 605-lb. AHRI-certified daily ice production
- Water-cooled system
- Produces flaked ice
- Stainless steel auger with greaseless bearing
- 2-sec. flush cycle every hr. purifies icemaking water
- Advanced CleanCycle24™ function
- Stainless steel exterior is resilient
- R-404A refrigerant
- Infrared bin control streamlines cleaning
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSI
- Ideal ambient air temperature: 45-100 degrees F
- 6,200-BTU heat transfer capacity
- Ideal clearances: 24 in. at top, 6 in. at sides and rear
Product Features

Dimensions & Utilities
- 22 in. W x 27 in. D x 26 in. H
- 11.8 A, 3.9 kW
- 115 V/60 Hz/1 ph
*Free shipping on Hoshizaki F-801MWJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Flake-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 680 lb/24 hours at 70°/50° (605 lb AHRI certified at 90°/70°), stainless steel finish, Advanced CleanCycle24™, R-404A refrigerant, 115v/60/1-ph, 11.8 amps, NSF, UL
*Image may not depict product color, inclusions or accessories.

Watch a video about this product
Hoshizaki F-801MWJ Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Hoshizaki |
24 Hr. Production (lb) | 680 |
Compressor Type | Water Cooled |
Depth (in) | 27.38 |
Height (in) | 26 |
Ice Type | Flake |
Voltage | 115 |
Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
Width (in) | 22 |
Series | Slim-Line |
Phase | 1 |
Rating | Best |
Product | Ice Machine Heads |
Product Type | Ice Makers & Bins |
Weight | 205.00 |
Important Prop 65 information for California residents.
Hoshizaki F-801MWJ Accessories
Other Products From This Line
Compare to Similar Items
Attributes | ![]() Current Item: Hoshizaki F-801MWJ 22" Flake Ice Machine Head - 680 lb/24 hr, Water Cooled, 115v/1ph |
![]() Ice-O-Matic MFI0800W 21" Flake Ice Machine Head - 940 lb/24 hr, Water Cooled, 115v/1ph |
![]() Scotsman FS0822W-1 22" Prodigy Plus® Flake Ice Machine Head - 775 lb/24 hr, Water Cooled, 115v/1ph |
---|---|---|---|
Customer Rating |
|
|
|
Price | $6,535.00 | $6,041.00 | $5,727.00 |
Shipping | Ships Free | Ships Free | Ships Free |
Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 6 - 8 weeks | |
24 Hr. Production (lb) | 680 | 940 | 775 |
Ice Type | Flake | Flake | Flake |
Compressor Type | Water Cooled | Water Cooled | Water Cooled |
Width (in) | 22 | 21 | 22 |
Rating | Best | Better | Best |
Voltage | 115 | 115 | 115 |
Series | Slim-Line | Prodigy Plus® | |
Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor Parts | Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
