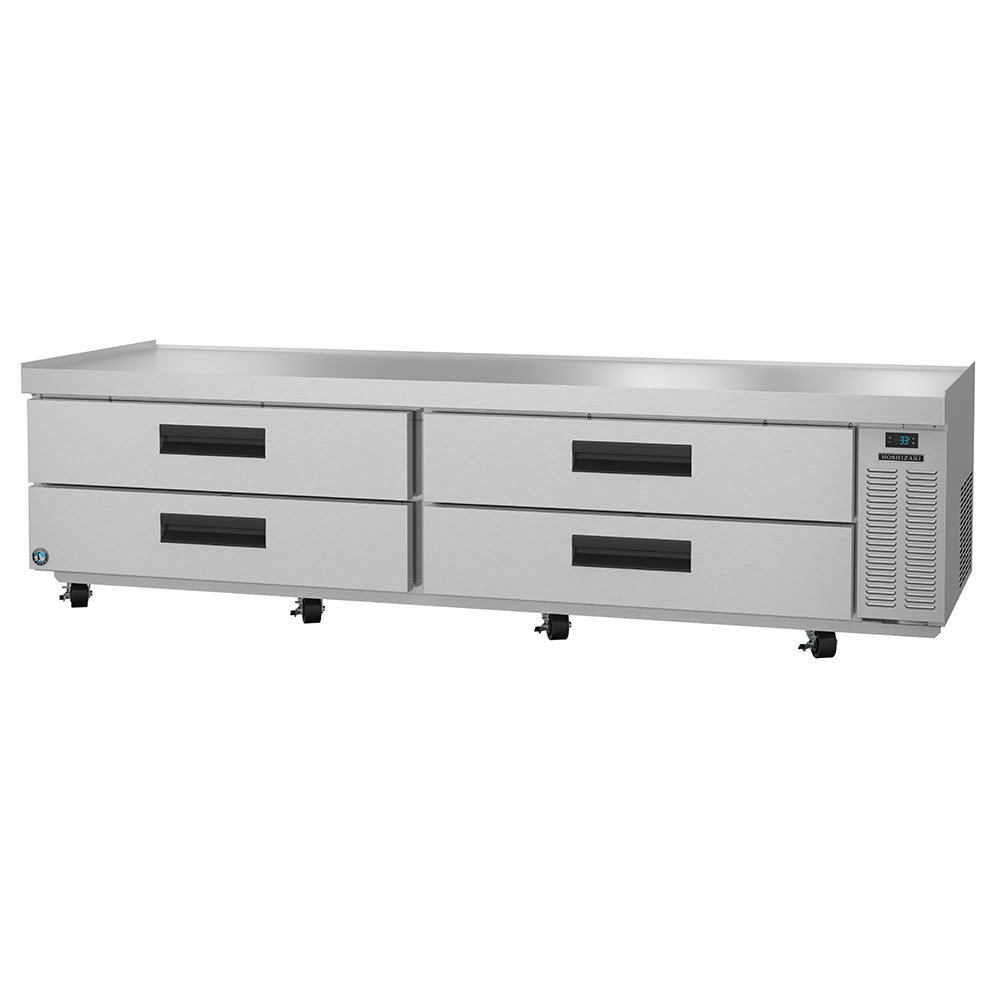

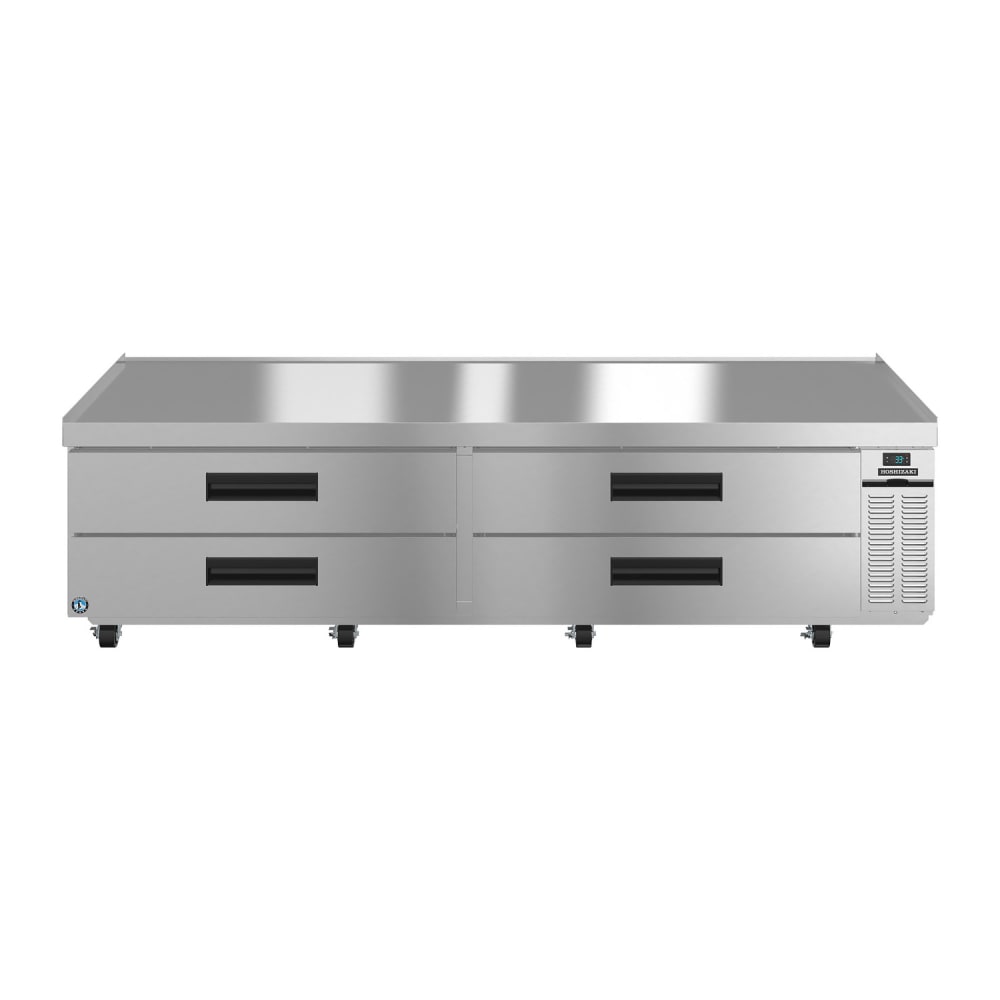

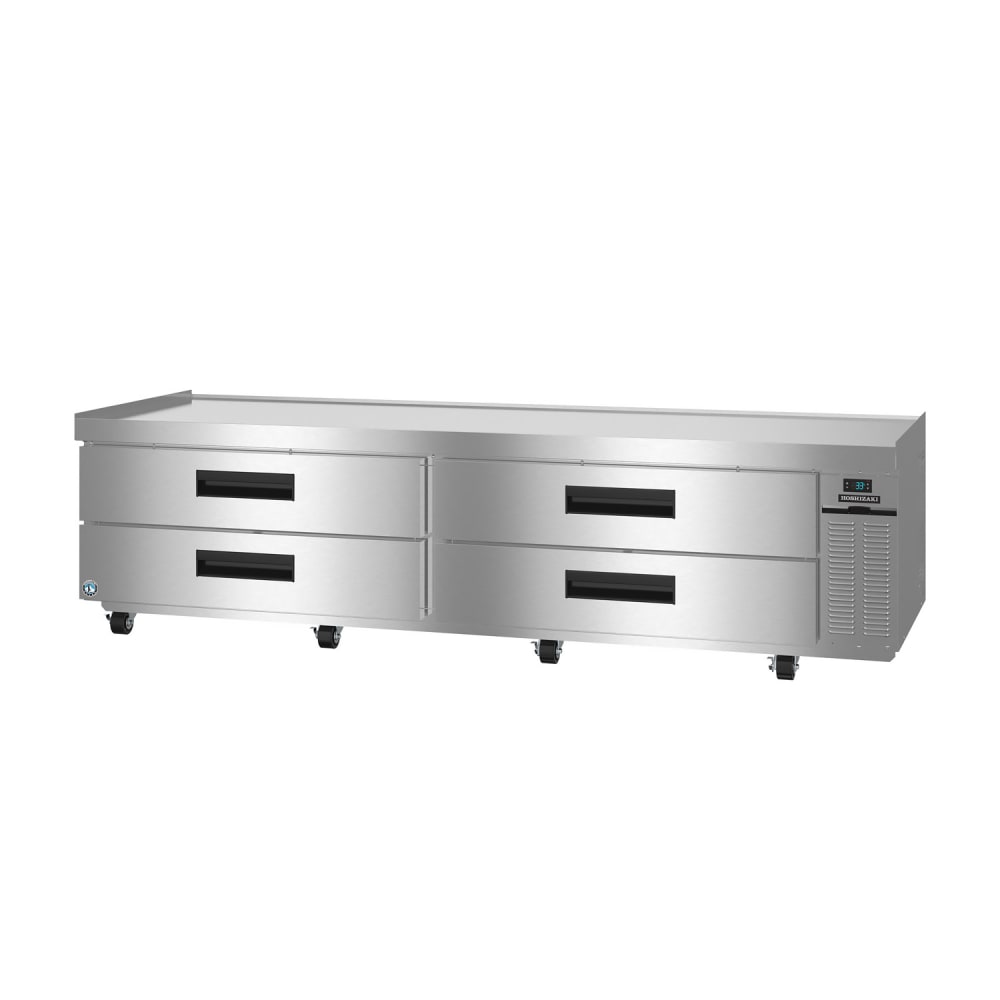

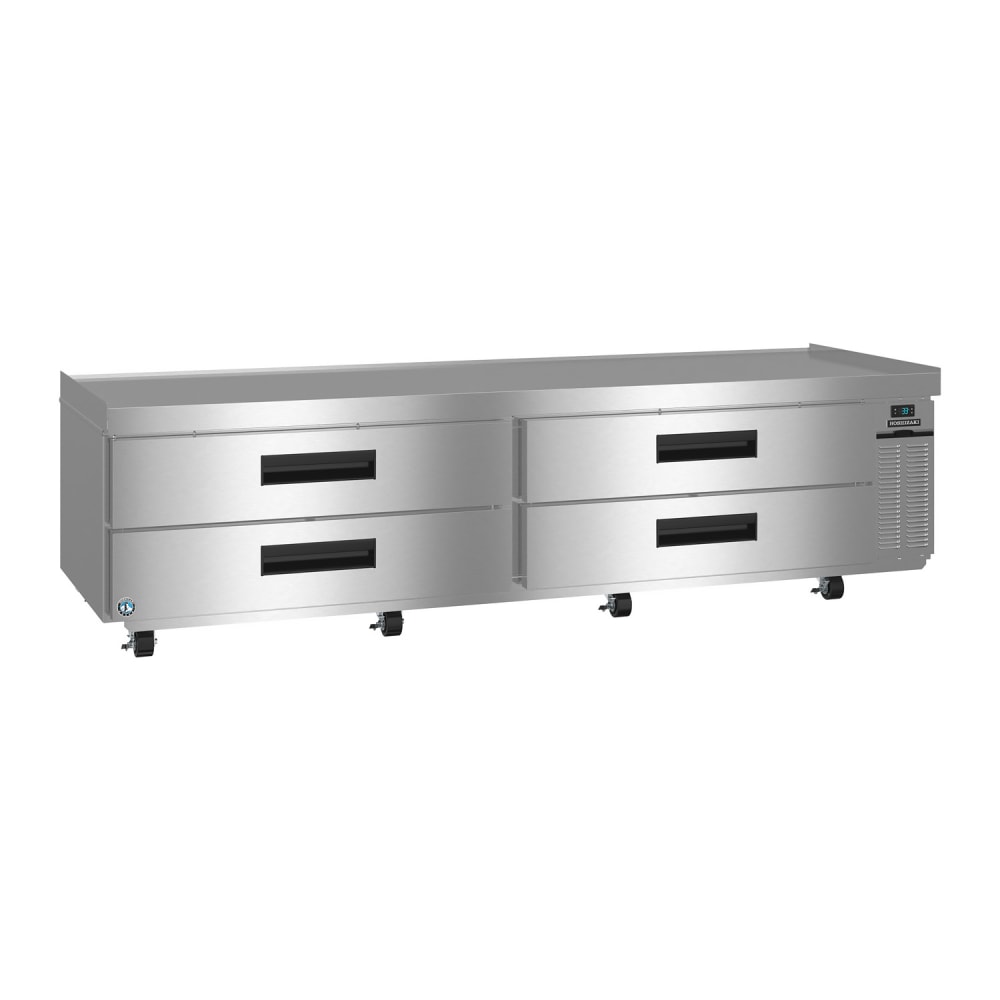

Hoshizaki CR98A 98" Steelheart Series Chef Base w/ (4) Drawers - 115v

Positioned on four-inch casters, users can roll the Hoshizaki CR98A chef base around the kitchen, and it has brakes to hold it in place when movement isn't needed. Made of stainless steel, this unit is durable and can accommodate 1,500 pounds of equipment. Its four drawers each hold three full-size food pans and are sealed tight with magnetic gaskets so product stays cold. Finger cut-outs in the drawers enable operators to grab pans. Extruded handles aid in opening the drawers without getting in the way in a crowded space. To prevent food from burning when it is prepared on the top, the unit has a ceramic heat shield.

The Hoshizaki CR98A chef base's refrigerated drawers keep product cold while waiting to cook and serve it. Using the solid-state controls, operators can adjust the temperature from 32 to 52 degrees Fahrenheit. If this number fluctuates too much, an alarm will sound to inform those nearby that something is wrong. The refrigeration system is self-contained and can be accessed from the side with a removable panel if maintenance is needed. A hot gas evaporator removes condensation, and its coil is epoxy coated to resist corrosion.

Product Details

• Part of the Steelheart Series
• 24.75-cu.-ft. interior capacity
• Temperature range: 32-52 degrees F
• 1,500-lb. capacity
• 4 drawers sealed tight with magnetic gaskets
• Each drawer can hold 3 full-size pans

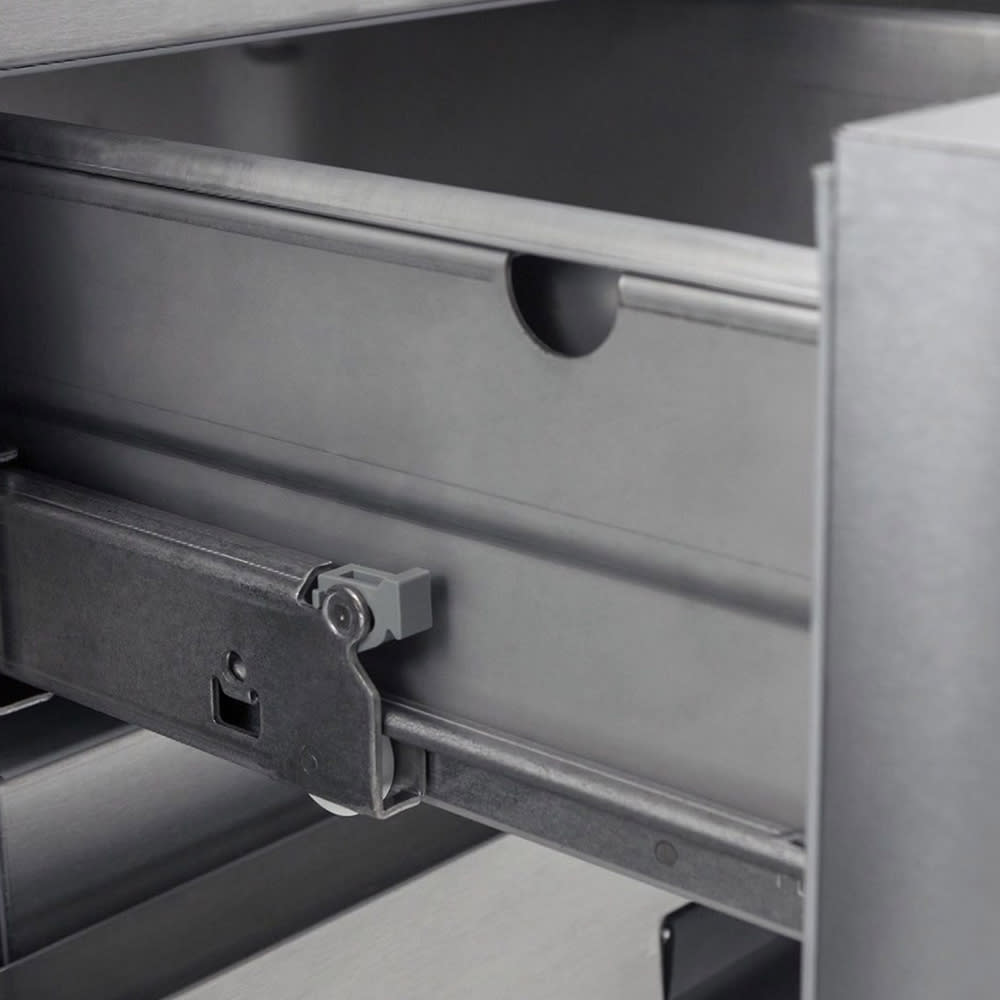

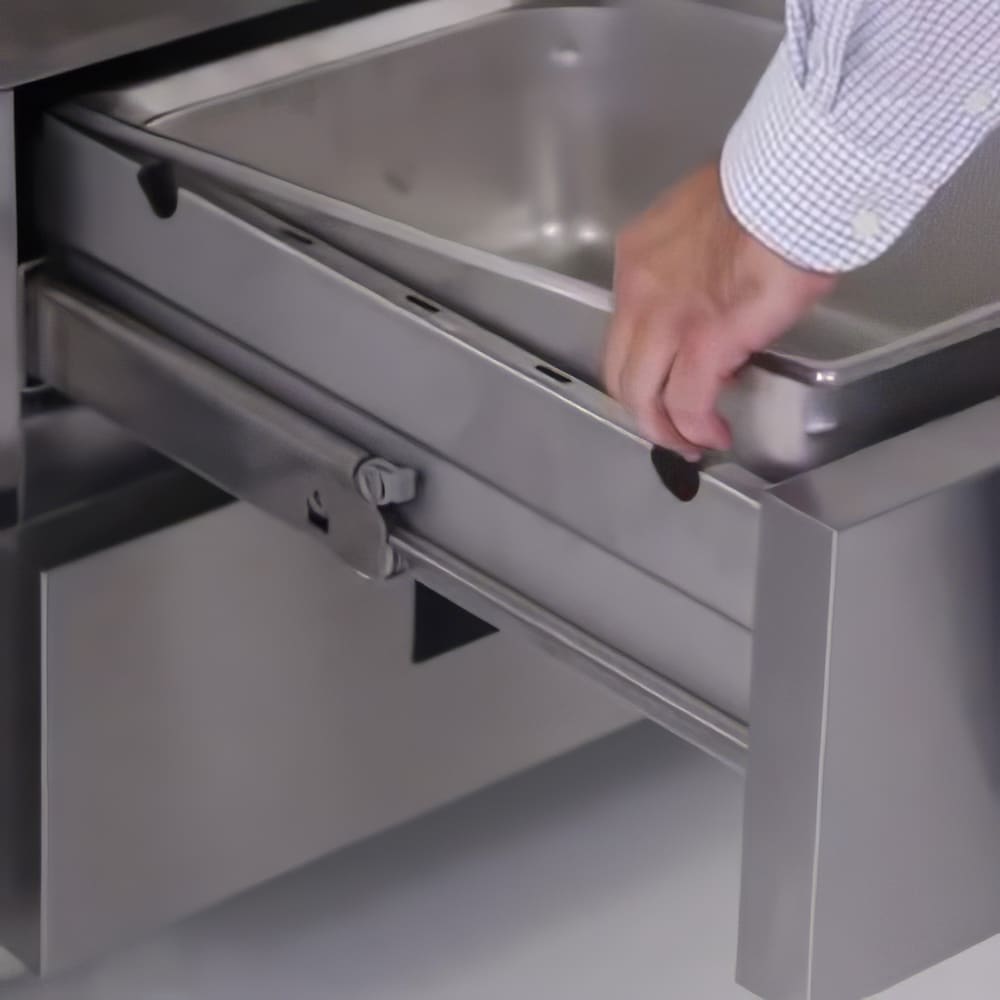

• Finger cut-outs enable operators to grab pans
• Extruded aluminum handles are installed flush
• 2-in. polyurethane insulation keeps food cold

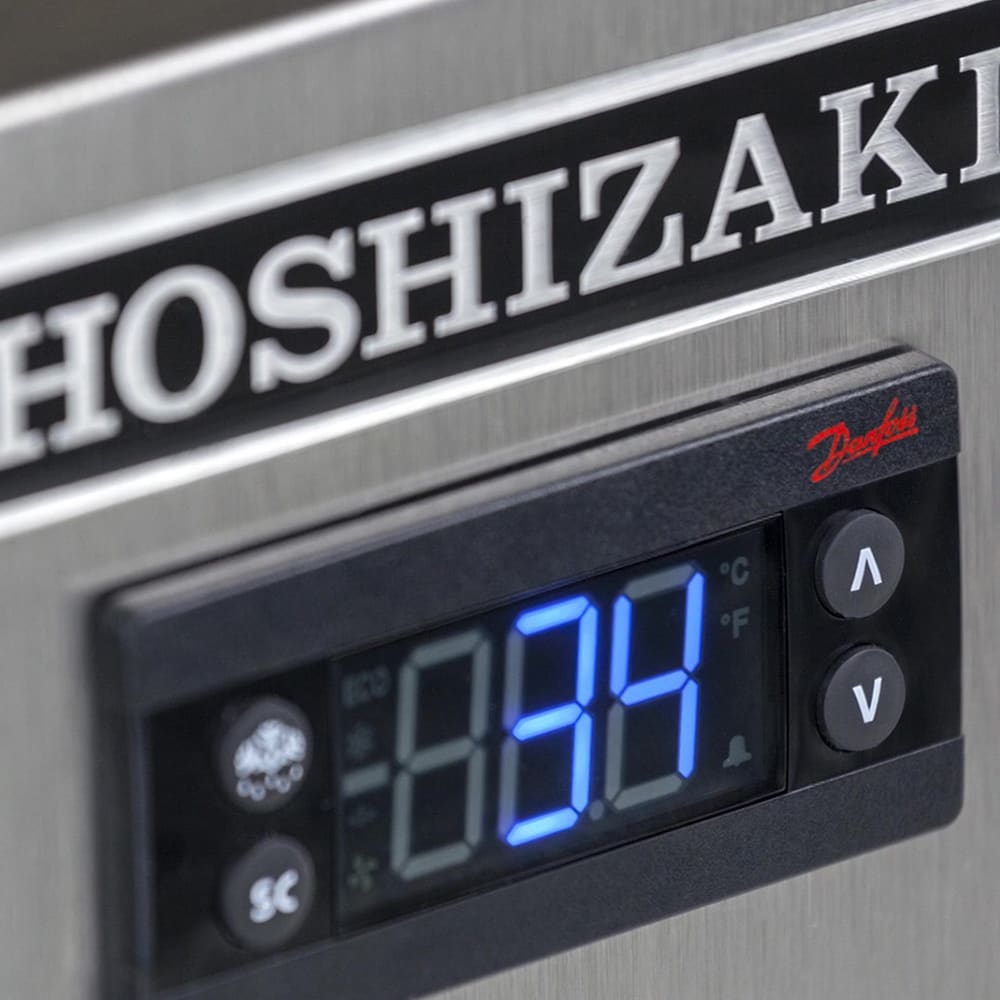

• Solid state digital controller
• LED display and temperature controls

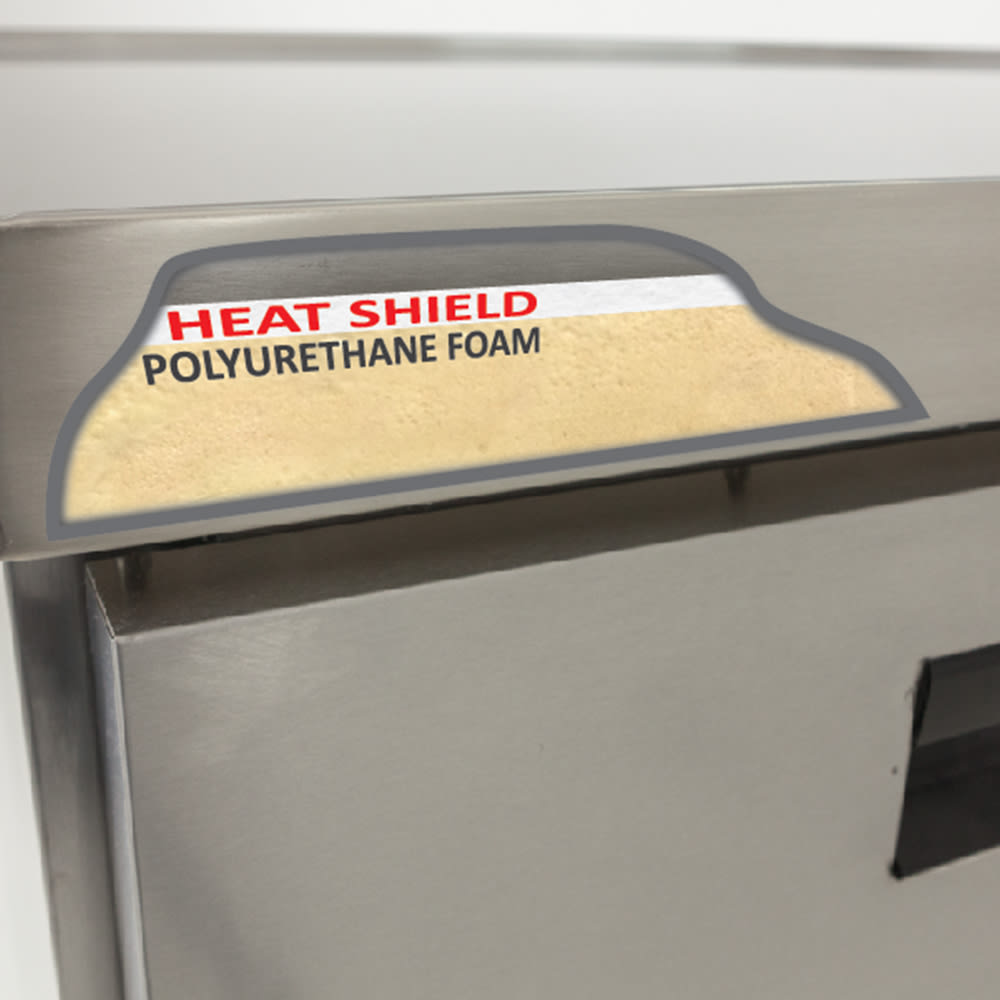

• Ceramic heat shield on top prevents food from burning

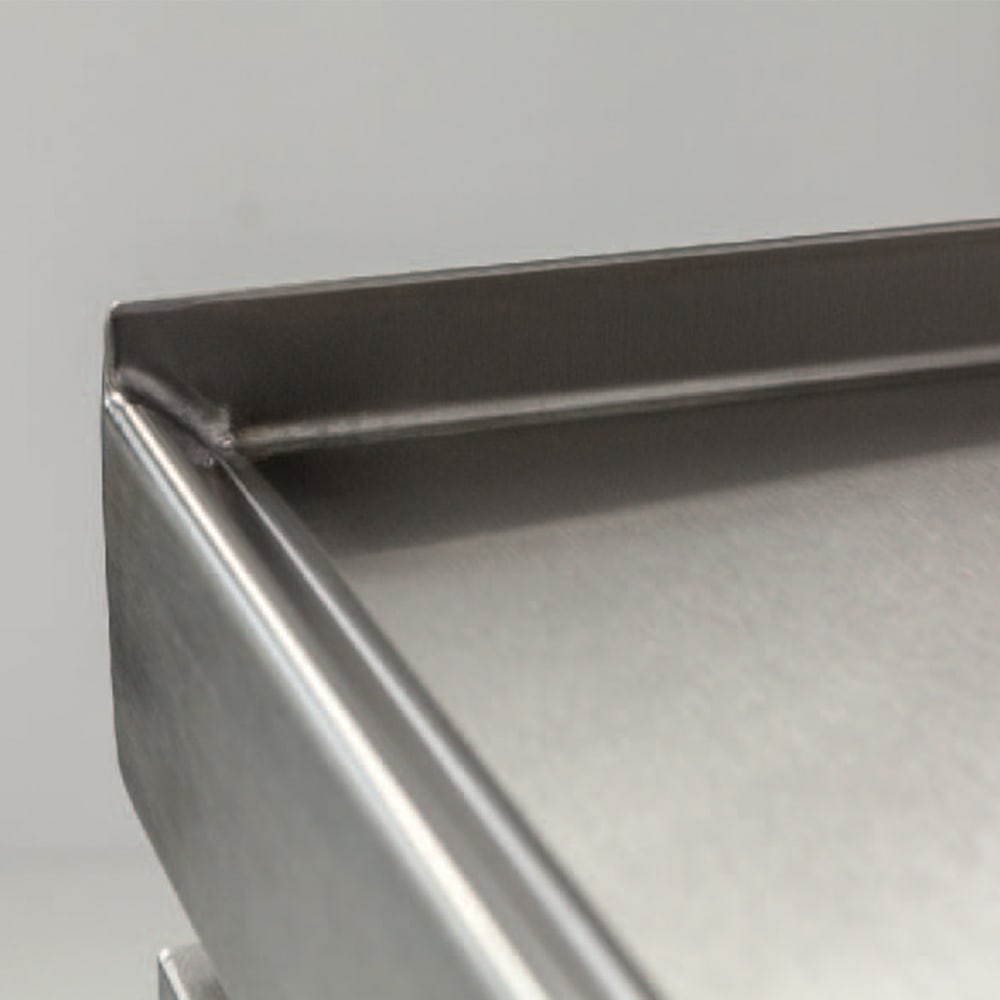

• Marine edge on front and rear with a drip edge on the sides
• Constructed of resilient stainless steel
• (8) 4-in. casters with brakes
• Self-contained refrigeration unit
• Side-mounted unit is accessible by removing the end panel
• Uses environmentally friendly R290 hydrocarbon refrigerant
• Hot gas condensate evaporator with an epoxy-coated coil
• Ideal ambient air temperature: 45-100 degrees F
• 525-BTU heat transfer capacity
• 1,354-BTU nominal compressor capacity

Product Features

Dimensions & Utilities

• 98 in. W x 33.25 in. D x 27 in. H
• 3 A, 3.69 kW, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

*Free shipping on Hoshizaki CR98A within the 48 contiguous states.

From The Manufacturer

Steelheart Series Refrigerated Low-Profile Equipment Stand, two-section, 98"W x 33-1/4"D x 27"H, (4) drawers: each will accommodate (3) 12" x 20" x 6" deep pans (pans not included), solid state digital controller with temperature alarms, LED display, stainless steel exterior front, sides, & top, stainless steel interior, (8) 4" casters (all with brakes), side-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Parts; 5-year Labor; 7-year Compressor Parts
