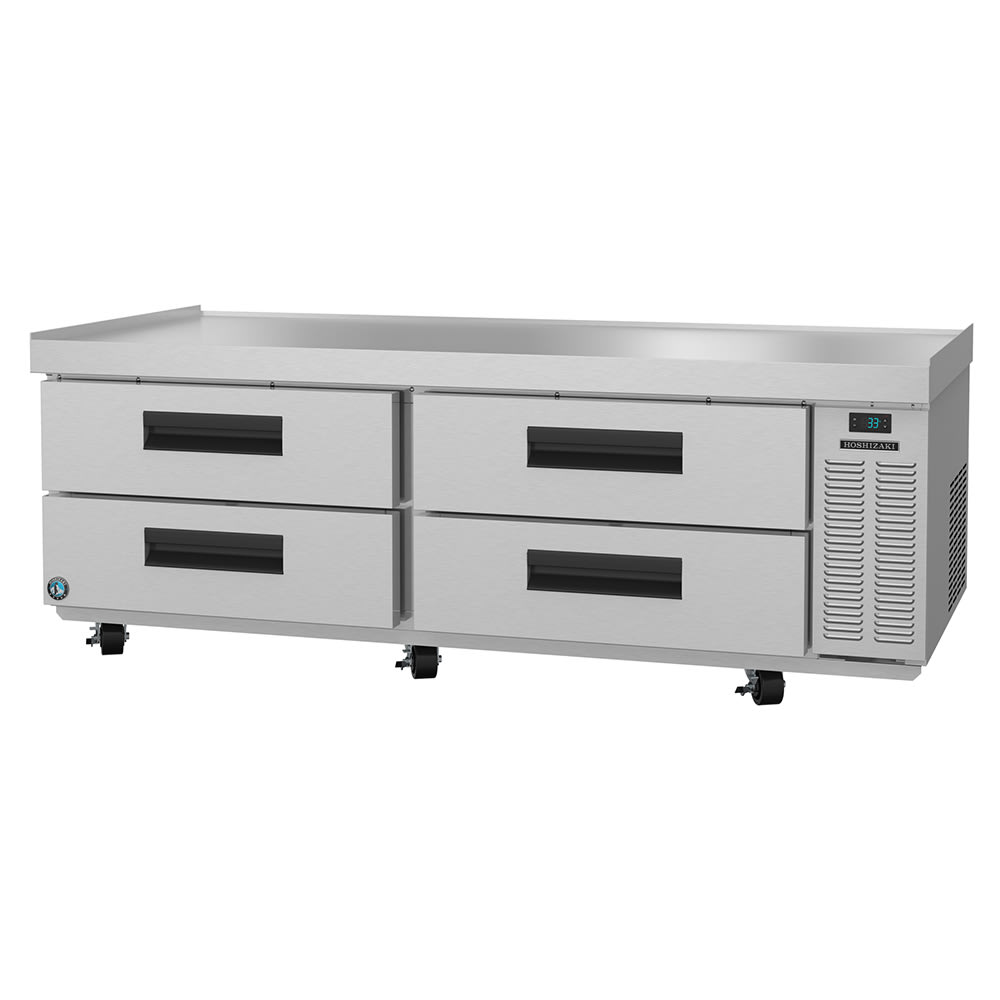

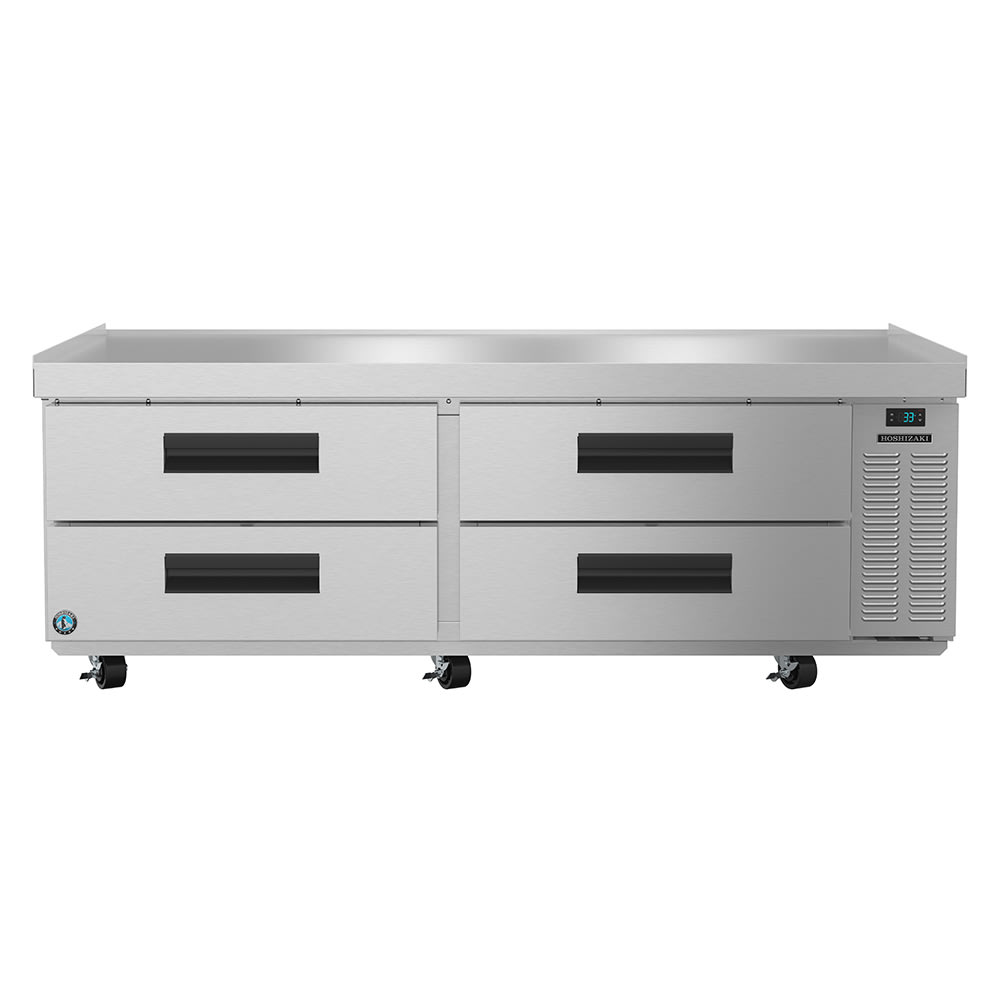

Hoshizaki CR72A 72 1/2" Steelheart Series Chef Base w/ (4) Drawers - 115v

The Hoshizaki CR72A commercial chef base’s predominantly stainless steel construction adds strength and durability, while resisting the many dents and scratches dealt out in a busy kitchen. So chefs can prepare additional servings of a meal and hold them for high-traffic periods, the base’s four drawers can hold eight full-size food pans. Flush-mounted drawer handles promote optimized aisle traffic, and with its combination of marine and drip edges, the base top contains spilled food to limit messes.

The Hoshizaki CR72A chef base has a polyurethane insulation lining to help it seal in the cold and keep food preserved. Temperature levels are indicated on an LED display, which can be set to show in Fahrenheit or Celsius, and because it is flat, the top of the chef base can be used as a food prep station, though caution should be observed if using appliances with heating elements. The cabinet’s casters let users roll it wherever required.

Product Details

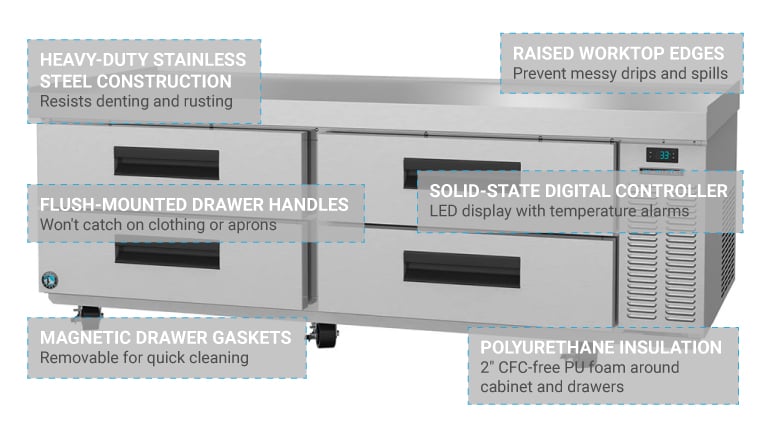

• Part of the Steelheart series
• 17.26-cu.-ft. interior space
• 2 sections with 4 total drawers
• 4-in. casters have brakes

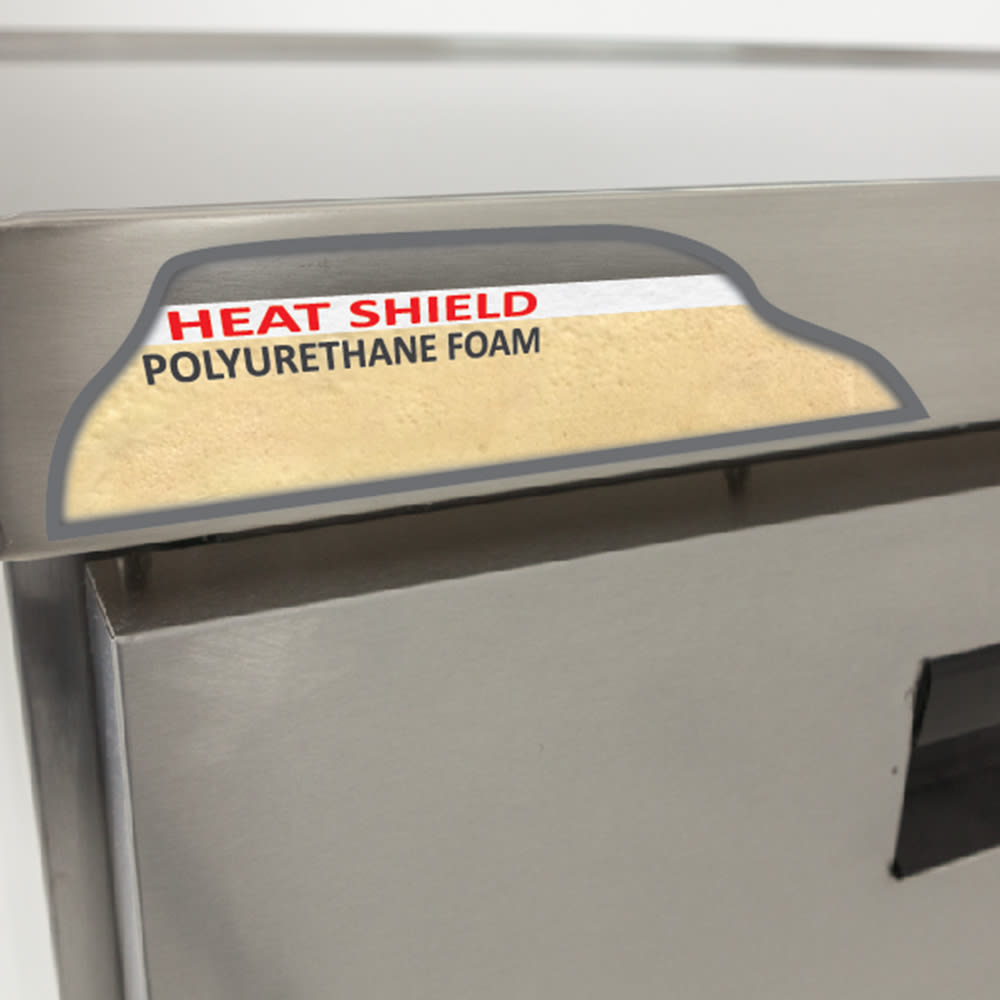

• Ceramic heat shield in the top helps maintain cold cabinet

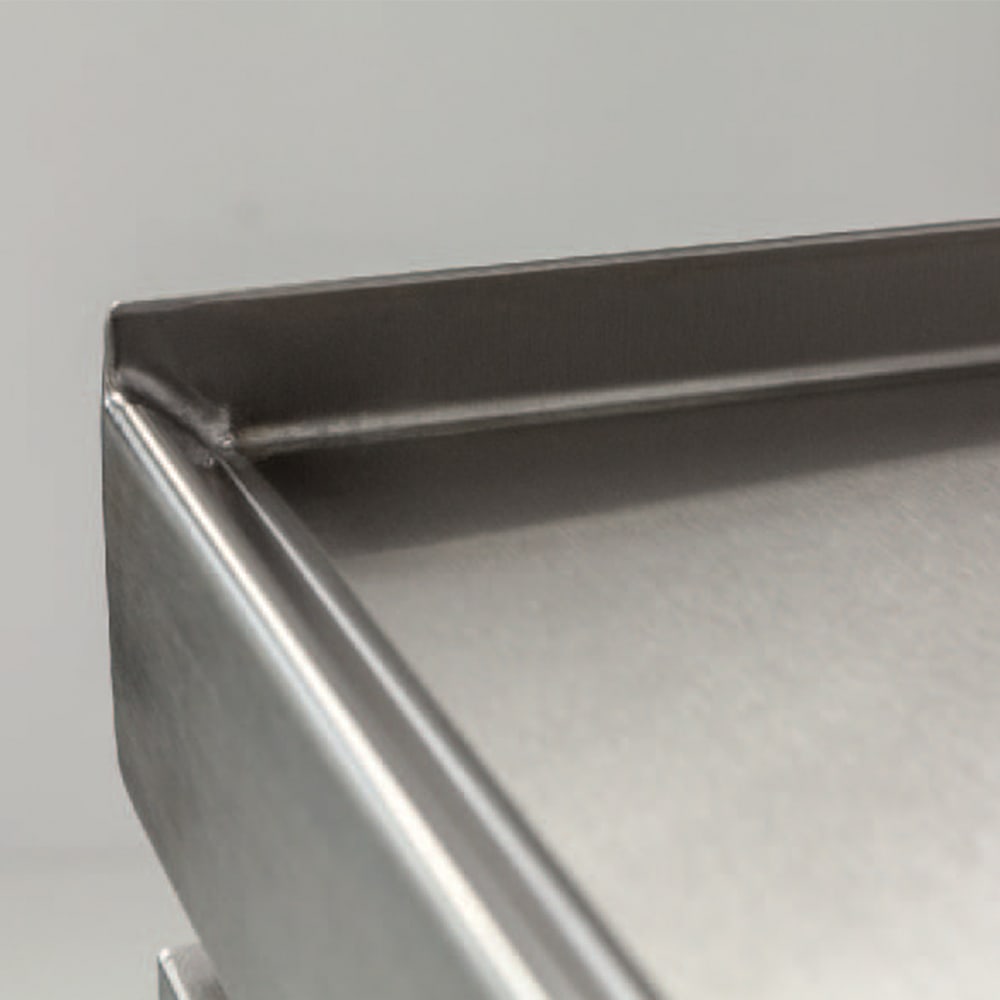

• Marine-edge front and rear and drip-edge sides protect against spills
• 2-in., foamed-in-place polyurethane insulation is CFC free
• Front air intake

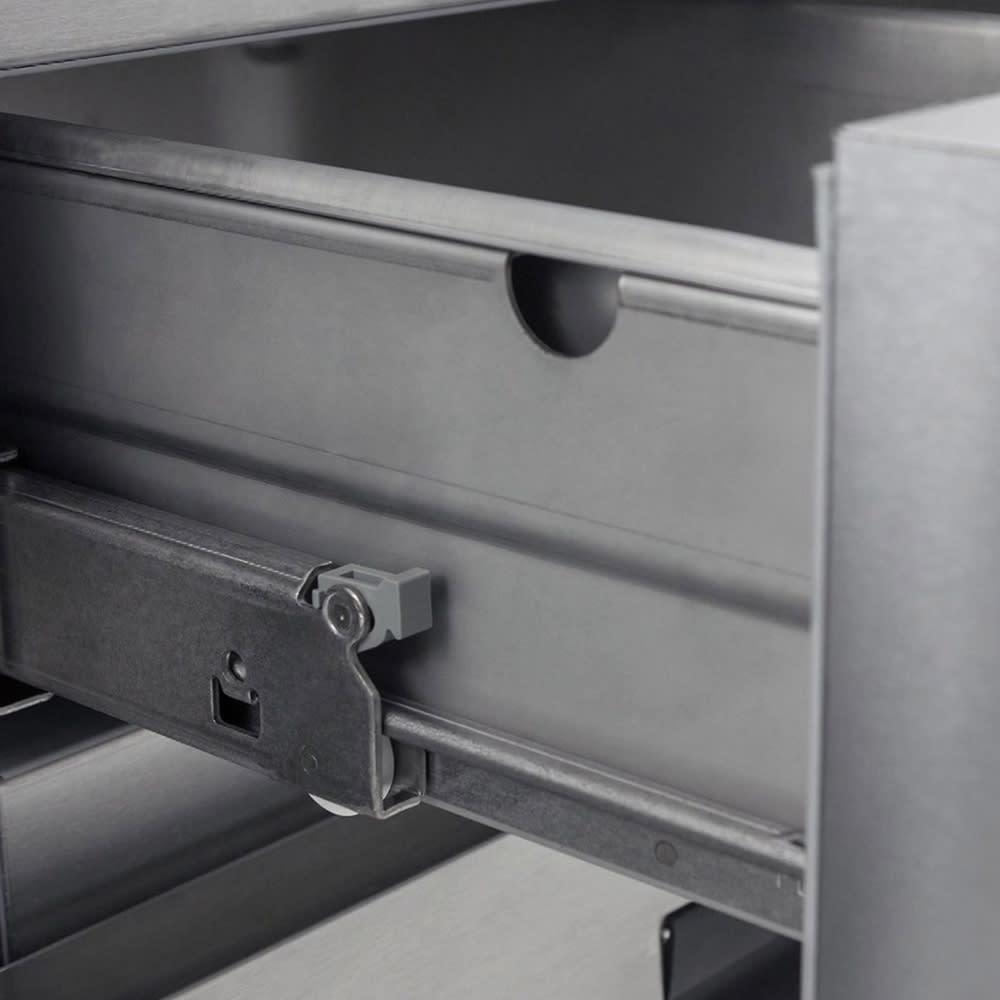

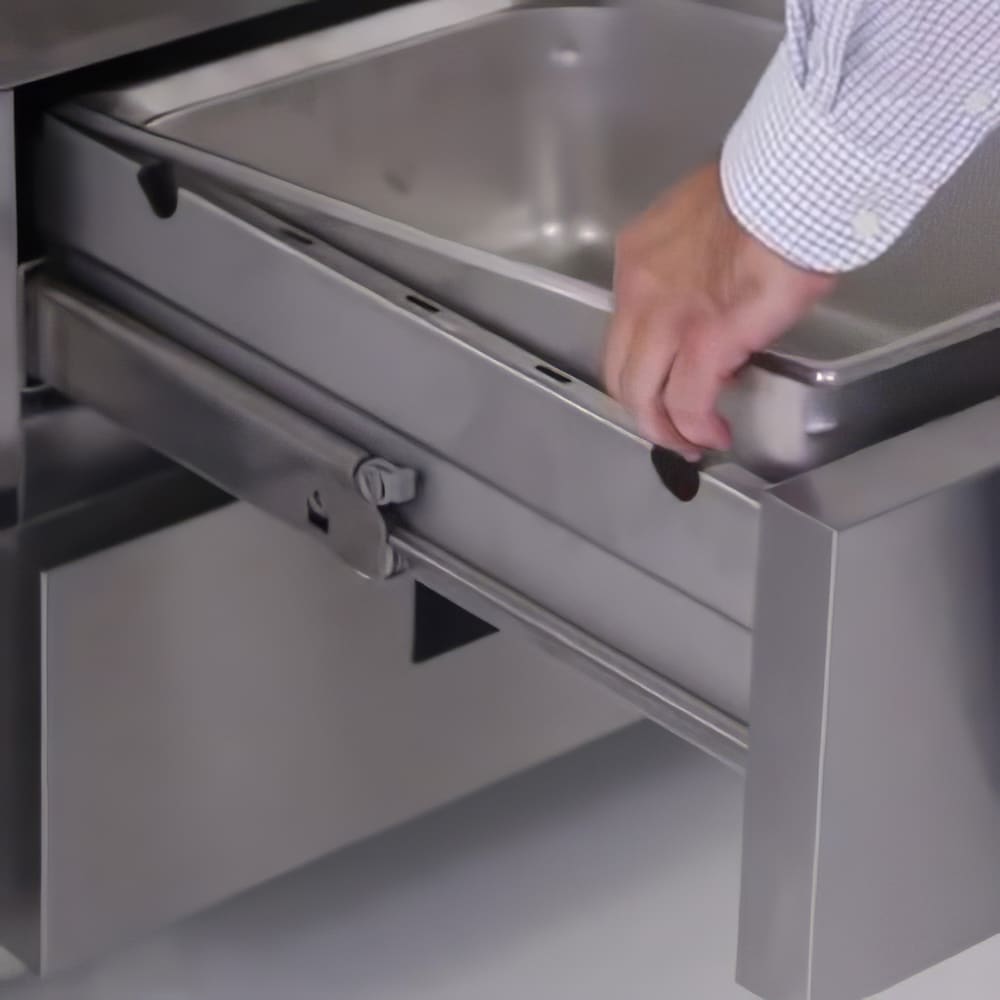

• Each drawer accommodates (2) 12 in. x 20 in. x 6 in. D food pans
• Flush-mounted drawer handles improve aisle traffic flow
• Stainless steel top, front, and sides

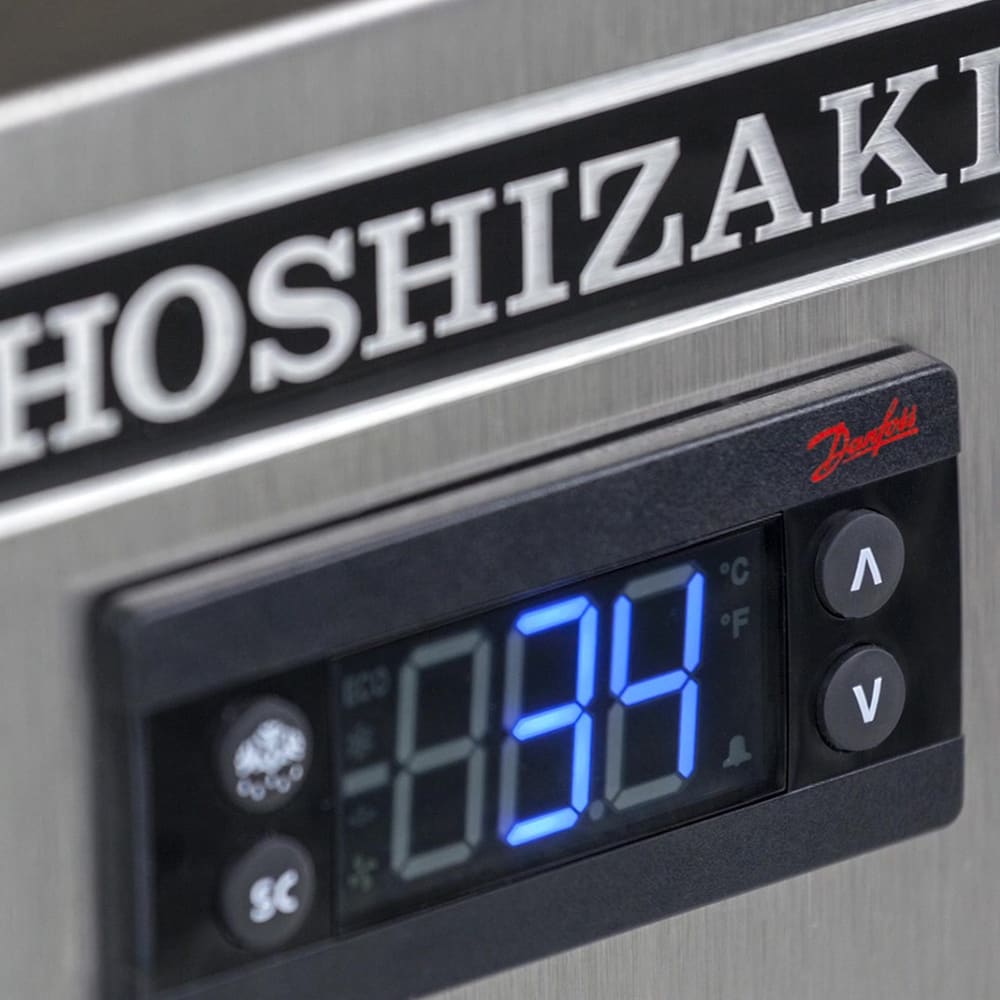

• LED display shows temperatures in C or F
• 4-in. clearance required between appliance top and bottom of cooking equipment heating elements, with appliance temperature below 180 degrees F
• Automatic hot gas condensate evaporator improves unit efficiency
• Stainless steel interior back, floor, and sides add resilience and corrosion protection
• R290 refrigerant
• Heat-transfer capacity: 395 BTU

Product Features

Dimensions & Utilities

• 72.5 in. W x 33.25 in. D x 27 in. H
• 3 A, 2.78 kW, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

*Free shipping on Hoshizaki CR72A within the 48 contiguous states.

From The Manufacturer

Steelheart Series Refrigerated Low-Profile Equipment Stand, two-section, 72-1/2"W x 33-1/4"D x 26"H, (4) drawers: each will accommodate (2) 12" x 20" x 6" deep pans (pans not included), solid state digital controller with temperature alarms, LED display, stainless steel exterior front, sides, & top, stainless steel interior, (6) 4" casters, side-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-Year Compressor

Hoshizaki CR72A Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
