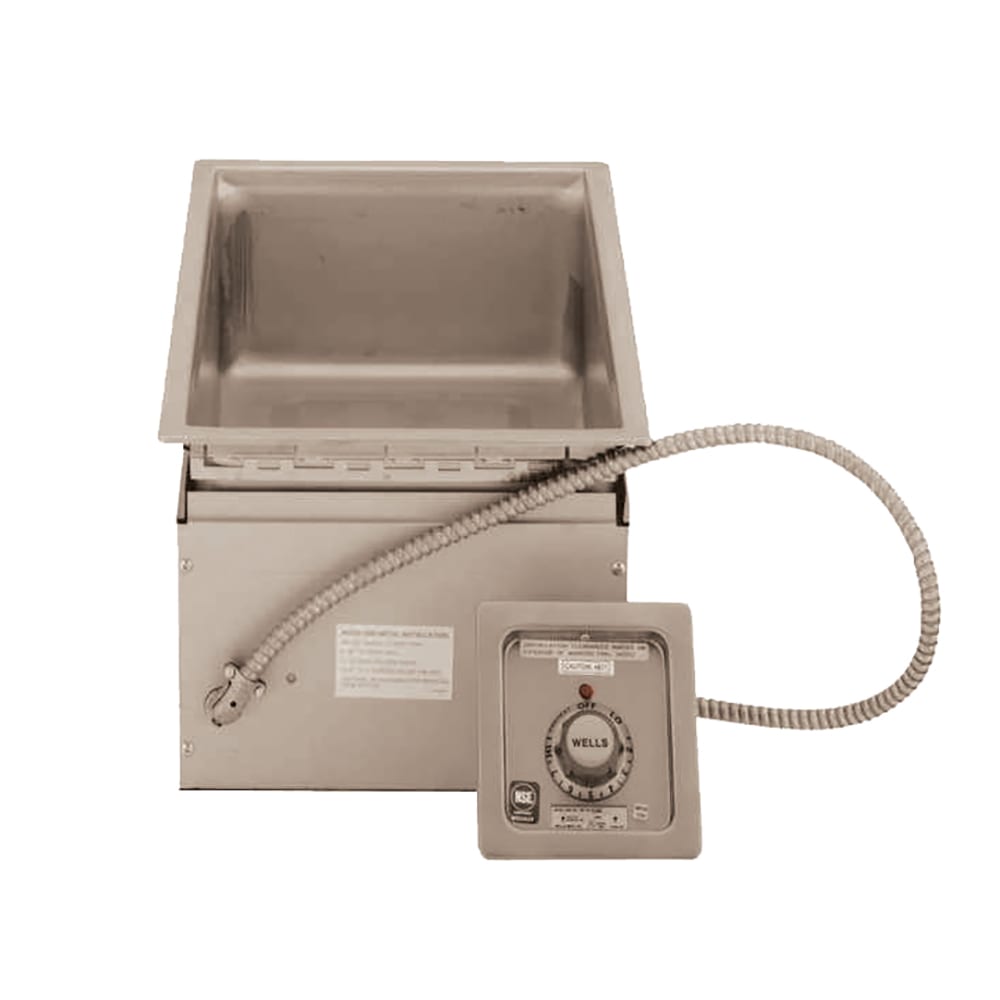

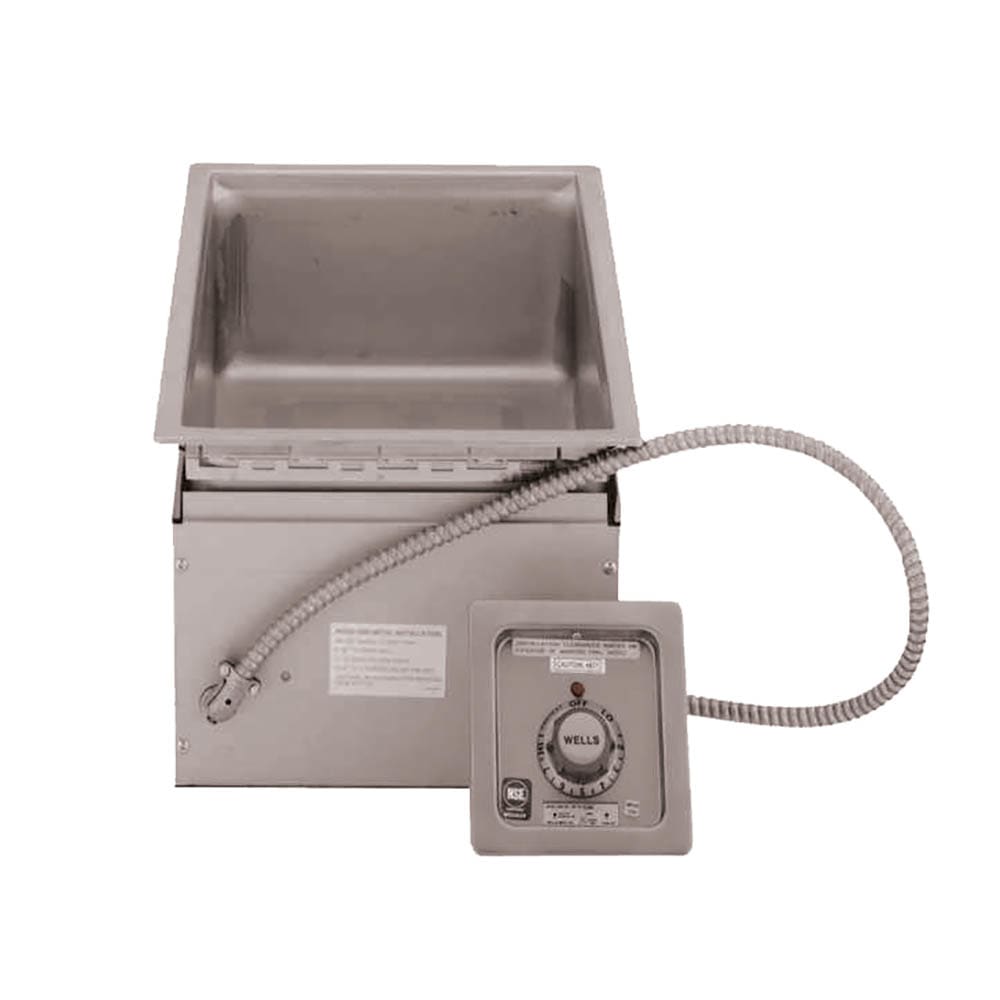

Wells MOD-100D Drop-In Hot Food Well w/ (1) Full Size Pan Capacity, 208-240v/1ph

Equipped with WellsLock™ hardware, the Wells MOD-100D drop-in hot food well can be installed into metal, wood, or plastic countertops. It accommodates one standard food pan and is insulated on all sides for consistent heat regulation and energy efficiency. To prevent the pan from overheating and scorching food, the infinite controls have upper heat limits. A ¹⁄₂-inch drain facilitates cleanup, and the deep-drawn interior is smooth to eliminate dirt traps. While it can be used wet or dry, wet operation is recommended for optimal functioning with minimal stirring.

Product Details

• Accommodates (1) 12-in. x 20-in. standard inset pan
• Insulated front, sides, back, and bottom increase energy efficiency and heat recovery
• Heat limits prevent pan from overheating
• Infinite controls
• Convenient ¹⁄₂-in. drain for cleaning and maintenance
• Suitable for wet or dry operation, though wet is recommended for best results

Dimensions & Utilities

• Control panel: 5⁷⁄₈ in. W x 6¹⁄₄ in. H
• Overall: 13³⁄₄ in. W x 21³⁄₄ in. D x 9³⁄₄ in. H
• 208/240 V/60 Hz/1 ph

From The Manufacturer

Food Warmer, top-mount, built-in, electric, (1) 12" x 20" opening with drain, wet/dry operation, infinite controls, stainless steel interior, insulated aluminized steel housing, cULus, 208/240v/60/1-ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Wells MOD-100D Specifications

Documents

Spec Sheet

Warranty

Manual

Installation Guide

Certifications
