John Boos UBS4-2196-2D24-X 96" 4 Compartment Underbar Sink w/ 10"L x 14"W Bowls, 10" Deep
Retail Price: $5,522.00
$2,491.72 /Each
John Boos UBS4-2196-2D24-X Description

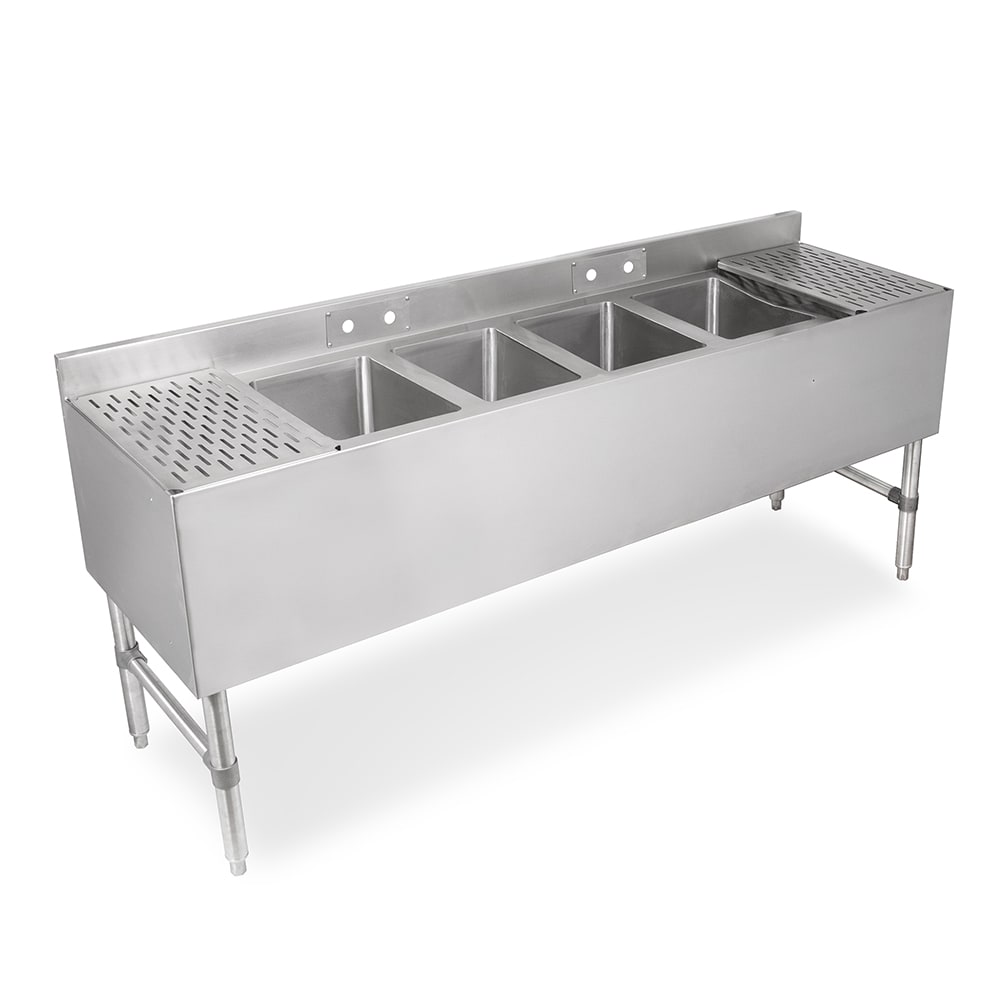

The John Boos UBS4-2196-2D24-X underbar sink is a large, stainless steel piece of equipment measuring 96 inches wide by 21 inches deep by 32 1⁄2 inches high. It sits on stainless steel legs with side bracings for stability, and it also features adjustable stainless steel bullet feet for stability on uneven floors. The underbar sink has four sink compartments with drains and two drainboards on either side of the sinks for placing glasses and flatware after they've been cleaned.
The John Boos UBS4-2196-2D24-X underbar sink’s drainboards are equipped with removable perforated inserts that facilitate draining and airflow. The back of the unit has a 3-inch backsplash to contain spills and splatter. This backsplash is fitted with two sets of splash-mount faucet holes with 4-inch centers.
- Underbar sink
- 4-compartment design
- 18-gauge, 300-series stainless steel construction
- Stainless steel legs and side bracings
- Adjustable stainless steel bullet feet
- 24-in. drainboard on either side
- Removable, perforated drainboard insert
- 3-in. backsplash
- 2 sets of splash-mount faucet holes with 4 in. centers
- Includes 1 1⁄2 in. drains and overflow stand pipes
- Sink dimensions: 10 in. L x 14. W x 10 in. D
- Overall dimensions: 96 in. W x 21 in. D x 32 1⁄2 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Underbar Sink Unit, 4-compartment, 96"W x 21"D x 32-1/2"H overall size, (4) 10"W x 14" front-to-back x 10" deep compartments, 24" drainboard on left and right with removable perforated insert, 3"H backsplash, (2) sets of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF
John Boos UBS4-2196-2D24-X Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | John Boos |
| Backsplash Height (in) | 3 |
| Construction | Stainless Steel |
| Depth (in) | 21 |
| Drainboard Location | Both Sides |
| Faucet Centers (in) | 4 |
| Faucet Mount | Splash |
| Length (in) | 96 |
| No. of Compartments | 4 |
| Product | Compartment Sinks |
| Product Type | Commercial Sinks |
| Sink Depth (in) | 10 |
| Sink Length (in) | 10 |
| Sink Width (in) | 14 |
| Special Features | Underbar |
| Stainless Steel Gauge | 18 gauge |
| Warranty | 1-year Against Defects in Material & Workmanship |
| Weight | 133.00 |
