Manitowoc Ice UDP0080A 19 11/16"W NEO® Full Cube Undercounter Ice Machine - 110 lbs/day, Air Cooled
QUICK SHIP: Ships in 1 Business Day
$2,660.00 /Each
Contact us for details!
Manitowoc Ice UDP0080A Description
Making ice for cocktails and soft drinks, the Manitowoc Ice UDP0080A 161 NEO® ice machine produces dice ice, which is also known as full-cube ice. In 24 hours, it can make 110 pounds and its storage bin holds as much as 31 pounds. Made of polyethylene, the bin liner is strong, seamless, and eases cleaning. Users can access the ice through the sliding door, which moves up and out of the way. This unit uses R290 hydrocarbon refrigerant.
With a narrow, 19.69-inch width, this Manitowoc Ice UDP0080A 161 undercounter ice machine can fit in tight spaces under the counter or stand alone. Its legs are adjustable to accommodate slightly uneven flooring, and for durability and rust resistance, the cabinet is constructed of stainless steel. Internal components are made with AlphaSan® antimicrobial protection to protect the unit between cleanings.
- Part of the NEO ice maker series
- 110-lb. maximum daily ice production
- 75-lb. AHRI certified ice production
- Makes full-cube ice for soft drinks and cocktails

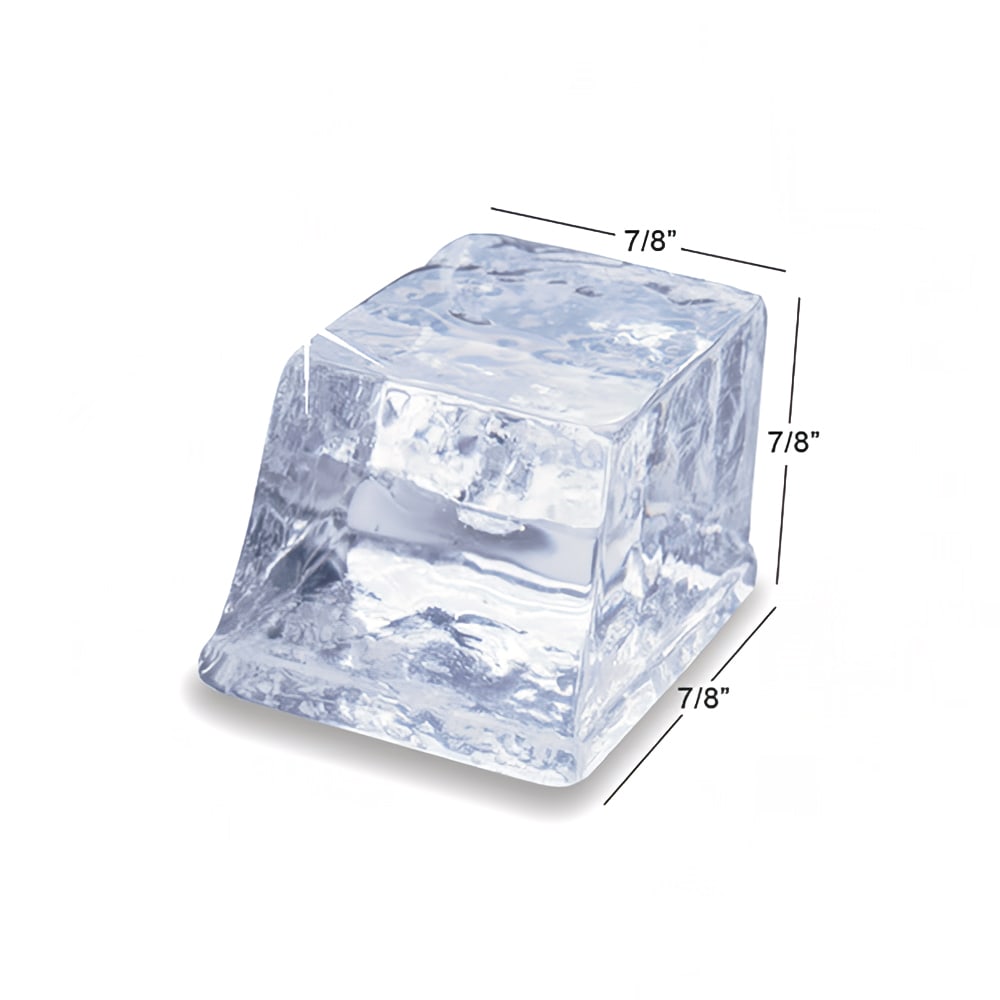

- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- 31-lb. ice storage bin
- Polyethylene bin liner is seamless to ease cleaning

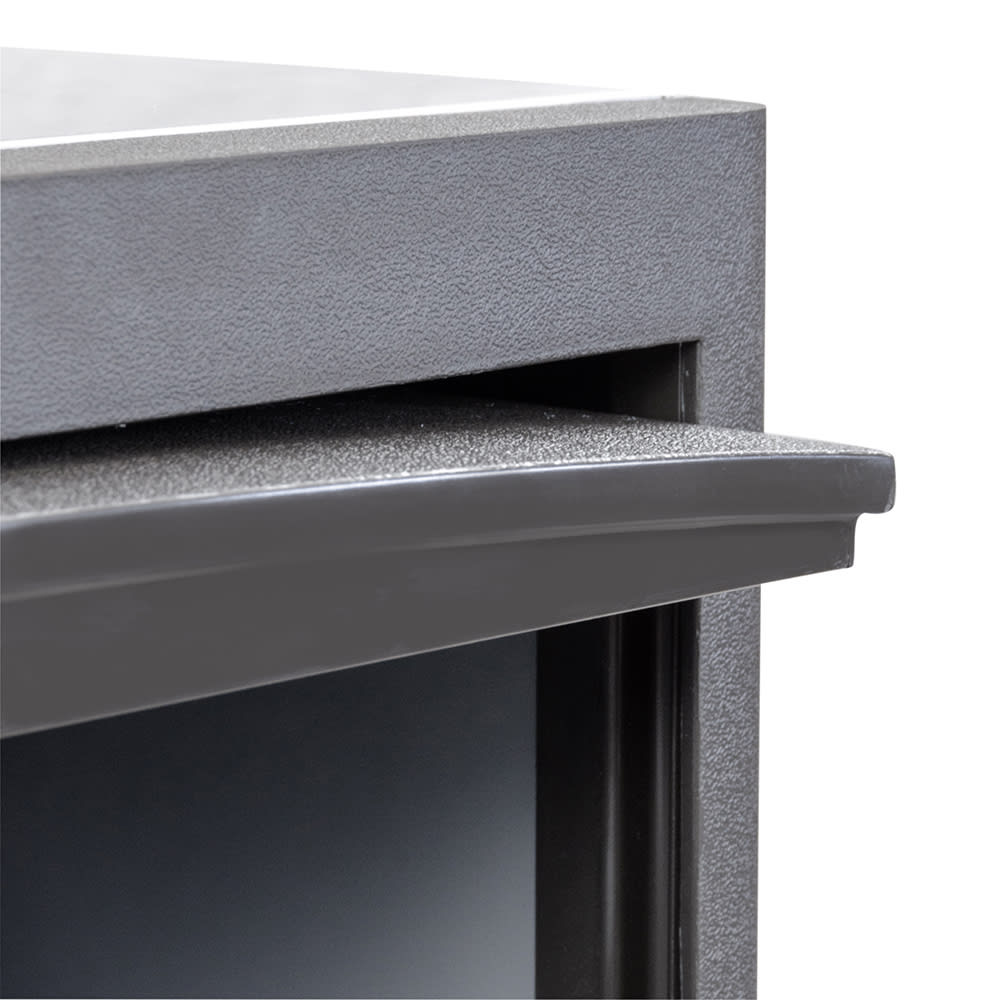

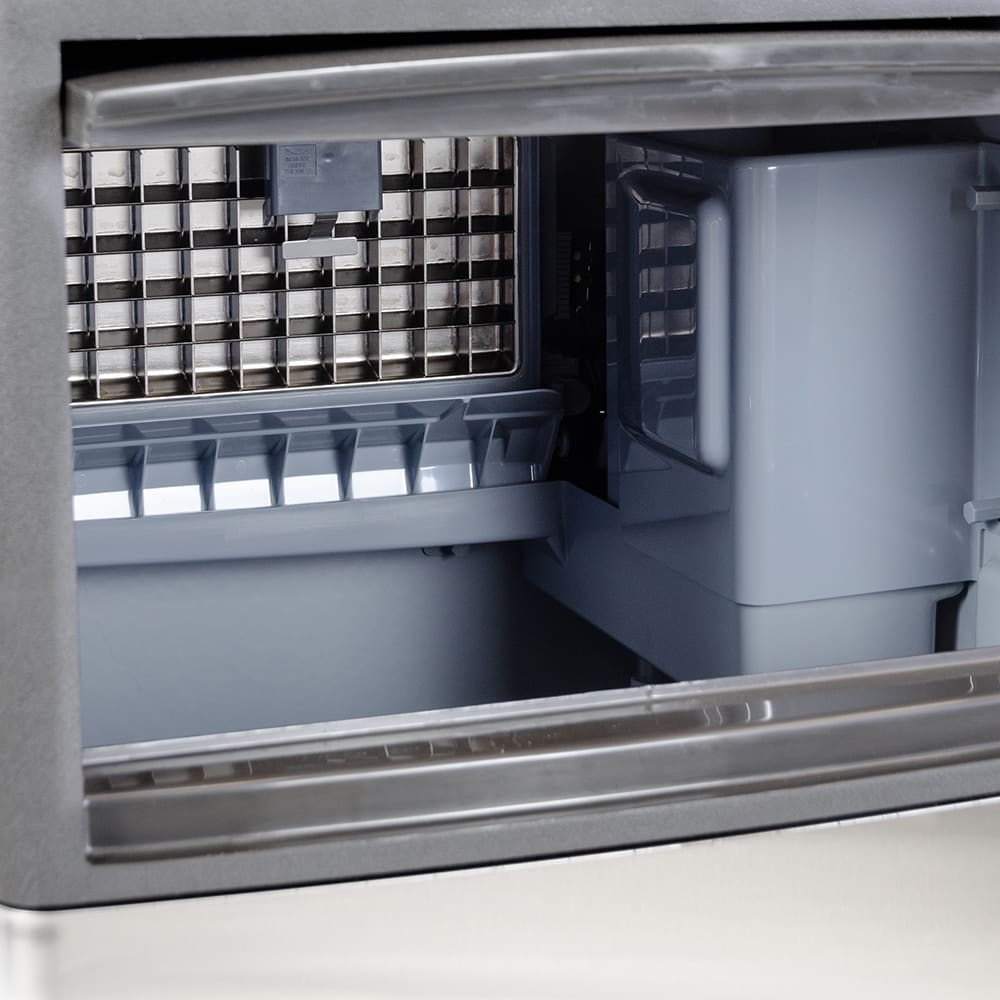

- Bin access door enables convenient ice access by sliding up and out of the way
- AlphaSan antimicrobial agent in key components slows bacteria growth

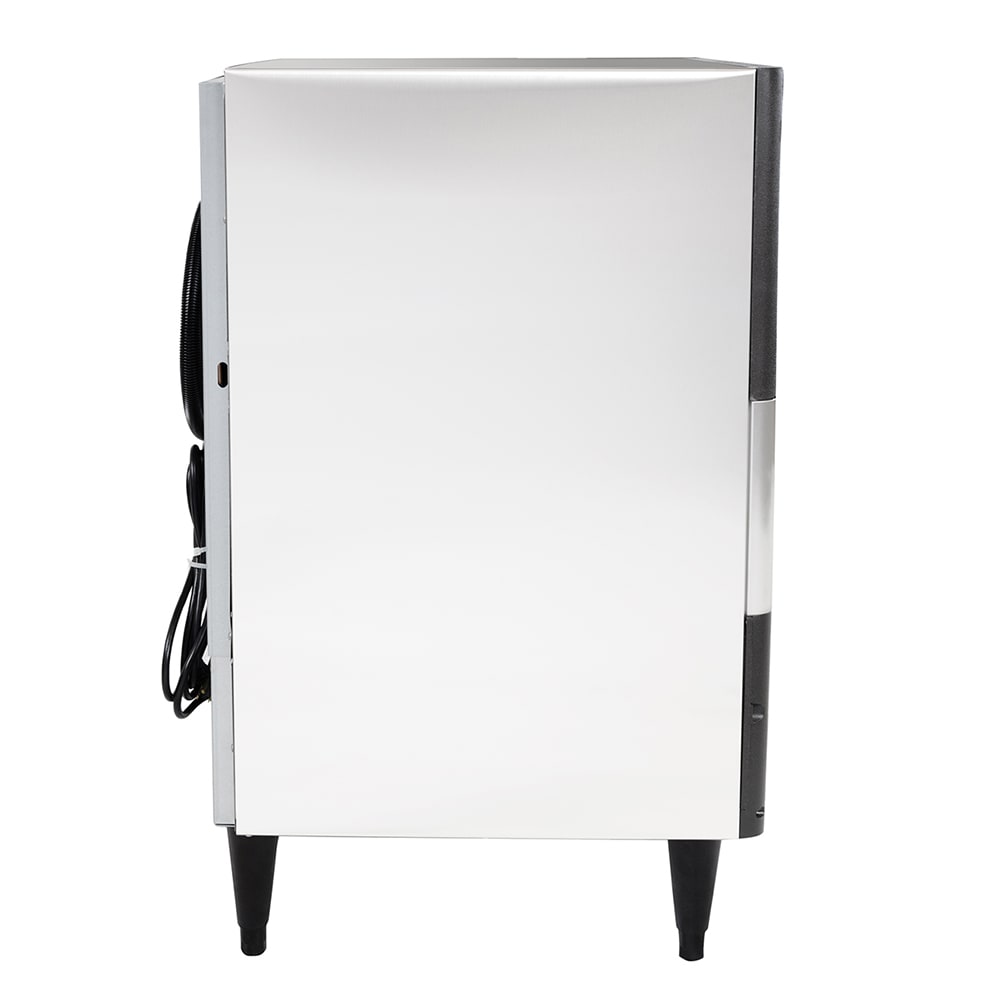

- Stainless steel cabinet resists rusting and scratching
- Foamed-in-place insulation retains cold air

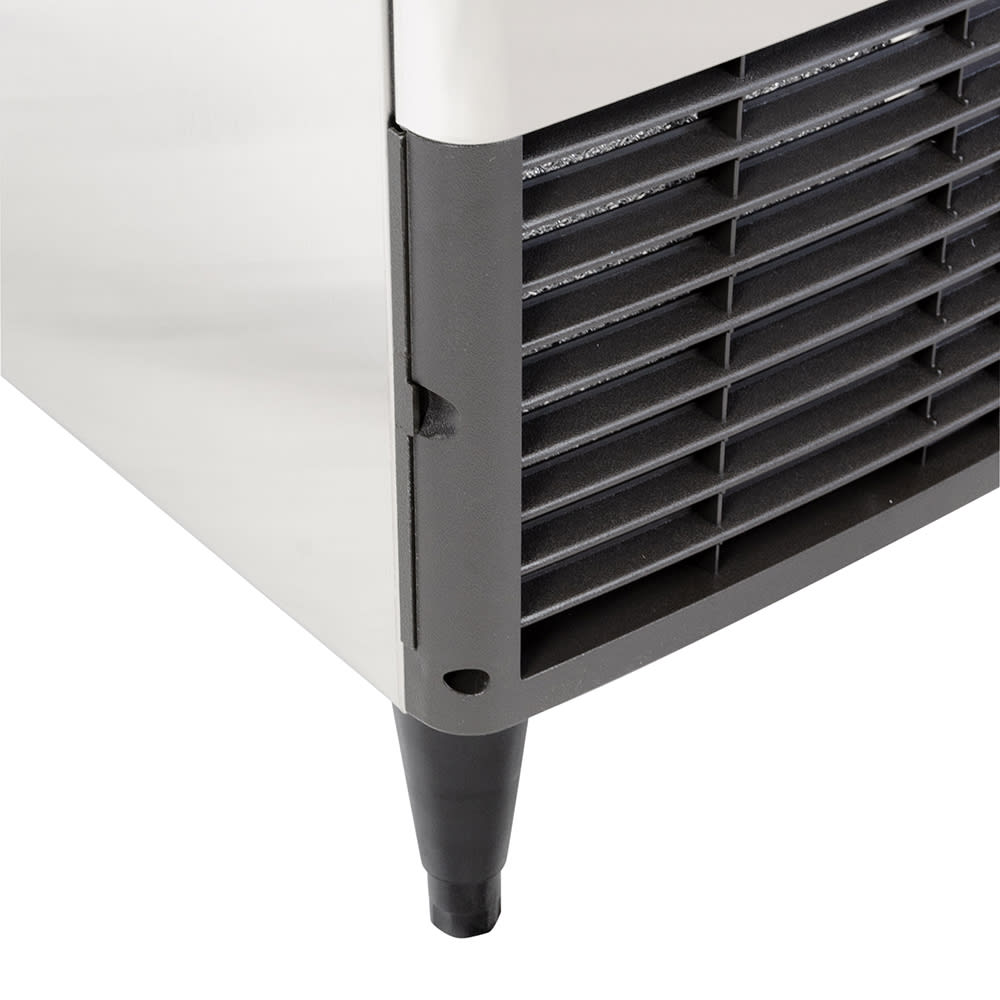

- Adjustable legs stabilize on uneven floors
- Compact design for under the counter or standalone installation
- Flat, right-angle plug fits in tight spaces
- Replaces the QM-45A
- 2,050 average BTU; 2,500 peak BTU
- R290 hydrocarbon refrigerant
- Surrounding air temperature: 40-110 degrees F
- Incoming water temperature: 33-90 degrees F
- Water pressure: 20-80 PSI
- Clearance: 5 in. on sides, top, and back
- 19.69 in. W x 22.34 in. D x 36 in. H
- 5.2 A, 10.7 kW, 1⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UDP0080A within the 48 contiguous states.
From The Manufacturer

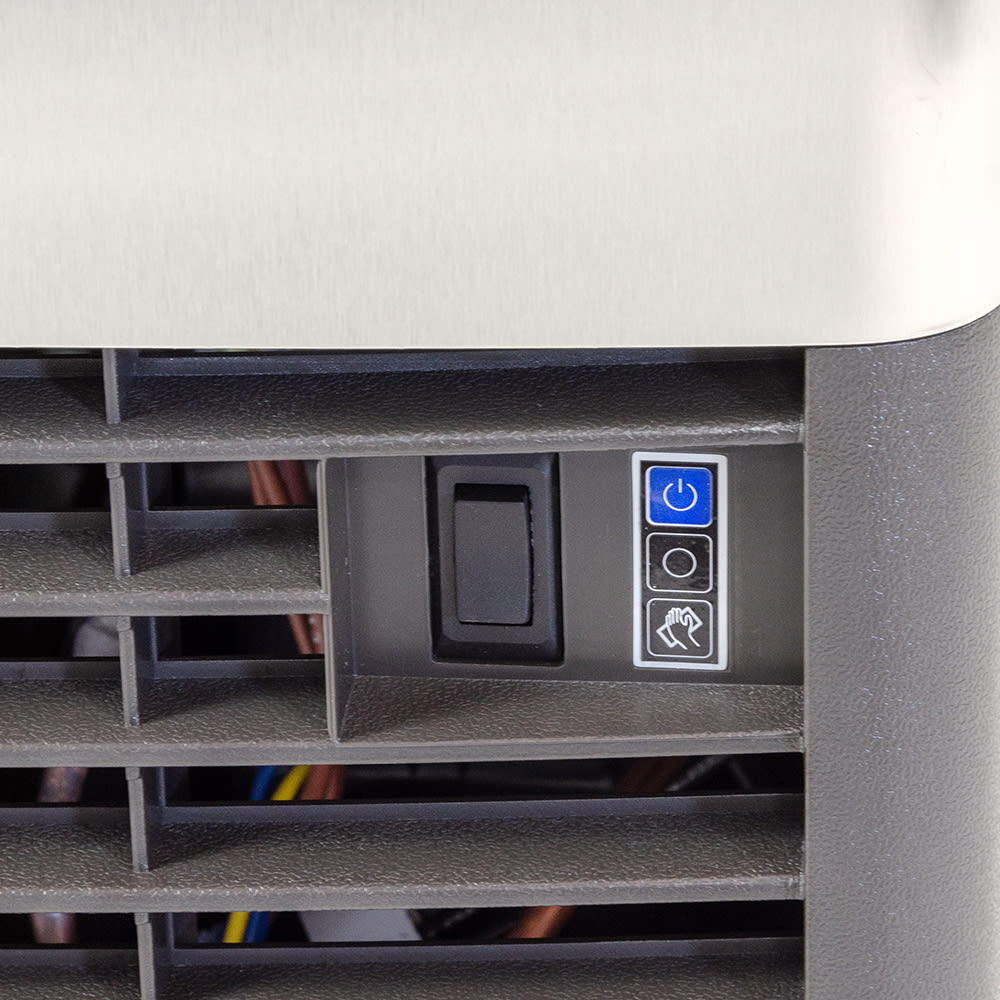

NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 19-11/16"W x 22-11/32"D x 36"H, production capacity up to 110 lb/24 hours at 70°/50° (75 lb at 90°/70°), 31 lb ice storage capacity, full bin and service indicators, production delay of (4, 12, or 24 hours), Alpha-San anti-microbial protection, forward sliding storage bin for access to refrigeration components, sealed foodzone with removable water trough, distribution tube and damper door, on/off/clean switch, dice size cubes, 6" adjustable legs, R290 refrigerant, AHRI certified, cULus, NSF, CE
Watch a video about this product
Manitowoc Ice UDP0080A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 110 |
| Also Known As | UDE0080A |
| Bin Capacity (lb) | 31 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.34 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 36 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Antimicrobial |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 19.69 |
| Weight | 114.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Manitowoc Ice UDP0080A Manitowoc Ice UDP0080A 19 11/16"W NEO® Full Cube Undercounter Ice Machine - 110 lbs/day, Air Cooled Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $2,660.00 / Each | $2,571.00 / Each | $3,025.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | IN STOCK: Ships in 1 Business Day |
| Ice Type | Full Cube | Full Cube | Crescent Cube |
| 24 Hr. Production (lb) | 110 | 100 | 125 |
| Bin Capacity (lb) | 31 | 57 | 53 |
| Width (in) | 19.69 | 20 | 23.75 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | |
| Rating | Best | Best | Best |
| Special Features | Adjustable Leveling Feet | Inline Water Filter Included | |
| Series | NEO® | Essential Ice™ | KM Series |
| Suggested Use | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | |
| Depth (in) | 22.34 | 24 | 24.47 |
| Height (in) | 36 | 38 | 39 |
| Design | Standard Height | Standard Height | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R134a |
| Voltage | 115 | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
