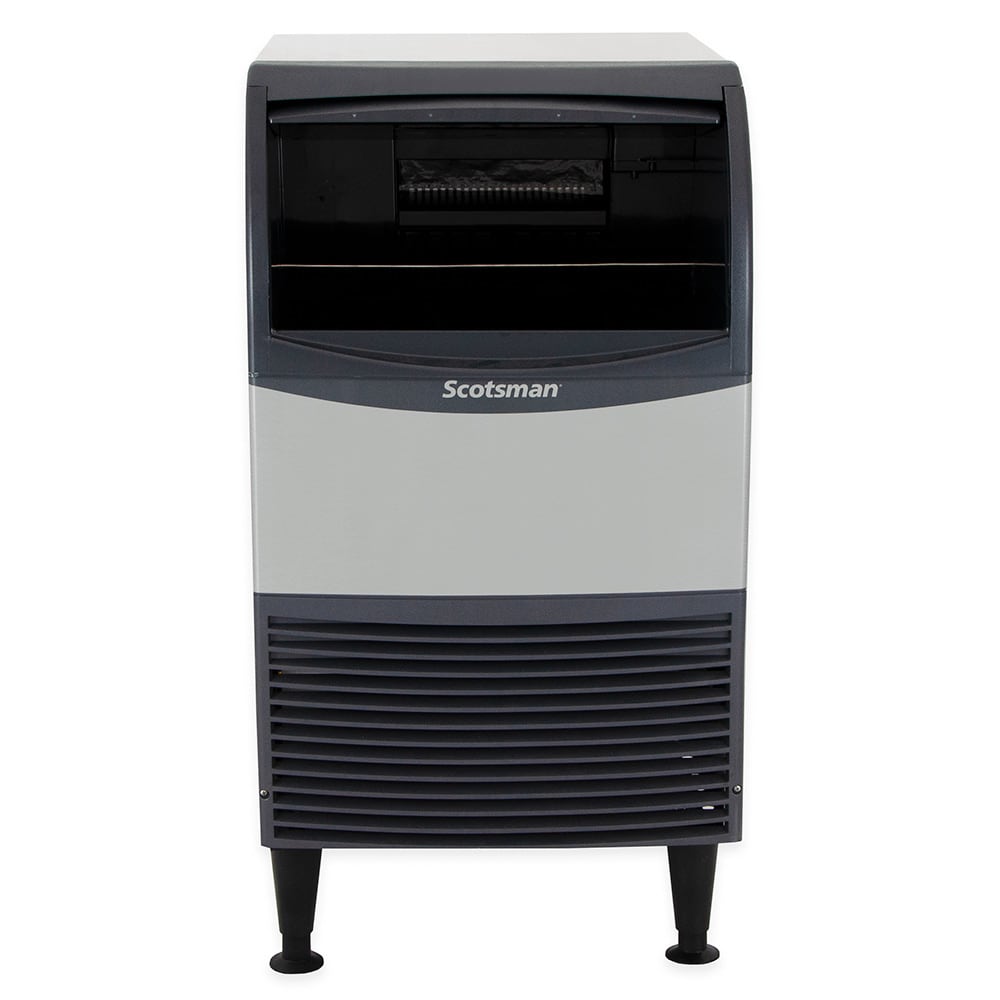

Scotsman CU0920MAX-1 20"W Full Cube Undercounter Ice Machine - 100 lbs/day, Air Cooled, Gravity Drain, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $6,273.00
$2,571.00 /Each
Scotsman CU0920MAX-1 Description

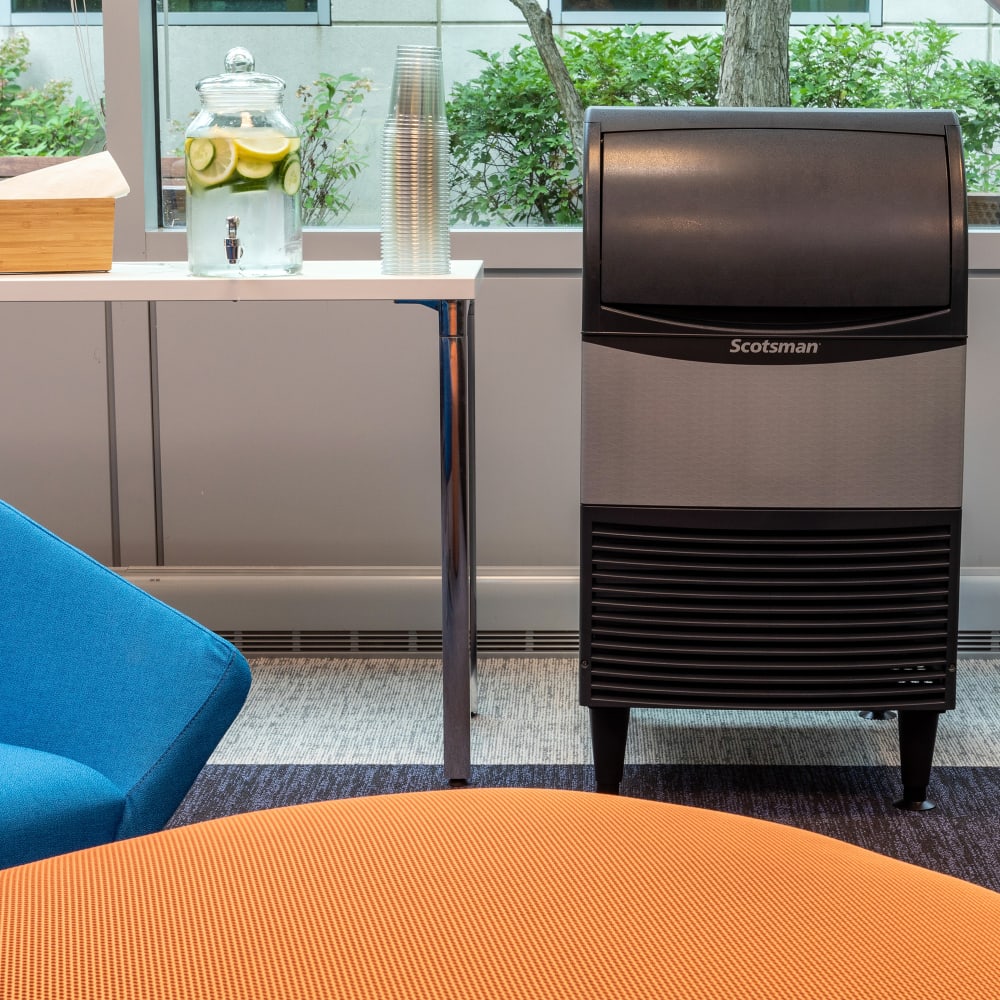

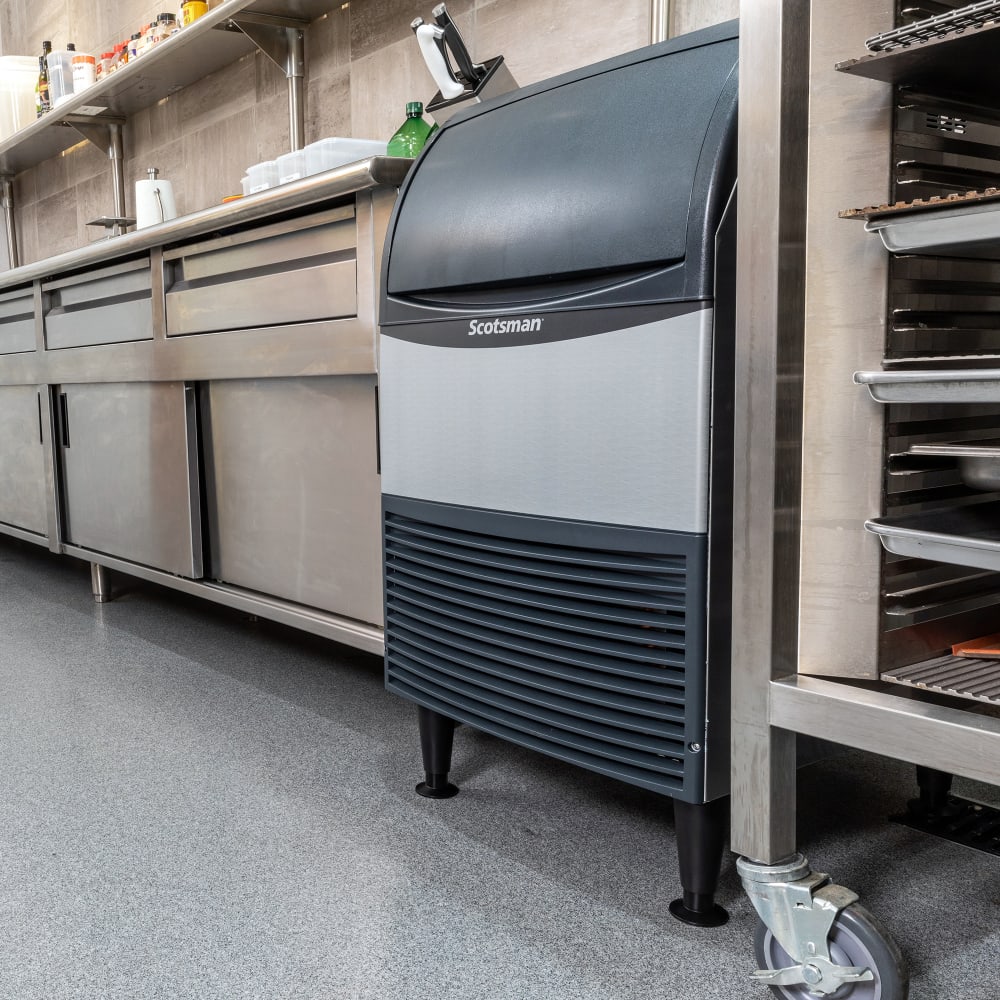

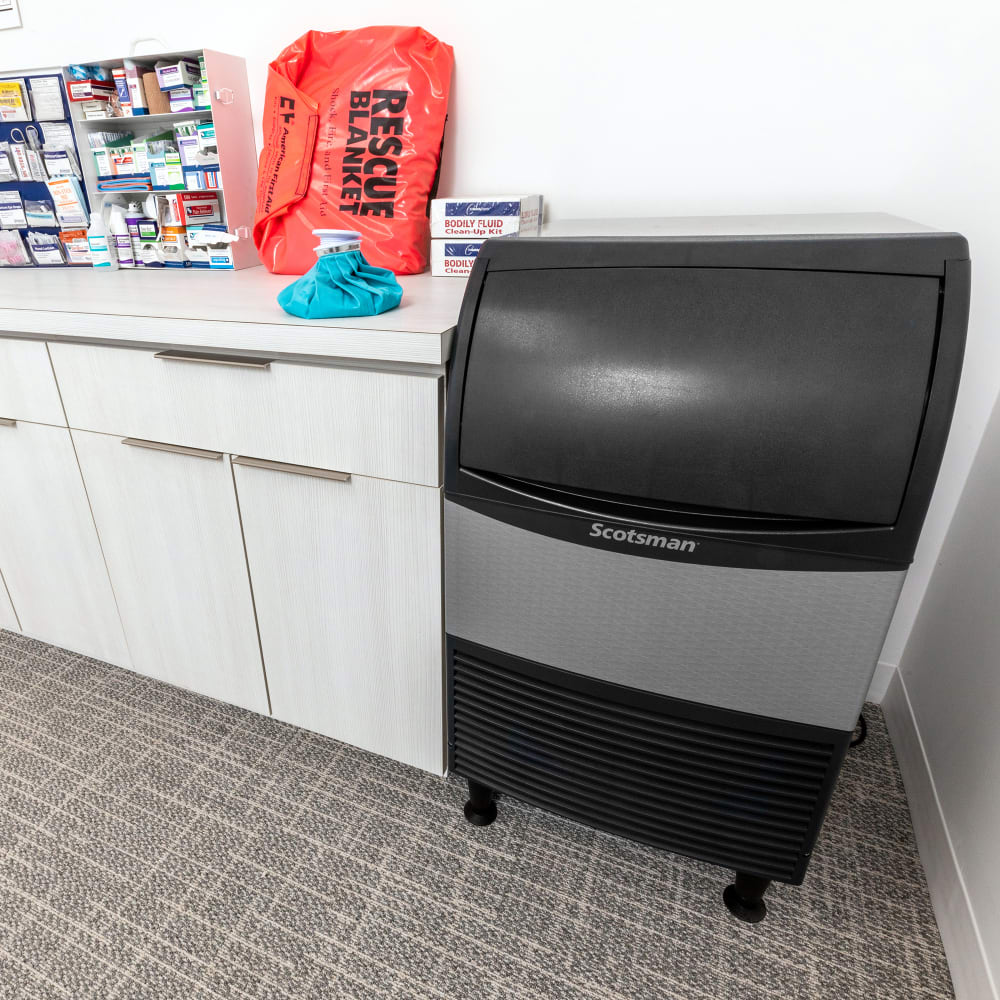

The Scotsman CU0920MAX-1 undercounter cube ice machine can produce 100 pounds of ice each day, and with this production and compact size, it works well in bars, coffee shops, small restaurants, and high-volume break rooms. Its slide-back door has a large opening for scooping and saves space since it does not need extra clearance. A large, dishwasher-safe ice scoop is included. To create pure, clear ice, a horizontal evaporator with spray jets prevents minerals from freezing into the water. Each cube is full size and works great in drinks, where it melts slowly and helps establishments save on beverages.
Controls on the Scotsman CU0920MAX-1 undercounter ice machine include on, off, and clean settings. Its cleaning cycle helps keep the interior sanitary between full cleanings. The panel’s settings also enable operators to set the ice bridge thickness and harvest time. This unit has a corrosion-resistant exterior and stands on four 6-inch stable legs. Since it measures 20 inches wide by 24 inches deep by 38 inches high, the ice machine can fit into tight spaces. Environmentally friendly R290 refrigerant is used to maintain cool temperatures.
- Part of the Essential Ice™ series
- 100-lb. ice production capacity
- 80-lb. AHRI-certified ice production capacity
- 57-lb. ice storage capacity
- Cube-ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air-cooled condenser
- Straightforward control panel with an on/off/clean switch and highly visible buttons for adjusting ice thickness and harvest time
- Horizontal evaporator with spray jets prevents minerals from freezing into ice cubes, resulting in clearer ice

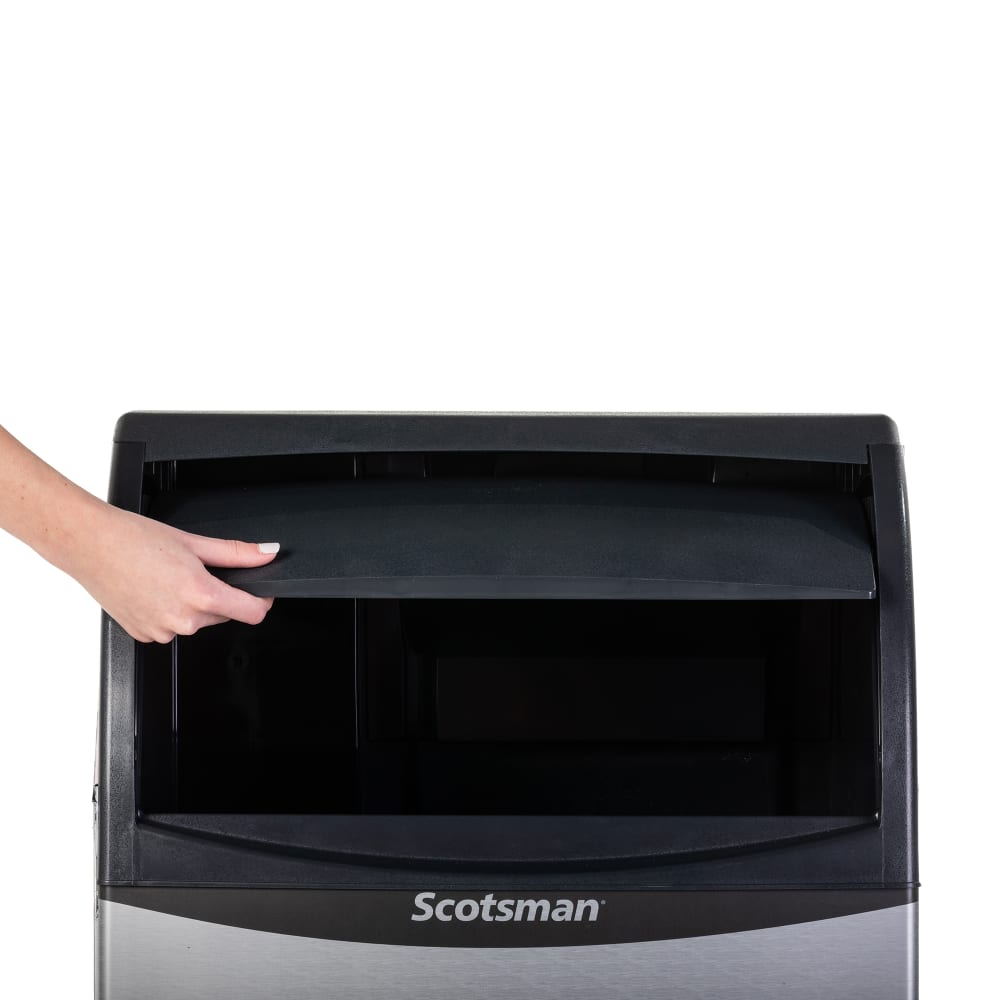

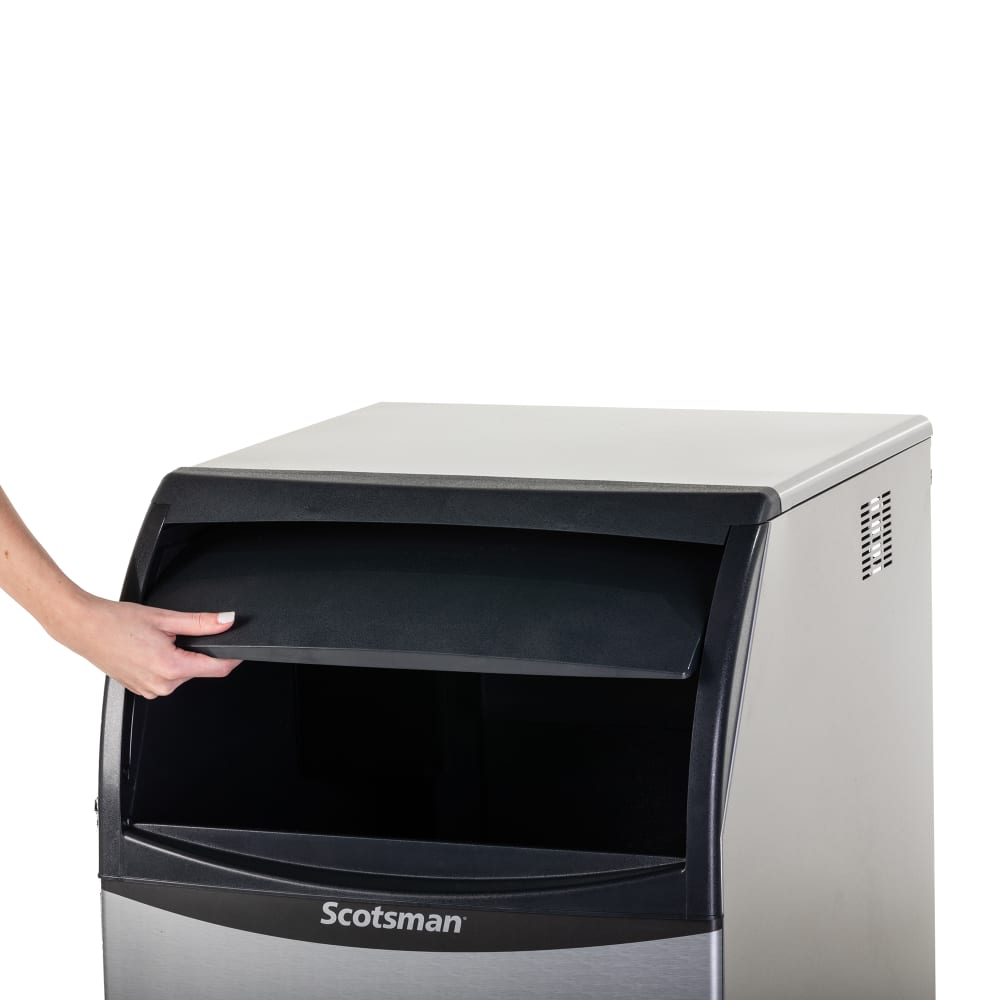

- Slide-up door saves space
- Large door opening aids in scooping ice out
- Uses R290 refrigerant
- Corrosion-resistant exterior
- 6-in. adjustable legs

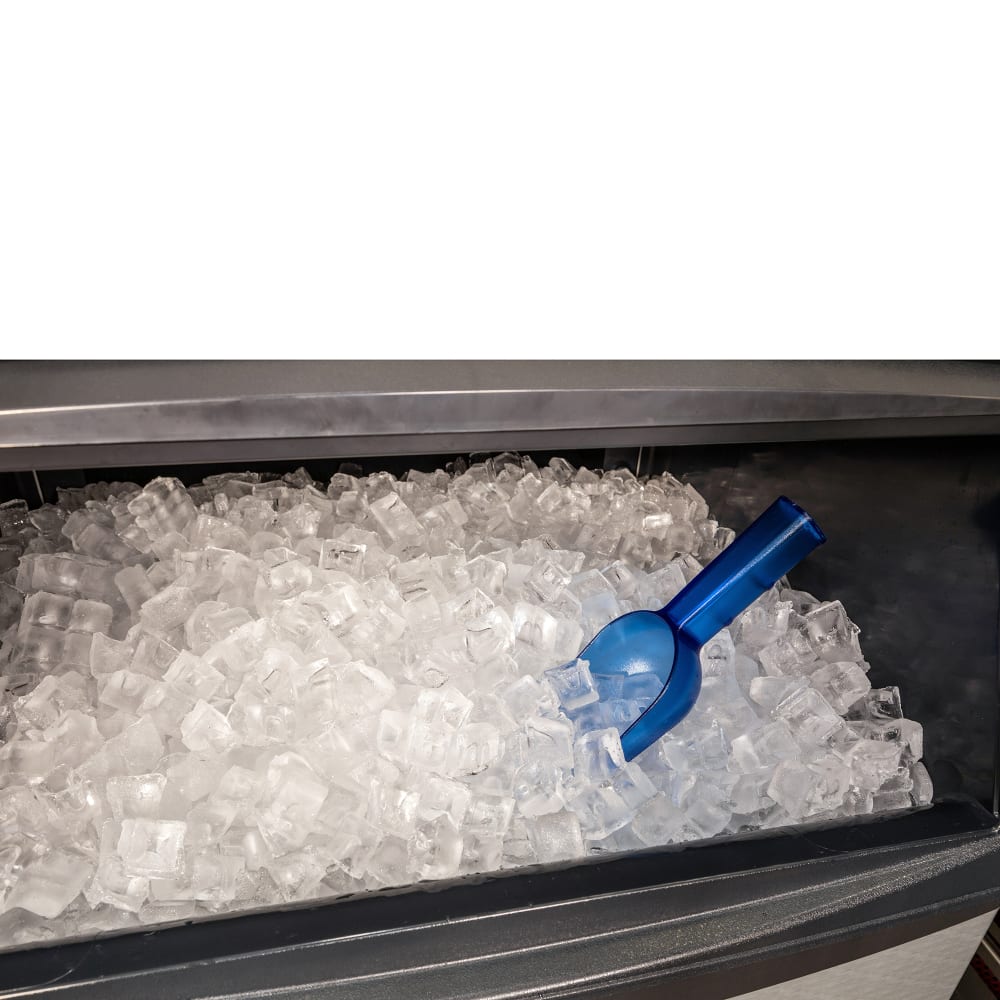

- Dishwasher-safe ice scoop included
- 4,100 BTU
- Ambient air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 15-80 PSIG
- 20 in. W x 24 in. D x 38 in. H
- 6.4 A, 10 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman CU0920MAX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker With Bin, cube style, air cooled, 20" width, contained condenser, production capacity up to 100 lb/24 hours at 70°/50° (77 lb AHRI certified at 90°/70°), 57 lb bin storage capacity, clear medium cube, horizontal evaporator, ADA compliant with floor mount kit, no side clearance required, unit specific QR code, 6" adjustable legs included, ice scoop included, R290 refrigerant, includes power cord with NEMA 5-15P plug, 115V/60/1-ph, cETLus, ETL-Sanitation, engineered and assembled in USA
Watch a video about this product
Scotsman CU0920MAX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 100 |
| Also Known As | CU0920MA-1 |
| Bin Capacity (lb) | 57 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Essential Ice™ |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor |
| Width (in) | 20 |
| Weight | 118.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman CU0920MAX-1 Scotsman CU0920MAX-1 20"W Full Cube Undercounter Ice Machine - 100 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,571.00 / Each | $3,240.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | IN STOCK: Ships in 1 Business Day |
| Ice Type | Full Cube | Crescent Cube |
| 24 Hr. Production (lb) | 100 | 125 |
| Bin Capacity (lb) | 57 | 53 |
| Width (in) | 20 | 23.75 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | |
| Rating | Best | Best |
| Series | Essential Ice™ | KM Series |
| Suggested Use | Commercial | Commercial |
| Front Style | Lift Door | |
| Depth (in) | 24 | 24.47 |
| Height (in) | 38 | 39 |
| Design | Standard Height | |
| Refrigerant | R290 (Hydrocarbon) | R134a |
| Voltage | 115 | 115 |
| Warranty | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
