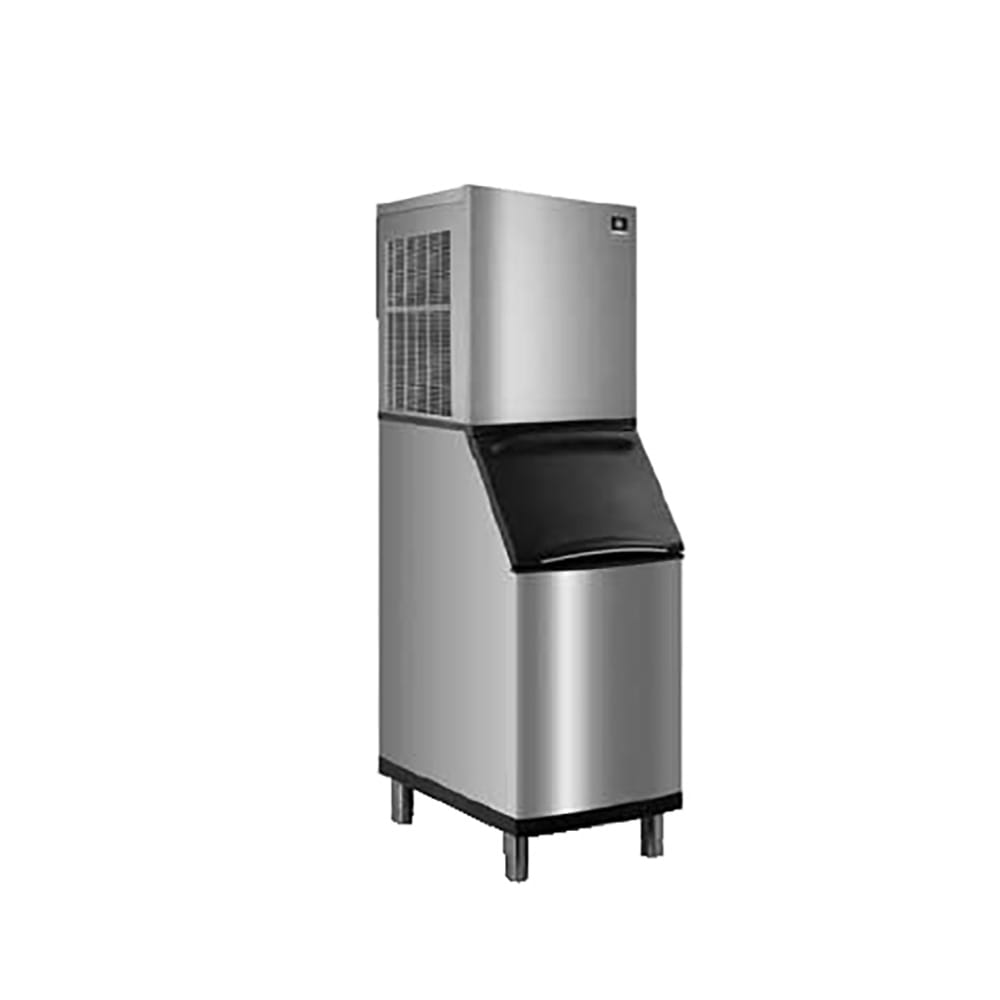

Manitowoc Ice RNP0320A/D420 308 lb Nugget Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$6,273.00 /Each
Contact us for details!
Manitowoc Ice RNP0320A/D420 Description
With its 308-pound maximum daily ice production, the Manitowoc Ice RNP0320A-161/D420 nugget ice maker creates nugget ice—a soft, chewable ice ranging from 3⁄8 of an inch to 1⁄2 an inch in width and length. This ice type displaces liquid to save on cost and cool drinks without diluting them. To reduce maintenance requirements, its stainless steel bearings withstand high loads. This air-cooled, self-contained unit can operate in ambient air temperatures from 50 to 110 degrees Fahrenheit and incoming water temperatures of 37 to 90 degrees Fahrenheit.
The Manitowoc Ice RNP0320A-161/D420 nugget ice machine's bin has a 383-pound ice capacity and is insulated with foam to reduce melting. The unit's side grips enable operators to open the door from the left, right, or center with one hand, while the side-hinged, front-opening door configuration stays open during scooping for operator safety. This 22-inch-wide by 34-inch-deep by 50-inch-high bin is finished with smooth, corrosion- and smudge-resistant Duratech metal that can simply be wiped clean.
- 308-lb. daily ice production
- 236-lb. AHRI-certified daily ice production
- Produces nugget ice
- Ice measures between 3⁄8 and 1⁄2 in. (length and width)
- Air-cooled, self-contained condenser
- R290 refrigerant
- Low-maintenance stainless steel bearings
- Stainless steel finish
- Operating ambient temperature range: 50-110 degrees F
- Operating water temperature range: 37-90 degrees F
- Ideal incoming water pressure: 14-80 PSI
- 7,511 BTU
- Capacity: 383 lbs.
- AHRI-certified interior capacity: 12.9 cu. ft.
- Corrosion- and smudge-resistant Duratech exterior
- Side-hinged, front-opening door
- Side grips enable opening from any angle
- Foam insulated
- Ice maker head: 22 in. W x 23 63⁄100 in. D x 26 in. H
- Ice bin: 22 in. W x 34 in. D x 50 in. H
- Overall: 22 in. W x 34 in. D x 76 in. H
- 7.5 A, 3⁄4 HP
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice RNP0320A/D420 within the 48 contiguous states.
From The Manufacturer
Ice Maker, nugget-style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 308 lb/24 hours at 70°/50° (236 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel finish, 1/2 HP, R-290A, ETL-Sanitation, cETLus
Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Manitowoc Ice RNP0320A/D420 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 308 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 383 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 76 |
| Hertz | 60 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 282.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice RNF0320AD420
Compare to Similar Items
| Attributes |
Manitowoc Ice RNP0320A/D420 Manitowoc Ice RNP0320A/D420 308 lb Nugget Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v Current Item |
Hoshizaki F-422MAK-C/B-500SF Hoshizaki F-422MAK-C/B-500SF 476 lb Nugget Ice Machine w/ Bin - 500 lb Storage, Air Cooled, 115v |
|---|---|---|
| Customer Rating |
|
|
| Price | $6,273.00 / Each | $7,950.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | Typically ships in 4 - 8 Business Days |
| Ice Type | Nugget | Nugget |
| 24 Hr. Production (lb) | 308 | 476 |
| Width (in) | 22 | 30 |
| Bin Capacity (lb) | 383 | 500 |
| Compressor Type | Air Cooled | Air Cooled |
| Rating | Best | Best |
| Height (in) | 76 | 68 |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
