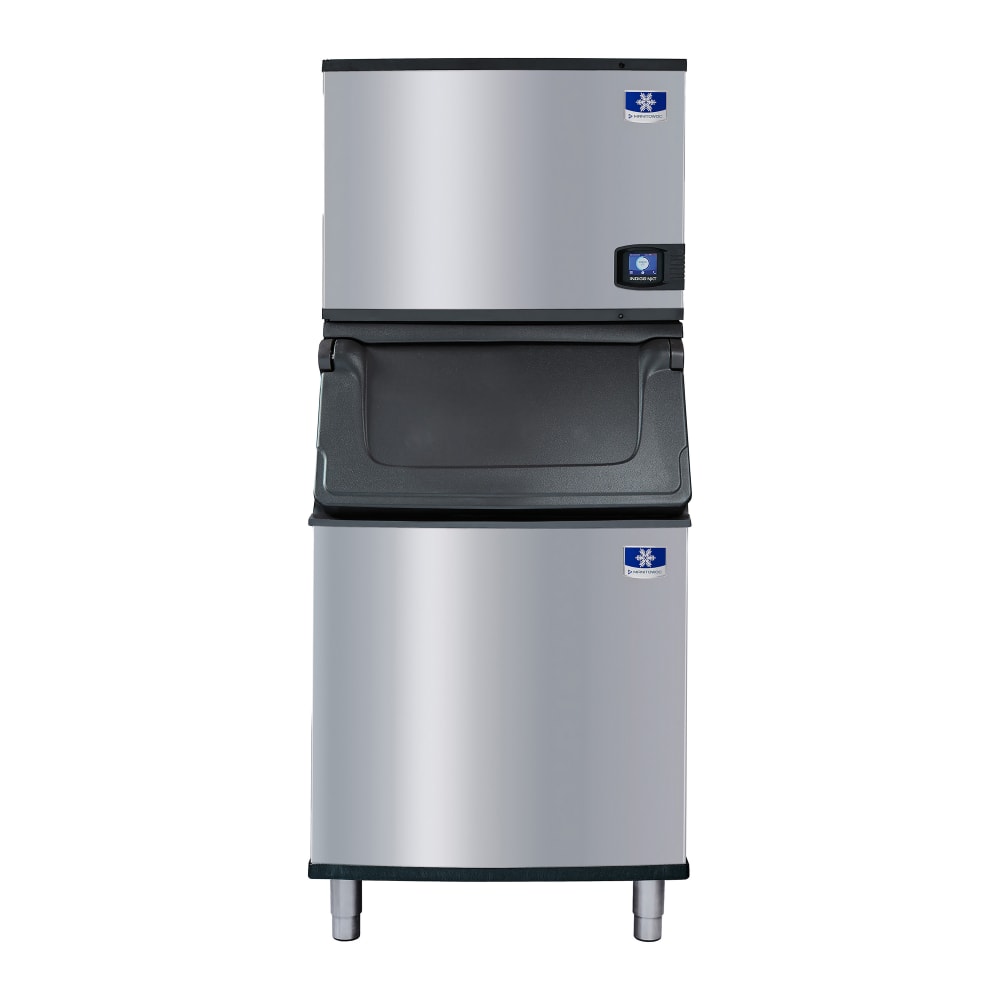

Manitowoc Ice RFP0620A/D570/K00472 730 lb Flake Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

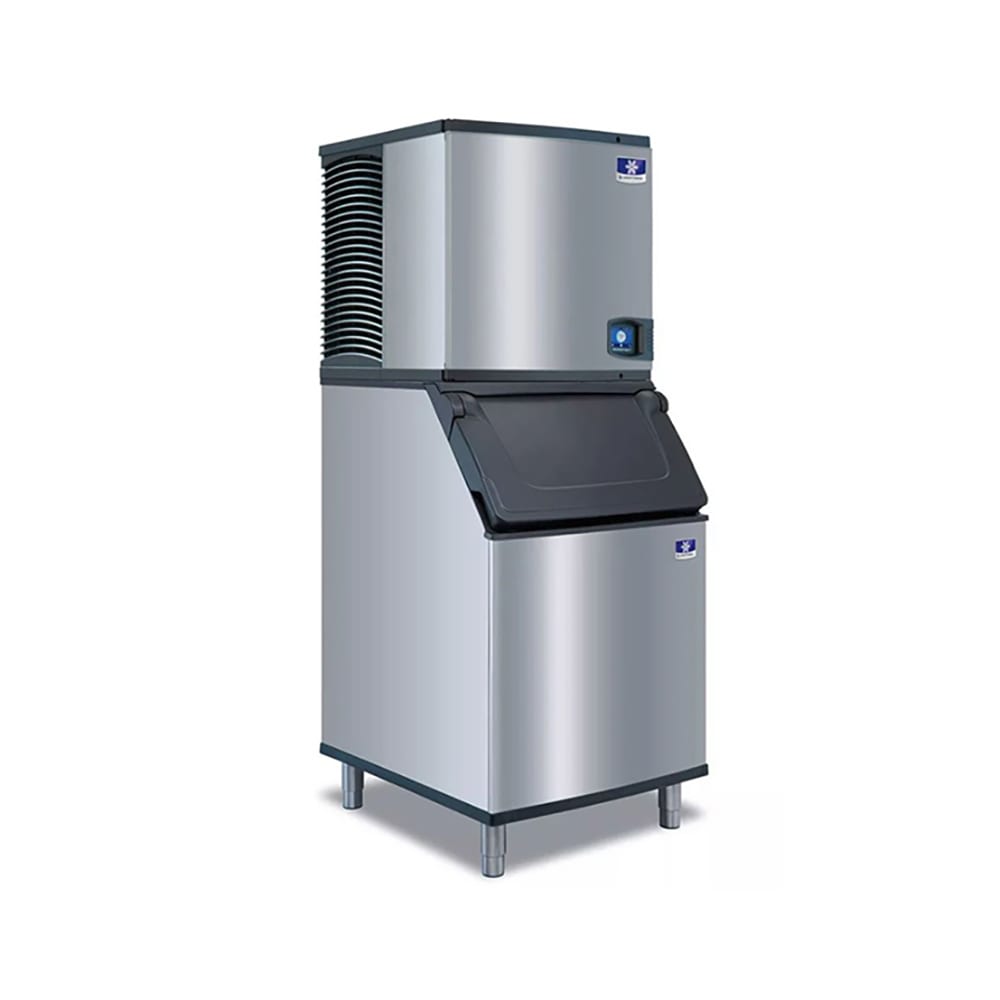

The Manitowoc RFP0620A-161/D570/K00472 flake ice machine is a two-in-one unit featuring a self-contained, air-cooled ice maker head that rests atop a 532-pound-capacity ice storage bin. This unit generates hard bits of flake ice ideal for salad bars, seafood displays, smoothies and frozen drinks, or cold therapy. When incoming water is 50 degrees Fahrenheit and ambient air is 70 degrees Fahrenheit, it produces 682 pounds of flake ice in a day. While its stainless steel bearings eliminate maintenance requirements and increase reliability, its stainless steel exterior resists corrosion and simplifies cleaning.

The Manitowoc RFP0620A-161/D570/K00472 flake ice machine head can be attached to the corresponding base with the included Manitowoc K00472 30-inch B-style bin adapter. The bin measures 30 inches wide by 34 inches deep by 50 inches tall and accommodates 532 pounds of ice. A simple-to-clean polyurethane Arctic Blue bin liner is built into the interior, while the exterior is made of corrosion- and smudge-resitant DuraTech® metal. To ease ice retrieval, this unit comes with an ergonomic NSF-approved ice scoop with a built-in knuckle and thumb guard and molded retaining lip that maximizes the amount of ice that can be scooped. The insulated door is built with side grips that enable users to open the door from the center, right, or left, and once it's opened, it self-latches to remain in an open position as users retrieve ice. To stabilize on uneven or sloped flooring, its 6-inch chrome legs can be extended to 7³⁄₄ inches.

Ice Maker Details

• 682-lb. daily ice production
• Produces flake ice
• Air-cooled, self-contained condenser
• Eco-friendly R290 refrigerant
• High-load, maintenance-free stainless steel bearings
• Heavy-duty, corrosion-resistant stainless steel cabinet
• Uses 12 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 50-110 degrees F
• Required incoming water temperature range: 37-90 degrees F
• Required incoming water pressure range: 14-80 PSI

Ice Bin Details

• Featured in the Indigo® NXT™ and D Bin lines
• 17.9-cu.-ft. interior volume
• 532-lb. storage capacity
• Smudge- and corrosion-resistant DuraTech metal exterior finish
• Polyurethane Arctic Blue bin liner
• Insulated door with built-in side grips
• Self-latch ensures door remains open
• Door is angled 53 degrees so users can reach bin's base
• NSF-approved ice scoop with knuckle and thumb guard
• 6-in. chrome legs can be raised to 7³⁄₄ in.

Dimensions & Utilities

• Ice storage bin: 30 in. W x 34 in. D x 50 in. H
• Ice machine head: 22 in. W x 23⁶³⁄₁₀₀ in. D x 26 in. H
• Overall: 30 in. W x 34 in. D x 76 in. H
• 13.5-20 A, 5.58 kW, 1 HP
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Ice Maker w/ Bin & Bin Adapter, flake-style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 730 lb/24 hours at 70°/50° (506 lb AHRI certified at 90°/70°), high-load stainless steel bearings, stainless steel finish, 1 HP, cETLus, ETL-Sanitation, CE; Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratech exterior, NSF; Bin Adapter, for 22" Indigo, Indigo NXT, RFF, RNF ice machine on a D-400, D-570 Bin, or 30" Hotel Dispenser (not for IB)

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year compressor parts; Dispenser: 3-year Parts & Labor
