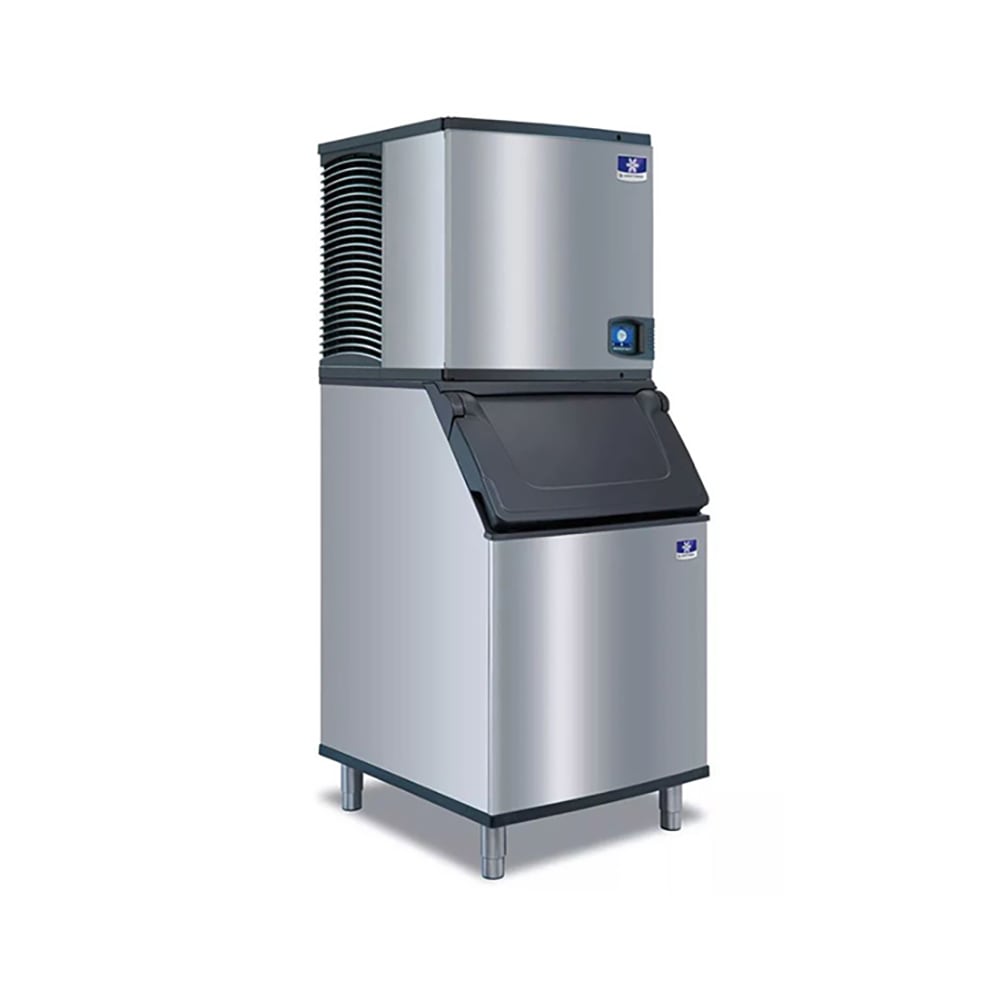

Manitowoc Ice RFP0620A/D420 730 lb Flake Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v

To provide reliable ice production and convenient ice storage, the Manitowoc RFP0620A-161/D420 flake ice maker features a 22-inch-wide by 23⁶³⁄₁₀₀-inch-deep by 26-inch-tall ice machine head that rests atop a 22-inch-wide by 34-inch-deep by 50-inch tall ice bin. Great for high-traffic buffets, restaurants, smoothie bars, or medical facilities, it can produce 682 pounds of flake ice in 24 hours when air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This ice type is ideal for food displays and salad bars because it can form around items without bruising them. It's also soft enough to be blended in smoothies and frozen beverages. Its self-contained, air-cooled condenser uses eco-friendly R290 refrigerant. To enhance reliability during high-volume use, its stainless steel bearings eliminate the need for maintenance and accommodate large loads. To match the compatible ice bin, its cabinet exterior is made of resilient, corrosion-resistant stainless steel.

The Manitowoc RFP0620A-161/D420 ice machine and bin's storage base can accommodate 383 pounds of ice and has a built-in a polyurethane Artic Blue liner. To access the bin's interior, staff can lift the door with the side grip from the left, right, or center. Once the door is open, it remains in place with its self-latching design so users can safely retrieve ice. The door's 53-degree angle creates an ergonomic entrance so users can access ice near the bin's bottom. For enhanced durability and strength, it's constructed of corrosion resistant DuraTech® metal. This unit includes an NFS-approved sanitary ice scoop with a built-in knuckle and thumb guard to ease retrieval. For consistency, the scoop can lift 5³⁄₁₀ pounds of ice.

Ice Maker Details

• 682-lb. daily ice production
• Produces hard bits of flake ice
• Air-cooled, self-contained condenser
• Environmentally friendly R290 refrigerant
• High-load, maintenance-free, stainless steel bearings for enhanced reliability
• Heavy-duty, corrosion-resistant stainless steel cabinet
• Uses 12 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 50-110 degrees F
• Required incoming water temperature range: 37-90 degrees F
• Required incoming water pressure range: 14-80 PSI

Ice Bin Details

• Featured in the Indigo® NXT™ series
• 383-lb. storage capacity
• 12.9-cu.-ft. interior volume
• Smudge- and corrosion-resistant DuraTech metal finish
• Polyurethane Arctic Blue bin liner
• Ergonomic, insulated door is angled 53 degrees
• Self-latch ensures door remains open
• Built-in side door grips
• NSF-approved ice scoop with knuckle and thumb guard
• 6-in. chrome legs can be adjusted to 7³⁄₄ in.

Dimensions & Utilities

• Ice storage bin: 22 in. W x 34 in. D x 50 in. H
• Ice machine head: 22 in. W x 23⁶³⁄₁₀₀ in. D x 26 in. H
• Overall: 22 in. W x 34 in. D x 76 in. H
• 13.5-20 A, 5.58 kW, 1 HP
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Ice Maker w/ Bin, flake-style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 730 lb/24 hours at 70°/50° (506 lb AHRI certified at 90°/70°), high-load stainless steel bearings, stainless steel finish, 1 HP, cETLus, ETL-Sanitation, CE; Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratech exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year compressor parts; Dispenser: 3-year Parts & Labor
