Manitowoc Ice RFP0320A/D570/K00472 370 lb Flake Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

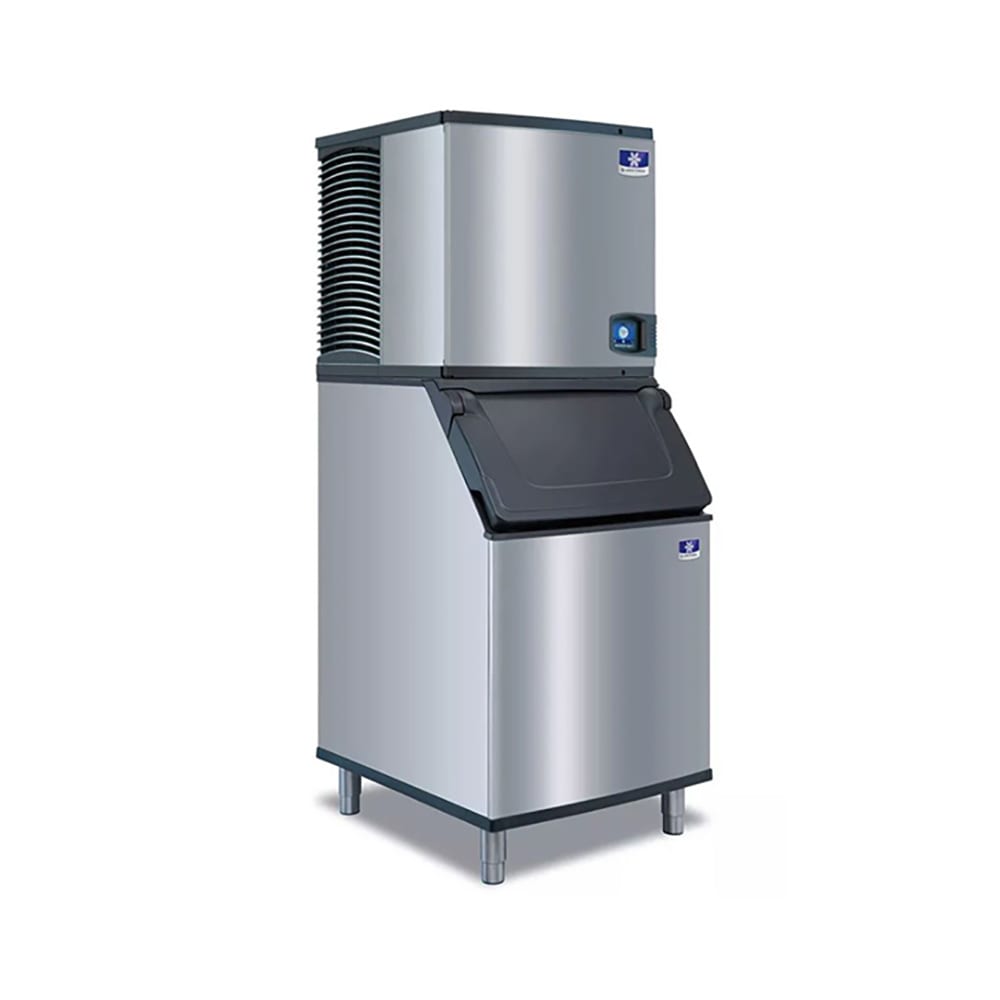

For back-of-house efficiency, the Manitowoc RFP0320A/D570/K00472 ice machine is a two-in-one unit featuring a flake ice maker and a storage bin. When air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, this unit can produce 370 pounds of flake ice in a day. This type of ice is comprised of soft, hard bits that can form around objects and secure them in place, making it an ideal choice for buffet, salad, or seafood displays, blended beverages, or cold therapy and healthcare applications. Because its air-cooled condenser is self-contained, it's simpler to install than most remote setups. For a sleek, classic appearance, its cabinet is made of heavy-duty, corrosion-resistant stainless steel. Overall, this ice maker head measures 22 inches wide by 23⁶³⁄₁₀₀ inches deep by 26 inches tall.

The Manitowoc RFP0320A/D570/K00472 flaker ice machine includes a Manitowoc K00472 D-style bin adapter for secure attachment to the Manitowoc D570 ice storage bin. This 30-inch-wide by 34-inch-deep by 50-inch-tall bin accommodates 532 pounds of ice and is built with a polyurethane Arctic Blue bin liner. Operators can simply retrieve access from the front door, which is built with side grips that allow users to lift the door from the left, right, or center. Once opened, the insulated door self-latches to secure it in an open position so employees can safely scoop ice. Because the door is angled 53 degrees, it establishes an ergonomic position that enhances access to ice stored near the bin's bottom. Staff can retrieve ice with the included ergonomic NFS-approved sanitary ice scoop, which features a built-in knuckle and thumb guard and molded retaining lip. Users can lift roughly 5³⁄₁₀ pounds of ice with each scoop. To complement the ice machine head, the bin flaunts a smudge-resistant, simple-to-clean, and corrosion-resistant DuraTech® metal exterior finish.

Ice Maker Details

• 370-lb. daily ice production
• Produces flake ice
• High-load, maintenance-free bearing enhances reliability
• Air-cooled, self-contained condenser
• Environmentally friendly R290 refrigerant
• Heavy-duty, corrosion-resistant stainless steel cabinet
• Includes the Manitowoc K00472 bin adapter to ease installation on ice storage bin
• Uses 12 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 50-110 degrees F
• Required incoming water temperature range: 37-90 degrees F
• Required incoming water pressure range: 14-80 PSI

Ice Bin Details

• Part of the Indigo® NXT™ collection
• 532-lb. storage capacity
• 17.9-cu.-ft. interior volume
• DuraTech metal finish resists smudges and corrosion
• Polyurethane Arctic Blue bin liner
• Ergonomic, 53-degree-angled door is insulated
• Stay-up door for safe ice retrieval
• Built-in side door grips
• Includes ergonomic, NSF-approved ice scoop with knuckle and thumb guard
• Rests on set of 6-in. adjustable chrome legs

Dimensions & Utilities

• Ice storage bin: 30 in. W x 34 in. D x 50 in. H
• Ice machine head: 22 in. W x 23⁶³⁄₁₀₀ in. D x 26 in. H
• Overall: 30 in. W x 34 in. D x 76 in. H
• 7.5 A, 5.58 kW, ³⁄₄ HP
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Ice Maker w/ Bin & Bin Adapter, flake-style, air-cooled, 22"W x 23-5/8"D x 26"H, production capacity up to 370 lb/24 hours at 70°/50° (287 lb AHRI certified at 90°/70°), self-contained condenser, high-load stainless steel bearings, stainless steel finish, 3/4 HP, R-290A, ETL-Sanitation, cETLus; Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratech exterior, NSF; Bin Adapter, for 22" Indigo, Indigo NXT, RFF, RNF ice machine on a D-400, D-570 Bin, or 30" Hotel Dispenser (not for IB)

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year compressor parts; Dispenser: 3-year Parts & Labor
