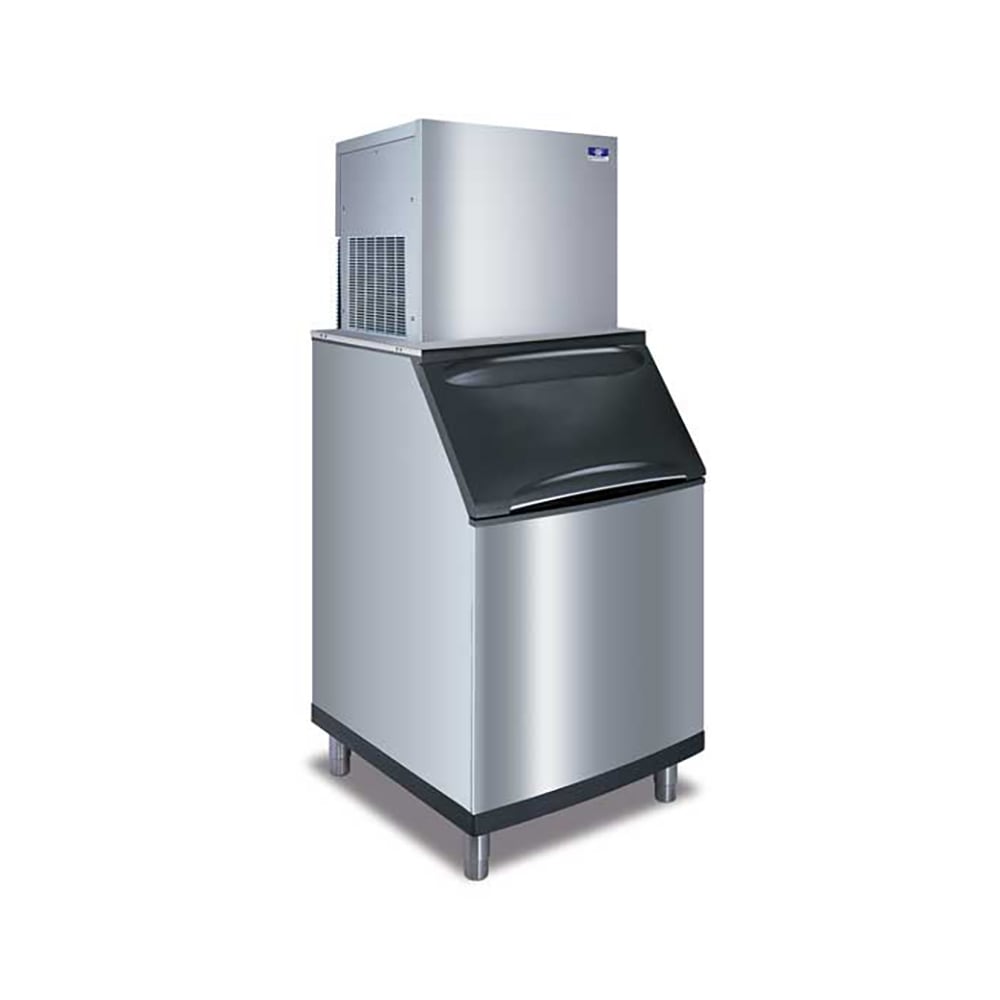

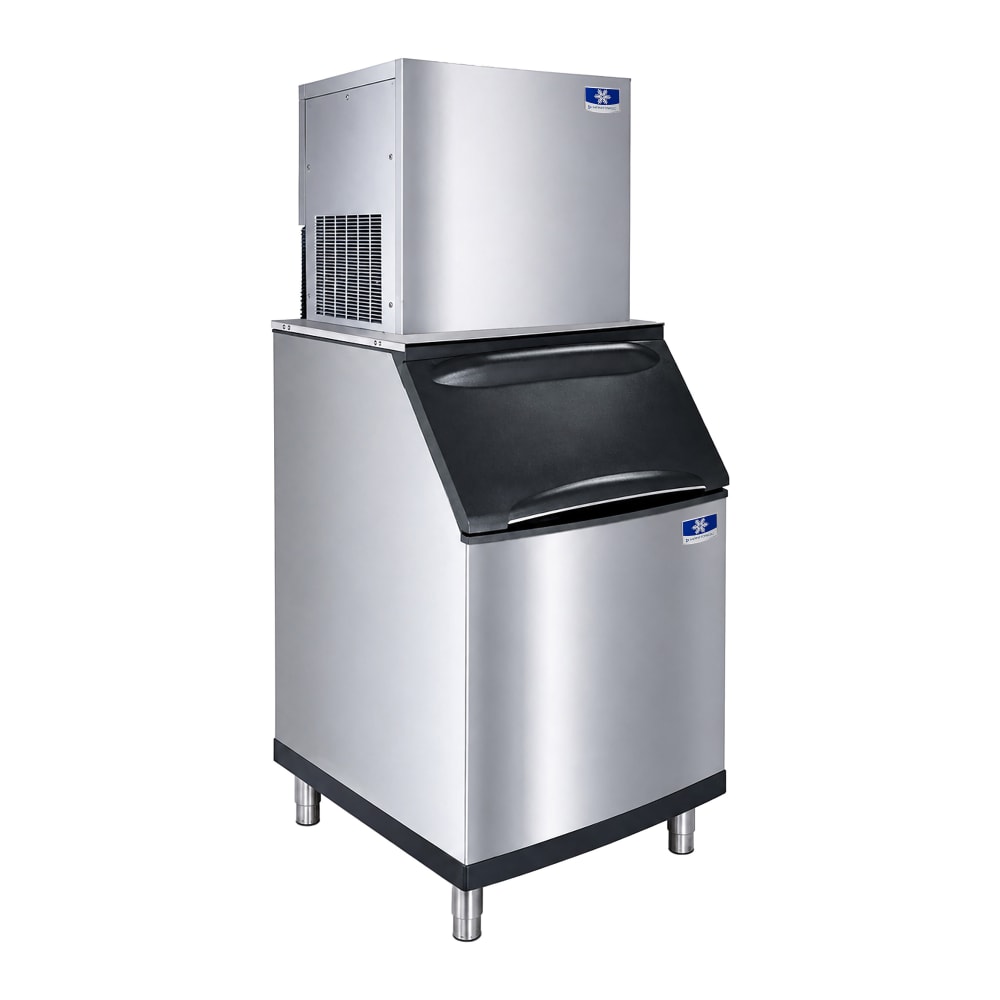

Manitowoc Ice RFF1300A/D570 1264 lb Flake Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Ships in 1 Business Day
$10,125.00 /Each
Contact us for details!
Manitowoc Ice RFF1300A/D570 Description
If ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, the Manitowoc Ice RFF-1300A-261/D570 ice maker with bin produces as much as 1,264 pounds of ice daily. It makes flake ice—hard bits ideal for healthcare and food presentations. This type of ice works well with presentations because as they surround product, they chill it properly without bruising or damaging. Ice forms on the evaporator when R-404A refrigerant removes heat from this piece. This unit is air cooled, pushing cool air across the condenser to keep the equipment cool; this self-contained model simplifies installation.
In the Manitowoc Ice RFF-1300A-261/D570 ice maker with bin, as much as 532 pounds can be stored. This bin stores ice for extended periods of time because its interior is foamed to reduce melting, and to promote straightforward, unobtrusive access, its door features an ergonomic design that enables the door to be lifted with just one hand from any position. It can be angled at 53 degrees and stays open with a self-latching feature for safe, convenient retrieval.
- 1,264-lb. maximum daily ice production
- Produces flake ice for food presentations and healthcare applications
- Self-contained, air-cooled condenser
- R-404A refrigerant
- Service updates ease installation and cleaning
- Cabinet is made of corrosion-resistant stainless steel
- High-load bearing enhanced reliability
- 14,000 average BTU
- Required ambient air temperature: 50-110 degrees F
- Required incoming water temperature: 37-90 degrees F
- Required incoming water pressure: 14-80 PSI
- 532-lb. capacity
- 17.9-cu.-ft. AHRI-certified capacity
- Foam-insulated door retains cold air
- Center, left, and right side door grips enable opening from different directions
- Door self-latches to stay open for scooping
- 5.3 lb. ice scoop capacity
- Integrated thumb and knuckle guard keeps hands out of ice to prevent contamination
- Blue polyurethane bin liner
- DuraTech exterior hides fingerprints and resists corrosion
-
Ice Maker
-
30 in. W x 23 31⁄50 in. D x 27 2⁄5 in. H
-
15 A, 4.24 kW, 1.5 HP
-
208-230 V/60 Hz/1 ph
-
Bin
-
30 in. W x 34 in. D x 50 in. H
-
Overall: 30 in. W x 34 in. D x 77 2⁄5 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice RFF1300A/D570 within the 48 contiguous states.
From The Manufacturer
Ice Maker, flake-style, air-cooled, self-contained condenser, 30"W x 23-5/8"D x 27-13/32"H, production capacity up to 1264 lb/24 hours at 70°/50° (951 lb AHRI certified at 90°/70°), high-load stainless steel bearings, stainless steel finish, ETL, cETLus
Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Manitowoc Ice RFF1300A/D570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 1264 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 77.41 |
| Hertz | 60 |
| Ice Type | Flake |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 378.00 |
