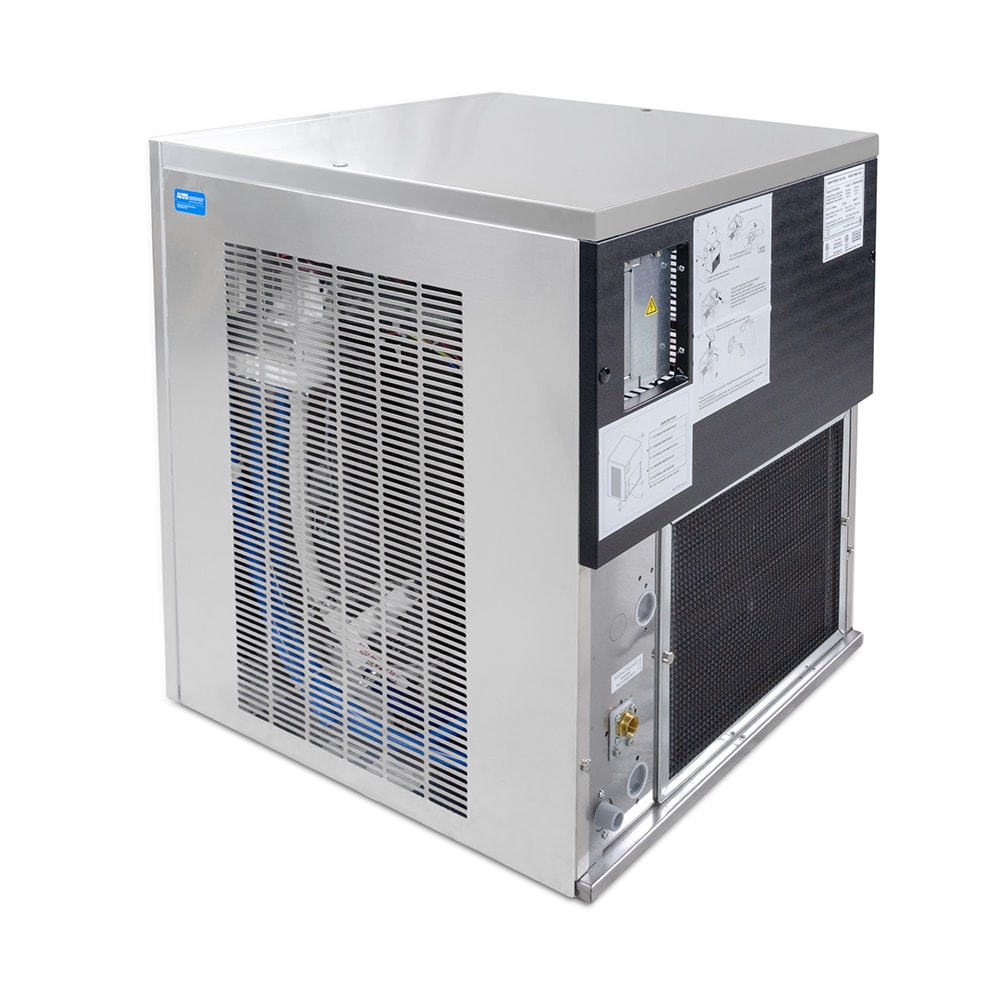

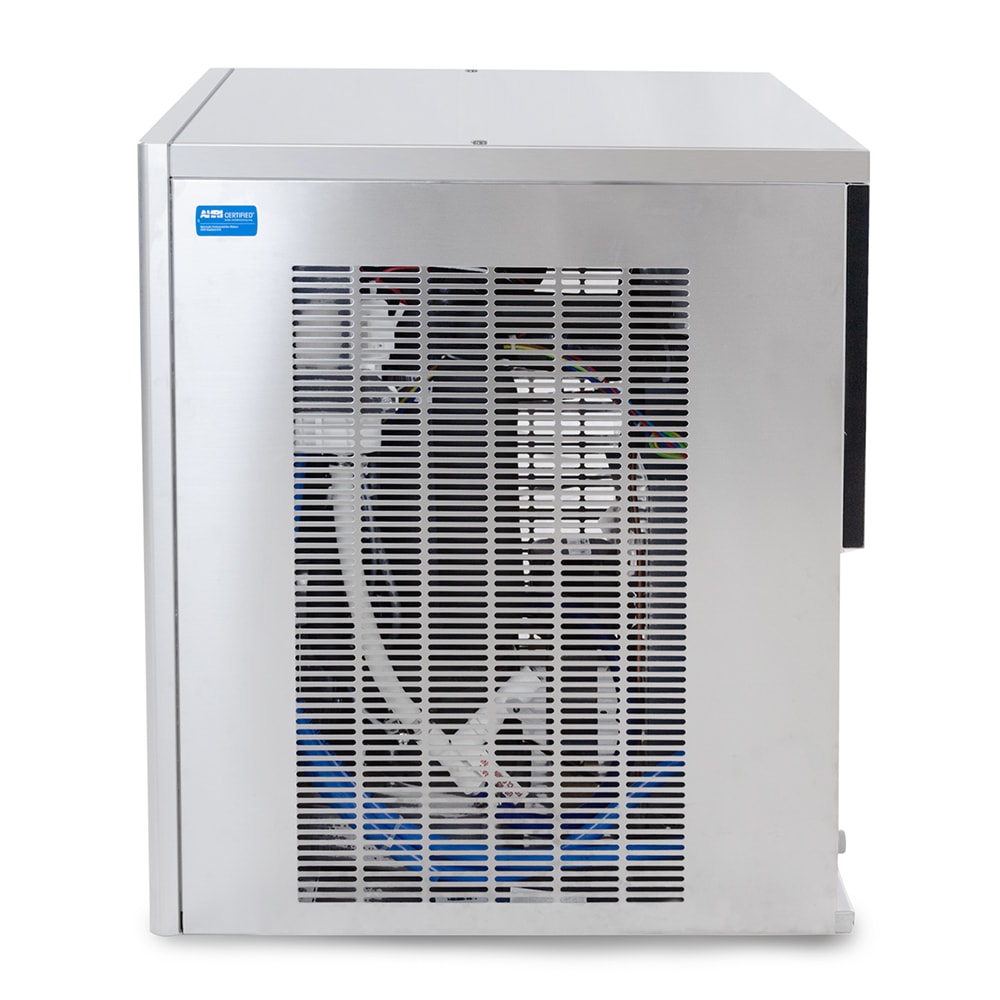

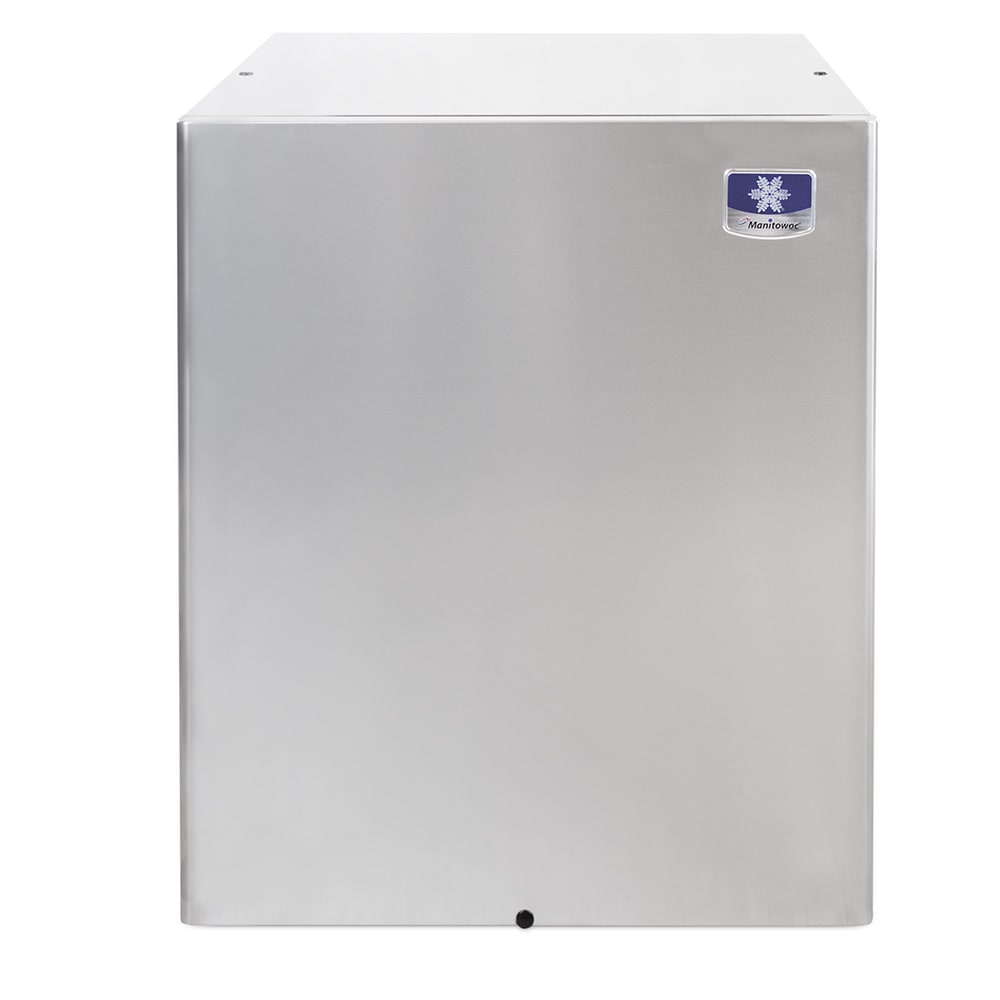

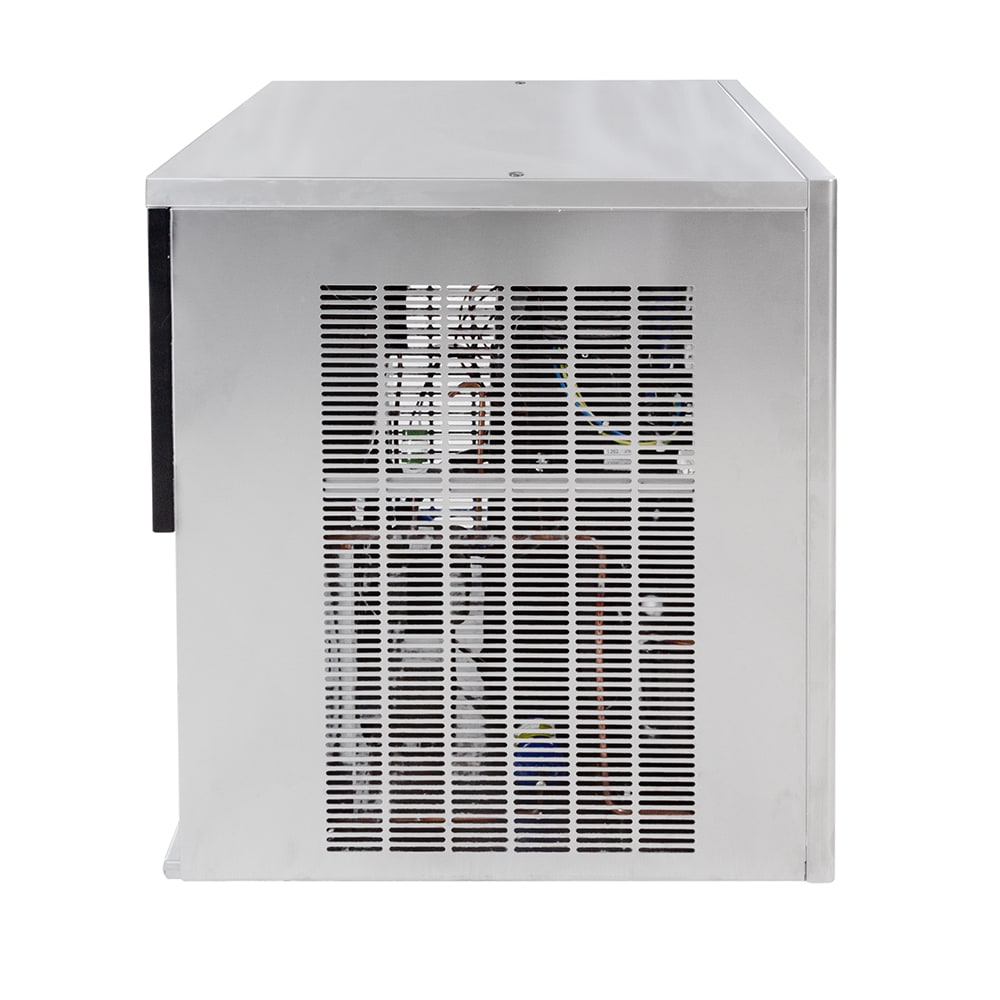

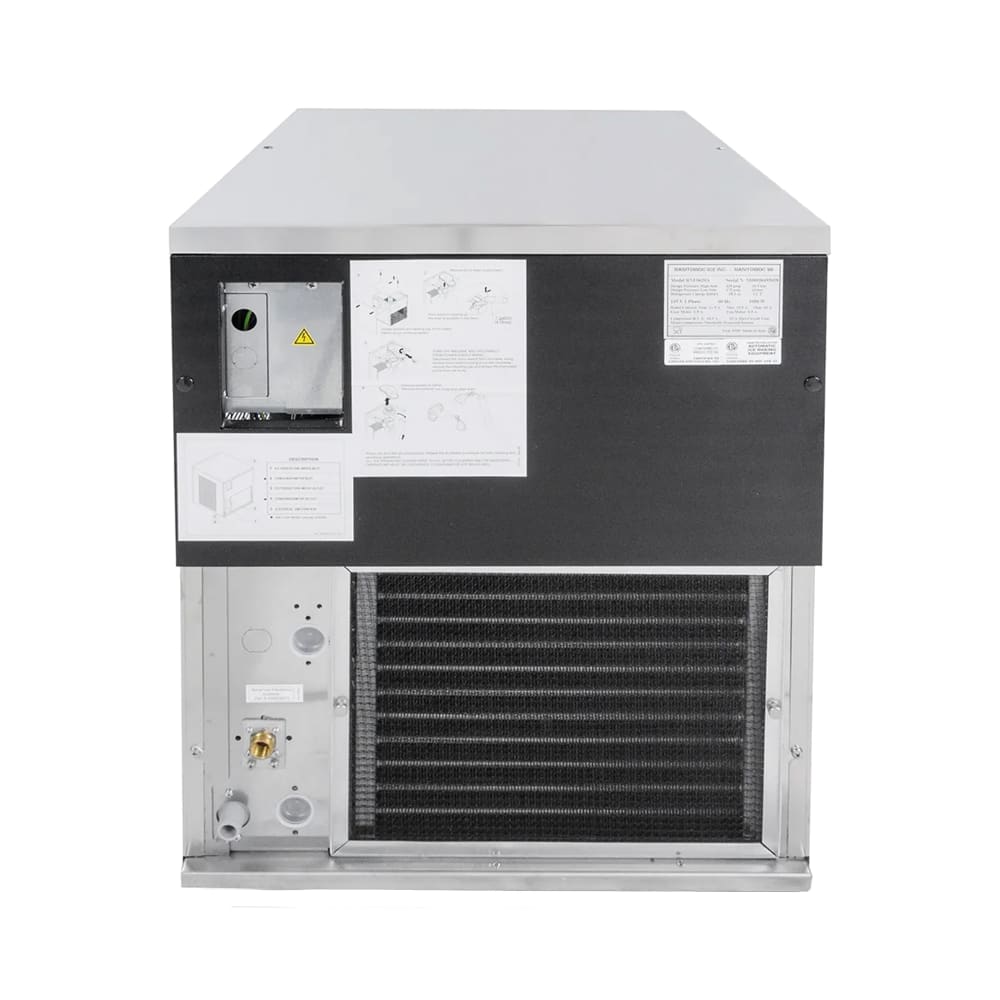

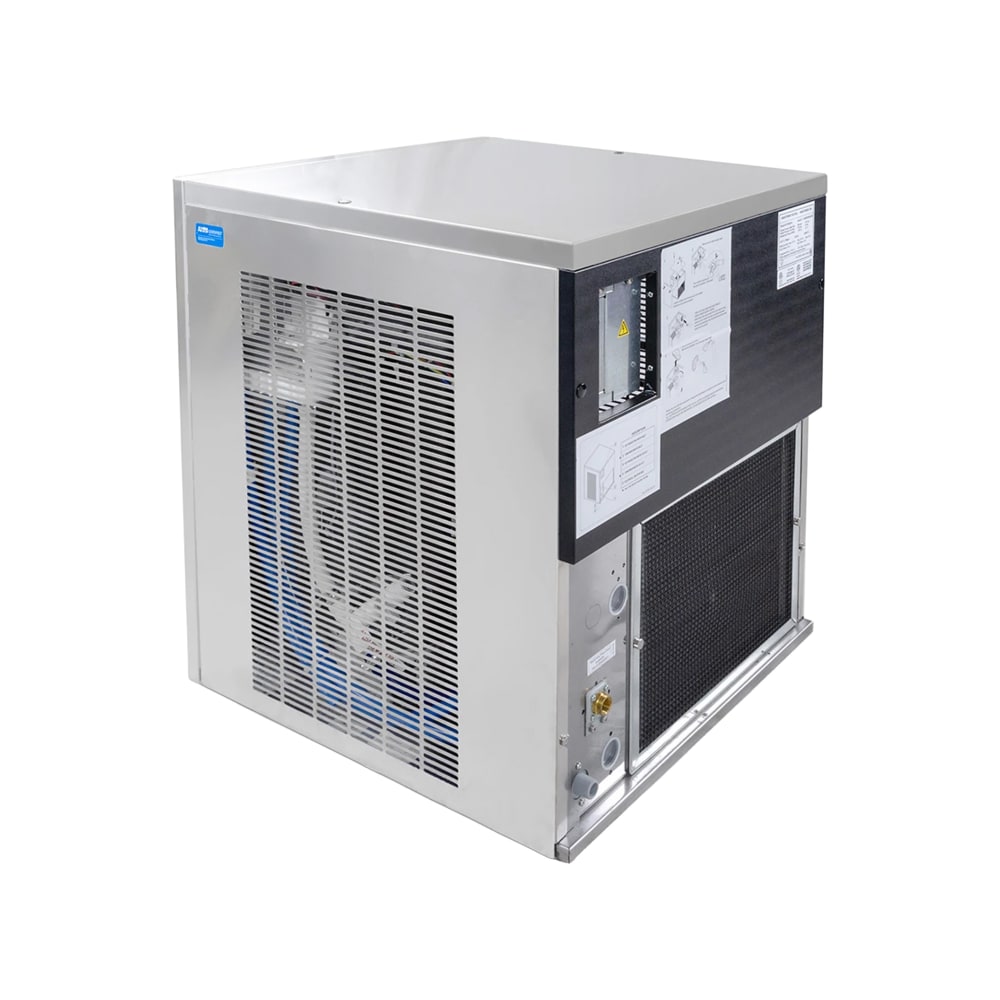

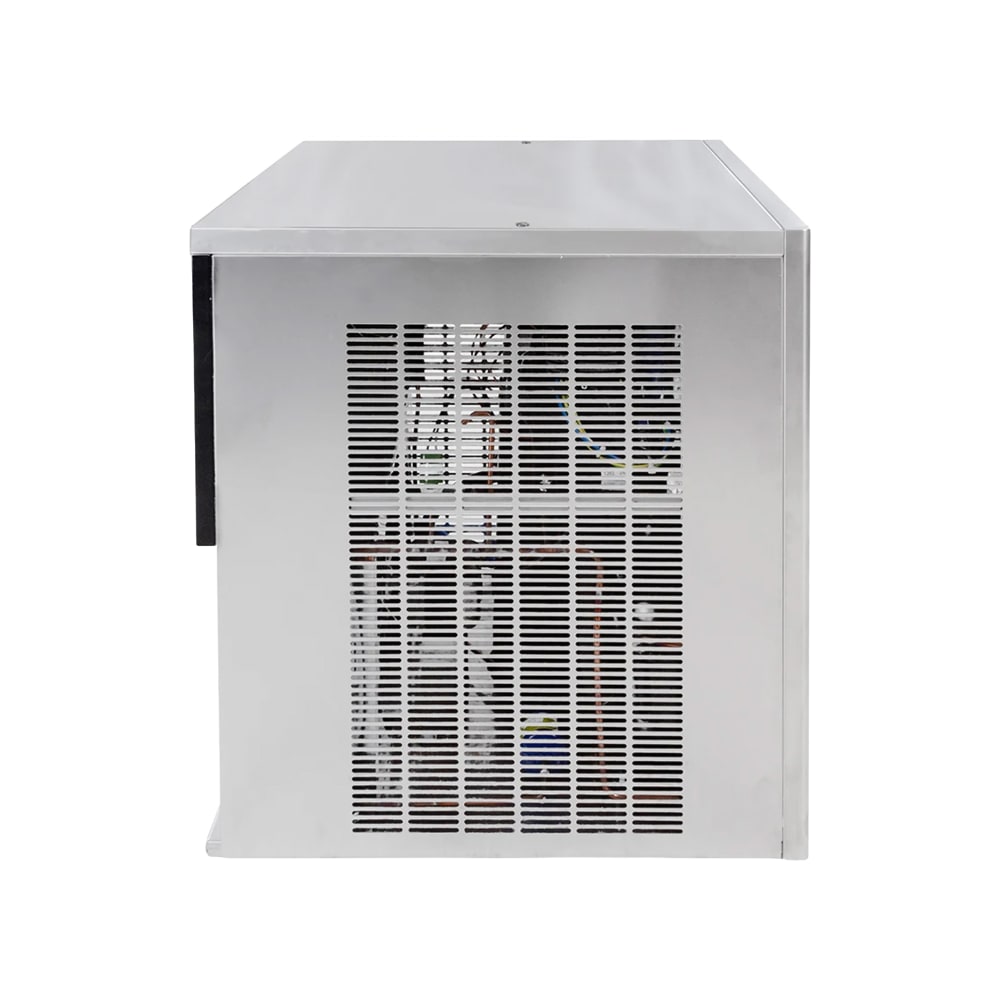

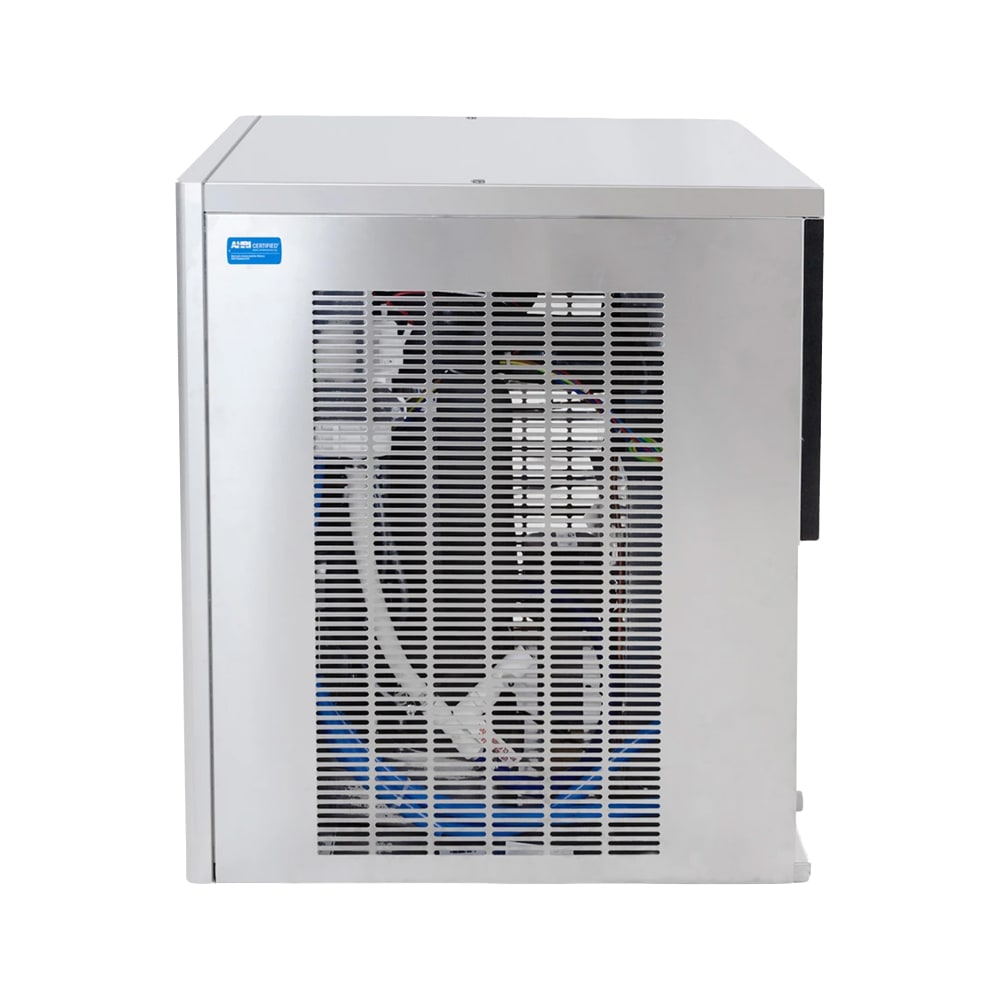

Manitowoc Ice RFF1220C 22" Flake Ice Machine Head - 1152 lb/24 hr, Remote Cooled, 208-230v/1ph
$7,241.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Manitowoc Ice RFF1220C Description
The Manitowoc RFF-1220C QuietQube® ice machine head can produce 1,092 pounds of flake ice in 24 hours. Flake ice is suited for use in displays because it surrounds seafood and produce without bruising or damaging it. The unit is remotely cooled with a condensing unit that is sold separately, displacing heat and lowering noise around the unit. Because the ice maker operates quietly, it fits well in hotels, hospitals, and other customer-facing applications.
Resistant to corrosion and scratches, the Manitowoc RFF-1220C ice machine head has a tough stainless steel exterior. The 22-inch-wide, slim profile fits in a variety of locations. Its evaporator is designed to withstand heavy use.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 1,092-lb. maximum daily ice production
- 958-lb. AHRI-certified daily ice production
- Flake ice is great for displays or healthcare uses
- Remote, air-cooled system increases production and energy efficiency with a condenser installed in a separate location
- Operates quietly
- Slim profile for installation in a wide range of locations
- Stainless steel exterior is durable and simple to clean
- Long-lasting evaporator
- Uses R-404A refrigerant
- Ideal ambient air temperature: 50-110 degrees F
- Ideal incoming water temperature: 37-90 degrees F
- Ideal incoming water pressure: 14-80 PSI
- Part of the QuietQube series
- Compatible ice bin sold separately
- Compatible remote condenser sold separately
- Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)
- 22 in. W x 23.63 in. D x 26 in. H
- 1.4 A
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice RFF1220C within the 48 contiguous states.
From The Manufacturer
Ice Maker, flake-style, air-cooled, designed for remote refrigeration, 22"W x 23-5/8"D x 26"H, production capacity up to 1152 lb/24 hours at 70°/50° (958 lb AHRI certified at 90°/70°), high-load stainless steel bearings, stainless steel finish, ETL, cETLus, ENERGY STAR®
Manitowoc Ice RFF1220C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 1152 |
| Compressor Type | Remote Cooled |
| Depth (in) | 23.63 |
| Height (in) | 26 |
| Ice Type | Flake |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | QuietQube® |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 186.00 |
