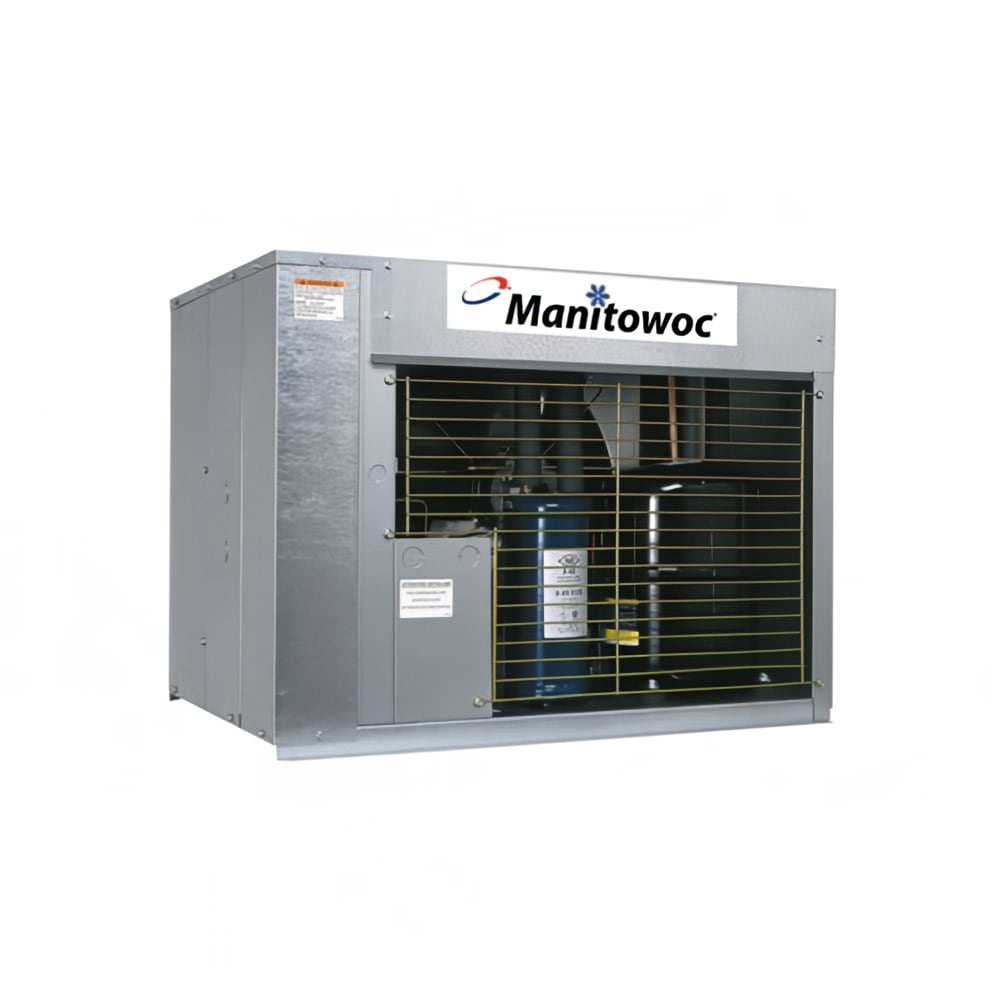

Manitowoc Ice RCUF-2200 Air-Cooled Remote Ice Machine Compressor, 208 230v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 399-RCUF2200263 • MPN: RCUF-2200 263
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Price: $2,175.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice RCUF-2200 Description

Manitowoc Ice

The Manitowoc RCUF-2200 ice machine compressor is compatible with the RFF-2200C unit. Operators can install this condensing unit away from the ice maker, which may be in customer-facing areas. This isolates noise and heat production in these spaces. It can be installed in places with ambient temperatures from -20 to 120 degrees Fahrenheit.

Product Details

  • Remote, air-cooled design
  • Designed to be used with the RFF-2200C ice machine
  • Ambient operating temperature range: -20 to 120 degrees F
  • 15,700 BTU
  • 3 HP
  • 208-230 V/60 Hz/3 ph
  • Overall dimensions: 34 in. W x 24.13 in. D x 25.75 in. H
  • ETL and cETLus listed; AHRI certified

More information on commercial ice machines can be found in our ice machine buyers' guide. In this guide, we cover some of the features and benefits of remote compressors.

Condenser Unit, remote air-cooled, 3 HP, AHRI, ETL, cETLus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Manitowoc Ice RCUF-2200 Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
Depth (in) 24.13
Height (in) 24.75
Width (in) 34
Width (in) Range 30 - 39
Hertz 60
Voltage 208/230
Phase 3
Product Parts & Accessories
Part Type Compressor
Product Type Ice Makers & Bins
Weight 249.00
Manitowoc Ice RCUF-2200 Certifications
  • ETL
