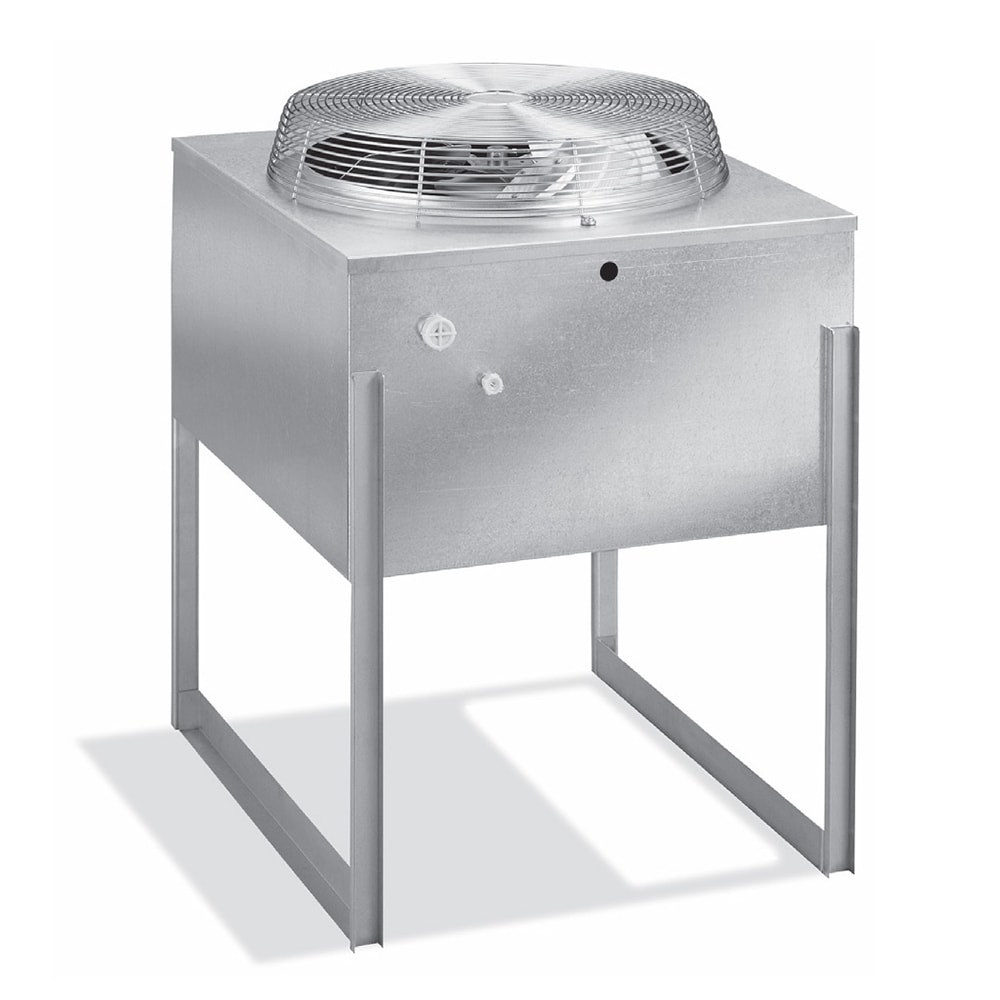

Manitowoc Ice JCF0500 Air Cooled Remote Condensing Unit for IF-0500N Series
QUICK SHIP: Ships in 1 Business Day
$1,260.00 /Each
Contact us for details!
Manitowoc Ice JCF0500 Description
The Manitowoc Ice JCF0500 vertical discharge remote condensing unit is designed for Indigo® NXT™ Series ice cube machines, including the iF0500N, iF0600N, and iF0900N models. It supports flexible installation in both indoor and outdoor environments, operating efficiently in temperatures ranging from -20 to 120 degrees Fahrenheit. To simplify installation, all components are pre-charged with refrigerant and feature quick-connect fittings.
For adaptability in various setups, the Manitowoc Ice JCF0500 condensing unit accommodates a maximum line length of 100 feet, with a vertical rise of up to 35 feet above the ice machine and a vertical drop of 15 feet below. Its vertical discharge design optimizes airflow, ensuring reliable performance. The unit operates on a 115V electrical connection and requires 1.82 amps for efficient cooling.
- Vertical discharge remote condensing unit
- Compatible with Indigo NXT; Series ice cube machines (iF0500N, iF0600N, and iF0900N)
- Supports indoor or outdoor installation
- Operating environment temperature range: -20 to 120 degrees F
- All components pre-charged with refrigerant
- Quick-connect fittings
- Maximum line length: 100 ft.
- Maximum vertical rise: 35 ft. above ice machine
- Maximum vertical drop: 15 ft. below ice machine
- 24 1⁄5 in. W x 28 in. D x 38 in. H
- 1.82 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice JCF0500 within the 48 contiguous states.
From The Manufacturer
Remote Condensing Unit, Vertical Discharge, air-cooled, for salt spray environments specify coated coils, IF-0500N series, AHRI, cULus, CE
Manitowoc Ice JCF0500 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| Depth (in) | 24.5 |
| For Use With | IF-0500N Series |
| Height (in) | 34 |
| Hertz | 60 |
| Part Type | Compressor |
| Phase | 1 |
| Product | Parts & Accessories |
| Product Type | Ice Makers & Bins |
| Refrigerant | R404A |
| Special Features | Remote |
| Voltage | 208/230 |
| Width (in) | 29.16 |
| Weight | 78.00 |
