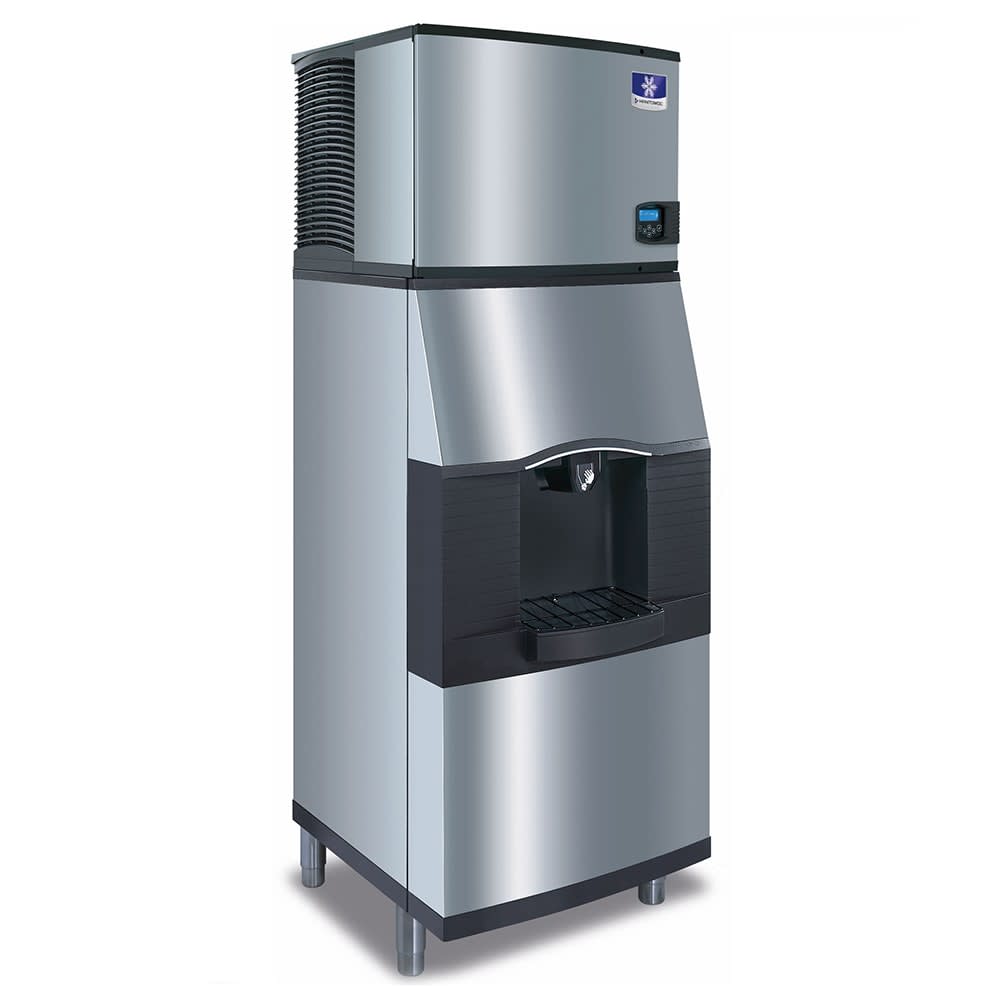

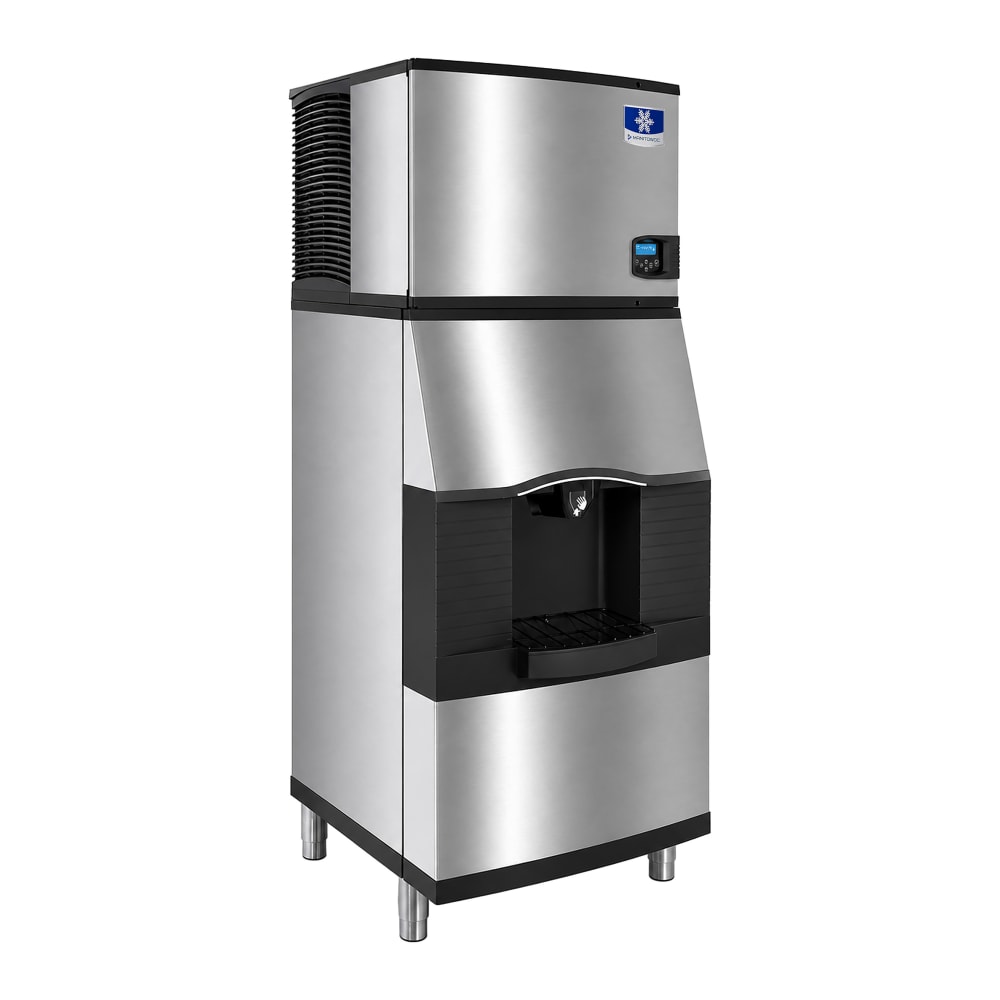

Manitowoc Ice IYT1200A/SPA312 1213 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208/230v/1ph

The Manitowoc Ice IYT1200A-261/SPA312 ice maker with dispenser is made for hotel, motel, and resort dispensing since it accommodates the large buckets that are typically found in guests' rooms. Its dispenser has a rocking chute mechanism that prevents spills, as well as an oversize drain pan that catches overflow. Storing 180 pounds, the ice machine can produce 1,213 pounds in 24 hours, an amount that can be programmed to suit a desired volume or operation time.

This Manitowoc Ice IYT1200A-261/SPA312 ice machine with dispenser makes half-cube ice that is perfect for drinks since it quickly cools beverages. Although it brings temperatures down quickly, half-cube ice melts quicker than full cubes. Each cube measures 0.875 inch by 1.125 inches by 0.375 inch and is checked by an acoustical probe for consistent thickness. A touchscreen display shows operators the machine’s status and communicates alerts.

Ice Maker Details

• 1,213-lb. daily ice production capacity
• 950-lb. AHRI-certified daily ice production capacity
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Ice production time and volume can be set by the operator
• Acoustical sensing probe uses sound waves to check for uniformity through multiple cycles
• Air-cooled condenser chills the refrigerant so it can remove heat from the evaporator plate and freeze water
• easyTouch® touchscreen display provides operating status and alerts
• Hinged, swing-out door provides quick access to the internal components
• Removable water pump, curtain, water probe, distribution tube, and water trough
• Select parts have AlphaSan® antimicrobial that prevents bacteria and fungus from growing
• DuraTech™ clear finish over the stainless steel exterior is durable and corrosion resistant
• Uses R410A refrigerant
• Part of the Indigo NXT series
• 16,200 average BTU; 19,100 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Dispenser Details

• 180-lb. capacity
• Fills large containers and hotel buckets
• Rocking chute dispenser mechanism prevents ice from spilling to the floor
• Drain pan is oversized, catching overflowing ice
• Prevents ice bridging with an agitator
• Reduces the appearance of fingerprints with a DuraTech clear coat

Product Features

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 14.2 A, 4.75 kW
  • 208-230 V/60 Hz/1 ph
• Ice Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT1200A/SPA312 within the 48 contiguous states.

From The Manufacturer

IYT-1200A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1213 lb/24 hours at 70°/50° (950 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, CE

SPA-312: Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
