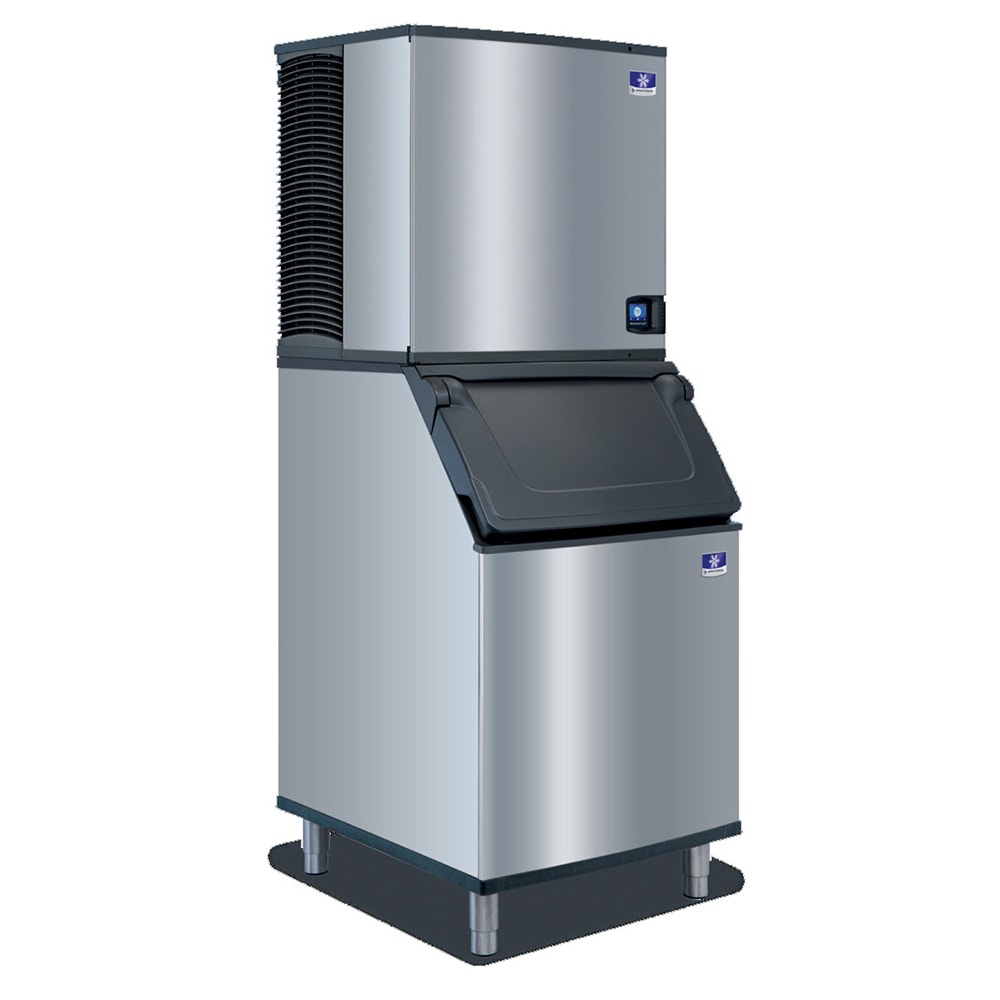

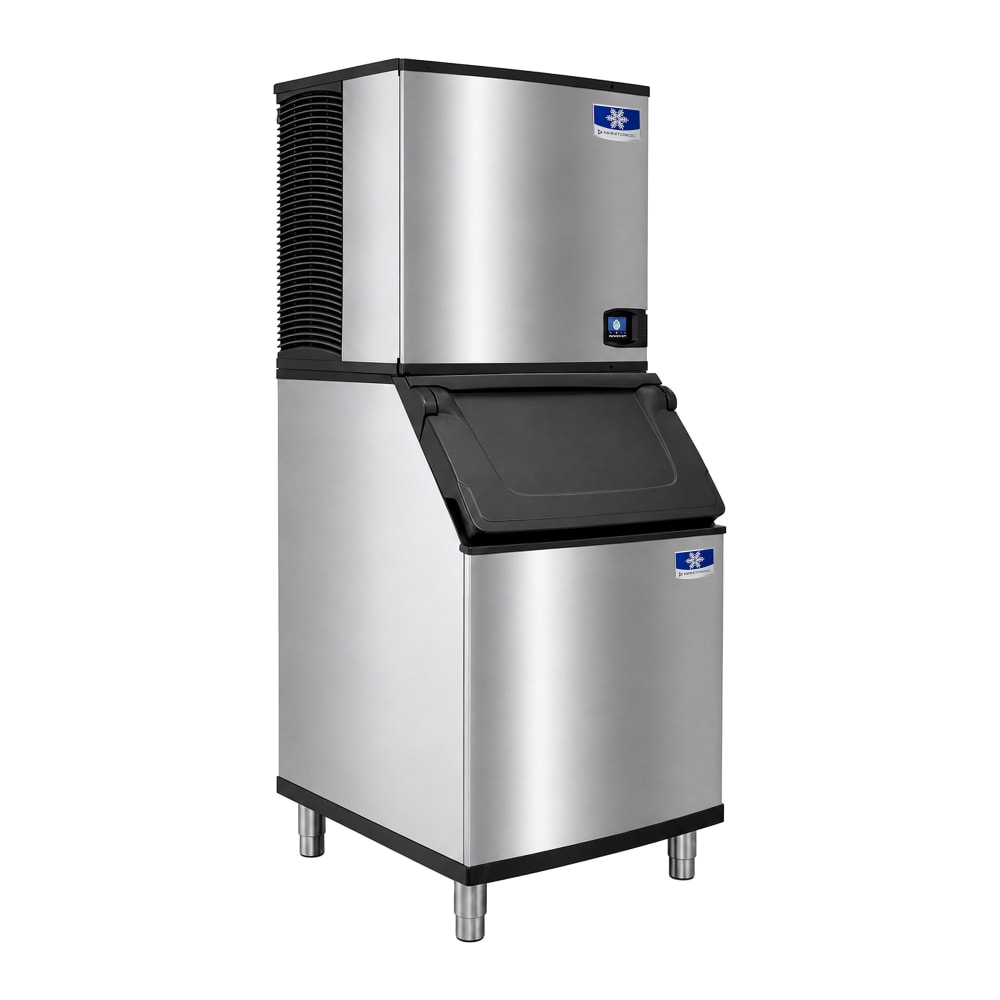

Manitowoc Ice IYT1200A/D570 1213 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 208-230v

The Manitowoc Ice IYT-1200A/D-570 Indigo NXT™ ice maker with bin can produce 1,213 pounds of half-cube ice each day. This amount can be changed to best suit a specific operation according to volume or time of day. Half-cube ice measures 0.375 inch by 1.125 inches by 0.875 inch, so it is perfect for drinks and bagged operations. While half-cube ice is excellent for most applications, it should not be used in drinks that need to stay chilled for a long time since it melts more quickly than larger ice types. Since this unit is air cooled, its fan blows air over the coils as refrigerant moves away from the evaporator to ensure that ice freezes on the evaporator plate. An acoustical sensing probe measures ice thickness to ensure each cycle is uniform.

The ice machine has a touchscreen display that tracks the operating status and alerts. Components for the unit are accessible behind a swing-out door. Some parts are removable for cleaning, and some have antimicrobial technology that protects against bacterial growth. This Manitowoc Ice IYT-1200A/D-570 ice machine with bin has a 532-pound storage capacity. It is foam insulated to prevent quick melting, and its side grips facilitate opening the bin from different angles.

Ice Maker Details

• Air-cooled condenser
• 1,213-lb. daily ice production capacity
• 950-lb. AHRI-certified daily ice production capacity
• Ice production can be programmed based on time of operation and volume
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Acoustical ice sensing probe uses sound waves to measure the ice’s thickness
• easyTouch® display shows alerts, operating status, and messages with touchscreen operation
• Hinged door swings open for component access
• Removable curtain, water pump, water trough, water probe, and distribution tube
• AlphaSan® antimicrobial technology keeps select components protected from bacteria
• Stainless steel exterior has a corrosion-resistant, clear DuraTech™ coating that resists corrosion and smudges
• Uses R410A refrigerant
• Part of the Indigo NXT series
• 16,200 average BTU; 19,100 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified capacity
• 5.3-lb. ice scoop capacity
• Scoop guard keeps the user's hands out of the ice
• Foam-insulated door prevents cold-air leaks
• Grips in each side of the door facilitate opening
• Door has a self-latch that keeps it open
• DuraTech finish hides fingerprints and stains

Product Features

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 14.2 A, 4.75 kW
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • 30 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice IYT1200A/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1213 lb/24 hours at 70°/50° (950 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT1200A/D570 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
