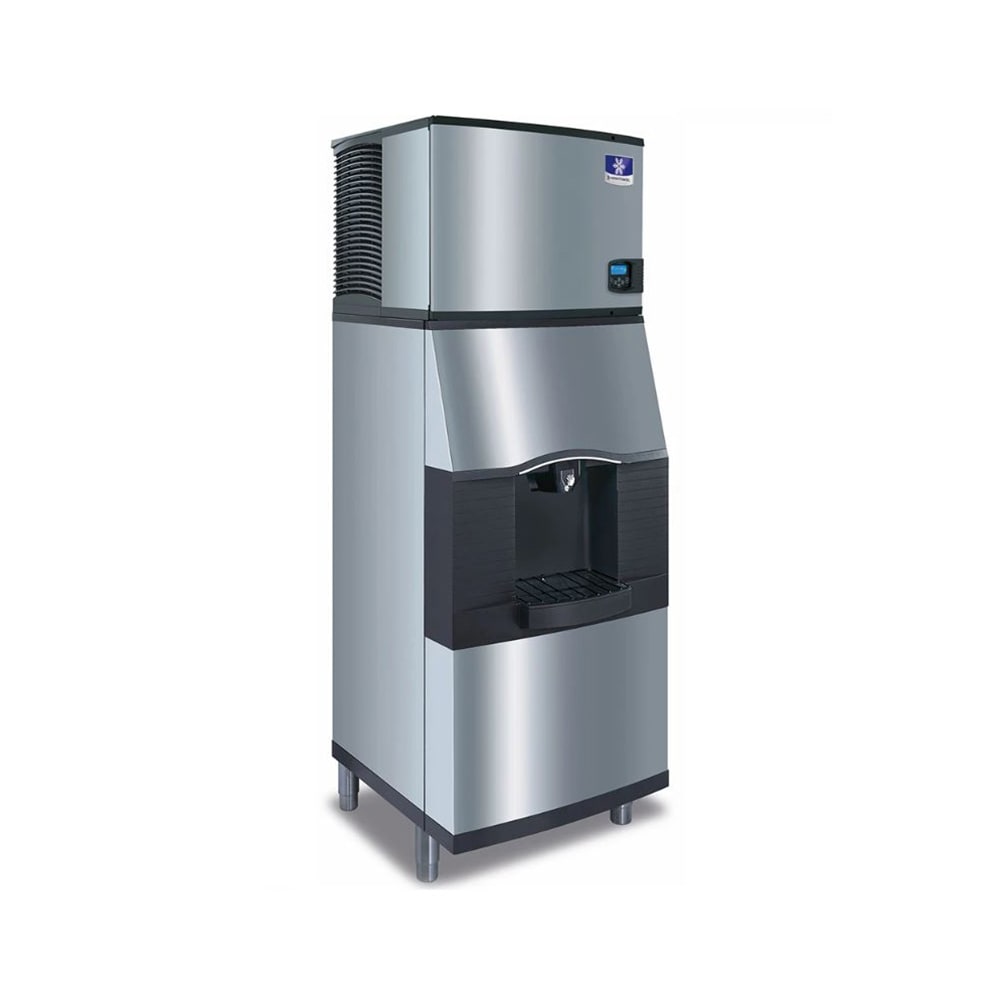

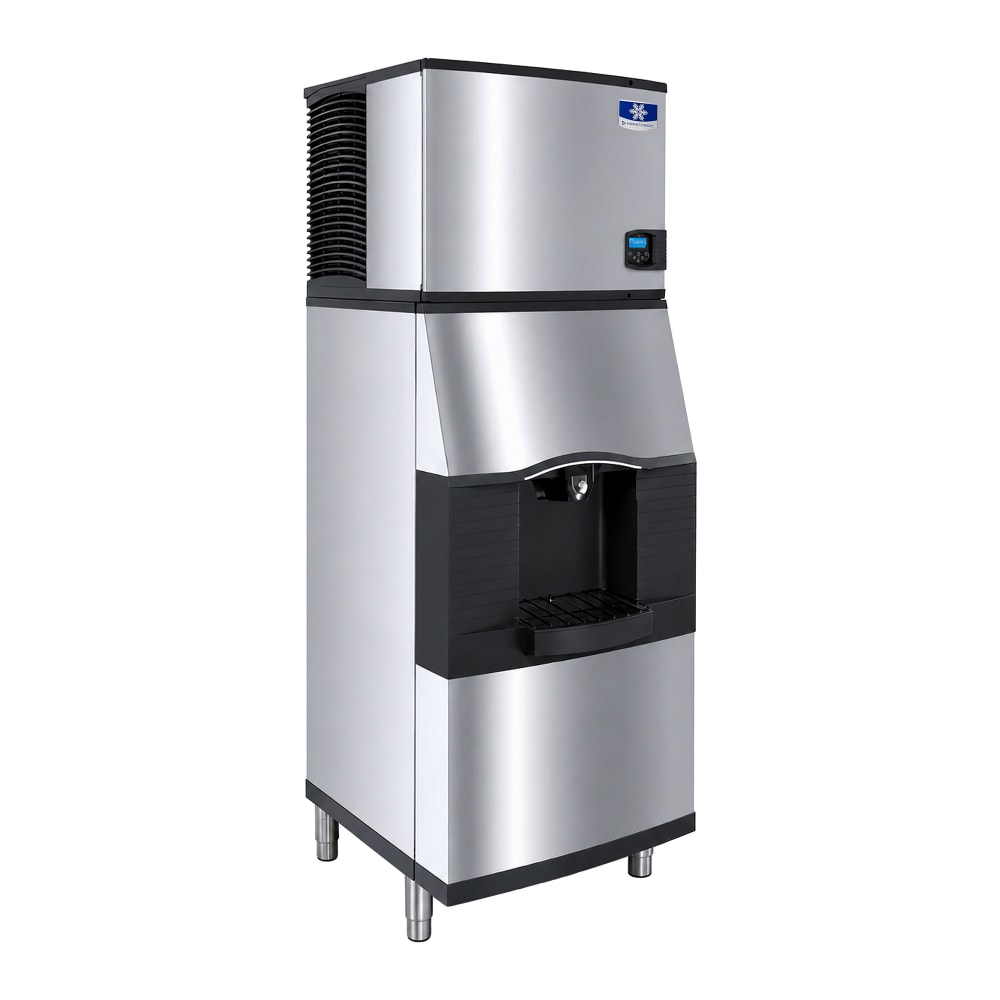

Manitowoc Ice IYP0800A/SPA312 745 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208-230v/1ph
QUICK SHIP: Ships in 1 Business Day
$11,403.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Air Cooled
Manitowoc Ice IYP0800A/SPA312 Description
In ideal conditions, the Manitowoc Ice IYP0800A-261/SPA312 Indigo® NXT™ ice maker with dispenser can make 745 pounds of half-cube ice in 24 hours. This type of ice measures 3⁄8 of an inch by 1 1⁄8 inches by 7⁄8 of an inch and is ideal for bagging or cooling drinks. Operators can program this machine to produce a set amount of ice daily or to generate ice at certain times to conserve energy. For enhanced reliability in challenging water conditions and environments, it features an acoustical ice-sensing probe and active-sense technology. While the easyTouch® display streamlines operation with its simple-to-use, icon-based medium, its 24-hour diagnostic feedback can provide maintenance alerts.
Operators can thoroughly clean the foodzone by opening this unit's front hinged door and removing the sensing probes, distribution tube, curtain, and water trough. Because some of these components are primed with AlphaSan® antimicrobial, they slow the spread of bacteria between regular cleanings. Designed to sit on a base, this ice maker measures 30 inches wide by 24 1⁄2 inches deep by 26 1⁄2 inches tall. Its DuraTech™ exterior resists dirt, corrosion, and fingerprints to ease cleaning and retain a crisp appearance in high-traffic settings.
This Manitowoc Ice IYP0800A-261/SPA312 ice machine with dispenser can hold 180 pounds of ice in storage, and features a broad dispensing area to accommodate ice buckets and glasses. The touchless, lever-activated ice chute requires users to press the bucket or glass against the lever to dispense ice. For safety, stray ice can fall into the oversized drain pan, and to ease cleanup, the ice maker's foodzone is accessible via the removable dispenser door. Similarly to the ice maker head, the dispenser boasts a DuraTech finish. Together, the base and ice maker head measure 30 inches wide by 32 inches deep by 82 inches tall.
- Part of the Indigo NXT series
- 745-lb. maximum daily ice production
- Produces half-cube ice
- Half-cube ice size: 1 1⁄8 in. x 3⁄8 in. x 7⁄8 in.
- Ice production can be programmed for desired volume or operation time
- Icon-based easyTouch display
- 24-hour preventive maintenance and diagnostic feedback
- Acoustic ice sensing probe and active-sense technology ensure reliability with challenging production conditions
- Swing-out, hinged foodzone door provides component access
- Removable sensing probes, water trough, distribution tube, and curtain
- AlphaSan antimicrobial is integrated into foodzone parts to minimize bacteria growth
- DuraTech clear-coated exterior resists dirt, smudges, and corrosion
- Uses R290 refrigerant
- Required ambient air temperature range: 40-100 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required incoming water pressure range: 20-80 PSI
- 180-lb. storage capacity
- For filling ice buckets in motels, hotels, and resorts
- ADA-compliant configuration
- Touchless, lever-activated ice chute
- Efficient built-in agitator
- Oversized drain pan
- Removable door enables convenient component access
- 9 1⁄2-in. clearance from grate to bottom of the chute
- Durable DuraTech exterior
- Ice Maker
- 30 in. W x 24 1⁄2 in. D x 26 1⁄2 in. H
- 9.5 A, 4.58 kW
- 208-230 V/60 Hz/1 ph
- Ice Dispenser
- 30 in. W x 32 in. D x 60 1⁄2 in. H
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0800A/SPA312 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24.5"D x 26.5"H, production capacity up to 745 lb./24 hours at 70°/50° (669 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, NSF, ADA compliant
Watch a video about this product
Manitowoc Ice IYP0800A/SPA312 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 745 |
| Also Known As | IYF0900A-261, IYT0900A/SPA312 |
| Amps | 9.5, 1.6 |
| Bin Capacity (lb) | 180 |
| Cold Water (in) | 3/8 |
| Compressor Type | Air Cooled |
| Depth (in) | 32 |
| Dispenser Type | Lever |
| Dispenses | Ice Only |
| Height (in) | 87 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Indirect Waste Size (in) | 1/2 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 427.00 |
