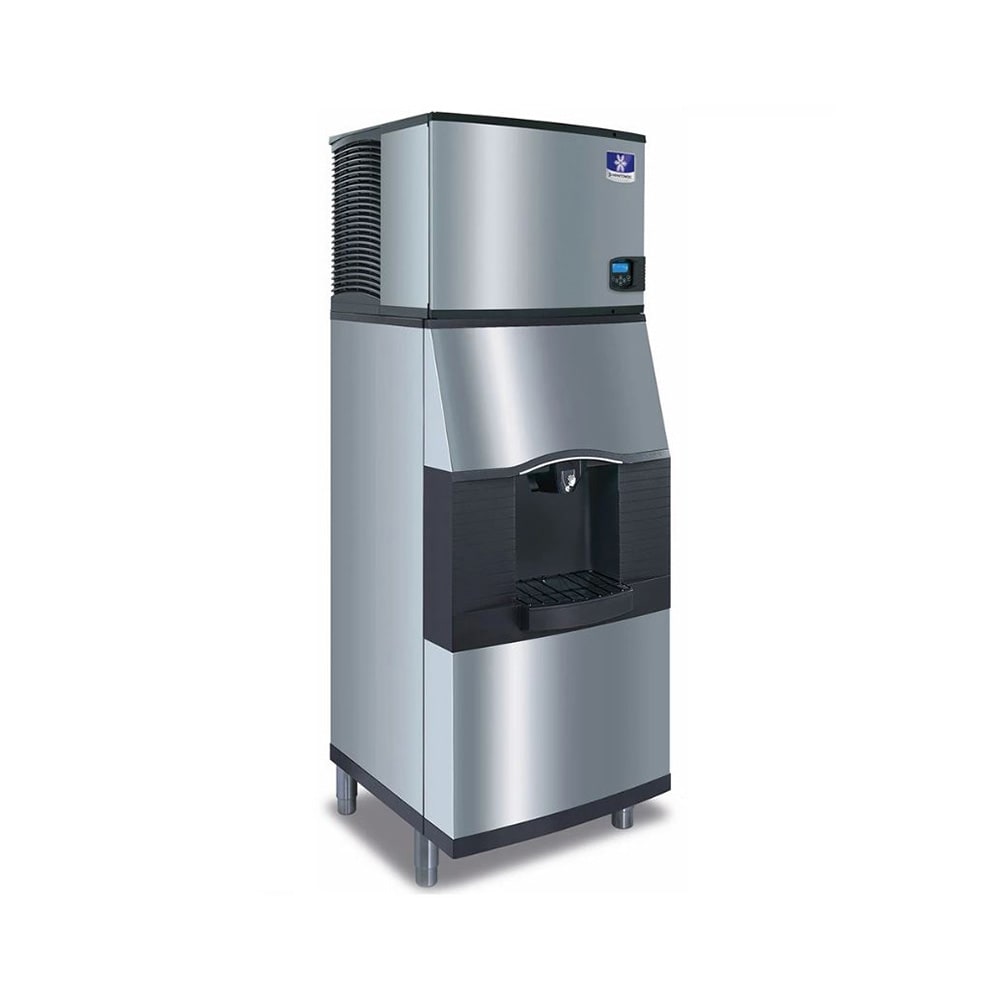

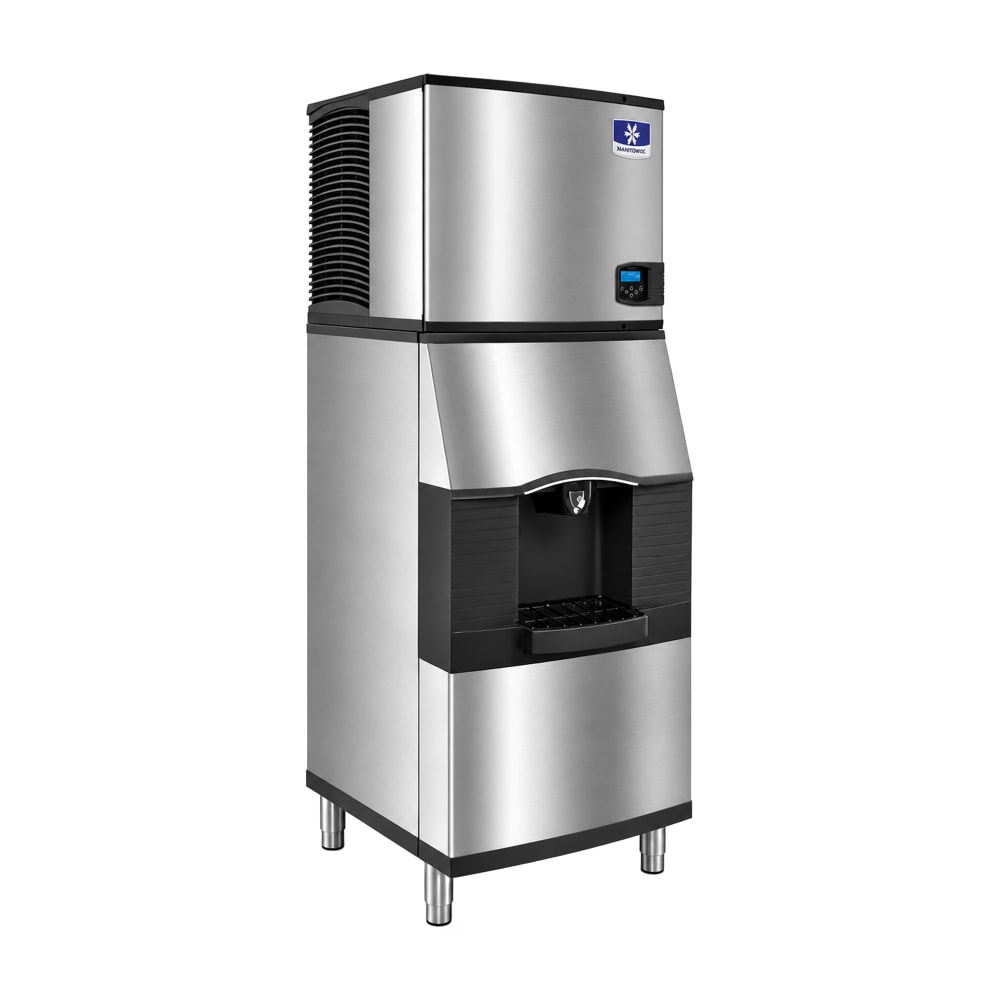

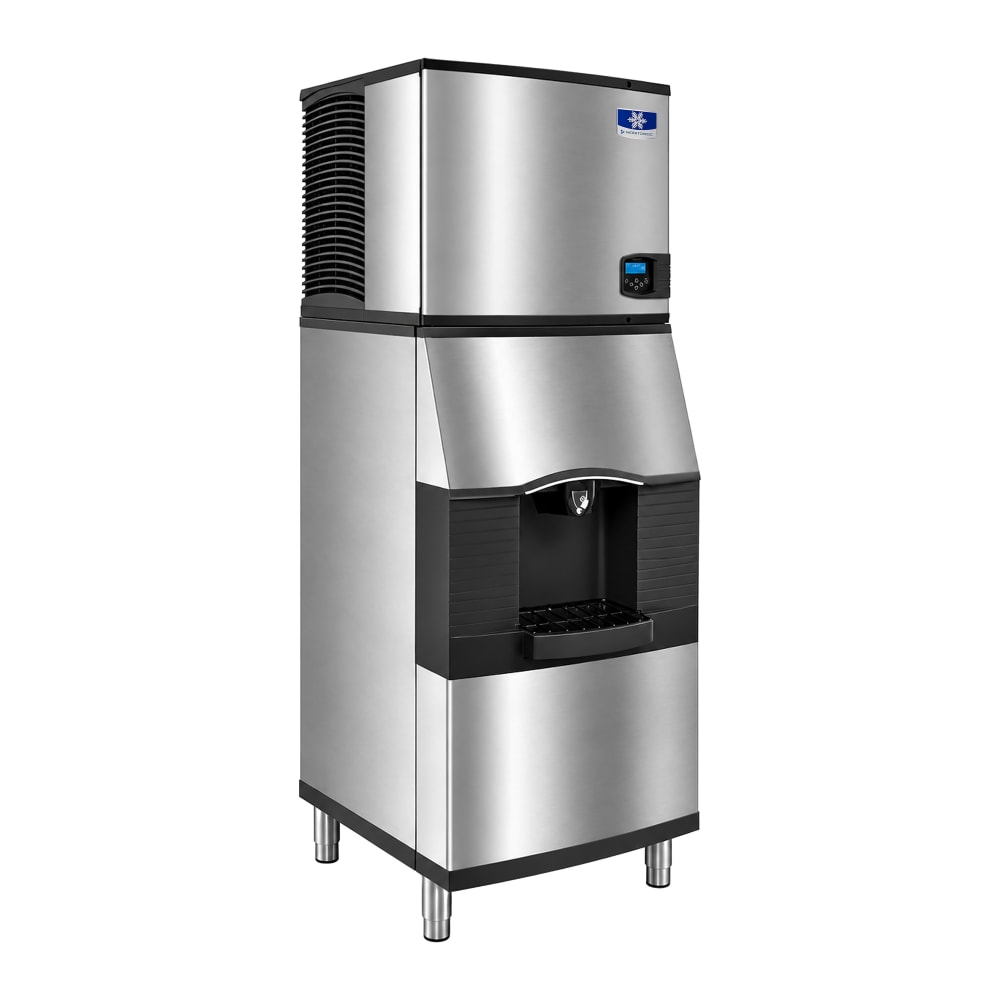

Manitowoc Ice IDT0900A/SPA312 851 lb Indigo NXT™ Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208-230v/1p

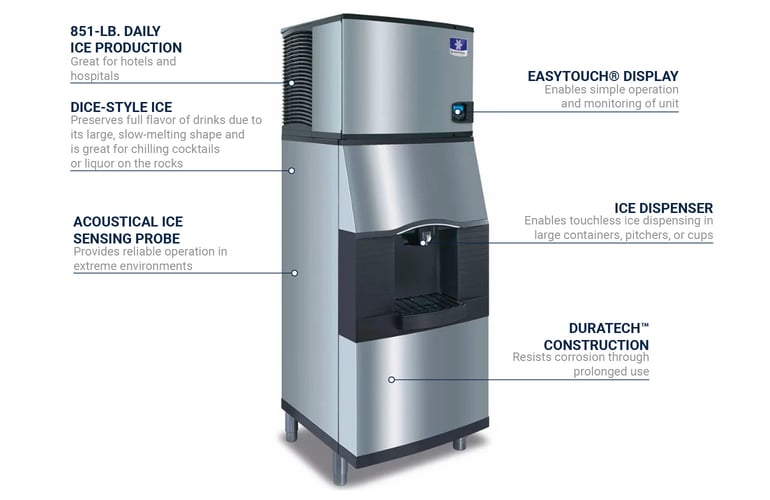

For optimal use, the Manitowoc Ice IDT0900A-261/SPA312-161 Indigo NXT™ full-cube ice maker with dispenser offers intelligent diagnostics and preventive maintenance 24 hours per day. Equipped with Active Sense technology and an acoustical ice sensing probe, this unit operates in all environmental conditions. Production for this ice maker is programmable by time and volume, which can be adjusted using its icon-based exterior touchscreen. Over the course of 24 hours, this machine can produce 851 pounds of ice.

The rocking chute dispensing mechanism on the Manitowoc Ice IDT0900A-261/SPA312-161 commercial ice machine reduces spilled ice. Both the ice maker and dispenser feature a DuraTech™ exterior that resists smudges and keeps the unit looking clean. If ice overflows, it is caught using an oversized drain pan, and this dispenser can be used to fill ice buckets and glasses alike.

Ice Maker Details

• Part of the Indigo NXT series
• 851-lb. maximum daily ice production
• 695-lb. AHRI-certified daily ice production
• Acoustical ice sensing probe monitors cube thickness for consistency
• R410A refrigerant
• easyTouch® icon-based touchscreen controls
• Dice ice cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Programmable time and volume production
• Air-cooled compressor
• Self-contained condenser
• Hinged, swinging front door
• 24-hr. diagnostics and maintenance
• Removable water trough, distribution tube, sensing probes, and curtain
• 12,700 BTU average; 14,800 peak
• Smudge-resistant exterior

Ice Dispenser Details

• 180-lb. storage capacity
• Exterior resists smudges and fingerprints
• Rocking chute dispenser minimizes ice spills
• Quick on/off powering
• Oversized drain pan catches overflow
• Built-in agitator

Ideal Operating Conditions

• Incoming water temperature: 40-90 degrees F
• Water pressure: 20-80 PSI
• Ambient air temperature: 40-100 degrees F
• Required clearances: 8 in. at top and sides, 5 in. at back

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24¹/₂ in. D x 26¹/₂ in. H
• 9.5 A
• 208-230 V/60 Hz/1 ph
• Ice Dispenser
• 30 in. W x 32 in. D x 60¹/₂ in. H
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
• Overall: 30 in. W x 32 in. D x 87 in. H

Product Features

*Free shipping on Manitowoc Ice IDT0900A/SPA312 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker w/ Ice Dispenser, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 851 lb/24 hours at 70°/50° (695 lb AHRI certified at 90°/70°), DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®; Vending Ice Dispenser: touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0900A/SPA312 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
