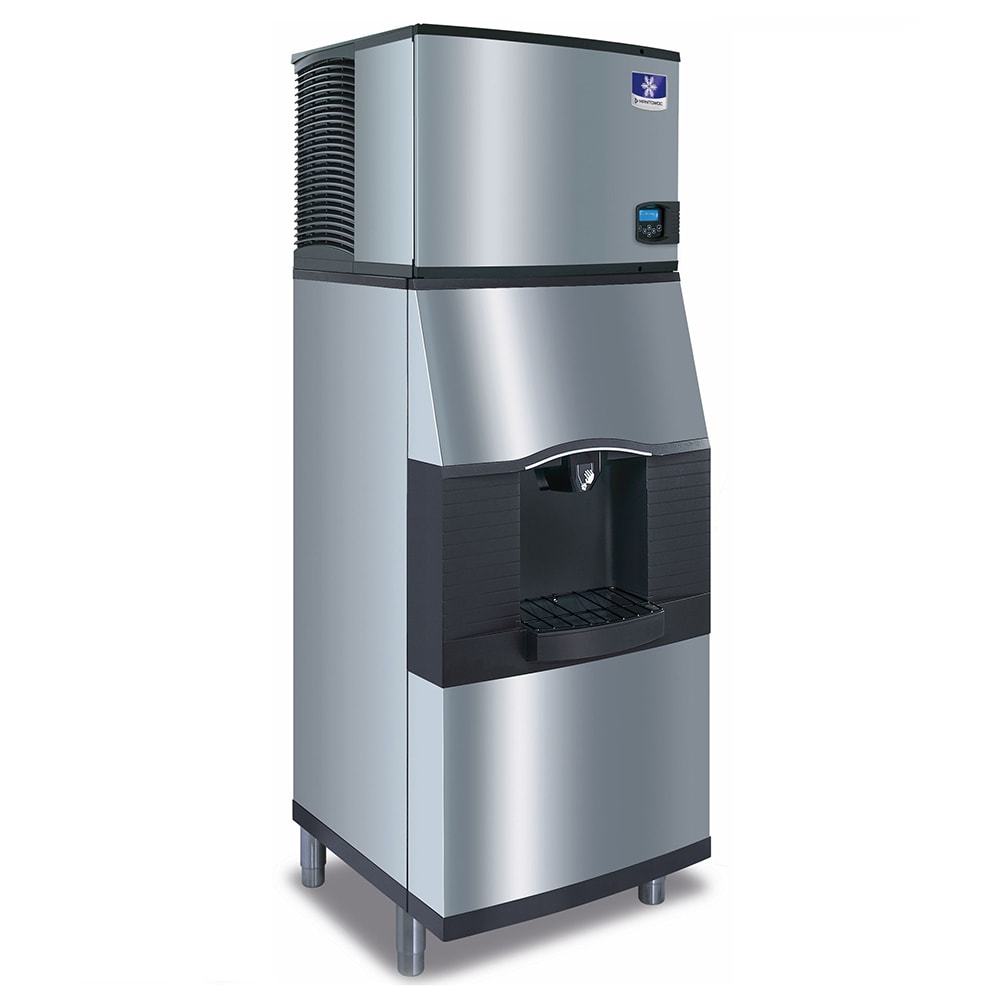

Manitowoc Ice IYT0420W/SPA160 490 lb Half Cube Ice Maker w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IYT0420W161SPA16 • MPN: IYT0420W-161/SPA-160
Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Price: $5,610.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IYT0420W/SPA160 Description

Manitowoc Ice

The Manitowoc Ice IYT-0420W-161/SPA-160 ice maker and dispenser has a 490-pound daily production capacity and 120-pound storage capacity. Based on volume or time, the amount of ice it makes each day can be programmed. It uses an acoustic probe to measure ice thickness and check consistency between cycles. A touchscreen simplifies operation, and the unit runs preventive maintenance and diagnostics every 24 hours. For hotels and resorts, the dispenser accommodates buckets.

Ice Maker Details

  • 490-lb. ice production capacity
  • 425-lb. AHRI-certified ice production capacity
  • Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
  • Production amount is programmable based on volume or time
  • Acoustical sensing probe ensures consistent ice thickness
  • easyTouch® touchscreen display
  • 24-hr. preventive maintenance and diagnostic feedback
  • Hinged, swing-out front food zone door
  • Some parts are removable to facilitate cleaning
  • AlphaSan® antimicrobial technology on select components resists bacteria
  • Corrosion-resistant DuraTech exterior avoids fingerprints
  • CE approved; cULus listed; California Low Lead qualified; AHRI, and NSF certified

Product Features

Turbo Air IYT0420W161SPA16 Features

Ice Dispenser Details

  • 120-lb. storage capacity
  • Made to be used with buckets in hotels
  • Rocking chute dispense mechanism prevents ice from spilling
  • Oversized drain pan collects overflow ice
  • Built-in agitator
  • DuraTech exterior
  • CE approved; cULus listed; ISO 9001:2008 and NSF certified

Dimensions & Utilities

  • Ice Maker
    • 22 in. W x 24.5 in. D x 21.5 in. H
    • 10.6 A, 4.24 kW
    • 208-230 V/60 Hz/1 ph
  • Dispenser
    • 22 in. W x 31 in. D x 54 in. H
    • 1.6 A
    • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

Not sure what kind of unit you need? We have in-depth information in the article on ice makers.

IYT-0420W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, R410A, NSF, cULus, CE

SPA-160: Vending Ice Dispenser, push button, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" dice or half dice machines, NSF, cULus, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Manitowoc Ice IYT0420W/SPA160 Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 490
Bin Capacity (lb) 120
Compressor Type Water Cooled
Depth (in) 31.19
Height (in) 75.5
Hertz 60
Ice Type Half Cube
Operation Self Contained
Phase 1
Product Ice Maker with Dispenser
Series Indigo NXT™
Serving Vessel Bucket
Voltage 115
Width (in) 22
Warranty 3-year Parts & Labor; 5-year Evaporator & Compressor
Product Type Ice Makers & Bins
NEMA 5-15P
Amps 10.6, 1.6
Dispenser Type Push Button
Special Features Duratech™
Installation Type Freestanding
Dispenses Ice Only
Bin Capacity Range (lbs) 100 - 199
Weight 300.00
Manitowoc Ice IYT0420W/SPA160 Certifications
  • UL
  • NSF
  • Energy Star
