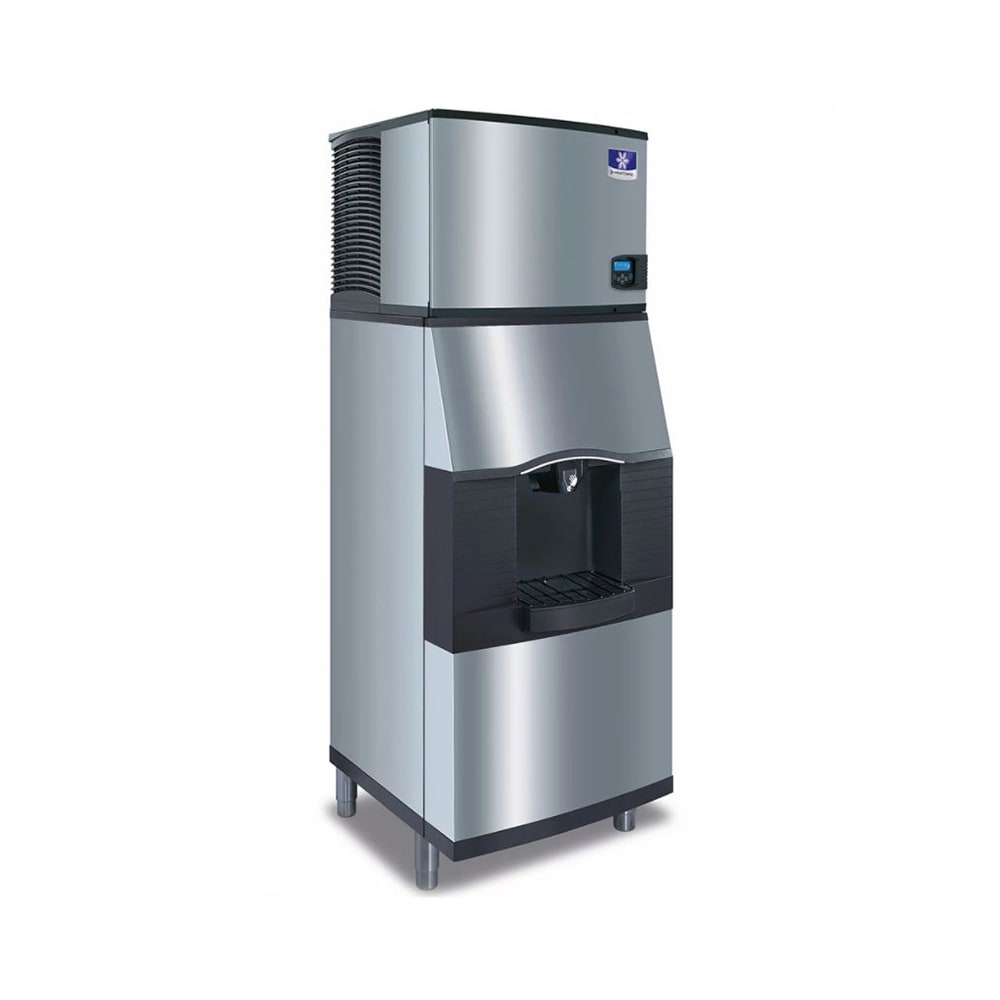

Manitowoc Ice IYT0300A/SPA312 310 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

For use with half-size and full-size cubes of ice, the Manitowoc Ice IYT0300A-161/SPA312-161 ice maker's dispenser holds 180 pounds of product. It dispenses at the push of a button and is tall enough to accommodate a bucket to fill it. The ice dispenser's exterior is made of durable stainless steel and the head's exterior is made of DuraTech™ to resist corrosion and smudges. Minimal product is wasted because the rocking chute prevents ice from spilling while being dispensed.

The Manitowoc Ice IYT0300A-161/SPA312-161 half-cube ice maker with dispenser cools with R404a refrigerant. To streamline installation, the air-cooled refrigeration system is self-contained, which also reduces cross contamination risks. Adjustments to the head can be made using the easyTouch® display, which is icon-based to facilitate use and eliminate guesswork. The amount of ice produced can be adjusted; in ideal conditions, this unit can make as much as 310 pounds of ice daily.

Ice Maker Details

• Part of the Indigo NXT™ series
• 310-lb. maximum daily ice production
• 230-lb. AHRI-certified daily ice production
• Produces half-dice ice cubes
• Ice dimensions: ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.
• Ice control is programmable to meet demand
• Acoustic ice probe
• Active sense harvesting
• 24-hour maintenance and diagnostics
• Foodzone has removable components and AlphaSan® antimicrobial
• DuraTech exterior resists smudges and corrosion
• easyTouch display with touch icon controls
• Self-contained, air-cooled refrigeration system
• Uses R404a refrigerant
• Ideal ambient temperature range: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 4,600-BTU heat transfer capacity

Ice Dispenser Details

• 180-lb. AHRI-certified application capacity
• Can be used with half- or full-sized ice cubes
• Floor model with push-button dispensing
• Rocking chute prevents ice from spilling
• Designed to fill buckets with ice
• Stainless steel exterior with a vinyl trim

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24.5 in. D x 16.5 in. H
• 8.8 A
• 115 V/60 Hz/1 ph
• Ice Dispenser
• 30 in. W x 32 in. D x 60.5 in. H
• 1.6 A
• 115 V/60 Hz/1 ph with a NEMA 5-15P plug

Product Features

*Free shipping on Manitowoc Ice IYT0300A/SPA312 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker w/ Vending Ice Dispenser, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 310 lb/24 hours at 70°/50° (230 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, R404a refrigerant, NSF, cULus, CE, ENERGY STAR®; Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0300A/SPA312 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
