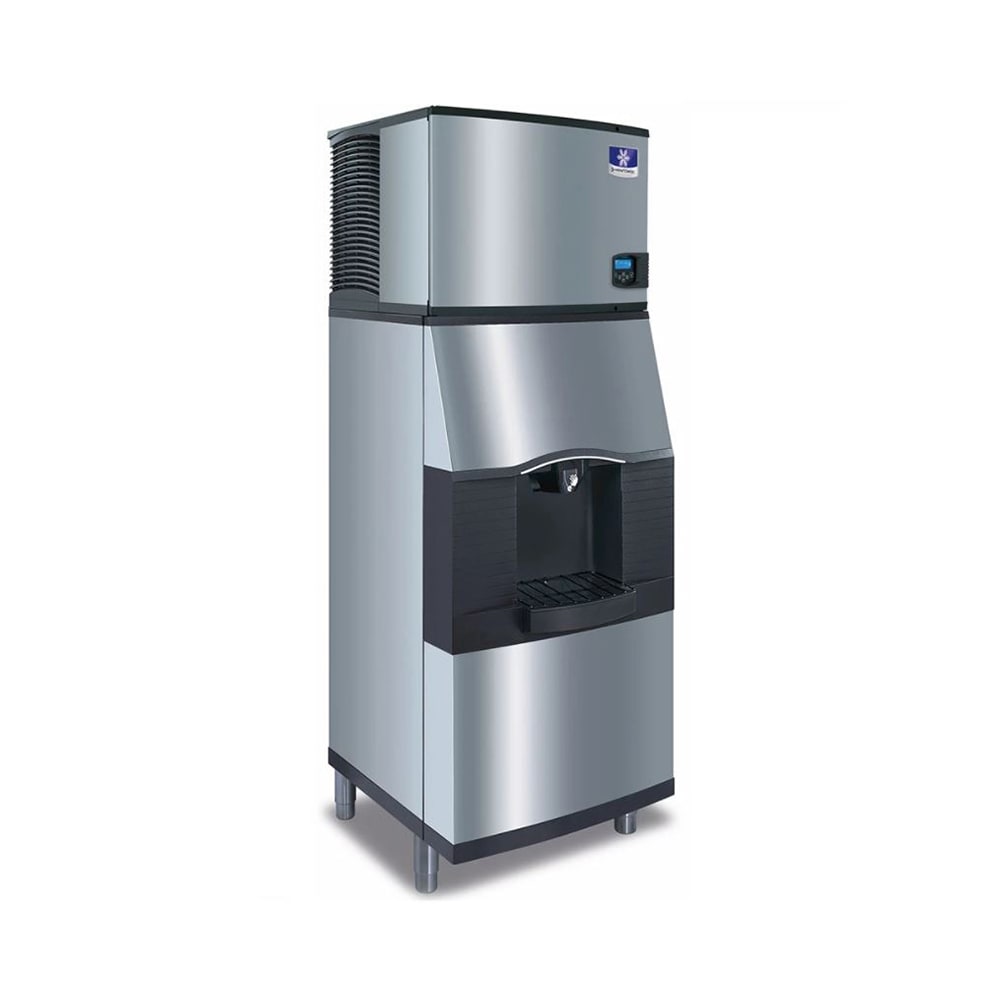

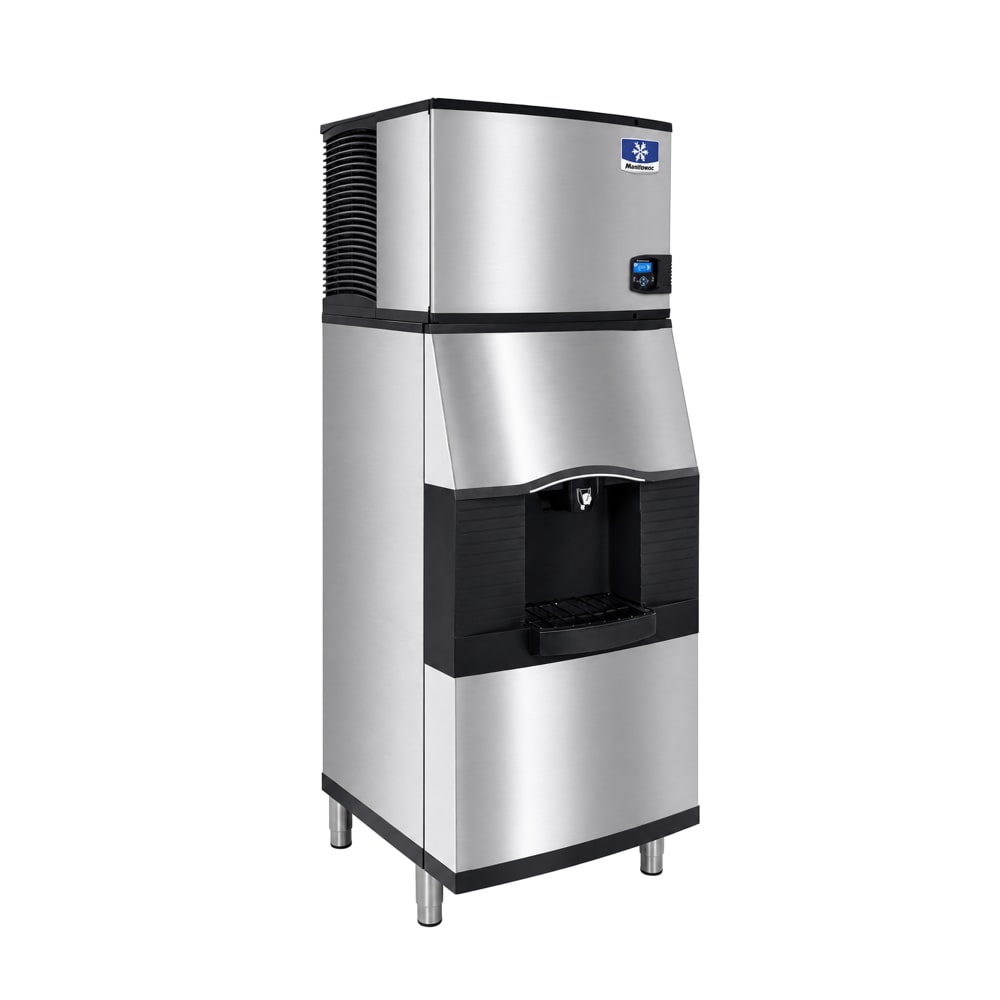

Manitowoc Ice IDT0300A/SPA312 305 lb Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

To streamline installation, the Manitowoc Ice IDT0300A-161/SPA312-161 ice maker with dispenser has a self-contained refrigeration system. It's air cooled and uses R410a refrigerant to create 230 to 305 pounds of ice per day depending on operating conditions. The unit's exterior is made of smudge- and corrosion-resistant DuraTech™ and the components in the foodzone are removable to facilitate cleaning. Because it's coated with AlphaSan® antimicrobial, it inhibits the growth of unsanitary bacteria, mold, or mildew.

The Manitowoc Ice IDT0300A-161/SPA312-161 full-cube ice maker with dispenser operates with a push button to fill a bucket. Its dispenser accommodates 180 pounds of ice and can be used to hold half-size or full-size cubes. To prevent ice from spilling and creating waste, the dispenser has a rocking chute, and the exterior is made of durable, corrosion-resistant stainless steel with vinyl trim. During slow and busy time periods, the ice production can be programmed, and it harvests with an acoustic probe.

Ice Maker Details

• Part of the Indigo NXT™ series
• 305-lb. maximum daily ice production
• 230-lb. AHRI-certified daily ice production
• Produces dice-size cubes
• Ice dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• AlphaSan antimicrobial ensures germ growth is slowed
• Foodzone has removable components to facilitate cleaning
• DuraTech exterior protects against corrosion
• easyTouch® icon-based display
• Air-cooled, self-contained condenser
• Cools with R401a refrigerant
• Acoustic probe and active sense harvest ice
• Ice control is programmable to accommodate for busy times
• Performs maintenance and diagnostics 24 hours per day
• Ideal ambient temperature range: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 4,600-BTU heat transfer capacity

Ice Dispenser Details

• 180-lb. AHRI-certified application capacity
• Accommodates half-size or full-size ice cubes
• Dispenses with a push button
• Can be used to fill a bucket
• Floor model
• Rust-resistant stainless steel exterior with a vinyl trim
• Spillage prevented by the rocking chute

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24.5 in. D x 16.5 in. H
• 8.8 A
• 115 V/60 Hz/1 ph
• Ice Dispenser
• 30 in. W x 32 in. D x 60.5 in. H
• 1.6 A
• 115 V/60 Hz/1 ph with a NEMA 5-15P plug

Product Features

*Free shipping on Manitowoc Ice IDT0300A/SPA312 within the 48 contiguous states.

From The Manufacturer

Ice Maker IDT0300A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 305 lb./24 hours at 70°/50° (230 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410a refrigerant, NSF, cULus, CE, ENERGY STAR®; Ice Dispenser SPA312: Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines,

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0300A/SPA312 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
