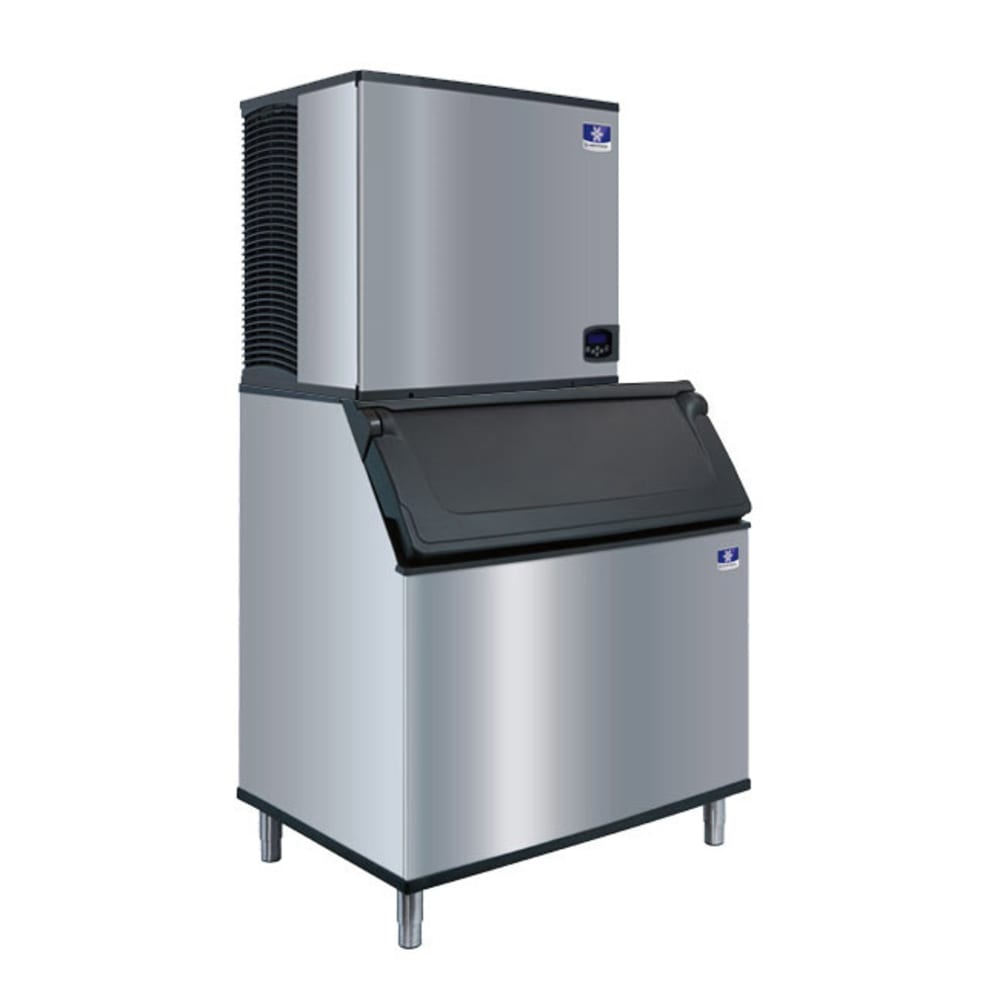

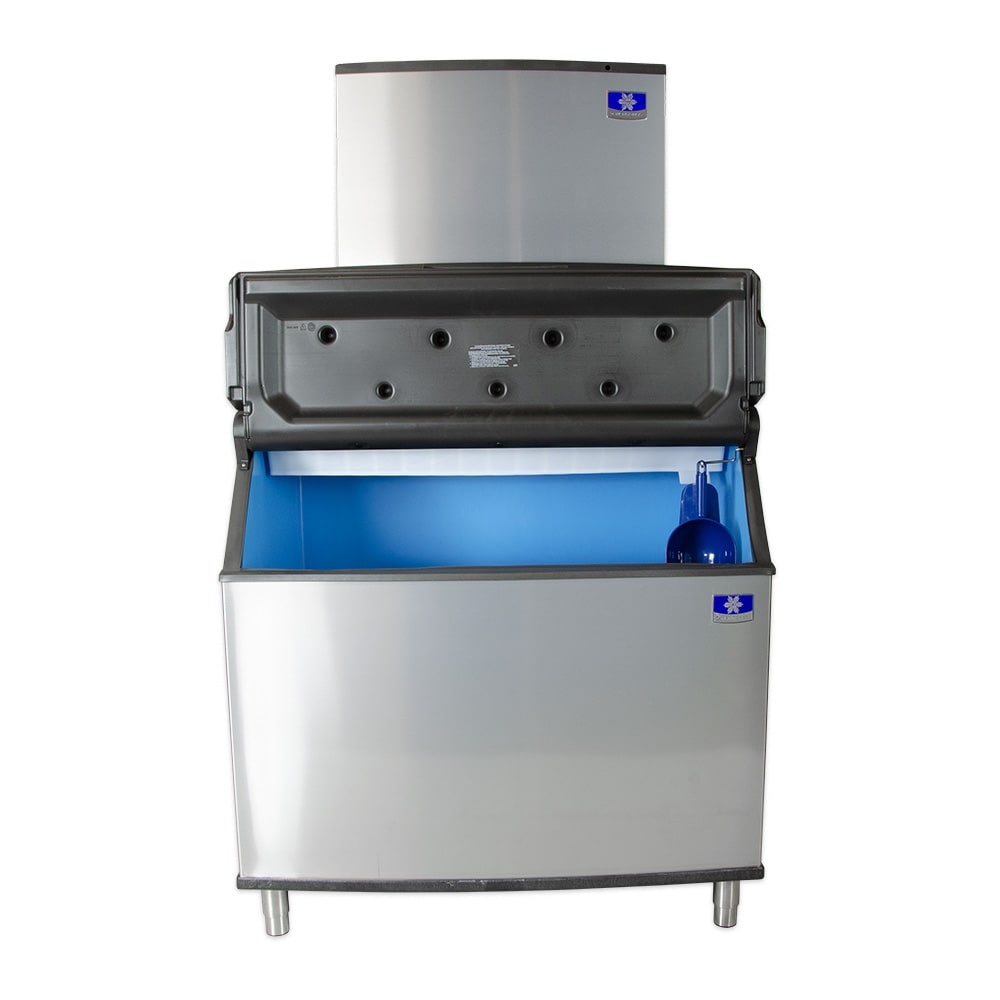

Manitowoc Ice IY-0906A/D-970/K-00470 901 lb Half Cube Ice Maker w/ Bin - 882 lb Storage, Air Cooled, 208-230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IY0906AD970 • MPN: IY-0906A-261/D-970/K-00470
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Price: $5,666.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IY-0906A/D-970/K-00470 Description

Manitowoc Ice

The Manitowoc IY-0906A-261/D-970/K-00470 Indigo ice machine with bin and adapter can produce 710 to 901 pounds of ice in a 24-hour period. The bin can hold 882 pounds of ice, and the insulated door prevents it from melting quickly. An acoustical ice probe ensures ice is thick enough before it falls into the bin. The production cycle can be adjusted by time or volume through the EasyRead control panel. This system provides the operator with system information and reminders for cleaning. Diagnostics run every 24 hours to ensure the unit is working properly. To secure the head to the bin, an adaptor unit is included. The Manitowoc IY-0906A-261/D-970/K-00470 ice machine has a DuraTech™ coating on the steel exterior.

Product Details

  • 901-lb. ice production capacity
  • 710-lb. AHRI-certified production capacity
  • EasyRead control panel
  • Timer or volume can control amount of ice produced
  • Foodzone has removable parts to facilitate cleanup
  • AlphaSan antimicrobial agent is built into various components
  • Ice thickness is monitored by a probe
  • 24-hr. preventive maintenance diagnostics
  • Corrosion-resistant DuraTech exterior coating
  • Bin adaptor secures the head to the bin
  • Air-cooled motor
  • Uses R404A refrigerant
  • Ambient air temperature range for operation: 35-110 degrees F
  • Incoming water temperature range for operation: 35-90 degrees F
  • 12,700-14,800 BTU
  • 12.2 A, 5.02 kW
  • 115 V/60 Hz/1 ph
  • Ice cube dimensions: 0.875 in. x 0.875 in. x 0.875 in.
  • Overall dimensions: 48 in. W x 34 in. D x 76.5 in. H
  • CE approved; California Low Lead qualified; cULus listed; AHRI, ISO 9001:2008, NSF, and ENERGY STAR certified

Product Features

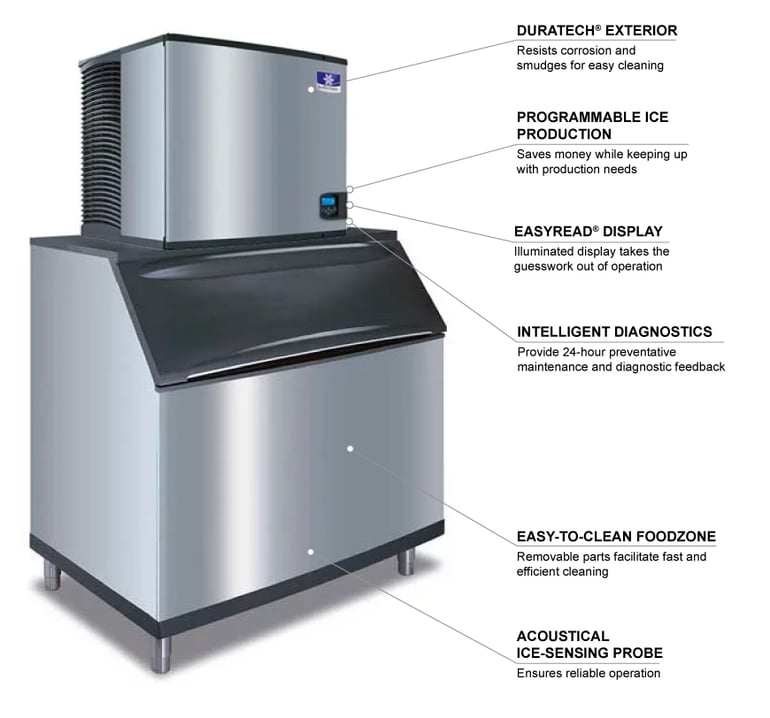

Manitowoc iy0906ad970 Features

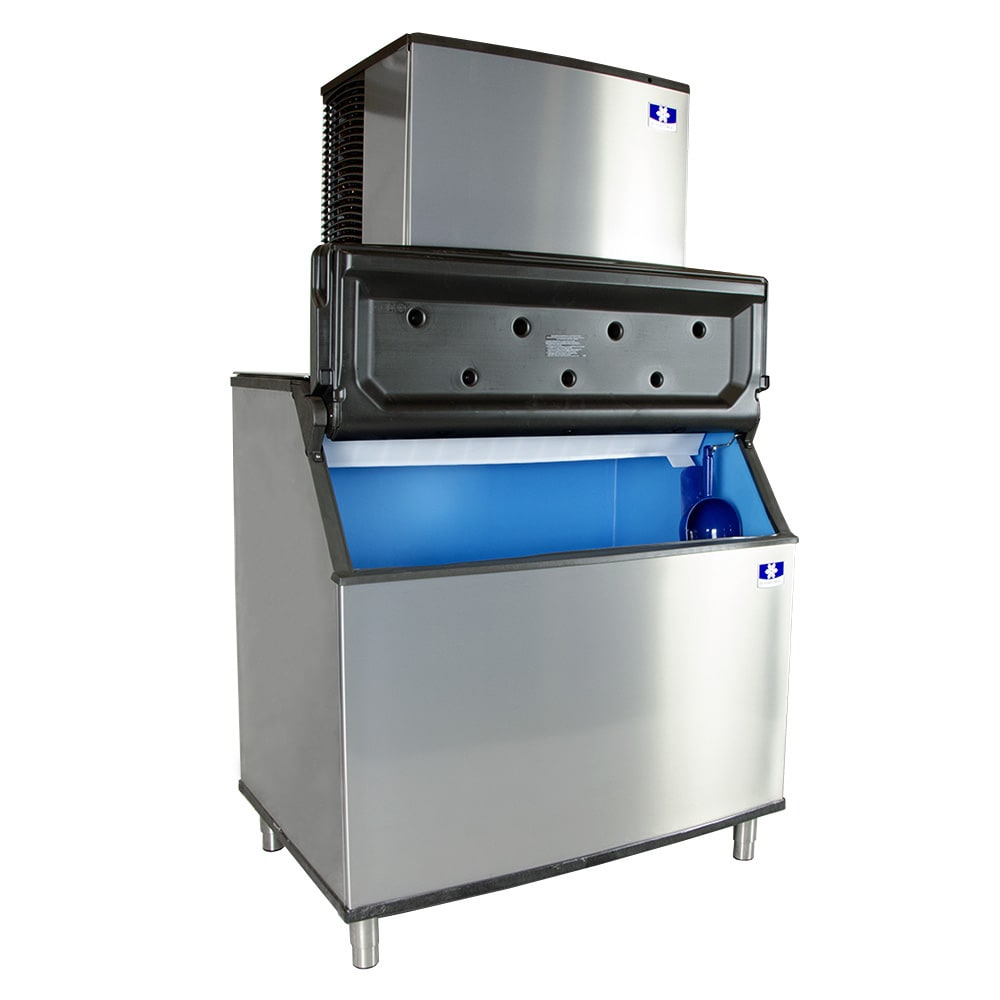

Ice Bin Details

  • 882-lb. application ice storage capacity
  • 710-lb. AHRI-certified ice storage capacity
  • Side grips aid the user in opening the door
  • Insulated door slows melting ice
  • Latches keep the door open
  • DuraTech exterior coating hides fingerprints and stains
  • Polyurethane bin liner
  • 5.3-lb. scoop capacity
  • Scoop has a thumb and knuckle guard to protect ice from contact with hands
  • AHRI and NSF certified

IY-0906A Ice Maker: Indigo™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 901 lb.24 hours at 70°/50° (710 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, ENERGY STAR®, 208-230v/60/1ph; D-970 Ice Bin: Ice Bin, 48"W x 34"D, 50"H, with side-hinged front-opening door, side grips, AHRI certified 882 lb ice storage capacity (29.7 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF; K-00470 Ice Bin Top: Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice machine on a 48" B or D-970 bin

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Manitowoc Ice IY-0906A/D-970/K-00470 Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
Access Type Lift Up Door
Bin Capacity (lb) 882
Compressor Type Air Cooled
Depth (in) 34
Height (in) 71.5
Ice Type Half Cube
Production 901
Specialty Options Antimicrobial System
Width (in) 30
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Capacity Range 880-1000 lb
Production Range (per day) 900-1149 lb
Width (in) Range 30 - 39 in
Hertz 60
Voltage 208/230
Phase 1
Product Type Ice Machines
Product Ice Maker with Bin
Weight 368.00
Manitowoc Ice IY-0906A/D-970/K-00470 Certifications
  • UL
  • NSF
  • Energy Star
