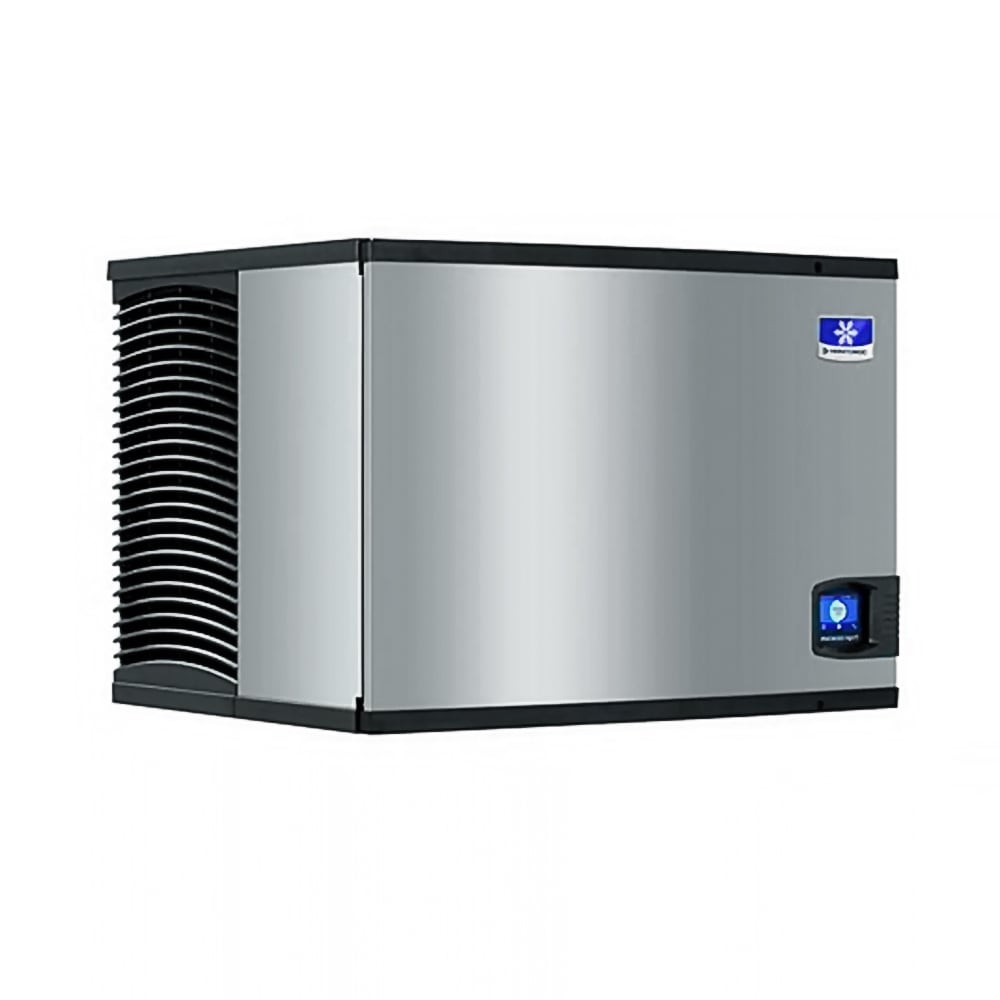

Manitowoc Ice IY-0686C 30" Indigo™ QuietQube Half Cube Ice Machine Head - 634-lb/24-hr, Remote Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IY0686C161 • MPN: IY-0686C 161

Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IY-0686C Description

Manitowoc Ice

CVD® Remote Condensing

  • This ice maker uses a cool vapor defrost (CVD®) condensing unit, which uses refrigerant rather than hot gas. This allow the condenser to placed further away and creates less noise than typical ice makers, giving it the QuietQube® designation.

Product Details

  • Replaces IY-0684C
  • Indigo™ QuietQube® Series
  • CVD® Remote-cooled

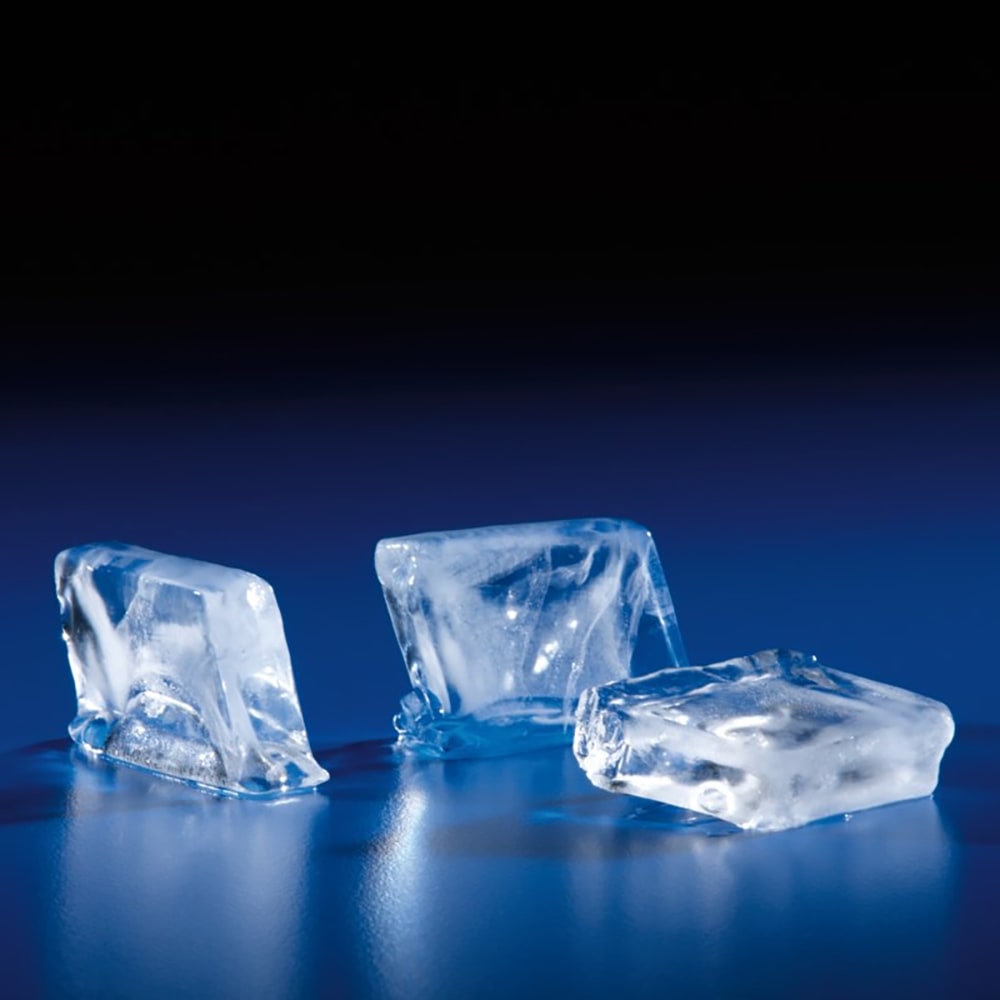

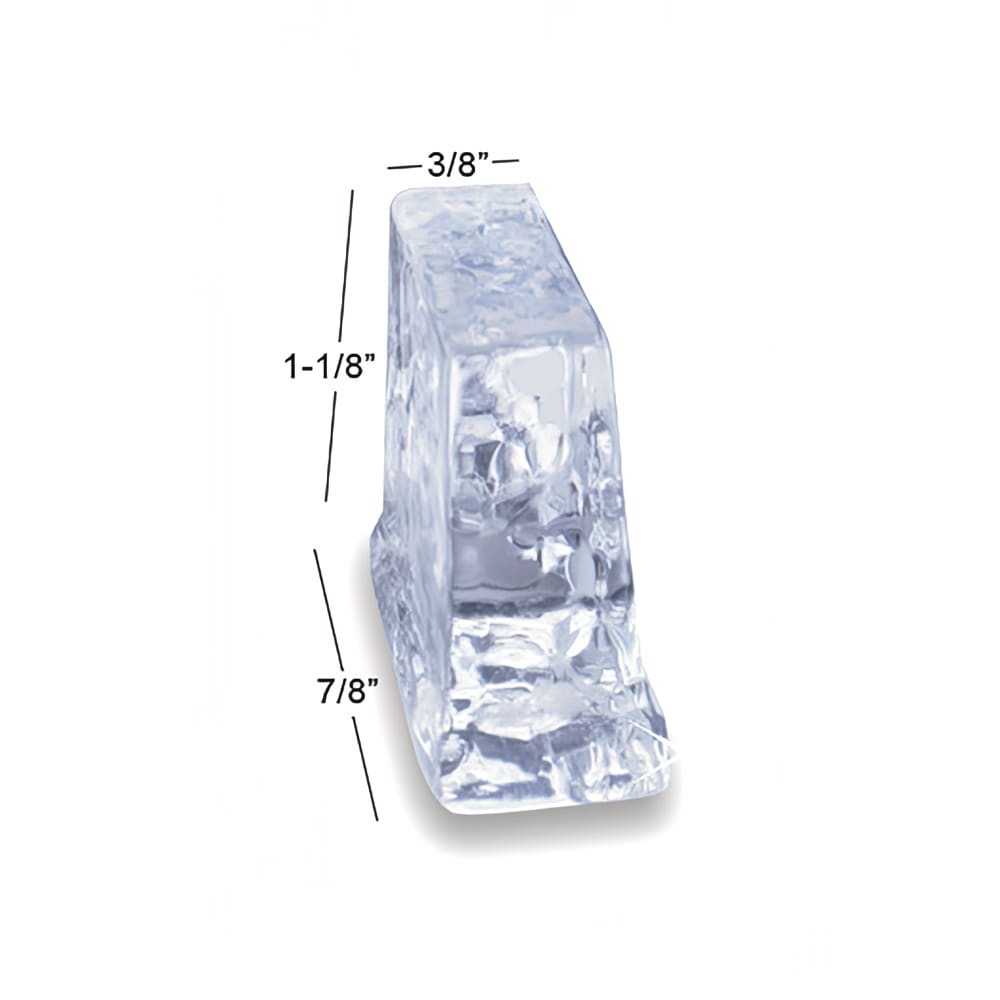

  • Half-dice style ice - 3/8-in. W x 1-1/8 in. D x 7/8-in. H
  • Produces up to 634-lbs. of ice daily
  • Illuminated EasyRead display is lit by a blue backlight and provides information on the operation status asset information, and cleaning schedules
  • USB slot for import and export of production and upgrade information
  • Ice production can be set based on time of day, ice volume, or bin level (with bin level accessory)
  • AlphaSan® inhibits microbial development on the distribution tube, evaporator, water tray, sensing probe, and drain tube
  • DuraTech™ clear coat on stainless steel exterior for superior resistance to corrosion and fingerprints
  • 115 V/60 Hz/1-ph, 1.1 A, plug and cord not included
  • Overall Dimensions: 30-in. W x 24-1/2 in. D x 21-1/2 in. H
  • CE and cULus Listed; AHRI, ISO 9001:2008, NSF, and ENERGY STAR Certified; California Low Lead Qualified

Indigo™ QuietQube Ice Maker, cube-style, air-cooled, designed for remote refrigeration, 30"W x 24-1/2"D x 21-1/2"H, production capacity up to 634 lb.24 hours at 70°/50° (530 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, CVD Technology, ENERGY STAR®, 115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Manitowoc Ice IY-0686C Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 634 lbs
Also Known As 399-IY0684C, IY-0684C, IY-0686C
Compressor Type Remote Cooled
Depth (in) 25
Height (in) 22
Ice Type Half Cube
Width (in) 30
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Production Range 300-899 lb
Hertz 60
Voltage 115
Phase 1
Weight 146.00
Manitowoc Ice IY-0686C Certifications
  • UL
  • NSF
  • Energy Star
