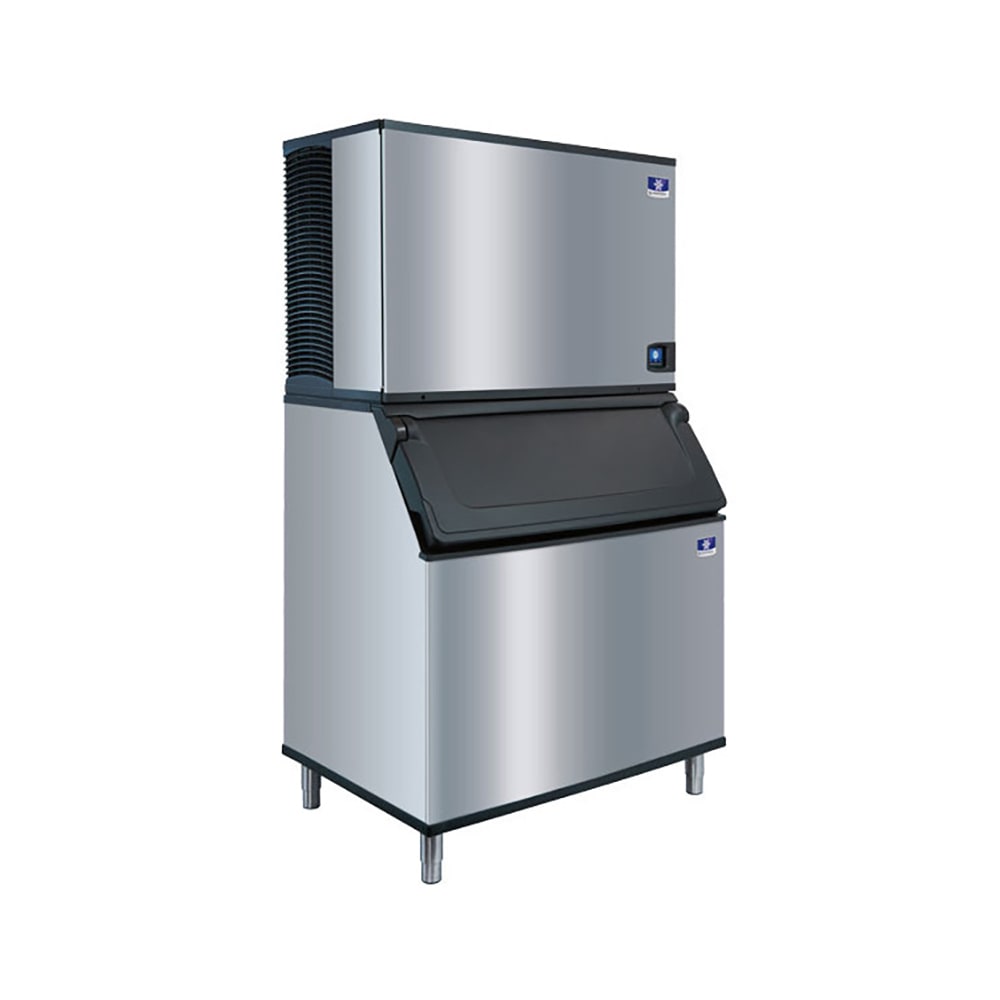

Manitowoc Ice IDT1900N/JCT1500/D970/RL50R410A 1915 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 882 lb Storage, Remote Cooled, 208-230v

The Manitowoc Ice IDT-1900N/D-970 Indigo NXT™ ice machine with bin can make 1,900 pounds of ice in 24 hours. This amount can be programmed based on ice volume or operation time. It makes full-cube ice that measures 0.875 inch by 0.875 inch by 0.875 inch, which is perfect for drinks since it melts slowly, but does not cool as quickly as small ice types. Each ice batch is measured by an acoustical ice sensing probe. Users can check the operating status on the touchscreen display; this panel also provides alerts and unit information.

The ice maker components in the food zone are available behind the swing-out door, and some of them can be removed for cleaning. A remote condenser comes with the unit, and it should be installed in a separate location so heat can dissipate away from the ice machine, reducing ambient air temperature and lowering noise levels. This type of condenser can be harder to service than a unit with the condenser in the machine head, since it requires access that may be more difficult to achieve.

The Manitowoc Ice IDT-1900N/D-970 ice maker with bin has an 882-pound storage capacity. An ice scoop is included that has a 5.3-pound capacity and built-in guards to prevent the user's hands from touching the ice and contaminating it. As users scoop ice, the self-latching door hinge holds the door open for convenience. The ice machine head and bin have a stainless steel exterior with a corrosion-resistant clear coating.

Ice Maker Details

• 1,900-lb. daily ice production capacity
• 1,540-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Ice production can be programmed for volume or time of day
• Sound waves with the acoustical ice sensing probe measure ice thickness to ensure cycles are consistent
• easyTouch® display communicates operating status and alerts
• 24-hr. preventive maintenance and diagnostics
• Swing-out food zone door ensures components are accessible
• Removable distribution tube, sensing probes, curtain, and water trough
• Select components have AlphaSan® antimicrobial protection that slows bacteria growth
• Corrosion-resistant DuraTech™ clear coat over the stainless steel exterior is corrosion resistant and hides fingerprints
• Uses R410A refrigerant
• 26,100 average BTU; 30,500 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI
• Part of the Indigo NXT series

Product Features

Ice Bin Details

• 882-lb. application capacity
• 29.7-cu.-ft. AHRI-certified capacity
• Ice scoop has a 5.3-lb. capacity
• Built-in guard on the scoop covers hands to prevent ice contamination
• Blue polyurethane bin liner resists scratches
• Insulation holds cold air inside to eliminate quick melting
• Door has right, center, and left side grips for opening from any angle
• Self-latching door stays open for scooping
• DuraTech clear coat protects stainless steel exterior from stains

Dimensions and Utilities

• Ice Maker
  • 48 in. W x 24 in. D x 29.5 in. H
  • 17 A, 4.08 kW
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • 48 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice IDT1900N/JCT1500/D970/RL50R410A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condensing unit and lines sold separately), 48"W x 24"D x 29-1/2"H, production capacity up to 1915 lb/24 hours at 70°/50° (1643 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF; (RL50R410A) Remote Tubing Kit, 50 ft. tubing length (

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
