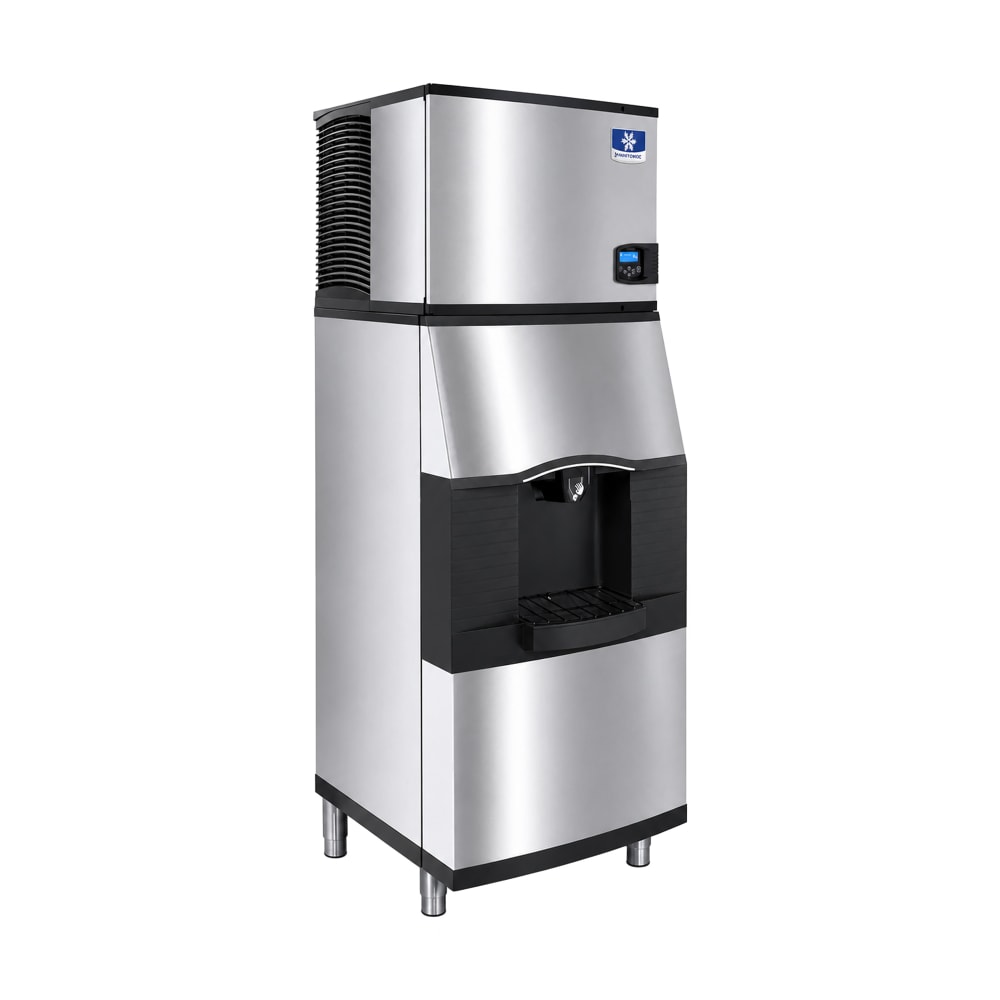

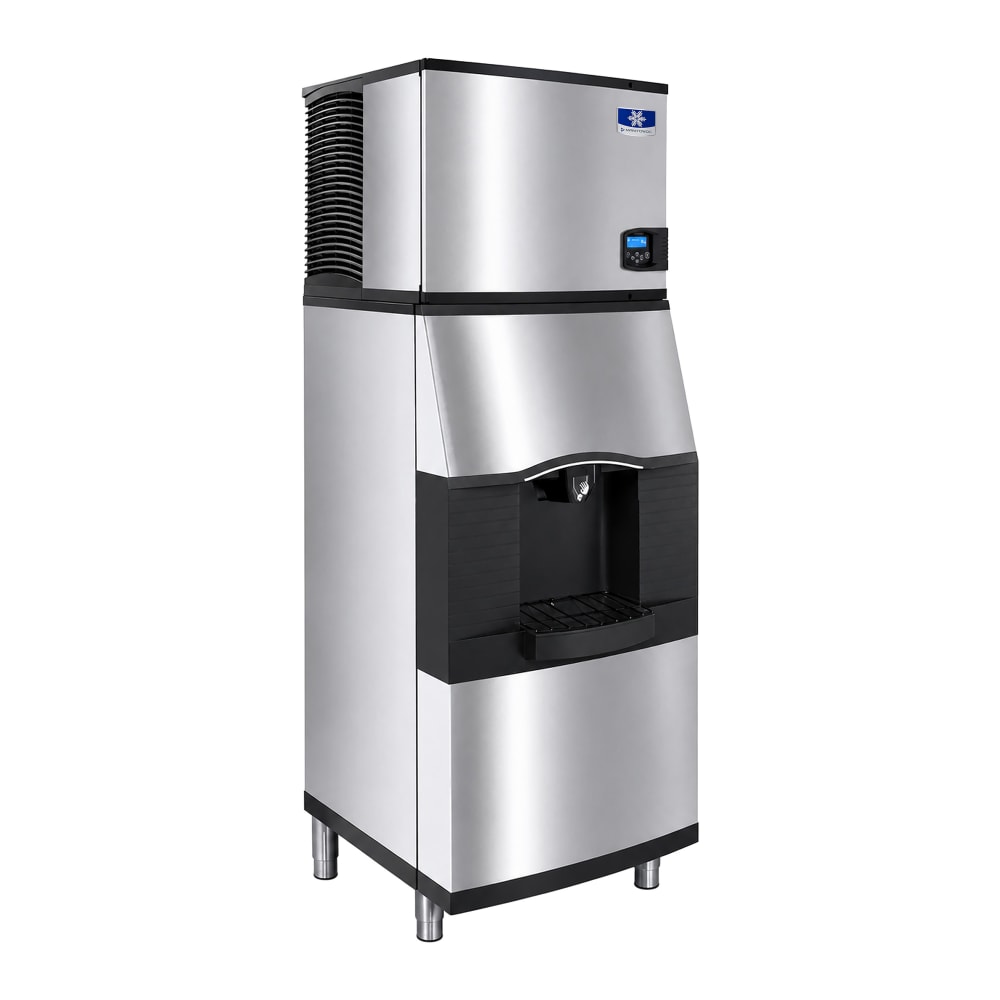

Manitowoc Ice IDT1200W/SPA312 1078 lb Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208/230v/1ph

Manitowoc Ice IDT1200W-261/SPA312 Indigo NXT™ ice maker with dispenser has a 1,078-pound daily production capacity and can store 180 pounds of ice. It is made for filling large containers, which is perfect for hotels and resorts. Operators can program ice production based on an ideal volume or time the unit is on and off. An acoustical sensing probe measures each batch of ice and checks for a consistent thickness before ice moves into the dispenser. Full-cube ice is great for keeping drinks cool but should not be used to make smoothies since it does not break down as easily as small ice types.

On the touchscreen display, staff members can check the operating status and receive alerts for the ice machine head. Components in the Manitowoc Ice IDT1200W-261/SPA312 ice machine with dispenser are accessible through the ice maker's hinged door, and some of the parts are removable. An antimicrobial agent on the integral parts helps prevent bacteria from growing between cleanings.

Ice Maker Details

• Part of the Indigo NXT series
• 1,078-lb. daily ice production capacity
• 900-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Acoustical sensing probe measures thickness of ice to ensure consistency
• Programmable ice production for daily volume or operation time
• easyTouch® display communicates operating status and alerts
• 24-hr. preventive maintenance and diagnostic feedback
• Swing-out, hinged door makes food zone components easy to access
• Removable distribution tube, water probes, curtain, water trough, and water pump
• Select components are made with AlphaSan® antimicrobial technology to slow bacteria growth
• DuraTech™ clear coat on the stainless steel exterior resists corrosion and hides fingerprints
• Water-cooled motor
• Uses R404A refrigerant
• 16,200 average BTU; 19,100 peak BTU
• Required ambient air temperature: 40-100 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Dispenser Details

• 180-lb. capacity
• Made to fill hotel and resort buckets
• Rocking chute dispenser mechanism reduces spilling
• Large drain pan catches overflowing ice
• Ice is broken up with a built-in agitator
• Exterior has a DuraTech coating to hide fingerprints

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 13.4 A, 4.16 kW
  • 208-230 V/60 Hz/1 ph
• Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

From The Manufacturer

IDT-1200W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1078 lb/24 hours at 70°/50° (900 lb AHRI certified at 90°/70°), DuraTech™ exterior, regular dice size cubes, NSF, cULus, CE

SPA-312: Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT1200W/SPA312 Specifications
