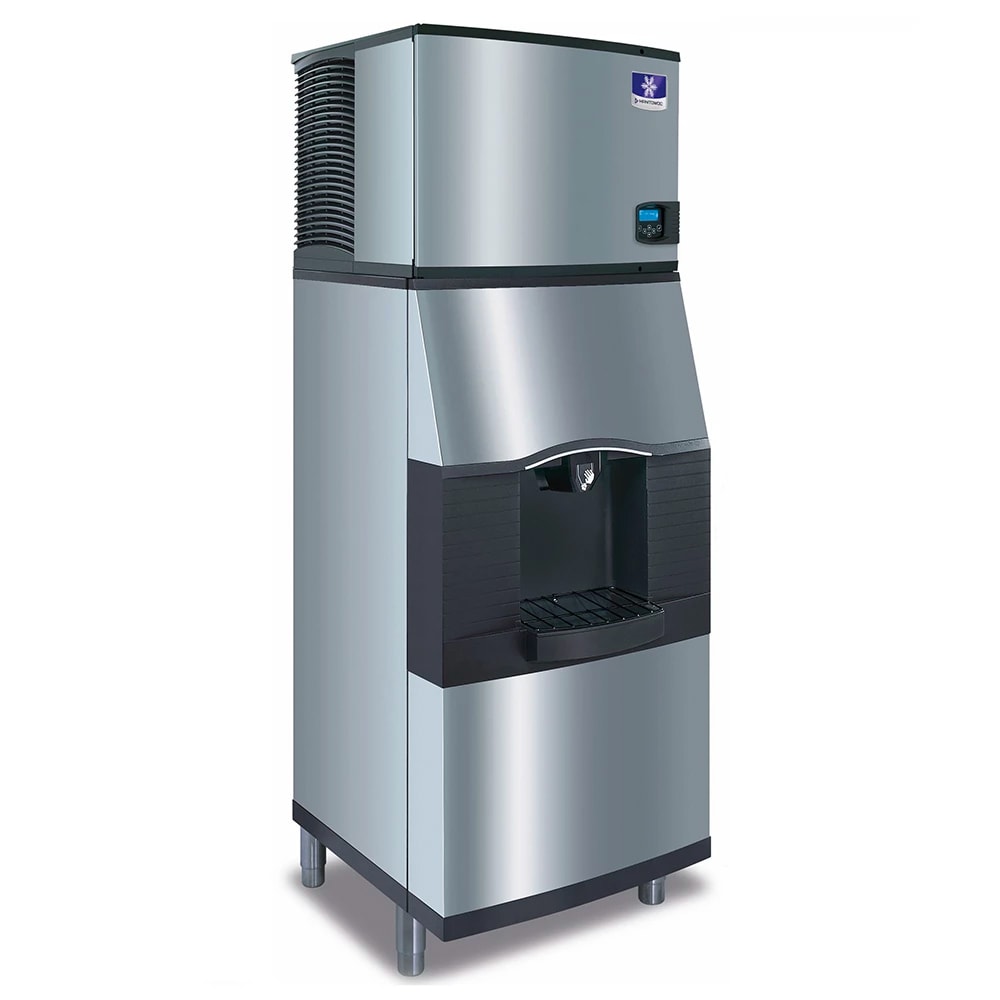

Manitowoc Ice IDT0750A/SPA312 680 lb Indigo NXT™ Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208-230v/1p

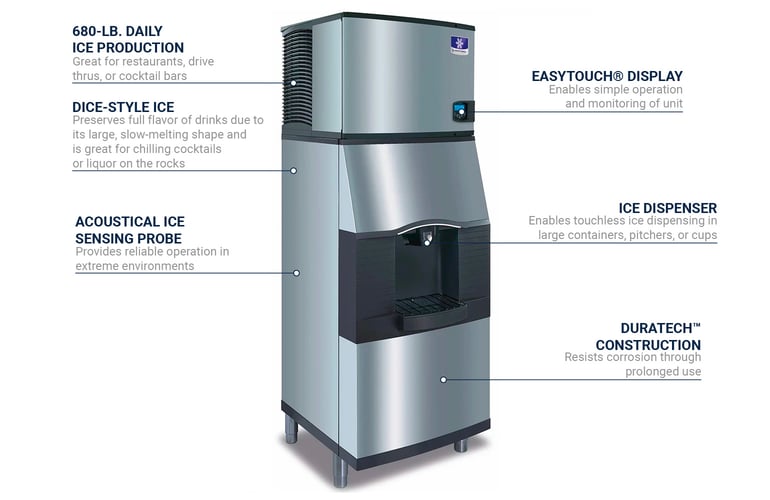

Featuring an icon-based easyTouch® display, the Manitowoc Ice IDT0750A-261/SPA312 Indigo NXT™ ice maker and dispenser is user friendly. Its daily production level is programmable, and operators can pause production with the delay feature when needed. The display also provides maintenance alerts to help keep the unit running smoothly, and to speed up service calls, it self-diagnoses issues.

This Manitowoc Ice IDT0750A-261/SPA312 ice machine and dispenser makes dice ice that measures ⁷/₈ of an inch on each side. While these cubes are not as large as Manitowoc's regular or gourmet cubes, they still melt slowly and work for hotel bags or buckets. The unit's large dispensing area accommodates most containers, and the large drain pan can hold excess ice, helping keep the floor dry. The quick-to-respond dispenser lever cuts down on waste, while the internal agitator helps empty all cubes from the interior.

To create pure ice, this unit sprays water upwards onto the evaporator, so the sediment can fall off instead of freezing. Food zone components consistently touch the water and are protected against bacterial growth with AlphaSan® protection.

Ice Maker Details

• Part of the Indigo NXT series
• Maximum daily production: 680 lbs.
• AHRI-certified daily production: 540 lbs.
• Creates dice-style ice
• Dice cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Touchscreen display featuring intuitive controls
• Daily ice amount is programmable
• Delay option conserves energy during slow business hours
• 24-hr. preventive maintenance alerts
• Automatic diagnostics
• Ice-sensing probe helps unit accommodate various water conditions
• AlphaSan antimicrobial agents in key components
• Food zone has removable parts to ease cleaning
• Durable DuraTech™ exterior is corrosion resistant
• Air-cooled condenser
• R410A refrigerant
• Required clearance: 8 in. at top and sides, 5 in. at rear
• Ambient air temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Water pressure: 20-80 PSI
• 12,800 average BTU; 13,700 peak BTU

Ice Dispenser Details

• 180-lb. AHRI-certified storage capacity
• Sensitive ice-dispensing mechanism is quick to respond
• Oversize drain pan collects ice to help keep the floor dry
• Agitator encourages complete dispensing for fresh ice
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24 in. D x 21¹/₂ in. H
• 11.1 A, 5.24kW
• 208-230 V/60 Hz/1 ph
• Ice Dispenser
• 30 in. W x 32 in. D x 60¹/₂ in. H
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT0750A/SPA312 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker w/ Ice Dispenser, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 680 lb/24 hours at 70°/50° (540 lb AHRI certified at 90°/70°), DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®; Vending Ice Dispenser: touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0750A/SPA312 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
