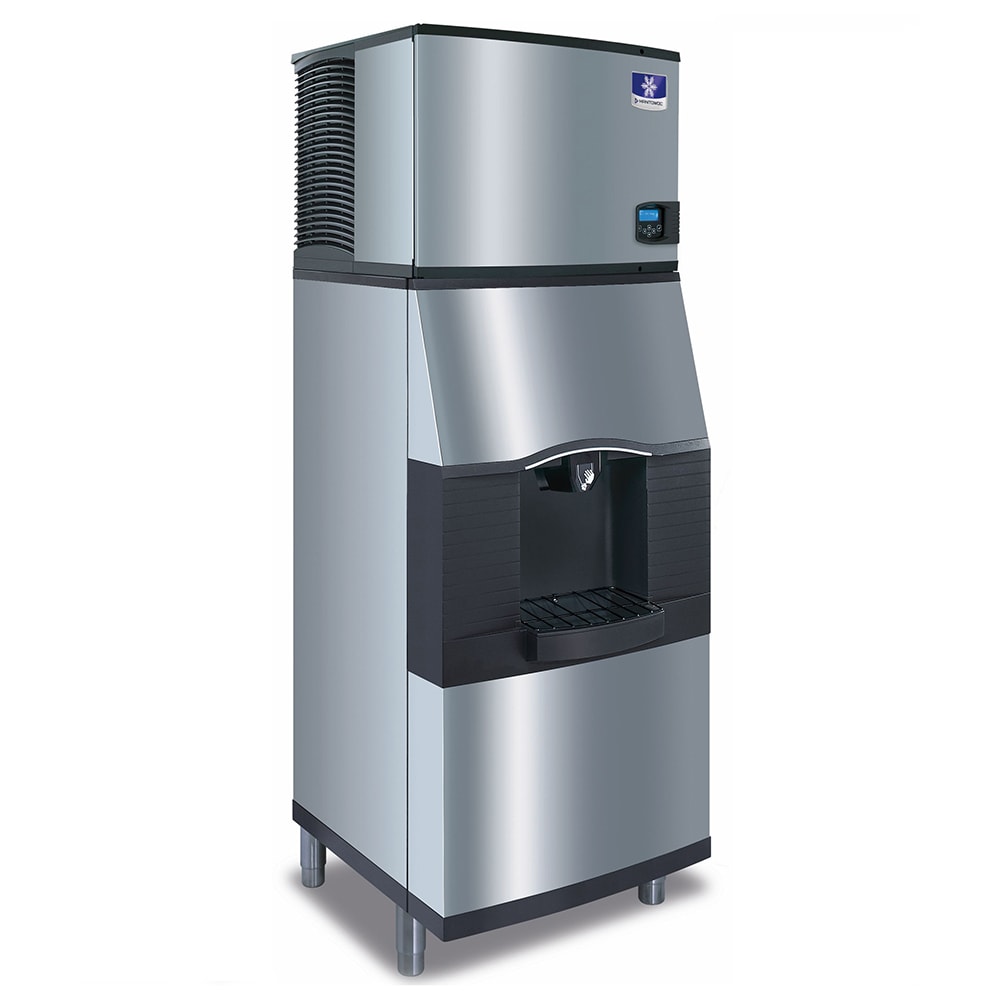

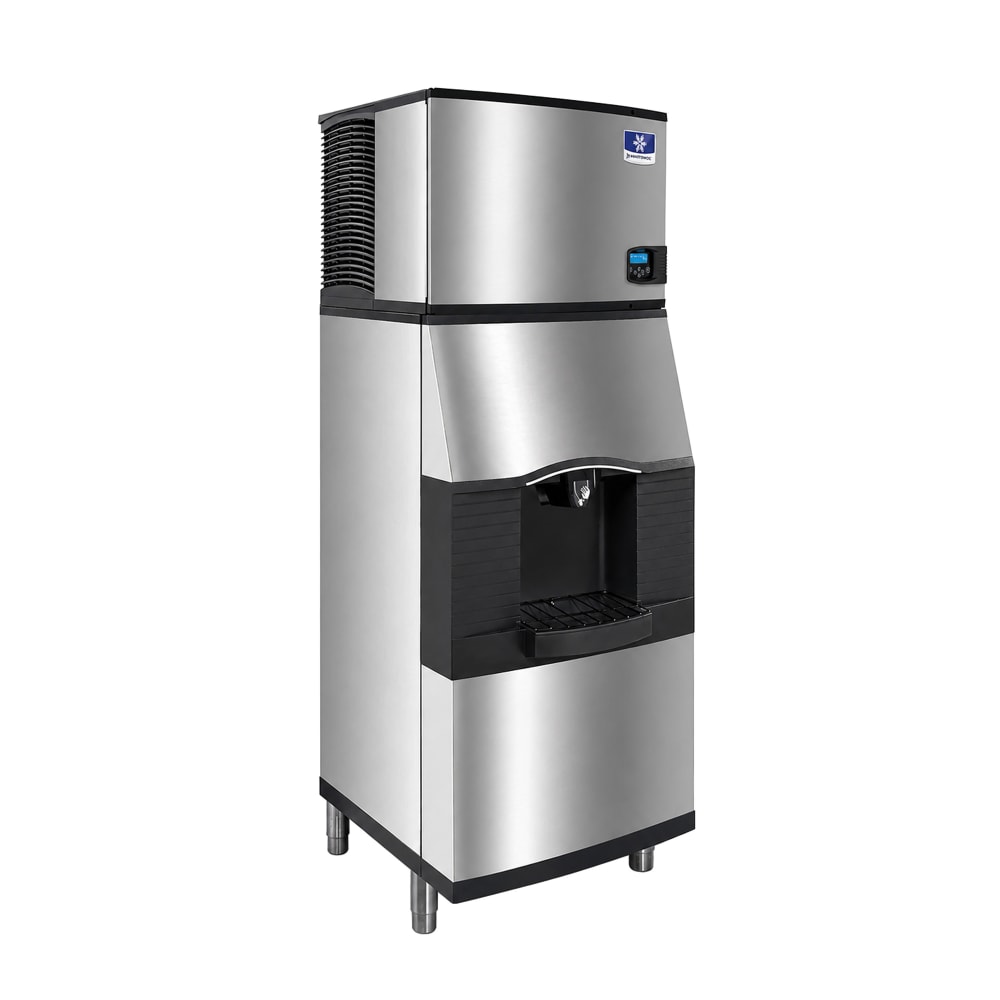

Manitowoc Ice IDT0450W/SFA292 430 lb Full Cube Ice Machine w/ Water & Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IDT0450W-161/SFA292 ice maker with dispenser can produce 430 pounds of dice ice daily. This ice type can be used in any beverage, making it great for dispensing. Ice production volume can be programmed, along with the time of day. An acoustical probe measures ice thickness, ensuring each cube is consistent before it drops into the dispenser. The door to the food zone is on the front and has a swing-out design for convenient access. Some of the components are removable, and the antimicrobial agent slows bacteria growth.

Ice Maker Details

• Water-cooled condensing unit
• 430-lb. ice production capacity
• 360-lb. AHRI-certified ice production capacity
• Dice ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Programmable ice production based on volume and time
• Acoustical sensing probe measures ice to check thickness
• easyTouch® display has touchscreen icons
• 24-hr. preventive maintenance and diagnostic feedback
• Hinged food zone front door has a convenient swing-out design
• Removable curtain, distribution tube, water probe, water pump, and water trough
• AlphaSan® antimicrobial agent helps prevent bacteria growth
• DuraTech exterior is smudge and corrosion resistant
• Uses R410A refrigerant
• Ambient temperature range: 40-110 degrees F
• Incoming water temperature range: 40-90 degrees F
• Incoming water pressure: 20-80 PSI

Product Features

Ice Dispenser Details

• 180-lb. storage capacity
• Fills large containers
• Rocking chute dispenser reduces spilling
• Oversized drain pan catches ice overflow
• Built-in water valve
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 21.5 in. H
  • 11.2 A, 4.75 kW
  • 115 V/60 Hz/1 ph
• Ice Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Ice Machine IDT0450W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity 430 lb./24 hours at 70°/50° (360 lb. AHRI certified 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Dispenser SFA292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30"

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
