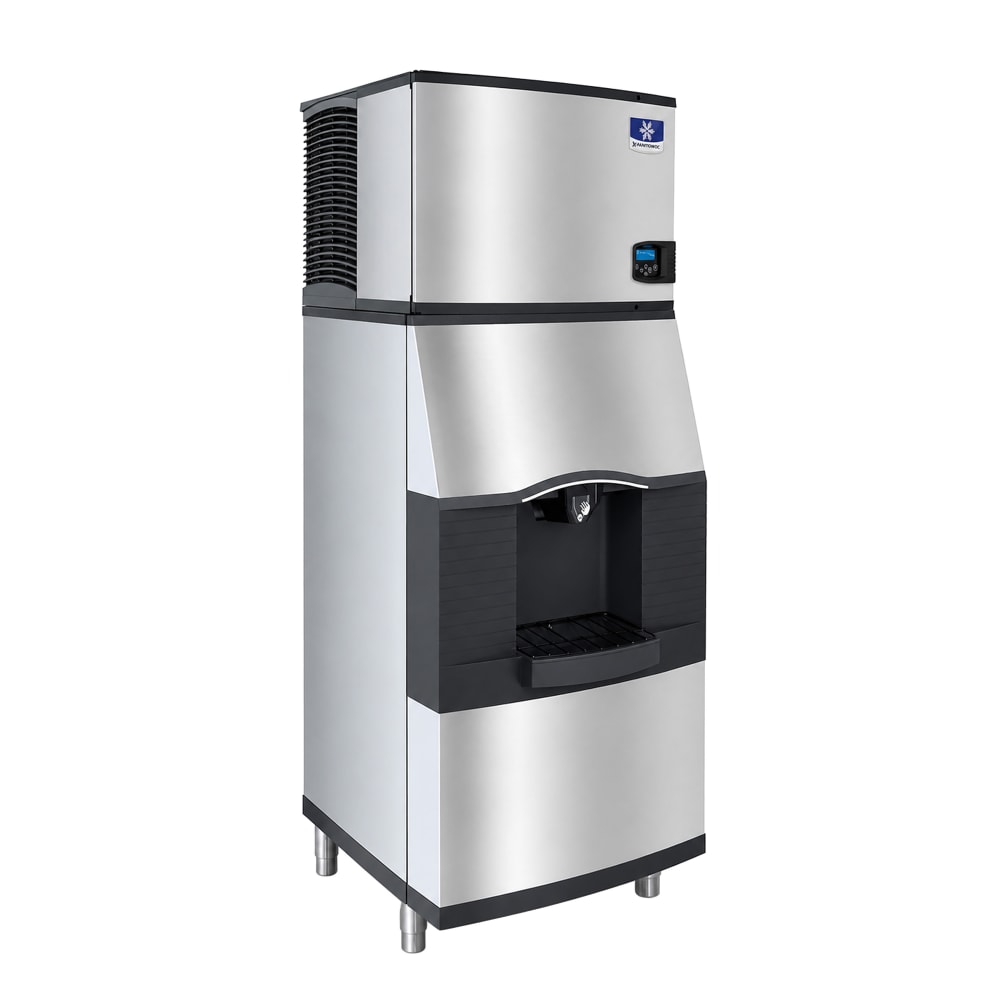

Manitowoc Ice IDT0450A/SFA292 470 lb Full Cube Ice Machine w/ Water & Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IDT0450A-161/SFA292 ice maker with dispenser produces dice ice that measures 0.875 inch by 0.875 inch by 0.875 inch. In 24 hours, it can make 470 pounds of ice; production can be programmed based on desired volume or time of day. An acoustical sensing probe measures the thickness of ice before it moves into the dispenser. As much as 180 pounds can be stored, and the dispenser fills large containers. The large drain pan catches ice overflow, keeping messes off the floor.

Ice Maker Details

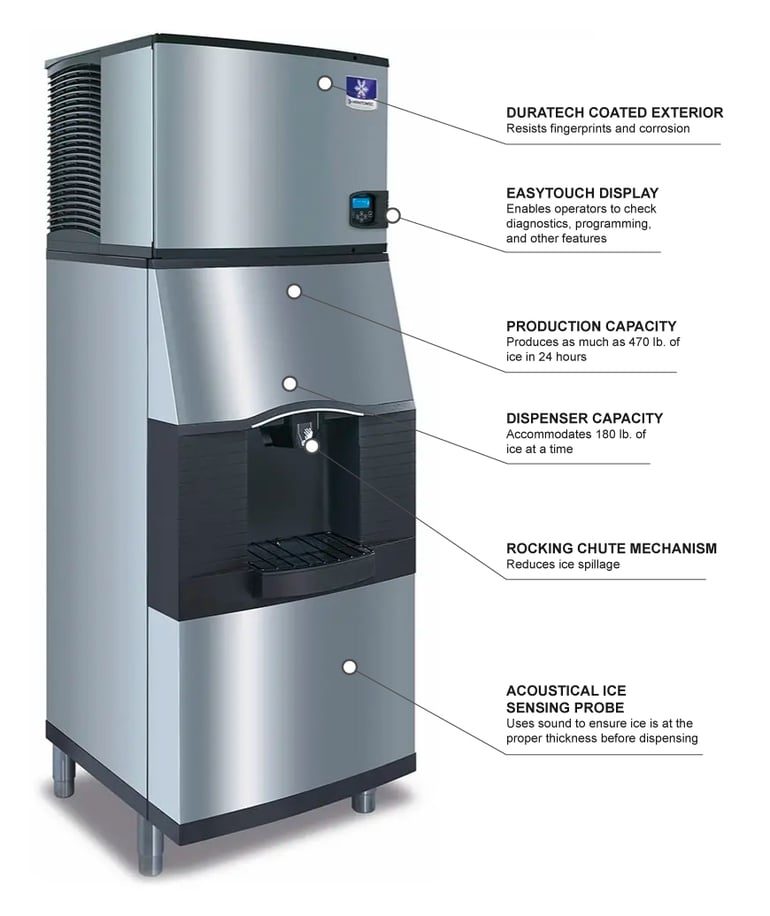

• 470-lb. ice production capacity
• 358-lb. AHRI-certified ice production capacity
• Dice ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Ice production is programmable based on volume or time
• Acoustical sensing probe measures ice thickness with sound waves
• easyTouch® touchscreen display
• 24-hr. diagnostic feedback and preventive maintenance
• Hinged front door swings out, providing access to the food zone
• Removable water probe, distribution tube, water pump, curtain, and water trough
• AlphaSan® antimicrobial agent resists bacteria growth
• DuraTech exterior resists fingerprints and corrosion
• Air-cooled condenser
• Uses R410A refrigerant

Product Features

Ice Dispenser Details

• 180-lb. storage capacity
• Designed to fill large containers
• Rocking chute dispenser helps prevent ice from spilling
• Oversized drain pan collects overflow
• Built-in water valve
• DuraTech exterior

Dimensions & Utilities

• Ice maker
  • 30 in. W x 24.5 in. D x 21.5 in. H
  • 11.9 A, 5.63 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Ice Machine IDT0450A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 470 lb./24 hours at 70°/50° (358 lb. AHRI certified tat 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Dispenser SFA292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl tr

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
