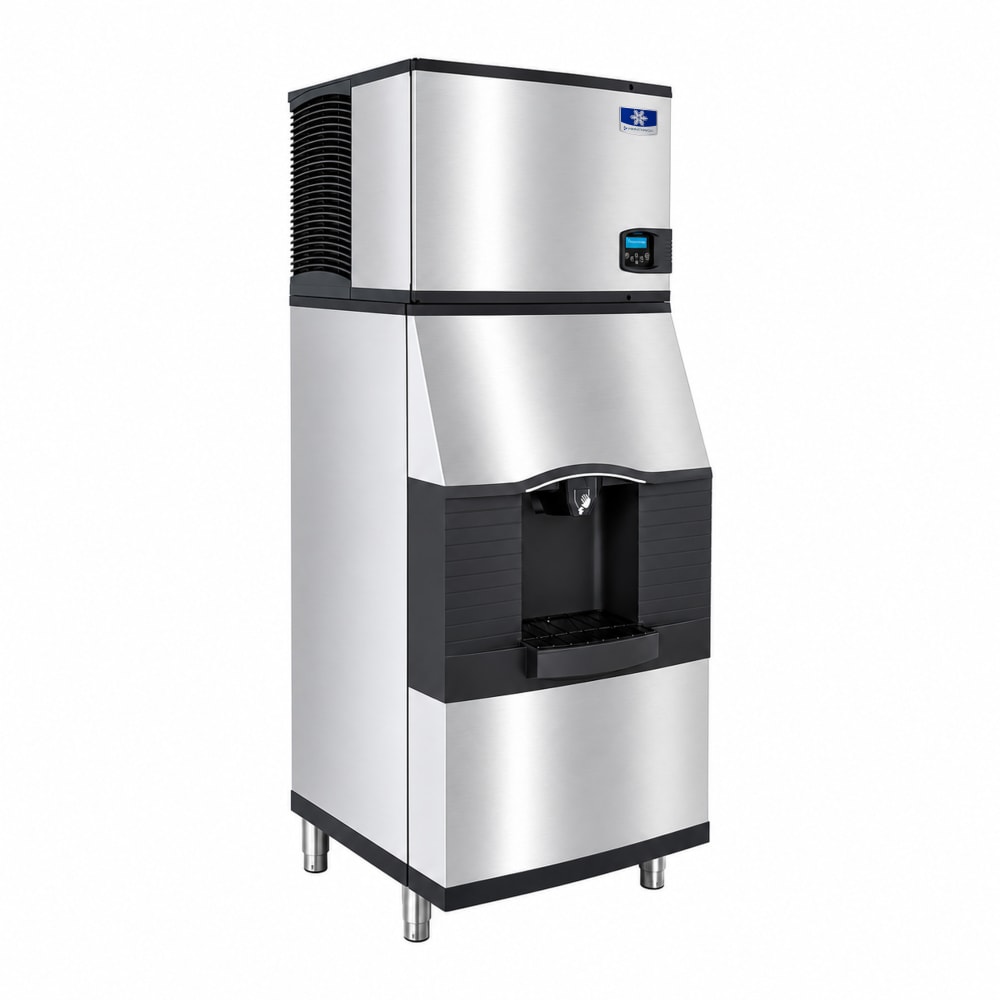

Manitowoc Ice IDT0450A/SPA312 470 lb Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IDT0450A-161/SPA312 Indigo NXT™ commercial ice machine and dispenser is programmable by hours of operation and volume, enabling customers to tailor it to their establishment’s specific needs. It makes dice ice, a large cube with slow melting properties that is suitable for hotel machines or bagged ice, and the head’s acoustical ice-sensing probe checks the thickness of ice cubes in the head—ensuring cubes are produced at a regular thickness. Helping users manage their machine, the front display gives diagnostic feedback and 24-hour maintenance information.

The Manitowoc Ice IDT0450A-161/SPA312 floor model ice maker and dispenser’s built-in agitator limits ice waste by breaking up ice chunks and dispensing it. While the dispenser is pouring, a rocking chute mechanism controls the amount of ice dispensed to conserve product. Whatever ice does spill is caught by an oversized drain pan, and so it can be cleaned of smudges or dirt stains, the dispenser’s DuraTech™ exterior has a stainless finish.

Ice Maker

• Part of the Indigo NXT series
• 470-lb. maximum daily ice production
• 358-lb. AHRI-certified daily ice production
• Daily volume and hours of operation are programmable
• Intelligent troubleshooting diagnostics
• easyTouch® display streamlines machine operation
• Produces dice ice
• Dice-cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Acoustical ice-sensing probe ensures consistent ice cube thickness
• Air-cooled system
• DuraTech exterior holds up against dirt stains and smudges
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Ideal clearances: 12 in. on top, 12 in. on side, 5 in. on back
• R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU

Product Features

Dispenser

• 180-lb. AHRI-certified bin capacity
• DuraTech exterior
• Rocking chute mechanism controls ice flow to limit waste
• Built-in agitator improves ice dispensing efficiency
• Ideal for filling ice buckets at hotels or resorts

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 21¹⁄₂ in. H
  • 11.9 A, 5.63 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 30 in. W x 32 in. D x 60¹⁄₂ in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IDT0450A/SPA312 within the 48 contiguous states.

From The Manufacturer

Ice Machine IDT0450A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 470 lb./24 hours at 70°/50° (358 lb. AHRI certified tat 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Dispenser SPA312: Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice ma

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
