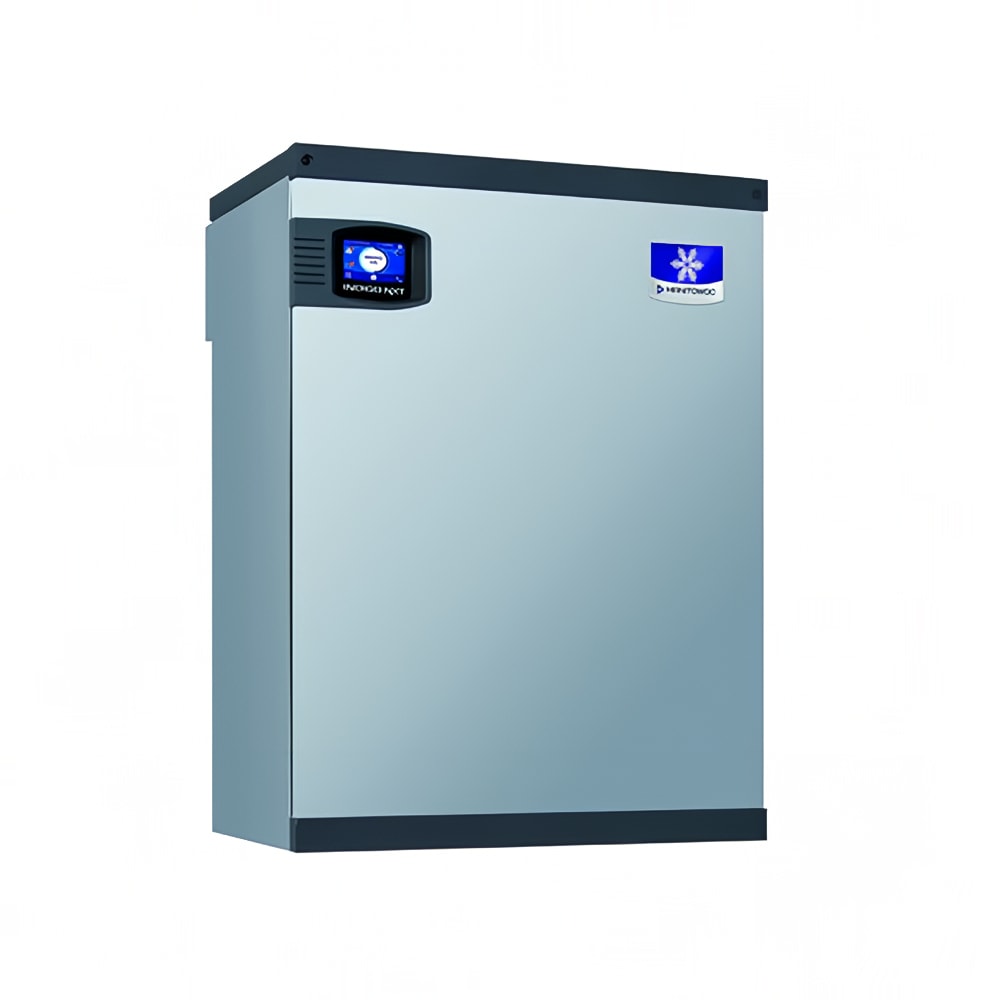

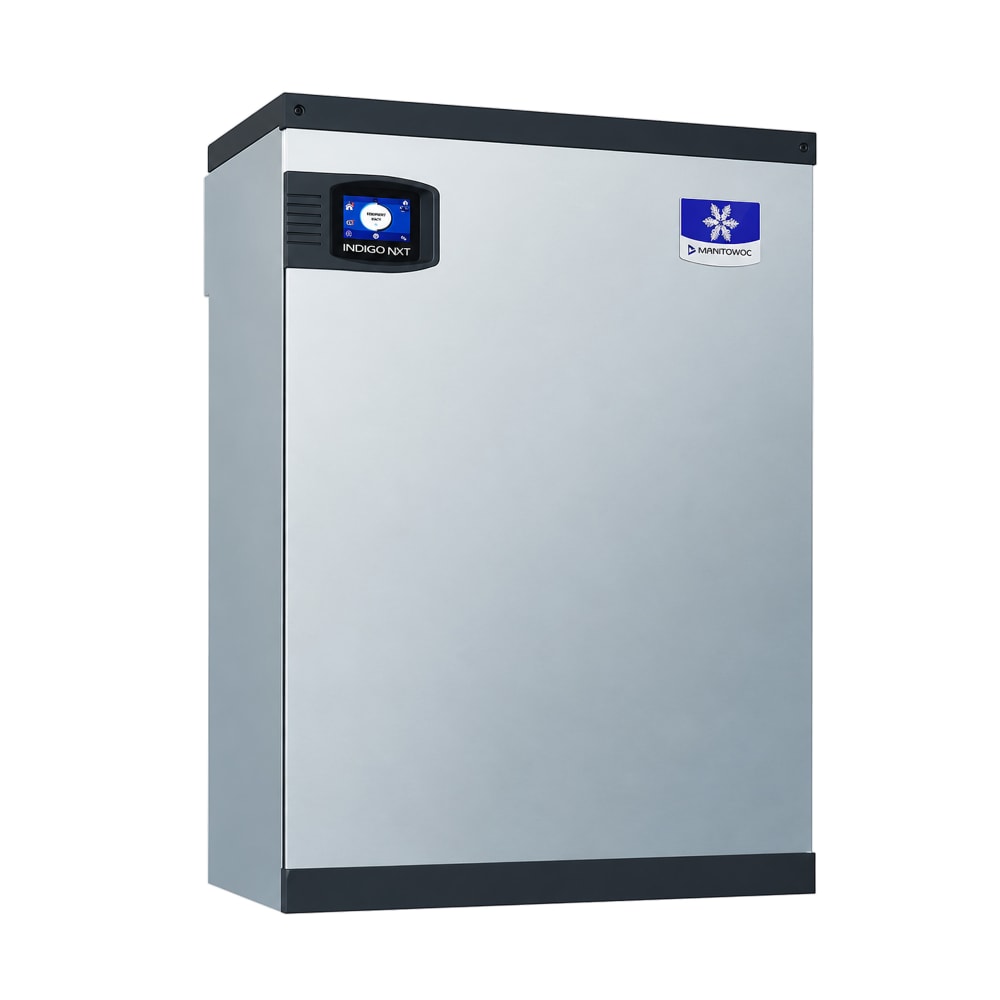

Manitowoc Ice IBF0620C 22" Indigo NXT™ QuietQube Half Cube Ice Machine Head - 675 lb/24 hr, Remote Cooled, 115v/1ph

The Manitowoc Ice IBF0620C Indigo NXT™ ice machine head produces half-cube ice, a type that's good for chilling drinks while optimizing product displacement. It's air-cooled, so it uses less water than a water-cooled system, and the remote compressor means this ice machine head operates quietly. Enhanced with DuraTech™ clear coat, the machine's exterior resists scratches, scuffs, fingerprints, and rust.

The Manitowoc Ice IBF0620C Indigo NXT ice machine head can produce 675 pounds of ice per day in ideal conditions, suitable for low-volume establishments. It measures just 22 inches wide and is compatible with most beverage dispensers, so this ice machine head can fit into a variety of beverage station configurations. Alerting users when maintenance is needed, this machine has 24-hour diagnostic feedback capabilities.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Indigo NXT QuietQube beverage series
• Air cooled
• Produces half-cube ice
• 675-lb. maximum daily ice production
• 564-lb. AHRI-certified daily ice production
• Designed for remote, air-cooled refrigeration
• DuraTech exterior defends against corrosion and dirt
• Fingerprint-resistant clear coat
• Space-saving, 22-inch-wide footprint
• Compatible with most beverage dispensers
• Operates quietly to reduce distractions in the kitchen area
• Intelligent diagnostics provide 24-hour feedback
• Acoustic ice sensing probe for accuracy
• easyTouch® icon-based display
• Programmable ice production
• Lift-off front door streamlines foodzone access
• Removable water trough, distribution tube, curtain, and sensing probes
• AlphaSan® antimicrobial enhances select components
• CVD technology
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Product Features

Dimensions & Utilities

• Ice cube: ³⁄₈ in. W x 1¹⁄₈ in. D x ⁷⁄₈ in. H
• Head: 22 in. W x 14 in. D x 24 in. H
• Operates with R404A refrigerant
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 1.1 A
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IBF0620C within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker Beverage, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 22"W x 14"D x 24"H, production capacity up to 675 lb/24 hours at 70°/50° (564 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-size dice cubes, CVD Technology, NSF, cULus

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IBF0620C Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.

Documents

Spec Sheet

Warranty

Service Manual

Manual

Product Info

Brochure
