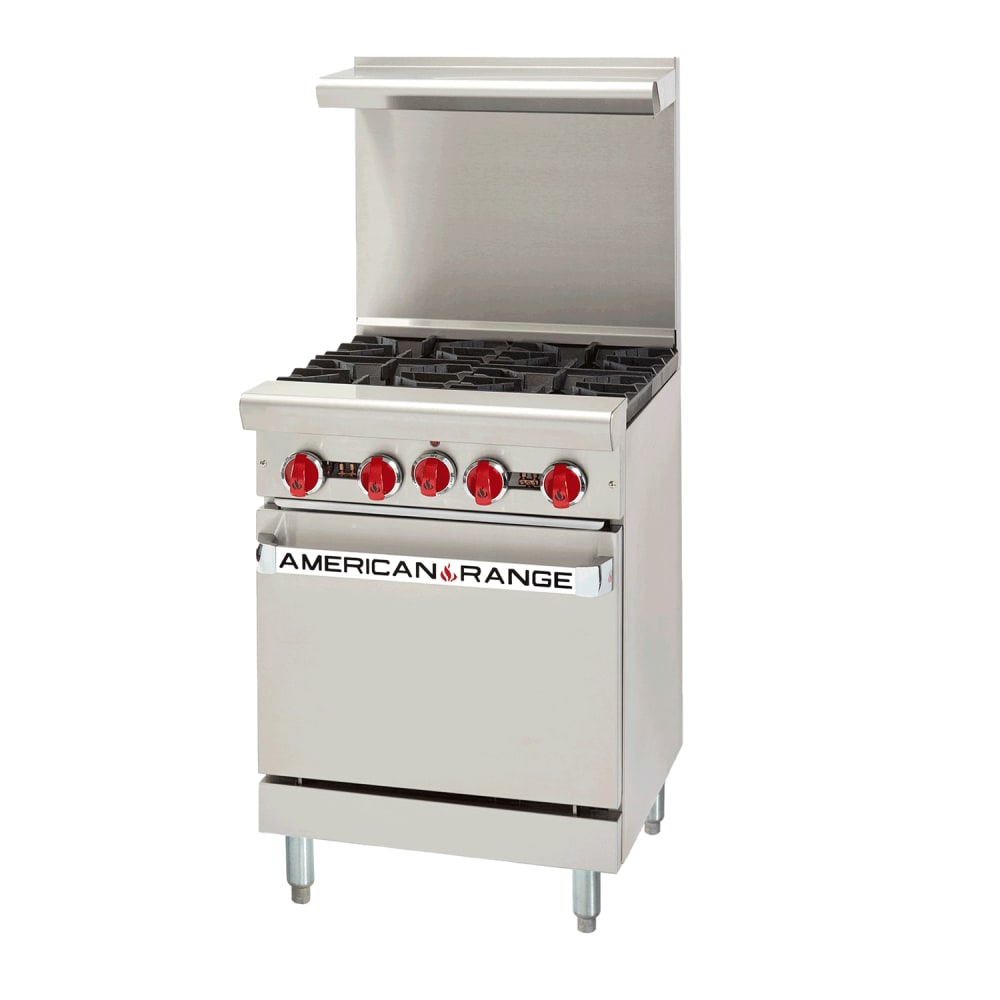

American Range AR-4 24" 4 Burner Gas Range w/ Space Saver Oven, Natural Gas
$3,035.00 /Each
Login or call for details!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
American Range AR-4 Description
The American Range AR4 gas range is a good choice for locations with limited available space or that produce small to medium volumes of baked and roasted food items. Its four lift-off, open burners are topped with heavy-duty, sectioned, cast iron grates that can reach a high heat and maintain it better than stainless steel alternatives. Although the oven has a compact design that uses minimal space, it can hold a standard full-sized sheet pan for large-batch food preparation.
This American Range AR4 four-burner range is made of heavy-gauge stainless steel and has a heavy-duty, welded front frame that adds support to the unit's structure. This construction resists rust, dents, and warping, even with extended use. Cleaning and sanitizing this item are simple—the stainless steel oven door and split iron grates are removable for unrestricted operator access. The included oven rack is plated with chrome for resistance to stuck-on food and corrosion.
- 12-in. x 12-in. sectioned, cast iron top grates
- 4 lift-off, open range burners are removable for cleaning
- 32,000 BTU/hr. per range burner
- 24-in.-wide cook surface
- Thermostatic temperature control for range and oven
- Temperature range: 150-500 degrees F
- Oven bottom, sides, back, and door liner are made of porcelain finish enamel
- 1 matching, chrome-plated oven rack is included
- 100 percent safety oven pilot
- 100 percent safety gas shut-off
- 6-in. heavy-duty, stainless steel landing ledge
- Stainless steel front, sides, high shelf, and riser are suitable for high-volume use
- Matchless, push-button ignition reduces the danger of burns
- 1 standing pilot light for each burner, providing instant ignition
- (4) 6-in. steel legs, chrome plated for corrosion resistance
- 155,000 BTU overall
- Oven interior: 20 in. W x 26 1⁄2 in. D x 13 1⁄2 in. H
- Overall: 24 in. W x 28 1⁄2 in. D x 56 in. H
- Heated by natural gas
- Gas inlet: 3⁄4-in. NPT
- 46 kW
*Image may not depict product color, inclusions or accessories.
*Free shipping on American Range AR-4 within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Restaurant Range, gas, 24", (4) 32,000 BTU open burners, (1) 20" space saver oven, (2) racks, stainless steel front, sides & high shelf, 6" adjustable chrome plated legs, 46.0kW, 155,000 BTU, ETL-Sanitation
American Range AR-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | American Range |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Space Saver Oven |
| BTU / Burner | 32000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 56 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 32000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Space Saver Oven | 5 |
| Racks per Space Saver Oven | 2 |
| Racks per Standard Oven | 2 |
| Range Configuration | Burners |
| Rating | Better |
| Space Saver Oven BTU/hr | 27000 |
| Space Saver Oven Dimensions | 20"W x 26-1/2"D x 13-1/2"H |
| Total BTU | 155000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 2-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 315.00 |
