Norlake KLB74810-C 8' x 10' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,388.83 /Each
Login or enter your email to be instantly sent the price!
Selected Hinge: Right Hinge
Left Hinge
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Norlake KLB74810-C Description

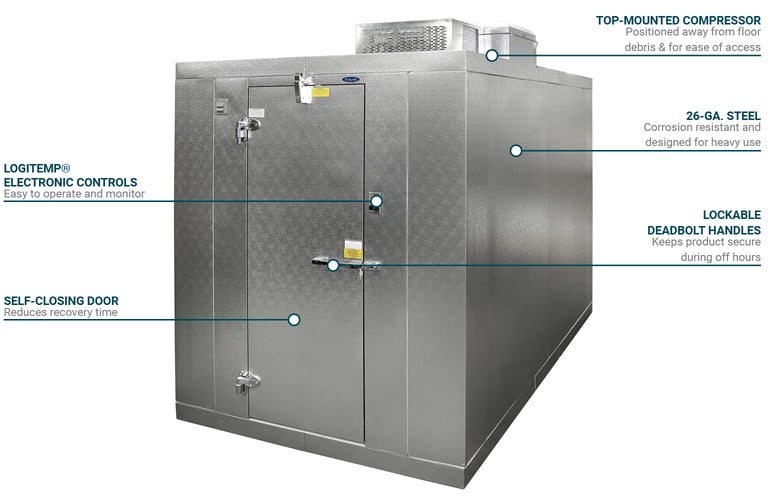

The Norlake KLB74810-C walk-in cooler is built of 26-gauge steel for durability and is insulated with 4 inches of polyurethane foam. The compressor and Capsule Pak refrigeration system are mounted atop the unit to save space and to slow the buildup of debris. The solid, right-hinged door also helps lock in cool air and uses a deadbolt to secure the product during off hours.
Installation of the Norlake KLB74810-C hold Locker™ cooler is easy, as each panel is made to interlock easily with each other; additionally, the unit uses the location’s preexisting floor as its own. The interior space is lit with an LED fixture installed above the doorway to prevent users from bumping their heads. To control and monitor the unit, it is fitted with a LogicTemp® electronic operating system and digital thermometer.
Product Details
- Kold Locker series
- 26-ga., coated-steel build
- Floorless design
- 26-in. wide self-closing, right hinge door
- Cam-lift hinges
- Magnetic gasket
- Locking deadbolt handle
- Perimeter door heater
- LogiTemp electronic controller system
- 4-in. foamed-in-place polyurethane insulation
- Digital thermometer and light switch
- Low profile LED light above doorway
- 37 degree F holding temperature
- Indoor use
Capsule Pak Refrigeration Unit
- Top-mounted compressor
- Air-cooled condensing unit
- Flush-mounted evaporator coil
- Automatic condensate evaporator
- R290 hydrocarbon refrigerant
Dimensions & Utilities
- 8 ft W x 10 ft. D x 7 ft. 4 in. H
- 120 V/60 Hz/1 ph
Product Features
*Free shipping on Norlake KLB74810-C within the 48 contiguous states.
From The Manufacturer
Kold Locker™, Indoor +35°F Cooler, 8' x 10' x 7'-4" H, floorless, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPB075PC-S-0, KL2 QUALIFIER (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )
*Image may not depict product color, inclusions or accessories.
Norlake KLB74810-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | No Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.33 |
| Hinge Configuration | Right |
| Length (ft) | 10 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Series | Kold Locker™ |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1418.00 |
Important Prop 65 information for California residents.
Norlake KLB74810-C Accessories
StoreIt NL810-8X107426-1BK
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Black
StoreIt NL810-8X107426-2WPM
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Polymer Mats
StoreIt NL810-8X107426-3BK
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Black
StoreIt NL810-8X107426-3GY
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Gray
StoreIt NL810-8X107426-3P
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Green
StoreIt NL810-8X107426-3QPV
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Polymer
StoreIt NL810-8X107426-3WPM
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Polymer Mats
StoreIt NL8103-8X107426-1BK
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Black
StoreIt NL8103-8X107426-1GY
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Gray
StoreIt NL8103-8X107426-1P
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Green
StoreIt NL8103-8X107426-1QP
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Polymer
StoreIt NL8103-8X107426-1WPM
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Polymer Mats
StoreIt NL8103-8X107426-2BK
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Black
StoreIt NL8103-8X107426-2GY
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Gray
StoreIt NL8103-8X107426-2P
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Green
StoreIt NL8103-8X107426-2WPM
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated
StoreIt NL8103-8X107426-3BK
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Black
StoreIt NL8103-8X107426-3GY
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Gray
StoreIt NL8103-8X107426-3P
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Epoxy Coated, Green
StoreIt NL8103-8X107426-3QPV
Shelving Kit for 8' x 10' Walk-In Coolers/Freezers - (4) Levels, Polymer
Other Products From This Line
Compare to Similar Items
| Attributes |
Current Item: Norlake KLB74810-C 8' x 10' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor |

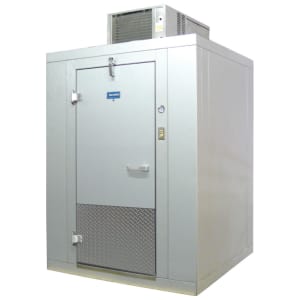

Arctic BL810-C-SC 8' x 10' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor |
